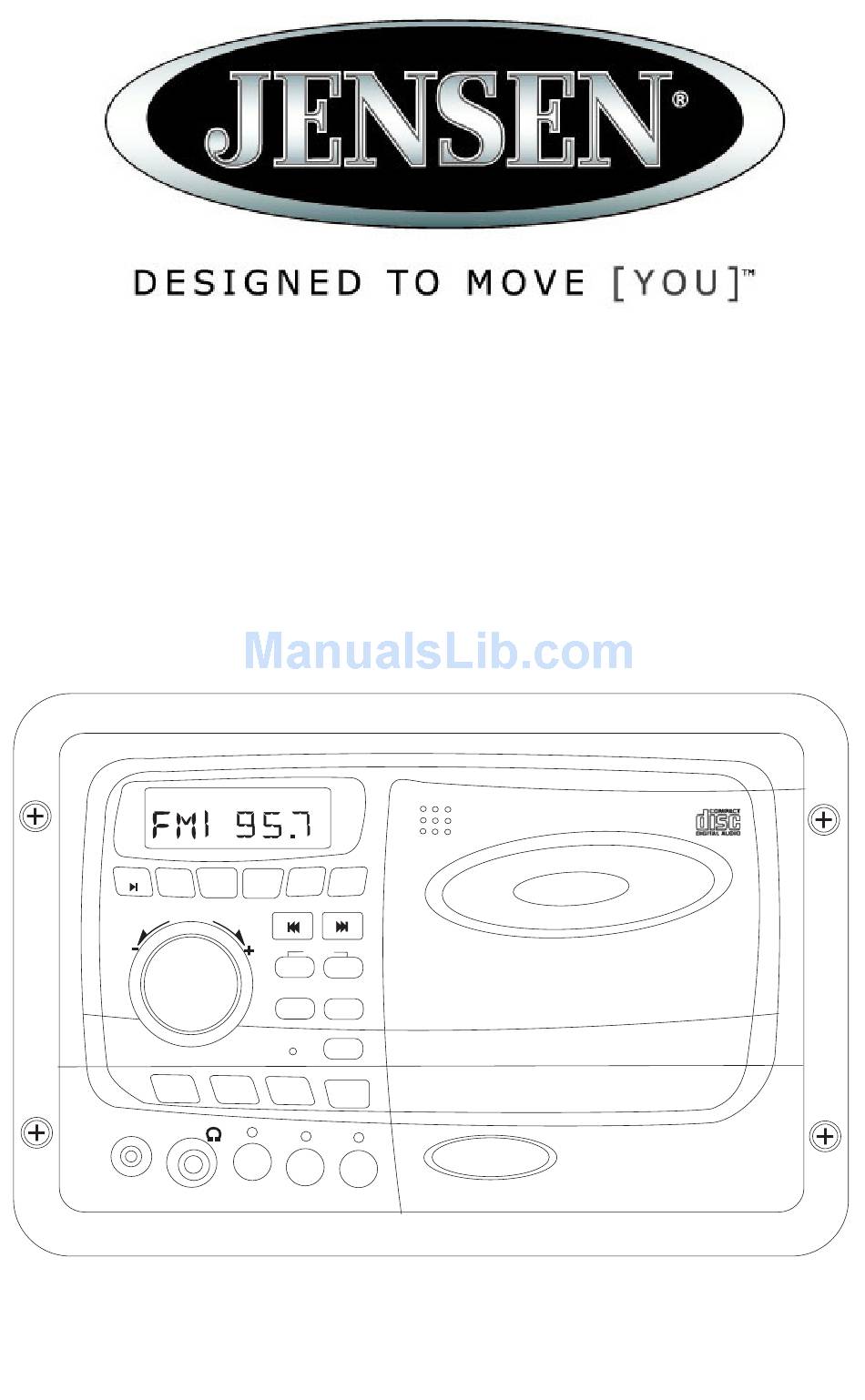

  • Page 1 AWM910 Owner’s Manual COMPACT DISC PLAYER PUSH SCAN PUSH PWR ALARM ON/OFF RADIO CD COMPACT MUSIC SYSTEM MUTE BAND AUX IN AWM910 JENSEN...

  • Page 2: Table Of Contents

    Thank You! Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen receiver for maximum enjoyment. Table of Contents .

  • Page 3: Features

    AWM910 Features Features of the Jensen AWM910 mobile audio system include: • Auto Dimming LCD Display Backlighting • Backlit Controls and Display • Electronic AM/FM Tuner • Three preset EQ Modes • Rotary Volume Control • Time/Alarm Clock • Vertical CD Mechanism for Audio CD, CD-R, CD-RW •...

  • Page 4: Installation

    Installation Select Mounting Location Select a mounting location, taking care to avoid the following: • Places exposed to heat-radiating appliances such as electric heaters • Adjacent to other equipment that radiates heat • Poorly-ventilated or dusty places • Moist or humid locations Preparing the Opening Use the mounting hole diagram (below) to measure and cut a mounting hole, and mount the unit using the four 3x20mm self-tapping screws provided.

  • Page 5: Wiring

    AWM910 Wiring The wiring diagram depicts all the wiring connections required for proper operation of the unit.

  • Page 6: Basic Operation

    (1) to adjust that audio feature. When no adjustments have been made for three seconds, the unit will resume normal operation. Basic Operation COMPACT DISC PLAYER PUSH SCAN PUSH PWR ALARM ON/OFF RADIO CD COMPACT MUSIC SYSTEM MUTE BAND AUX IN AWM910 JENSEN...

  • Page 7: Setting The Clock

    AWM910 5. Auxiliary Input Function Press AUX (5) to directly access auxiliary input mode from any other function mode when portable audio device is connected to the unit. To connect a portable audio device, insert a standard 3.5 mm (audio line output or headphone output from your portable CD / MP3 / iPod or other media player) into an “AUX IN”...

  • Page 8: Tuner Operation

    Press and hold the tune up or tune down buttons to automatically tune up or down to the next strong station. Tuner Operation COMPACT DISC PLAYER PUSH SCAN PUSH PWR ALARM ON/OFF RADIO CD COMPACT MUSIC SYSTEM MUTE BAND AUX IN AWM910 JENSEN...

  • Page 9: Preset Stations

    AWM910 13. Preset Stations Store Preset Stations Six numbered preset buttons (13) store and recall stations for each AM and FM band. To store a station, select a band (if needed), then select a station. Hold a preset button for three seconds.

  • Page 10: Cd Operation

    CD Operation 16. Insert and Eject CD Insert CD Press PUSH (16) to open the CD door. Insert a CD label-side out. Close the CD door. Eject CD Press PUSH again to open the CD door and stop CD play. 17.
  • Page 11 AWM910 Operation 20 21 22 COMPACT DISC PLAYER PUSH SCAN PUSH PWR ALARM ON/OFF RADIO CD COMPACT MUSIC SYSTEM MUTE BAND AUX IN AWM910 JENSEN...

  • Page 12: Specifications

    Specifications General Power Supply Requirements......DC 12 Volts, Negative Ground Operating Voltage ..........10-16VDC Overall Dimensions .
