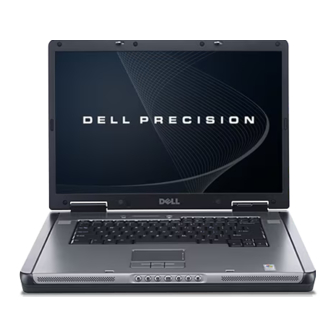

Dell Precision™ M90 Mobile Workstation Quick Reference Guide Model PP05XA w w w . d e l l . c o m | s u p p o r t . d e l l . c o m...
Page 2
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo, Dell Precision, and ExpressCharge are trademarks of Dell Inc.; Intel is a registered trademark of Intel Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation; Bluetooth is a trademark owned by Bluetooth SIG, Inc.
Documentation and drivers are already installed on your computer. You can use the CD to reinstall drivers or to run the Dell Diagnostics (See "Dell Diagnostics" on page 19). Readme files may be included on your CD to provide last-minute...
Page 6
• Solutions — Troubleshooting hints and tips, articles from technicians, and online courses, frequently asked questions • Community — Online discussion with other Dell customers • Upgrades — Upgrade information for components, such as memory, the hard drive, and the operating system •...
Page 7
Access the Dell Support Utility from the icon in the taskbar. For more information, see "Dell Support Utility" in your User’s Guide. Windows Help and Support Center Click the Start button and click Help and Support.
Setting Up Your Computer CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. 1 Unpack the accessories box. 2 Set aside the contents of the accessories box, which you will need to complete the setup of your computer.
About Your Computer Front View display latches (2) display latch release display power button device status lights touch pad media control buttons speakers (2) touch pad buttons touch-pad scroll zone keyboard media button keyboard and wireless status lights Quick Reference Guide...
Left Side View security cable slot air vent Right Side View smart card slot hard drive ExpressCard slot Quick Reference Guide USB connectors (2) optical drive IEEE 1394 connector 5-in-1 media memory card reader audio connectors (2) optical-drive-tray eject button air vent...
Back View air vent S-video TV-out connector network (RJ-45) connector modem (RJ-11) connector USB connectors (2) USB connectors (2) Digital-Video Interface (DVI) connector video (VGA) connector AC adapter connector air vent Quick Reference Guide...
Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only with a compatible battery purchased from Dell. The battery is designed to work with your Dell computer. Do not use a battery from other computers with your computer.
Dell QuickSet may not be available on your computer. Dell™ QuickSet Battery Meter If Dell QuickSet is installed, press <Fn><F3> to display the QuickSet Battery Meter. The Battery Meter displays status, battery health, charge level, and charge completion time for the battery in your computer.
Page 15
NOTE: You can check battery health either by using the charge gauge on the battery as described below, or by using the Battery Meter in Dell QuickSet. For information about QuickSet, right-click the and click Help. To check the battery health using the charge gauge, press and hold the status button on the battery charge gauge for at least 3 seconds.
Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only with a compatible battery purchased from Dell. The battery is designed to work with your Dell™ computer. Do not use a battery from other computers with your computer.
battery-bay latch release To replace the battery, follow the removal procedure in reverse order. Storing a Battery Remove the battery when you store your computer for an extended period of time. A battery discharges during prolonged storage. After a long storage period, recharge the battery fully before you use it. See "Charging the Battery"...
Page 18
A program stops responding or crashes repeatedly NOTE: Software usually includes installation instructions in its documentation or on a floppy disk or CD. N D T H E P R O G R A M — 1 Press <Ctrl><Shift><Esc> simultaneously. 2 Click Task Manager.
Enter system setup, review your computer’s configuration information, and ensure that the device you want to test displays in system setup and is active. Start the Dell Diagnostics from either your hard drive or from the Drivers and Utilities CD (also known as the ResourceCD).
Page 20
If you cannot resolve the error condition, contact Dell. See "Contacting Dell" in your User’s Guide. NOTE: The Service Tag for your computer is located at the top of each test screen. If you contact Dell, technical support will ask for your Service Tag.
Page 21
4 When the tests are completed, if you are running the Dell Diagnostics from the Drivers and Utilities CD, remove the CD. 5 Close the test screen to return to the Main Menu screen. To exit the Dell Diagnostics and restart the computer, close the Main Menu screen.
5 safety, 5 User’s Guide, 5 warranty, 5 End User License Agreement, 5 ergonomics information, 5 hardware Dell Diagnostics, 19 Help and Support Center, 7 help file Windows Help and Support Center, 7 labels Microsoft Windows, 6 Service Tag, 6...
Page 24
5 ResourceCD Dell Diagnostics, 19 safety instructions, 5 Service Tag, 6 software problems, 18 spyware, 19 support website, 6 troubleshooting Dell Diagnostics, 19 Help and Support Center, 7 Index User’s Guide, 5 warranty information, 5 Windows XP Help and Support Center, 7...
Page 25
