Summary of Contents for SMC Networks FS5

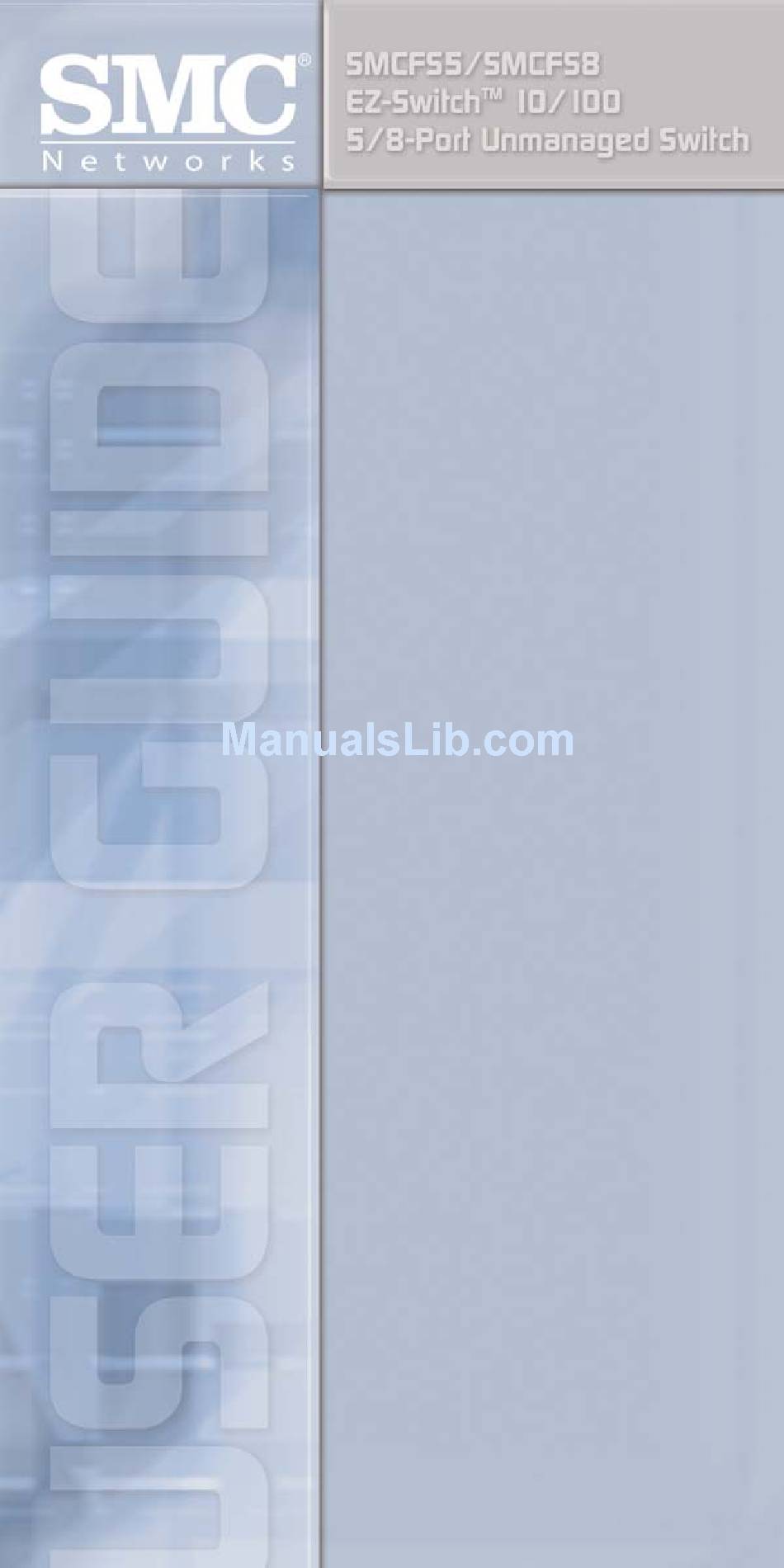

- Page 2 EZ Switch 10/100 User Guide From SMC’s EZ line of low-cost workgroup LAN solutions 38 Tesla May 2005 Irvine, CA 92618 Pub #: 150000018000H R01 Phone: (949) 679-8000...
- Page 3 All rights reserved. Printed in Taiwan All rights reserved. Printed in Taiwan Trademarks: SMC is a registered trademark; and EZ Connect is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders.
- Page 4 Reseller. Registration can be accomplished via the enclosed product registration card or online via the SMC web site. Failure to register will not affect the standard limited warranty. The Limited Lifetime warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an “Active”...
- Page 5 VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase.
- Page 6 • Consult the dealer or an experienced radio/TV technician for help EC Conformance Declaration - Class B SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí,...
- Page 7 • Limitation of voltage fluctuation and flicker in low-voltage supply system according to EN61000-3-3/1995 Immunity: • Product family standard according to EN55024:1998 • Electrostatic Discharge according to EN61000-4-2:1995 (ContactDischarge: ±4 kV, Air Discharge: ±8 kV) • Radio-frequency electromagnetic field according to EN61000-4-3:1996 (80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m) •...
- Page 8 Please read the following safety informa- tion carefully before installing the Switch: WARNING: Installation and removal of the unit must be carried out by qualified personnel only. • This guide is intended for use by network administrators who are responsible for setting up and installing network equipment;...
- Page 9 France and Peru only This unit cannot be powered from IT supplies. If your supplies are † of IT type, this unit must be powered by 230 V (2P+T) via an iso- lation transformer ratio 1:1, with the secondary connection point labelled Neutral, connected directly to earth (ground).
- Page 10 Veuillez lire à fond l'information de la sécurité suivante avant d'installer le Switch: AVERTISSEMENT: L’installation et la dépose de ce groupe doivent être confiés à un personnel qualifié. • Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu'il n'y a pas de connexion de mise à...
- Page 11 Cordon électrique - Il doit être agréé dans le pays d’utilisation Etats-Unis et Canada: Le cordon doit avoir reçu l’homolo- gation des UL et un certificat de la CSA. Les spe'cifications minimales pour un cable flexible sont AWG No. 18, ou AWG No.
- Page 12 • Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose angeschlossen werden. • Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche die internationalen Sicherheitsnormen erfüllt. • Der Gerätestecker (der Anschluß an das Gerät, nicht der Wandsteckdosenstecker) muß einen gemäß EN 60320/IEC 320 konfigurierten Geräteeingang haben.
- Page 13 Warnings and Cautionary Messages Warning: This product does not contain any serviceable user parts. Warning: Installation and removal of the unit must be carried out by qualified personnel only. Warning: When connecting this device to a power outlet, connect the field ground lead on the tri-pole power plug to a valid earth ground line to prevent electrical hazards.
- Page 14 Environmental Statement The manufacturer of this product endeavours to sustain an environmentally-friendly policy throughout the entire production process. This is achieved though the following means: • Adherence to national legislation and regulations on environmental production standards. • Conservation of operational resources. •...
- Page 15 Safety Compliance Underwriters Laboratories Compliance State- ment Important! Before making connections, make sure you have the correct cord set. Check it (read the label on the cable) against the following: Operating Voltage Cord Set Specifications 120 Volts UL Listed/CSA Certified Cord Set Minimum 18 AWG Type SVT or SJT three conductor cord...
-
Page 16: Table Of Contents
Contents INTRODUCTION Description of Hardware Features and Benefits Front Panel LEDs SMCFS5 SMCFS8 Rear Panel INSTALLING THE SWITCH Package Checklist Selecting a Site Instructions TROUBLESHOOTING SPECIFICATIONS... -
Page 18: Introduction
EZ Switch 10/100 INTRODUCTION This manual describes how to install and use SMC’s EZ Switch 10/100 FS5 and FS8. It features 5 or 8 10/100 Mpbs Auto Negotiating switch ports, and provides the flexibility solution for your networking requirements. The EZ Switch 10/100 can be used to connect with PCs, servers, hubs, bridges, other switches and routers. -
Page 19: Front Panel Leds
EZ Switch 10/100 • Jabber lock-up function automatically stops transmission of abnormal frames to prevent network disruption • Desktop installation— No internal fan is required. Front Panel LEDs The front panel of the switch provides status LEDs for “at-a-glance” system monitoring. The following table details the functions of the LEDs: Port and System Status LEDs Condition... -
Page 20: Smcfs8
EZ Switch 10/100 SMCFS8 Rear Panel These EZ Switch 10/100 models feature 5/8 10BASE-T/ 100BASE-TX ports with RJ-45 connectors located on the rear panel of the Switch. Each port contains a built-in wiring crossover (MDI-X) that allows for the use of straight-through twisted-pair cable for connections to devices without built-in crossover ports (i.e., workstations, printers, etc.). -
Page 21: Installing The Switch
EZ Switch 10/100 SMCFS5 or SMCFS8 • Appropriate DC power adapter • Four rubber feet • SMC Warranty Registration Card • This User Guide Please register this product and upgrade the product warranty at www.smc.com. Selecting a Site Be sure to follow the site selection guidelines below when choosing a location: •... -
Page 22: Instructions
EZ Switch 10/100 other sources of electrical interference such as radios, transmitters, etc. • Make sure that a properly grounded power outlet is located near to the switch. Instructions Positioning the Switch: For desktop or shelf mounting, attach the four adhesive foot pads to the bottom of the switch. -
Page 23: Troubleshooting
EZ Switch 10/100 TROUBLESHOOTING Symptom Power LED does not light after powering on the switch. Probable Causes Power outlet or power cord may be defective. Possible Solutions • Check for loose connections. • Check the power outlet by using it with another device. -
Page 24: Specifications
EZ Switch 10/100 PECIFICATIONS EZ Switch 10/100 Network Interface RJ-45: 100 ohm, UTP cable 10BASE-T - Categories 3, 4, or 5 100BASE-TX - Category 5 LEDs Power - one Link/Activity - one per port Number of Ports SMCFS5: 5 10BASE-T/100BASE-TX RJ-45 ports SMCFS8: 8 10BASE-T/100BASE-TX RJ-45 ports MAC Address Table 2 K entries... - Page 25 EZ Switch 10/100 Heat dissipation SMCFS5: 12.011BTU/hr SMCFS8: 15.7 BTU/hr Maximum current 1A @ 6VDC Filtering/Forwarding/Learning Rates Full line rate Temperature º º Operating: 32 to 122 F (0 to 40 º º Storage: -40 to 158 F (-40 to 70 Humidity, non-condensing 10% to 90% Standards...
- Page 27 Fax (65) 238 6466 Korea: 82-2-553-0860 Fax 82-2-553-7202 Japan: 81-45-224-2332 Fax 81-45-224-2331 Australia: 61-2-8875-7887 Fax 61-2-8875-7777 India: 91-22-8204437 Fax 91-22-8204443 If you are looking for further contact information,please visit www.smc.com. Model Number: SMCFS5 / SMCFS8 38 Tesla Irvine, CA 92618 (949) 679-8000...
