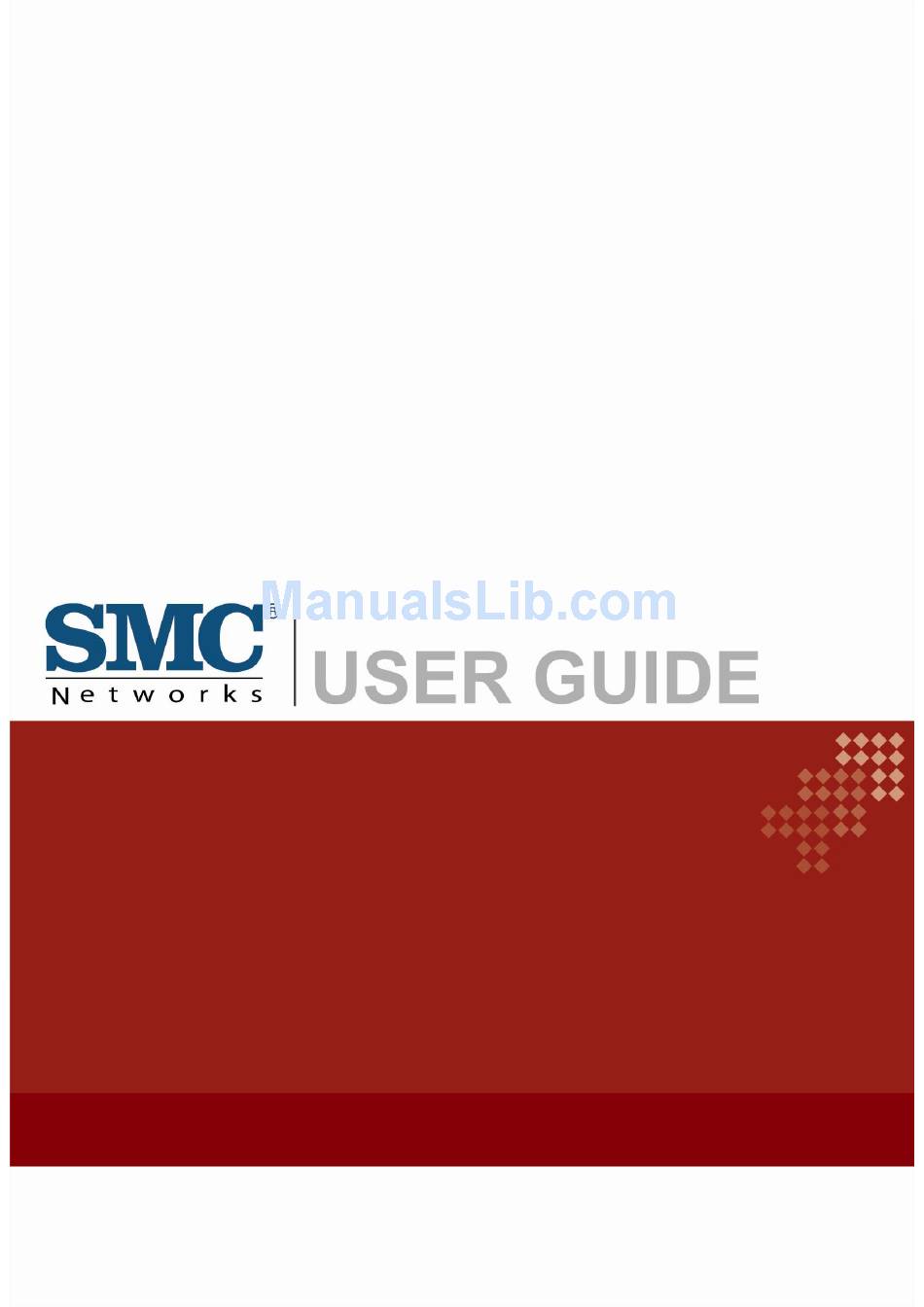

- Page 1 EZ CARD 10/100/1000 EZ Connect N 32-bit 10/100/1000Mbps Gigabit Ethernet PCI Adapter Draft 11n Wireless USB2.0 Adapter SMC9452TX-2...
- Page 2 Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
-
Page 3: Limited Warranty
Product, which is defined as the period of time during which the product is an “Active” SMC product. A product is considered to be “Active” while it is listed on the current SMC price list. As new technologies emerge, older technologies become obsolete and SMC will, at its discretion, replace an older product in its product line with one that incorporates these newer technologies. - Page 4 VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase.
- Page 5 • Consult the dealer or an experienced radio/TV technician for help EC Conformance Declaration - Class A SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2o, 4a, 08970 - Sant Joan Despí, Barcelona, Spain.
- Page 6 power supply: ±1 kV, Data/Signal lines: ±0.5 kV) • Surge immunity test according to EN 61000-4-5:1995 (AC/DC Line to Line: ±1 kV, AC/DC Line to Earth: ±2 kV) • Immunity to conducted disturbances, Induced by radio-frequency fields: EN 61000-4-6:1996 (0.15 - 80 MHz with 1 kHz AM 80% Modulation: 3 V/m) •...
- Page 7 Veuillez lire à fond l’information de la sécurité suivante avant d’installer le Device: AVERTISSEMENT: L.installation et la dépose de ce groupe doivent être confiés à un personnel qualifié. • Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu’il n’y a pas de connexion de mise à la terre (mise à la masse).
- Page 8 nur gegeben, wenn auch die an das Gerät angeschlossenen Geräte unter SELV-Bedingungen betrieben werden Stromkabel. Dies muss von dem Land, in dem es benutzt wird geprüft werden: Dieser Stromstecker muß die SEV/ASE Schweiz 1011Bestimmungen ein- halten. Das Netzkabel muß vom Typ Europe HO3VVF3GO.75 (Mindestan- forderung) sein und die Aufschrift <HAR>...
- Page 9 Achtung: Installation und Deinstallation des Gerätes müssen von qualifiziertem Servicepersonal durchgeführt werden. Achtung: Wenn das Gerät an eine Steckdose angeschlossen wird, muß der Masseanschluß n Netzstecker mit Schutzerde verbunden werden, um elektrische Gefahren zu vermeiden.
- Page 10 Environmental Statement The manufacturer of this product endeavours to sustain an environmentally-friendly policy throughout the entire production process. This is achieved though the following means: • Adherence to national legislation and regulations on environmental production standards. • Conservation of operational resources. •...
-
Page 11: Package Contents
Package Contents The following items should be found in your box: One 10/100/1000Mbps Gigabit Ethernet PC Adapter One Resource CD, including • Drivers • User Guide • Other Helpful Information Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor for assistance. -
Page 12: Table Of Contents
CONTENT Chapter 1. Introduction.................... 1 1.1 Convention ......................1 1.2 Product Overview ....................1 1.3 Main Features ....................2 1.4 LED Status ......................2 Chapter 2. Installation ..................... 3 2.1 Hardware Installation..................3 2.2 Software Installation ................... 4 2.2.1 Install driver for XP....................4 2.2.2 Update driver for XP ...................11 2.2.3 Update driver for Vista ..................18 2.3 Enable Wake on LAN function ................. -
Page 13: Chapter 1. Introduction
SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Chapter 1. Introduction Thank you for choosing SMC9452TX-2 Gigabit PCI Ethernet Adapter. 1.1 Convention The Adapter or SMC9452TX-2 mentioned in this User Guide stands for SMC9452TX-2 Gigabit PCI Ethernet Adapter. 1.2 Product Overview SMC9452TX-2 is a highly integrated and cost-effective single-chip Gigabit Ethernet Adapter that provides 32-bit performance, PCI bus master capability, and full compliance with IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX and IEEE 802.3ab 1000Base-T specifications. -
Page 14: Main Features
SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide 1.3 Main Features Integrated Ethernet MAC, Physical chip and transceiver in one chip Complies with IEEE802.1P, IEEE802.1Q, IEEE802.3 10Base-T, IEEE802.3u 100Base-TX and IEEE802.3ab 1000Base-T standard Compliant to PCI Revision 2.1/2.2 Supports Full Duplex Flow Control (IEEE 802.3x) PCI local bus single-chip Ethernet controller Supports ACPI, PCI power management Supports Auto-Negotiation function, Auto-detects network speed... -
Page 15: Chapter 2. Installation
SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Chapter 2. Installation 2.1 Hardware Installation To install the adapter, follow these steps listed below: Step 1: Turn off your computer and unplug the power cord and all cables. Step 2: Remove your computer’s case cover. See your computer’s user guide for information about removing the cover. -
Page 16: Software Installation
SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide 2.2 Software Installation In this User Guide, we will take the driver installation in Windows XP for example, which is similar to the driver installation procedures for the other operation systems. 2.2.1 Install driver for XP Step 1: After you insert the Adapter in the computer firmly, the Operating System will automatically recognize it, then the “Welcome to the Found New Hardware Wizard”... - Page 17 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Step 2: Select Install from a list or specific location (Advanced) as shown in Figure 2-3, and then click Next. Figure 2-3 Step 3: Select Don’t search. I will choose the driver to install as shown below. Then click Next.
- Page 18 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Step 4: Select Show All Devices as shown in Figure 2-5, then click Next. Figure 2-4 Step 5: Click Have Disk… in the next screen Figure 2-6. Figure 2-5...
- Page 19 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Step 6: After that, select Browse… as shown in Figure 2-7 to locate the driver in the next screen. Figure 2-6 Step 7: Locate the appointed driver as shown in Figure 2-8 , click Open. Figure 2-7...
- Page 20 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Step 8: After that, you will see the next screen (shown in Figure 2-9 ), click OK. Figure 2-8 Step 9: Select the model of the Adapter as shown in Figure 2-10 , then click Next. Figure 2-9...
- Page 21 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Step 10: After that, please wait few seconds for the wizard installing the software. Figure 2-10 Note: During the installation, a warning box about Windows Logo testing (shown in Figure 2-12) may pop up, please click Continue Anyway to continue the installation since our drivers have been tested thoroughly and are able to work with the operating system.
- Page 22 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Step 11: Finally, click Finish. And the driver installation for Windows XP completes. Figure 2-12...
-
Page 23: Update Driver For Xp
SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide 2.2.2 Update driver for XP If the Welcome to the Found New Hardware Wizard screen does not appear after you insert the Adapter, you can follow the steps below to install the driver, and you can also upgrade the latest driver available on the CD-ROM in this way. - Page 24 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Step 3: Right-click SMC9452TX-2 Gigabit PCI Ethernet Adapter, then select Update Driver… in Figure 2-16. (Note: If the driver was installed exactly, you may see "Ethernet Controller" instead. Right-click on it.) Figure 2-15 Step 4: The Hardware Update Wizard will appear, Click No, not this time, and then click Next.
- Page 25 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Step 5: Select Install from a list or specific location (Advanced) as shown in Figure 2-18, and then click Next. Figure 2-18 Step 6: Select Don’t search. I will choose the driver to install as shown below. Then click Next.
- Page 26 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Step 7: Select the model of the Adapter as shown in Figure 2-20 , then click Next. Figure 2-17 Step 8: After that, select Browse… to locate the driver in the next screen. Figure 2-21...
- Page 27 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Step 9: Locate the appointed driver as shown in Figure 2-22, click Open. Figure 2-22 Step 10: After that, you will see the next screen, click OK. Figure 2-18 Note: Assuming D is the letter of your CD-ROM drive.
- Page 28 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Step 11: Select the model of the Card as shown in Figure 2-24, then click Next. Figure 2-24 Step 12: After that, please wait few seconds for the wizard installing the software. Figure 2-25...
- Page 29 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Note: During the installation, a warning box about Windows Logo testing (shown in Figure 2-11) may pop up, please click Continue Anyway to continue the installation since our drivers have been tested thoroughly and are able to work with the operating system. Figure 2-26 Step 13: Finally, click Finish.
-
Page 30: Update Driver For Vista
SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide 2.2.3 Update driver for Vista step 1. Insert the Driver & Installation CD into your CD-ROM drive, right-click the Computer icon as shown in the Figure 2-28, select the Properties. Figure 2-19 step 2. Select Device Manager as shown in Figure 2-29, then select Continue in the next screen. - Page 31 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide step 3. Right-click the adapter icon “Realtek RTL8169/8110 Family Gigabit Ethernet NIC”, and select “Update Driver Software…” to proceed. Figure 2-21 step 4. Select “Browse my computer for driver software” to install the software. Figure 2-22...
- Page 32 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide step 5. Click the “Let me pick from a list of device drivers on my computer” in the next screen. Figure 2-23 step 6. Click “Have Disk…” in the next screen (shown in Figure 2-23). Figure 2-24...
- Page 33 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide step 7. After that, select “Browse…” to locate the driver in the next screen. Figure 2-25 step 8. Locate the appointed driver as shown in Figure 2-35, click Open. Figure 2-26 Note: Vista X32 is designed for the Vista of 32bit, Vista X64 is designed for the Vista of 64bit, please select according as you need.
- Page 34 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide step 9. After that, you will see the next screen (shown in Figure 2-36), click OK. Figure 2-27 Note: Assuming D is the letter of your CD-ROM drive. step 10. Select the model of the Card as shown in Figure 2-37, then click Next. Figure 2-28...
- Page 35 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide step 11. After that, the installation will proceed as shown in Figure 2-38. Figure 2-29 Note: During the installation, you will see the warning box as shown in Figure 2-39, please select “Install this driver software anyway”...
- Page 36 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide step 12. Finally, the installation will complete, you will see the next screen below, click Close to complete. Figure 2-31...
-
Page 37: Enable Wake On Lan Function
SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide 2.3 Enable Wake on LAN function This function allows a remote station “wake” your computer when it is in Standby or Hibernate mode or after shutdown. To enable WOL (take the configuration in Windows XP for example): Right click “My Computer”... - Page 38 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Right click “SMC9452TX-2 Gigabit Ethernet PCI Adapter”, and then select “Properties” Select the Advance title on the next advanced configure page, then highlight the Wake-On-Lan After Shutdown item and set the value as Enable.
- Page 39 SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Note: The name of this Wake-On-Lan After Shutdown function is system-dependent, and it may be located in a category heading titled such as “Power Management”. See your computer’s user guide for more information regarding the BIOS Setup utility and BIOS settings. A Magic Packet Tool is needed on the PC to remotely wake up WoL enabled computer on Shutdown mode (which is not needed on Sleep, Standby or Hibernate mode).
-
Page 40: Appendix A: Specifications
SMC9452TX-2 Gigabit PCI Ethernet Adapter User Guide Appendix A: Specifications Normal Interface 32-bit PCI IEEE 802 .3 10Base-T, IEEE 802.3u 100Base-TX, Standards IEEE 802.ab 1000Base-T Access Protocol CSMA/CD Connector one 10/100/1000M Auto-Negotiation RJ45 port Novell NetWare3.x, 4.x, 5.x, Windows 95, Windows 98, Driver Windows 2000, Windows NT, Windows Me, Windows XP, Linux, Vista... - Page 41 SMC9452TX-2...
