Summary of Contents for VDO CD 2202

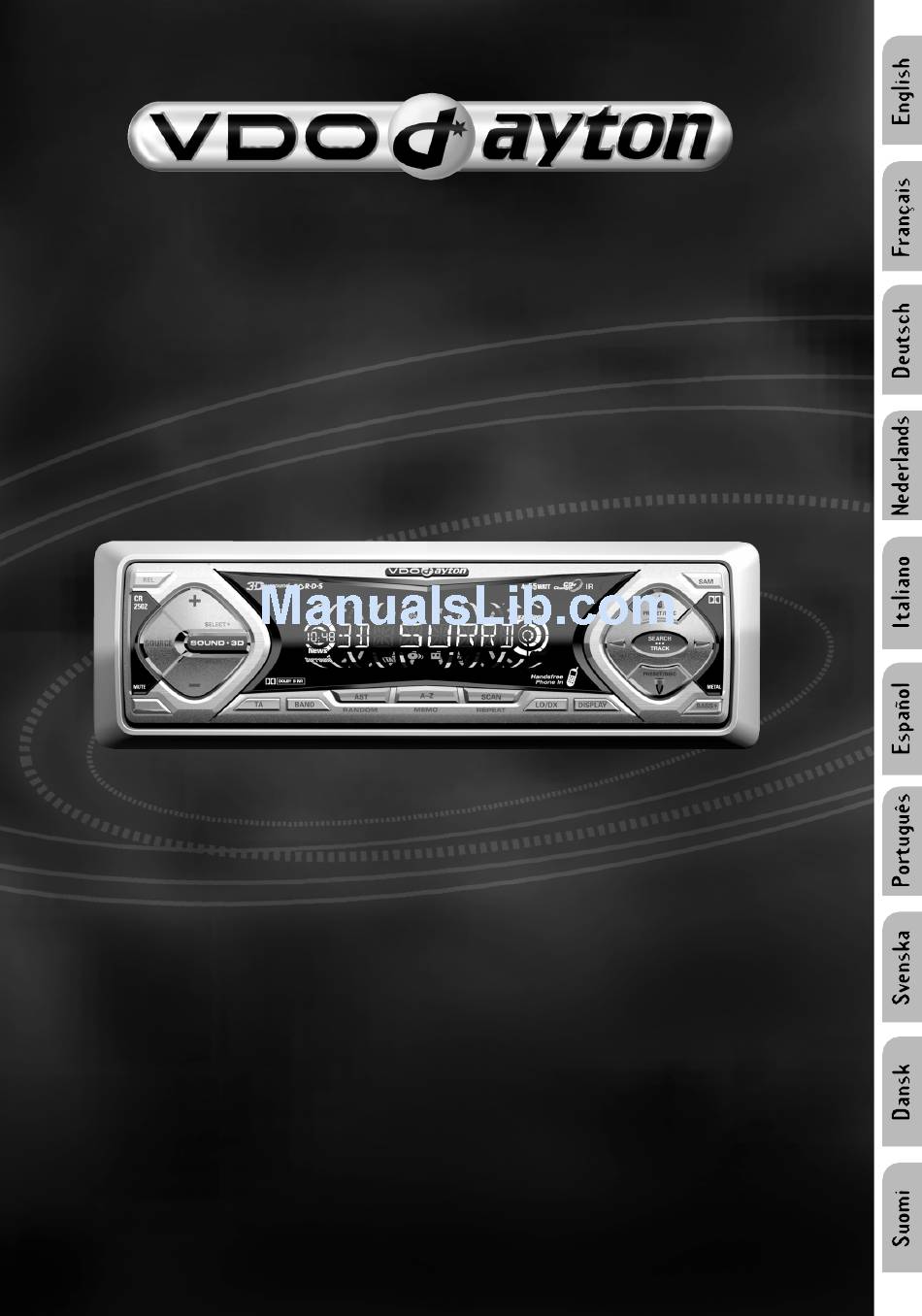

- Page 1 CD 2202 CR 2202 CD 2252 CR 2252 CD 2302 CR 2302 CR 2502 CD 2502 User manual Mode d’emploi Bedienungsanleitung Gebruiksaanwijzing Istruzioni d’uso Instrucciones de manejo Modo de emprego Bruksanvisning Betjeningsvejledning Käyttöohje www.vdodayton.com...
- Page 2 11 12...
- Page 3 SAM (Software Access Mode) TAVOL 1 TAVOL 2 TAVOL 3 TAVOL 31 ....... START 1 START 2 START 3 START 31 ....... MUTE 0 MUTE 1 MUTE 2 MUTE 16 ....... NAV OFF* NAV LOW* NAV HIGH* BEEP OFF BEEP 1 BEEP 2 BEEP 5 .......
-
Page 4: Table Of Contents
BEFORE YOU START..INSTALLATION Thank you for purchasing this VDO Dayton If your car is equipped with ISO connectors, product which has been designed and simply insert them in the connectors of the car manufactured to the highest standards and radio. - Page 5 Telephone in * (fig.7) Right- Grey/black [B4] Blue/black [B2] • You can connect a VDO Dayton hands-free kit (available separately) via the connector D. See CONNECTOR C mounting and connecting instructions for the Yellow Connector C1 for Line Out* (fig. 4) hands-free kit.
-
Page 6: Mounting
MOUNTING REAR MOUNTING (fig.13) • Remove the trimplate around the front panel METAL SLEEVE (fig.9) and the side springs. • Install the metal sleeve (dimension 182x53 mm) in • Select a position where the screw holes of the the dashboard. For optimal performance of the CD mounting bracket and the screw holes of the player*, the metal sleeve should be positioned radio become aligned and tighten the screws... -
Page 7: Front Panel Presentation
FRONT PANEL PRESENTATION For illustration, see page 3, figure A....Short press: Switch on; mute/demute (when set is on) Long press: Switch off ..... Flip down the detachable panel ....Desired sound source ....Volume up/down ..... Audio mode .... -
Page 8: Security
SECURITY AUDIO For theft protection this set is provided with the ON/OFF following security features : • Press to switch on the set. Press for more than 2 seconds to switch off the set. DETACHABLE FRONT Take the detachable front with you when leaving VOLUME the car. -
Page 9: Radio
SOURCE PRESELECTED STATIONS Manually storing stations in a preset • Press to select the desired source : - TUNER You can manually store 20 FM stations, 10 MW - TAPE*/CD* stations and 10 LW stations. - CHANGER (if connected) • Tune in to the desired station. - HFREE (if connected) and if option is •... -
Page 10: Radio Data System (Rds) On Fm
RADIO DATA SYSTEM (RDS) ON FM RDS MEMO STORE It is possible to store up to 50 stations in Many FM stations broadcast RDS information. alphabetical order in a separate FM memory. This set uses the RDS information to offer you many advantages including : Loading RDS memory •... -
Page 11: Cassette Player
CASSETTE PLAYER * SWITCHING THE DISPLAY MODE • Press once or repeatedly to switch PLAYBACK (See page 3, figure D) the display between play direction, background • Press to flip down the front. station name or frequency and sound style. •... -
Page 12: Special Functions
SCAN TRACK SPECIAL FUNCTIONS The scan function enables you to listen to the Setting the clock (manually) first few seconds of each track. • See 'SAM' (page 14), option 'CLOCKSET' . • Press to activate/deactivate Scan track. • Press to start the scanning. Note : Note : You can select how many seconds each You can select 12 hour or 24 hour clock display. -
Page 13: Sam (Software Access Mode)
SAM (Software Access Mode) It is possible to modify many of the set's default settings according to your preferences via 'SAM'. • Press to enter the 'SAM' menu. • Press to select one of the options in the menu you want to modify. •... - Page 14 Option Value/Setting Usage ( or ) BRIGHT* [1, 2] Select the level of display and button brightness (only when car headlights are switched on and connected to pin A6, see 'INSTALLATION' (page 5)). BRIGHT* [1, 2, 3, 4, 5, 6] Select the level of display and button brightness (only when car headlights are switched on and connected to pin A6, see 'INSTALLATION' (page 5)).
-
Page 15: Trouble Shooting
TROUBLE SHOOTING Display shows 'NO TA', and set beeps at intervals. • The tuned station becomes too weak to enable There may be times when you suspect that your the reception of Traffic Announcements. Use car radio is not functioning as you would expect it search tuning to find another station. - Page 16 ADDENDUM Playing a CD-R or CD-RW Depending on the type of CD-R/CD-RW CD, surface condition of the disc, as well as the performance and condition of the CD writer, certain CD-R/CD-RW CD may not operate normally on this unit. Playing a “copy protected” non-conforming audio CD Due to use of copy protection schemes of some audio CDs which are non conformance to international audio CDs standards (Red Book), these type of copy protected disc(s) may not play on this unit.
- Page 17 3139 166 21974.2 03/02 gm...
