REMOVING AND REPLACING
CAUTION:
• Before changing light bulb, make sure you have
removed plug from socket outlet. Be sure to replace
the face plate which covers the light bulb before
operating the machine.
• This machine is designed to use a 15-watt maximum
light bulb.

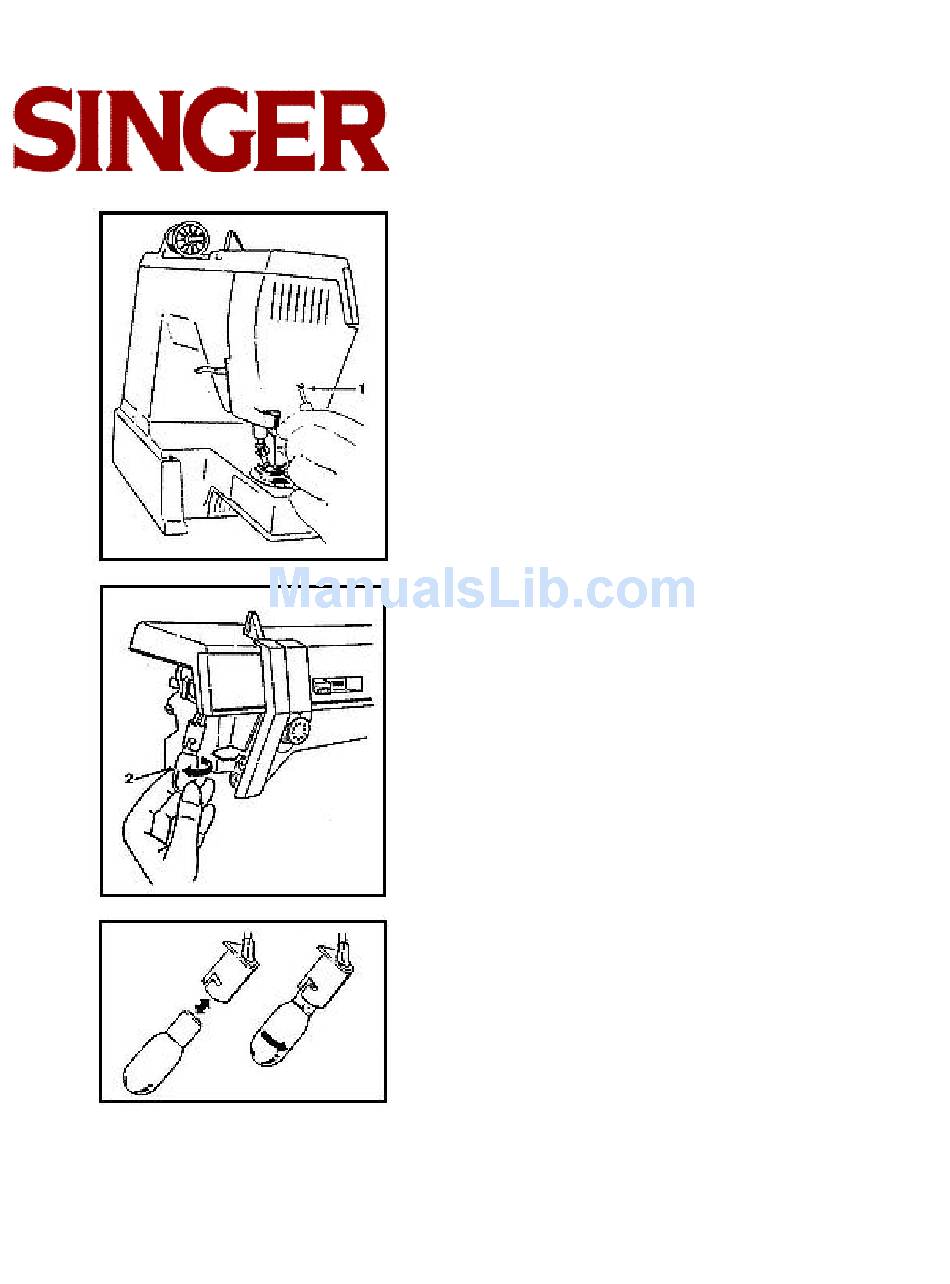

To change the light bulb, the face plate must first be
removed.
• Loosen and remove screw (1).
• Slide face plate down and away from machine.
TO REMOVE THE LIGHT BULB
• Push bulb up into socket (2) and turn to the left to
unlock bulb pins.
• Pull bulb down and out of socket.
TO REPLACE THE LIGHT BULB
• Push new bulb up into socket and turn to the right
until pins lock into position.
• Reposition face plate by sliding top edge of plate
under edge of top cover.
• Line up screw hole in plate with screw hole in
machine.
• Insert screw and tighten.
40
LIGHT BULB
