APRILIA ENJOY CITY - 2000 Manual

Hide thumbs

Advertisement

Quick Links

use and maintenance
Tables of contents
SAFE DRIVING ........................................ 2
GENERAL FEATURES ............................ 6
MAIN COMPONENTS ............................ 19
enjoy racing
INSTRUCTIONS FOR USE .................... 23
RECHARGEMENT ................................. 28
MAINTENANCE ..................................... 31
enjoy city

Advertisement

loading

Related Manuals for APRILIA ENJOY CITY - 2000

Summary of Contents for APRILIA ENJOY CITY - 2000

  • Page 1: Table Of Contents

    use and maintenance Tables of contents SAFE DRIVING ........2 GENERAL FEATURES ......6 MAIN INDEPENDENT CONTROLS ..10 MAIN COMPONENTS ......19 enjoy racing INSTRUCTIONS FOR USE ....23 RECHARGEMENT ......... 28 MAINTENANCE ........31 enjoy city...
  • Page 2 use and maintenance Enjoy Racing - Enjoy City...

  • Page 3: Safe Driving

    2) Check the bike when noise is heard during riding. Call for serv- 9) Avoiding riding the bycicle with an open umbrella in the rain. ice from Aprilia authorized dealer if problems remain unsolved. 10) Don’t touch the motorkit after travel; the temperature could be 3) For the bycicle correct operation and for safety reasons we very high.
  • Page 4 Do not adjust the adjusting screw of the rear derailleur by yourself to avoid damaging the gear shifting mechanism or causing techni- cal troubles. use and maintenance Enjoy Racing - Enjoy City...
  • Page 5 Moreover, prevent the charger from coming into contact with water. 3) Don’t clean the bike with water when recharging. 4) For longer battery life,use genuine aprilia equipment for re- charging. Check that there is enough ventilation to avoid over- heating the charger.

  • Page 6: General Features

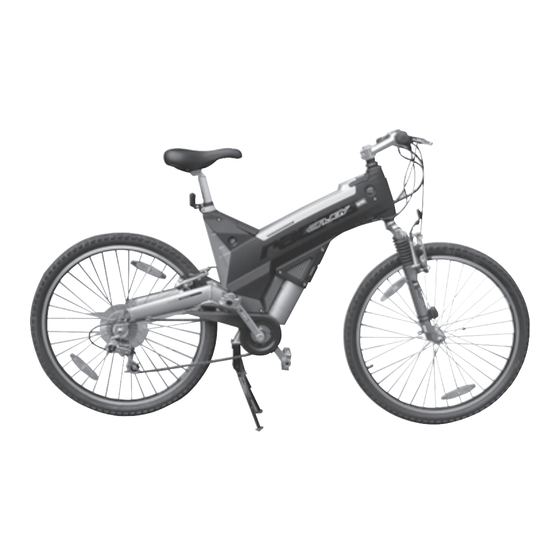

    GENERAL FEATURES BIKE COMPONENTS 1) FRONT WHEEL 2) FRONT SUSPENSION FORK 3) FRONT MUDGUARD 4) FRONT BRAKE 5) FRONT LAMP 6) BRAKE LEVER 7) GRIP SHIFT 8) FUNCTION SWITCH 9) STEM 10) HANDLEBAR 11) STEERING SET 12) LED INDICATOR 13) BATTERY SET 14) RECHARGE COVER 15) PILLAR 16) PILLAR LOCK...
  • Page 7 19) FRAME 20) REAR BRAKE 21) REAR WHEEL 22) REAR MUDGUARD 23) CARRIER 24) REAR LAMP 25) REAR DERAILLEUR 26) CHAIN 27) KICK STAND 28) CRANK 29) PEDAL 30) CHAIN GUARD 31) MOTOR KIT 32) CONTROLLER 33) LOCK POWER SWITCH 34) BELL 35) GRIP 36) SADDLE...
  • Page 8 SPECIFICATION Model name Aprilia Enjoy City Aprilia Enjoy Racing Weights /dimensions Empty Weight, depending on fitting Approx. 30.5 kg Approx. 29.2 kg Permissible total weight Max. 130 kg Max. 130 kg Permissible load on carrier Max. 10 kg Max. 10 kg Dimensions (L x W x H ) Approx.
  • Page 9 Model name Motor drive unit d.c. motor 24V/250W Power control Electronically controlled via torque and pedal speed sensor Drive d.c. commutator motor Power assistance ratio Max. up to 20 Km/h, falling linearly to 24 Km/h Power assistance Max. 220 W Gearbox, power transmission Planetary gear assembly and chain Total transmission ratio...

  • Page 10: Main Independent Controls

    MAIN INDEPENDENT CONTROLS MOTOR KIT More unique features aprilia cycle is its Motor Kit design, such computerized controller, spiral bevel gearing drivetrain system, etc. as Dual-Sense module (torque sensor+speed sensor), enhanced Spiral bevel gearing drive-train system (Dualsense Module = Torque sensor + Speed sensor)
  • Page 11 FUNCTION SWITCH As illustrated above,it is a 3-mode switch, which has left,middle,and right positions. The function and definition of the switch An economic mode in lower power assisting, the assistance will be automatically off when the speed reaches about 24km/hr. NORMAL The normal power assistance mode,the assistance is off at a speed of about 24km/hr.
  • Page 12 LOCK POWER SWITCH Features There are 3 positions for the key: 1. position “OFF”: With key turned to this position, the power supply is switched off, but the battery set is still locked on the body of the bike. 2. position “ON”: the power is switched on and the battery set is also locked.
  • Page 13 BRAKE SWITCH NO BRAKE 1. When you are not braking, please make sure the brake levers (Right & Left) are on the right positions. Otherwise, it may cut off the power and result in no power assistance. BRAKE 2. When you brake, the brake switch will cut off the power. SWITCH 3.
  • Page 14 CHARGER DESCRIPTION CHARGE CONNECTOR RED LED ORANGE LED (YELLOW) SWITCH ON-OFF POWER CONNECTOR VOLTAGESWITCH use and maintenance Enjoy Racing - Enjoy City...
  • Page 15 1. Specification 2. Operating Instruction 1) Manually adjust the correct input voltage (115V/230V). 2) Connect the plug of battery charger to the socket of bat- Item Specification tery. 3) Plug in the power cord and turn on the power switch. LED Output Current 4Adc ±...
  • Page 16 5. Trouble Shooting 6. Caution (1) If LED(POWER) light is off (a) To prolong charger life, do not connect the short output for • Check the input voltage (115V/230V) is the same as you long time. adjust. • Check the AC fuse. If broken, please replace the spare (b) Use the charger in a well-ventilated area.
  • Page 17 FULL CHARGE MEDIUM CHARGE LOW CHARGE EMPTY Battery Indicator COMPLETELY DOWN LED INDICATOR FUNCTIONS The led indicator may display a charge which is too low when: • The ambient temperature is too low • The driving conditions are very hard (e.g. during a strong up- hill) A charge which is too high may be displayed a few minutes after recharge,when:...
  • Page 18 The battery middle Charge the battery. indicator is always ON. intermittent alarm is too low ON:0.3S,OFF:0.2S “q” ❍ ❍ ❍ Three short warning Electrical Call the aprilia. indicator is flashing. alarms then stop components dealer ON:0.5S,OFF:0.2S warning failure “q” ❍ ❍ ❍...

  • Page 19: Main Components

    If of pedalling. It is not essential that various gear combinations necessary,ask your aprilia dealer to identify and correct any be used in sequence. problems.
  • Page 20 Removal of spoke protector may cause technical troubles. Cleaning of the freewheel Apply to an Authorized aprilia Service Center. The freewheel should be kept as clean as possible. Remove the surface dirt that gathers around the cog with solvent and a brush.
  • Page 21 WHEEL Inspect your wheels frequently to make sure that there are no loose,damaged,or broken spokes. Remember:If a wheel is not in good condition, both the range, the effectiveness of the brakes and the strength of the wheel are greatly reduced. Tire Inspection Keep your tires inflated to the pressure molded on the tire sidewalls.Use a gauge and a bicycle pump whenever possi-...
  • Page 22 QUICK RELEASE disengaged Quick Release Hubs Some wheels are provided with quick release hubs. These allow you to remove and install the wheel without the use of tools. To release,pull the lever out away from the hub.To tighten, press the lever back toward the hub. Caution: Be sure that hub quick release lever is firmly in the engaged position,and that wheel is firmly locked into the frame before riding.

  • Page 23: Instructions For Use

    INSTRUCTION FOR USE PREPARATION BEFORE RIDING Pedal Control human output • The motor output is controlled by INTRODUCTION OF FUNCTIONS the pedaling force and the speed. motor output Recharging Socket Lock-Power Switch Shifting Lever • Recharging socket is avaliable under the recharge cover. On- Lock-Power Switch bike recharging can be done from this socket.
  • Page 24 To ensure a safe and comfortable ride, please check the following the reach. items before riding: 1) The range of a fully charged Aprilia battery under normal rid- ing condition is approximately 25km~40km. However, the range will vary depending on a variety of factors such as ter-...
  • Page 25 BRIEF INSTRUCTION ON STARTING 4) Familiarise yourself with your bicycle and its controls be- fore you attempt to ride in traffic. 1) Lock-Power Switch (On-Off-Open)- 5) To start,simply apply pressure to the pedals. ON: Power is on and the bike is ready to ride. OFF: Power is off and the battery can be recharged.
  • Page 26 4) If battery case falls into water,dry it out and call for check from dealer before riding. 5) Stop riding when motor gets wet. Call for check from aprilia dealer before riding. 6) Don’t ride when battery case is broken. Replace the case at your dealers shop.

  • Page 27: Rechargement

    Charging with wrong charger will damage the battery & may cause 2) To ensure the performance of the battery, please recharge the danger! battery after each use using only aprilia original equipment. Please follow the specified charge conditions. The battery must be recharged before first use and after each use.
  • Page 28 RECHARGING PROCEDURE 2. Off-bike recharging 1) Park the bike Recharging can be done either by plugging direct into the socket located in the frame, or by removing the battery case and placing it 2) Turn the key to “Open” (Push and release first) and unpack in the recharging equipment.
  • Page 29 8) If the charger indicating led is not lit, it is abnormal. Please 10) When the indicating light of the re-charger turns from yel- check or call for service from dealer. low to green color,it signals the re-charging has been done fully.
  • Page 30 3. After recharging 1) Ensure there are no other objects inside the battery cover on either side of the frame. 2) Turn the key to “OPEN” position. 3) Push in the battery set and have it firmly locked with the locking device.

  • Page 31: Maintenance

    MAINTENANCE BICYCLE CARE BICYCLE CARE CHECKLIST IN SCHEDULE ❐ Follow safety information provided on page titled:Preparation Befor Riding. Each Time You Ride ❐ Wipe off your bicycle with a damp rag. ❐ heck tyre pressure. ❐ Check brakes. ❐ Oil cable,chain and pivot points (brake levers and calipers,shift levers,derailleurs) with a light Weekly bicycle lubricant.Avoid heavy oils that evaporate and leave a gummy residue.
  • Page 32 BICYCLE CARE Security To avoid theft, observe the following precautionary measures: 1. Keep a record of the serial number in a safe place. Storage 2. Purchase a lock from a manufacturer that guarantees its absolute effectiveness against bolt cutters and saws. Improper storage is very hard on a bicycle.
  • Page 33 Routine Maintenance we recommend an expert to do the more technical tune-up work.If you have questions about how to care for your bike,please feel Keeping your bicycle properly maintained is extremely important. free to ask your dealer. Use the following maintenance notes and schedule as a guide to complete care.
  • Page 34 2) To replace part,please come to aprilia authorized dealer for replacing. 3) Check and keep the proper tire pressure. 4) Park your Aprilia in a sheltered place away from rain,heat and humidity. 5) Please turn the key to “Off” position and take the key out when not in use.
  • Page 35 TROUBLE SHOOTING Please refer this table for problems and remedies. If problem remains unsolved, please call for service from aprilia authorized dealer. Problem Cause Remedy Key isn’t in “On”position. Turn the key to “On” position. Hard pedaling Battery isn’t firmly located;no good contact.
  • Page 36 APRILIA WARRANTY the aprilia vehicle you have purchased, and to return it to the following address within 15 (fifteen) days from the date of purchase: Dear Customer, Aprilia Warranty Center aprilia S.p.A., based in Via Galilei 1, 30033 Noale (VE), Italy Via Rovereto 33/35 (hereinafter referred to as “aprilia”), congratulates you on choos-...
  • Page 37 Finally, no coverage is provided for any inconvenience resulting from the impossibility of using the vehicle during repairs. 6. NOTE The network of aprilia distributors and dealers, as well as aprilia’s employees and agents, are not authorized to change or extend the warranty terms and conditions.
  • Page 38 NOTES use and maintenance Enjoy Racing - Enjoy City...
  • Page 39 This form serves to activate your warranty. You are therefore requested to complete it by inserting your personal data and send it on to the following address: Aprilia Warranty Center Via Rovereto 33/35 20059 Vimercate (Milan), Italy, within 15 (fifteen) days of purchasing your vehicle. The warranty can also be activated via fax or Internet directly at the aprilia Salesrooms which offer this service.
  • Page 40 S.p.A., via G. Galilei 1 - 30033 Noale VE, for the attention of the Head of Treatment of Personal Data in accordance with what is laid out in article 13 of the law 675/96.

This manual is also suitable for:

Enjoy cityEnjoy racing
