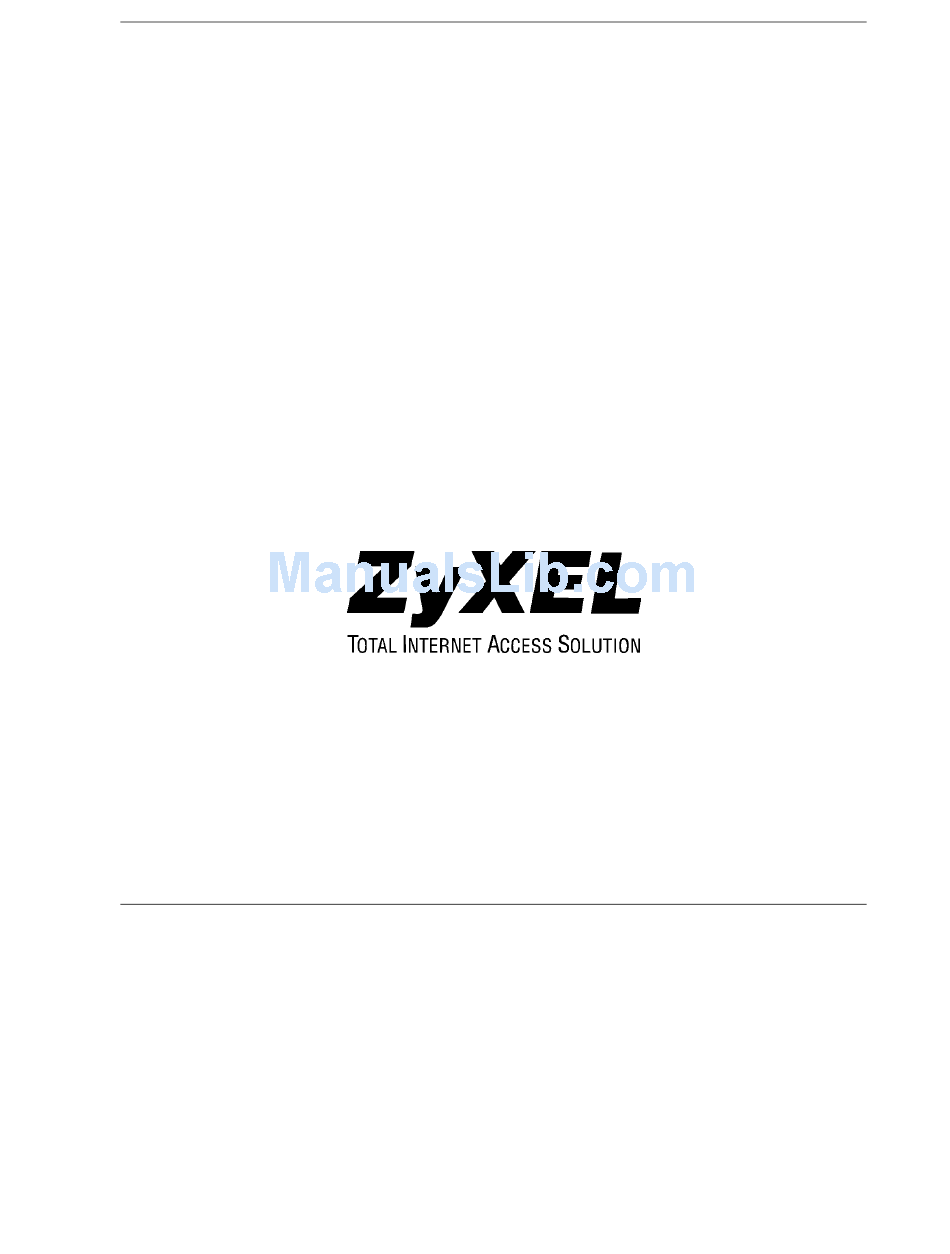

Page 1: Quick Start Guide
Prestige 324 Prestige 324 Intelligent Broadband Sharing Gateway Version 3.60 January 2003 Quick Start Guide... -
Page 2: Introducing The Prestige
Prestige 324 Introducing the Prestige The Prestige is a broadband sharing gateway with a built-in four-port 10/100 Mbps switch that makes it easy for people to set up a small home/office network and share Internet access via a broadband (cable/DSL) modem. -
Page 3: Hardware Installation
Prestige 324 Hardware Installation Rear Panel LABEL DESCRIPTION LAN 10/100M Use an Ethernet cable to connect at least one computer for initial Prestige configuration. These ports are auto-negotiating (can connect at 10 or 100Mbps) and auto-sensing (automatically adjust to the type of Ethernet cable you use (straight-through or crossover)). WAN 10/100M Connect your cable/DSL modem to this port with the cable that came with your modem. -
Page 4: Setting Up Your Computer's Ip Address
Prestige 324 Setting Up Your Computer’s IP Address Skip this section if your computer is already set up to accept a dynamic IP address. This is the default for most new computers. The Prestige is already set up to assign your computer an IP address. Use this section to set up your computer to receive an IP address or assign it a static IP address in the 192.168.1.2 to 192.168.1.254 range with a subnet mask of 255.255.255.0. - Page 5 Prestige 324 The Internet Protocol TCP/IP Properties screen opens (the General tab in Windows XP). - To have your computer assigned a dynamic IP address, click Obtain an IP address automatically. -To configure a static IP address, click Use the following IP Address and fill in the IP address (choose one from192.168.1.2 to 192.168.1.254), Subnet mask (255.255.255.0), and Default gateway (192.168.1.1) fields.
-
Page 6: Configuring Your Prestige
Prestige 324 Configuring Your Prestige Choose one of these methods to access and configure the Prestige. This Quick Start Guide shows you how to use the web configurator wizard only. See your User’s Guide for background information on all Prestige features and SMT configuration. - Page 7 Prestige 324 Change default password. Step 4. You should now see the web configurator MAIN MENU screen. Click WIZARD to begin a series of screens to help you configure your Prestige for the first time. Click a link under SETUP in the navigation panel to configure that Prestige feature. Click MAINTENANCE in the navigation panel to see Prestige performance statistics, upload firmware and back up, restore or upload a configuration file.
-
Page 8: Internet Access Using The Wizard
Prestige 324 Internet Access Using the Wizard Step 1. Click Wizard Setup in the main menu to display the first wizard screen. System Name is for identification purposes. Enter your computer's "Computer Name". The Domain Name entry is what is propagated to the DHCP clients on the LAN. -
Page 9: Test Your Internet Connection
LAN whose MAC address you are cloning. Test Your Internet Connection Launch your web browser and navigate to www.zyxel.com. You don’t need a dial-up program such as Dial Up Networking. Internet access is just the beginning. Refer to the User’s Guide for more detailed information on the complete range of Prestige features. - Page 10 Prestige 324 PROBLEM CORRECTIVE ACTION Cannot ping any If the 10/100M LAN LEDs are off, check the cable connections between the Prestige and computer on the LAN. your LAN computers. Verify that the IP address and subnet mask of the Prestige and the LAN computers are in the same IP address range.
