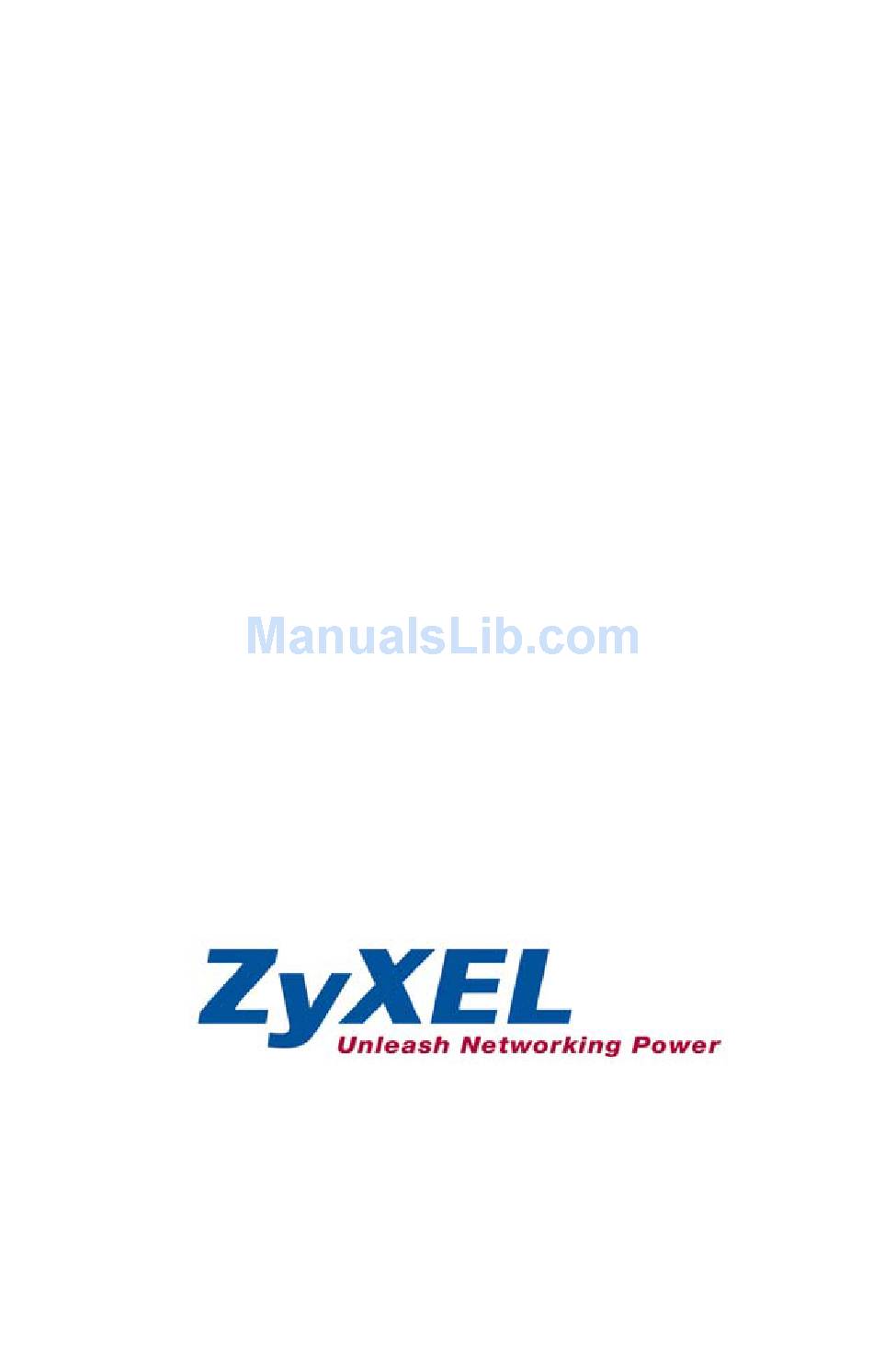

Page 1: Quick Start Guide
Omni 56K Plus Series V.92 Data/Fax Modem Quick Start Guide Version 1.0.0 September 2004... -
Page 2: Table Of Contents
Omni 56K Plus Modem Quick Start Guide Table of Contents 1 Introduction ..................3 2 Installation Requirements ..............3 2.1 USB Plus ..................3 2.2 COM Plus...................3 3 Hardware Installation..............3 3.1 USB Plus ..................4 The Front Panel LEDs..............4 Making USB Connections............4 3.2 COM Plus...................5 The Front Panel LEDs..............5 Making RS-232 Connections ............6 4 Software Installation ...............7... -
Page 3: Introduction
Models included in this guide at the time of writing are the Omni 56K USB Plus and the Omni 56K COM Plus. This manual may refer to the Omni 56K USB Plus modem as the USB Plus and the Omni 56K COM Plus modem as the COM Plus. -
Page 4: Usb Plus

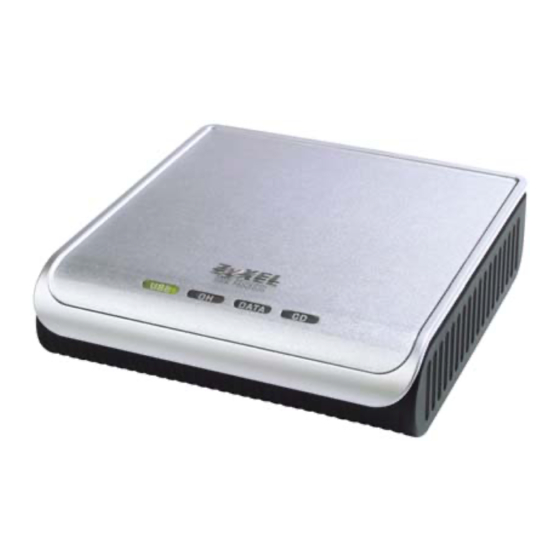

Omni 56K Plus Modem Quick Start Guide 3.1 USB Plus The Front Panel LEDs FUNCTION STATUS DESCRIPTION The USB link is on. Indicator The USB link is off. Hook Status The phone is in off-hook status (the telephone line is busy). The phone is in on-hook status (the telephone line is available) DATA... -
Page 5: Com Plus
Omni 56K Plus Modem Quick Start Guide Figure 1 USB Cable Figure 2 USB Cable (Type A) Computer End (Type B) Device End Figure 3 Rear Panel Connections 3.2 COM Plus The Front Panel LEDs FUNCTION STATUS DESCRIPTION V.92 Ready A V.92 modem link is established. -
Page 6: Making Rs-232 Connections
(outlet). Push in the power button to turn on the COM Plus. If you use a power adaptor not appropriate for the ZyXEL Omni 56K COM Plus modem, your modem could be damaged. 4. Turn on your computer and insert the included CD. Connect one end of your RS-232 cable to your COM Plus and the other end to your computer’s serial port. -
Page 7: Software Installation
Omni 56K Plus Modem Quick Start Guide Figure 4 Rear Panel Connections 4 Software Installation 4.1 USB Plus Follow the steps below to install your USB driver. Be sure your PC is already turned on before connecting the USB cable from your USB Plus to your PC. - Page 8 Omni 56K Plus Modem Quick Start Guide 1. Windows 98 SE/Me/2000: Click Next to continue. 2. Allow Windows to search for the best driver (default selection), then click Next. 3. Windows 98 SE/Me/2000: If you insert the included CD into your CD-ROM drive, select CD-ROM drives and then click Next.
-
Page 9: Manual Installation
Click Next to continue and Windows will copy the driver files into your system as well as build the driver information database. 6. After the ZyXEL Omni 56K USB Plus modem has been installed successfully, click Finish to complete the driver installation. -
Page 10: Com Plus
Windows detects the modem. 5. Follow the procedures of Plug and Play installation to finish the driver installation. 6. After the ZyXEL Omni 56K USB Plus modem has been installed successfully, click Finish. 4.2 COM Plus Follow the steps below to install your COM Plus modem driver. - Page 11 Omni 56K Plus Modem Quick Start Guide 1. Be sure your COM Plus is turned on. 2. Click Start, select Settings to enter Control Panel. Double-click on the Phone and Modem Options icon (or the Modems icon) as shown, click the Modems tab and the Add button. 3.
- Page 12 Omni 56K Plus Modem Quick Start Guide 6. Click Next to accept the default selection. 7. Windows 95/98 SE/Me/2000: If you insert the CD included into your CD-ROM drive, select CD- ROM drives and then click Next. If you have the driver stored on your computer, select Specify a location, click Next, Browse to find the...
-
Page 13: Dial-Up Networking
Omni 56K Plus Modem Quick Start Guide 9. Click Finish to finish installing the software. 10. After the ZyXEL Omni 56K COM Plus modem has been installed successfully, click Finish. 5 Dial-up Networking Use the connection wizard to setup your dial-up networking connection. - Page 14 Omni 56K Plus Modem Quick Start Guide 2. Click Next to continue. 3. Select Dial-up to private network and click Next. 4. Fill in the phone number of your ISP. Select Use dialing rules and choose your country code from the drop-down box and enter your area code if you want to have your computer...
-
Page 15: Installing Bitware
Omni 56K Plus Modem Quick Start Guide 5. Select For all users if you want to share the connection with all users. Otherwise, select Only for myself. Click Next to continue. 6. Give a name for your dial- up connection and select Add a shortcut to my desktop if you want. -
Page 16: Uninstalling Your Driver
XP, to be able to remove programs. 4. Windows 98SE/Me/2000: Click Start, Settings, Control Panel, double-click Add/Remove Programs and select ZyXEL OMNI 56K USB Plus Modem (or ZyXEL OMNI 56K COM Plus Modem). Click Remove. Windows XP: Click Start, Settings, Control Panel, Add or Remove Programs, select ZyXEL OMNI 56K USB Plus (or ZyXEL OMNI 56K COM Plus Modem). -
Page 17: Usb Plus
I cannot Click Start, Control Panel, double-click Phone and connect to the Modem Options (or Modems). If ZyXEL OMNI 56K USB Internet. Plus is not present, install the modem driver. Make sure the Line port is properly connected to the phone jack with a telephone wire. -
Page 18: Com Plus
I cannot Click Start, Control Panel, double-click Phone and connect to the Modem Options (or Modems). If ZyXEL OMNI 56K COM Internet. Plus is not present, install the modem driver. Make sure the Line port is properly connected to the phone jack with a telephone wire.
