ZyXEL Communications SAM1316-22 User Manual

Table of Contents

Quick Links

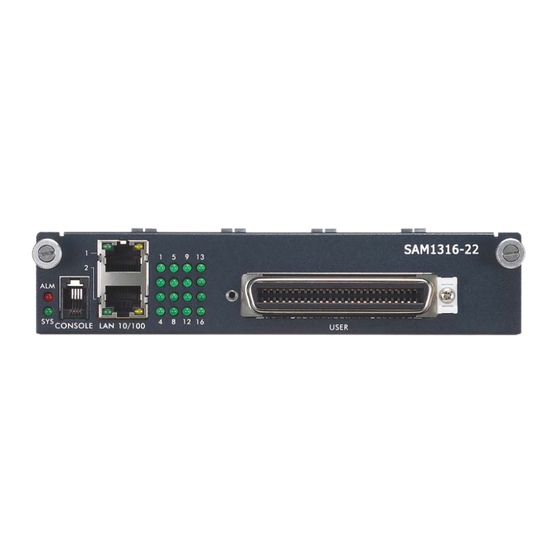

SAM1316-22

SHDSL.bis module of IES-1000

Default Login Details

IP Address

http://192.168.1.1

User Name

Password

Firmware Version 3.53

www.zyxel.com

Edition 1, 4/2010

www.zyxel.com

admin

1234

ZyXEL Communications Corporation

Table of Contents

Summary of Contents for ZyXEL Communications SAM1316-22

Page 1 SAM1316-22 SHDSL.bis module of IES-1000 Default Login Details IP Address http://192.168.1.1 User Name admin Password 1234 Firmware Version 3.53 www.zyxel.com Edition 1, 4/2010 www.zyxel.com Copyright © 2010 ZyXEL Communications Corporation...
Page 3: About This User's Guide
Refer to the included CD for support documents. Documentation Feedback Send your comments, questions or suggestions to: techwriters@zyxel.com.tw Thank you! The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 30099, Taiwan. Need More Help? More help is available at www.zyxel.com.
Page 4 • Product model and serial number. • Warranty Information. • Date that you received your device. • Brief description of the problem and the steps you took to solve it. SAM1316-22 User’s Guide...
Page 5: Document Conventions
Syntax Conventions • The SAM1316-22 may be referred to as the “SAM1316-22”, the “device”, the “system”, the “switch”, or the “product” in this User’s Guide. • Product labels, screen names, field labels and field choices are all in bold font.
Page 6 Firmware Version: V3.53 (BVE.0) "BVE" is the model code. "0" is this firmware's release number. This varies as new firmware is released. Your firmware's release number may not match what is displayed in this User's Guide. SAM1316-22 User’s Guide...
Page 7: Safety Warnings
Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and Electrical Equipment. It means that used electrical and electronic products should not be mixed with general waste. Used electrical and electronic equipment should be treated separately. SAM1316-22 User’s Guide...
Page 8 SAM1316-22 User’s Guide...
Page 9: Table Of Contents
Contents Overview User’s Guide ........................... 27 Getting to Know the SAM1316-22 ..................... 29 Installing and Removing the SAM1316-22 ................33 Front Panel ..........................37 Technical Reference ......................43 Introducing the Web Configurator ....................45 Initial Configuration ........................53 Home and Port Statistics Screens ..................... 59 System Information ........................
Page 10 Packet Filter Commands ......................365 IP Commands .......................... 369 Firmware and Configuration File Maintenance ................ 375 SNMP ............................381 DSL Commands ........................385 Virtual Channel Management ....................401 ACL Commands ........................429 Troubleshooting ........................435 Specifications ........................... 445 SAM1316-22 User’s Guide...
Page 11: Table Of Contents
1.2.2 Curbside Application ....................30 Chapter 2 Installing and Removing the SAM1316-22 ................33 2.1 Overview ..........................33 2.2 Installing the SAM1316-22 in the IES-1000 ................. 33 2.3 Removing the SAM1316-22 from the IES-1000 ..............34 Chapter 3 Front Panel ..........................37 3.1 LEDs ............................
Page 12 10.2.2 Port Isolation with Standalone Switch Mode Example ..........82 10.2.3 Daisychain Switch Mode ..................82 10.2.4 Port Isolation with Daisychain Switch Mode Example ..........83 10.3 Switch Setup Screen ......................84 Chapter 11 IP Setup............................ 87 SAM1316-22 User’s Guide...
Page 13 14.8 Alarm Profile Screen ......................116 14.8.1 Alarm Profile Map Screen ..................117 14.9 IGMP Filtering ........................118 14.10 IGMP Filter Profile Screen ....................119 Chapter 15 xDSL Line Data........................123 15.1 xDSL Line Rate Info Screen .................... 123 15.2 xDSL Performance Screen ....................125 SAM1316-22 User’s Guide...
Page 14 19.1 Static Multicast ......................... 153 19.2 Static Multicast Screen ....................153 Chapter 20 Multicast VLAN........................155 20.1 Multicast VLAN Overview ....................155 20.2 MVLAN Status Screen ..................... 156 20.3 MVLAN Setup Screen ..................... 157 20.4 MVLAN Group Screen ..................... 159 SAM1316-22 User’s Guide...
Page 15 26.2.2 TR-101 Format ....................... 184 26.3 DHCP Relay Screen ......................185 Chapter 27 DHCP Snoop.......................... 189 27.1 DHCP Snoop Overview ....................189 27.2 DHCP Snoop Screen ....................... 189 27.3 DHCP Snoop Status Screen .................... 191 27.4 DHCP Counter Screen ....................192 SAM1316-22 User’s Guide...
Page 16 32.2 ACL Setup Screen ......................219 32.3 ACL Profile Setup Screen ....................221 32.4 ACL Profile Map Screen ....................223 Chapter 33 Downstream Broadcast......................225 33.1 Downstream Broadcast ....................225 33.2 Downstream Broadcast Screen ..................225 Chapter 34 Syslog ............................ 227 SAM1316-22 User’s Guide...
Page 17 41.2 Alarm Status Screen ......................251 41.3 Alarm Descriptions ......................252 41.4 Alarm Event Setup Screen ....................253 41.4.1 Edit Alarm Event Setup Screen ................255 41.5 Alarm Port Setup Screen ....................256 41.6 Alarm History Screen ....................... 258 SAM1316-22 User’s Guide...
Page 18 47.2.1 Log Show Command ....................297 47.2.2 Log Clear Command ....................297 47.2.3 Info Show Command ....................298 47.3 Isolation Commands ......................298 47.3.1 Isolation Show Command ..................298 47.3.2 Isolation Enable Command ..................299 47.3.3 Isolation Disable Command ................... 299 SAM1316-22 User’s Guide...
Page 19 49.3.2 Option 82 Sub-option 2 Disable Command ............316 49.3.3 Option 82 Sub-option 2 Set Command ..............317 49.4 DHCP Snoop Commands ....................317 49.4.1 DHCP Snoop Enable Command ................317 49.4.2 DHCP Snoop Disable Command ................318 49.4.3 DHCP Snoop Flush Command ................318 SAM1316-22 User’s Guide...
Page 20 51.2.5 MAC Filter Set Command ..................335 51.2.6 MAC Filter Delete Command ................. 336 51.3 MAC Count Commands ....................336 51.3.1 MAC Count Show Command ................. 336 51.3.2 MAC Count Enable Command ................337 51.3.3 MAC Count Disable Command ................337 SAM1316-22 User’s Guide...
Page 21 52.8 Multicast VLAN Commands ..................... 351 52.8.1 Multicast VLAN Set Command ................352 52.8.2 Multicast VLAN Delete Command ................352 52.8.3 Multicast VLAN Disable Command ................ 353 52.8.4 Multicast VLAN Enable Command ................. 353 52.8.5 Multicast VLAN Show Command ................353 SAM1316-22 User’s Guide...
Page 22 56.3.1 Show ........................371 56.3.2 Ping Command ...................... 371 56.3.3 Route Set Command ....................371 56.3.4 Route Delete Command ..................371 56.3.5 Route Show Command ..................372 56.3.6 ARP Show Command .................... 372 56.3.7 ARP Flush Command .................... 373 SAM1316-22 User’s Guide...
Page 23 59.2.3 DSL Port Lineperf Command ................. 393 59.2.4 DSL Port 15 Minute Performance Command ............394 59.2.5 DSL Port 1 Day Performance Command ............... 395 59.3 Alarm Profile Commands ....................397 59.3.1 Alarm Profile Show Command ................397 SAM1316-22 User’s Guide...
Page 24 60.7.14 RPVC ARP Flush Command ................420 60.8 PPPoA to PPPoE (PAE) Commands ................420 60.8.1 PAE PVC Delete Command ................... 420 60.8.2 PAE PVC Set Command ..................421 60.8.3 PAE PVC Show Command ..................422 60.8.4 PAE PVC Session Command ................422 SAM1316-22 User’s Guide...
Page 25 62.13.2 Uploading the Default Configuration File ............. 441 62.14 Recovering the Firmware ....................442 Chapter 63 Specifications........................445 63.1 Hardware Telco-50 Connector Pin Assignments ............. 451 63.2 Console Cable Pin Assignments ..................453 Appendix A Legal Information ....................455 SAM1316-22 User’s Guide...
Page 26 Index............................459 SAM1316-22 User’s Guide...
Page 27: User's Guide
User’s Guide...
Page 29: Getting To Know The Sam1316-22
SAM1316-22 aggregates traffic from 16 SHDSL lines to two Ethernet ports to connect SHDSL subscribers to the Internet. You can use the built-in web configurator to manage and configure the SAM1316- 22. In addition, the SAM1316-22 can also be managed via Telnet, the console port, or third-party SNMP management. 1.2 Applications These are the main applications for the SAM1316-22: •...
Page 30: Curbside Application
Internet access to all tenants. Figure 1 MTU Application 1.2.2 Curbside Application The SAM1316-22 can be used by an Internet Service Provider (ISP) in a street cabinet to form a "mini POP (Point-of-Presence)" to provide broadband services to SAM1316-22 User’s Guide...
Page 31 Chapter 1 Getting to Know the SAM1316-22 residential areas that are too far away from the ISP to avail of DSL services. Residents need a DSL modem, connected as shown in the previous figure. Figure 2 Curbside Application SAM1316-22 User’s Guide...
Page 32 Chapter 1 Getting to Know the SAM1316-22 SAM1316-22 User’s Guide...
Page 33: Installing And Removing The Sam1316-22
2.2 Installing the SAM1316-22 in the IES-1000 Hold the SAM1316-22 with the network ports facing you. Insert it into an empty slot on the front of the IES-1000. Push the SAM1316-22 into the IES-1000 until the front of the SAM1316-22 is flush with the IES-1000.
Page 34: Removing The Sam1316-22 From The Ies-1000
Chapter 2 Installing and Removing the SAM1316-22 Turn the two screws on the front of the SAM1316-22 clockwise to secure the SAM1316-22 to the chassis as shown below. Figure 4 Installation: Tighten Module Screws 2.3 Removing the SAM1316-22 from the IES-1000 Turning the two screws that secure the module to the chassis counter-clockwise to loosen them.
Page 35 Chapter 2 Installing and Removing the SAM1316-22 SAM1316-22 User’s Guide...
Page 36 Chapter 2 Installing and Removing the SAM1316-22 SAM1316-22 User’s Guide...
Page 37: Front Panel
H A P T E R Front Panel This chapter describes the front panel of the SAM1316-22, shown below. Figure 7 Front Panel The LEDs and ports are discussed in the following sections. 3.1 LEDs The following table describes the LED indicators on the SAM1316-22.
Page 38: Front Panel Ports
• No flow control Connect the male 9-pin end of the console cable to the console port of the SAM1316-22. Connect the female end to a serial port (COM1, COM2 or other COM port) of your computer. 3.2.2 LAN (Ethernet) Ports...
Page 39: User Ports
Chapter 3 Front Panel Connect the LAN port of your SAM1316-22 to an Ethernet WAN switch using a straight-through Category 5 UTP (Unshielded Twisted Pair) cable with RJ-45 connectors. You may stack multiple IES-1000 units up to the number of ports available on an Ethernet switch as shown next.
Page 40 Appendix C on page 443 for pin assignments. 3.2.3.2 Main Distribution Frame (MDF) An MDF is usually installed between end-users' equipment and the telephone company (CO) in a basement or telephone room. The MDF is the point of SAM1316-22 User’s Guide...
Page 41 • Use a punch-down tool to seat telephone lines between MDF blocks. 3.2.3.3 Typical MDF Scenario You want to install the SAM1316-22 in an environment where there are no previously installed MDFs. There is no phone service and you want to install the SAM1316-22 for data-access only.
Page 42 Connect the USER wiring on the other end of the Telco-50 cable to the upper ports of the MDF using a punch-down tool. Connect the telephone wiring from each end-user's DSL modem to the lower ports of the MDF. SAM1316-22 User’s Guide...
Page 43: Technical Reference
Technical Reference...
Page 45: Introducing The Web Configurator
Nonvolatile memory refers to the SAM1316-22’s storage that remains even if the SAM1316-22’s power is turned off. Administrators with high privilege access can use all screens including the lower privilege screens.
Page 46 Chapter 4 Introducing the Web Configurator Launch your web browser, and enter the IP address of the SAM1316-22 (default: 192.168.1.1 is the factory default) in the Location or Address field. Press Enter. The Login screen appears. Figure 12 Login Type admin in the User Name field and your password (default: 1234) in the Password field.
Page 47: Navigation Panel
In the navigation panel, click a menu item to reveal a list of submenu links. Click a submenu link to go to the corresponding screen. Table 3 Navigation Panel Submenu Links BASIC SETTING ADVANCED APPLICATION ROUTING PROTOCOL ALARM MANAGEMENT CONFIG SAVE SAM1316-22 User’s Guide...
Page 48 Use this screen to configure the DHCP relay settings. DHCP Snoop Use these screens to drop traffic from IP addresses not assigned by the DHCP server and to look at a summary of the DHCP packets on each port. SAM1316-22 User’s Guide...
Page 49 Chapter 4 Introducing the Web Configurator Table 4 Web Configurator Screens (continued) LABEL DESCRIPTION 2684 Routed Use this screen to configure the SAM1316-22 to handle 2684 routed Mode mode traffic. PPPoA to PPPoE Use this screen to enable PPPoA-to-PPPoE conversions on each port.
Page 50: Changing Your Password
Config Save Config Save Use this screen to save the device’s configuration into the nonvolatile memory (the SAM1316-22’s storage that remains even if the SAM1316-22’s power is turned off). 4.5 Changing Your Password After you log in for the first time, it is recommended you change the default administrator password.
Page 51: Saving Your Configuration
Click Apply in a configuration screen when you are done modifying the settings in that screen to save your changes back to the run-time memory. Settings in the run-time memory are lost when the SAM1316-22’s power is turned off. Click Config Save in the navigation panel to save your configuration to nonvolatile memory.
Page 52 Chapter 4 Introducing the Web Configurator management session both for security reasons and so you do not lock out other device administrators. Figure 16 Logout SAM1316-22 User’s Guide...
Page 53: Initial Configuration
H A P T E R Initial Configuration 5.1 Overview This chapter describes initial configuration for the SAM1316-22. See Appendix A on page 435 for various default settings of the SAM1316-22. It shows what you first need to do to provide service to DSL subscribers.
Page 54 Chapter 5 Initial Configuration Note: If you change the IP address of the SAM1316-22, after you click Apply IP setting, you have to use the new IP address to log into the web configurator again. If your subscribers use VPI 0 and VCI 33 (the default for all of the DSL ports), go to step 13.
Page 55 Click VC Setup. The following screen appears. Figure 19 VC Setup Select any virtual channel’s Select radio button, and click Delete. The following screen appears. Figure 20 VC Setup, Delete Click OK. The following screen appears. Figure 21 Select Ports SAM1316-22 User’s Guide...
Page 56 VLAN groups (that are not assigned to other channels). Then, enter the VPI and VCI that you use. Leave the other default settings, and click Add. The VC Setup screen is updated. Figure 23 VC Setup SAM1316-22 User’s Guide...
Page 57 11 Select the new channel’s Select radio button. Click Copy, and then click Paste. The following screen appears. The following screen appears. Figure 24 Select Ports 12 Click All, and then click Apply. The VC Setup screen is updated. Figure 25 VC Setup SAM1316-22 User’s Guide...
Page 58 Figure 26 Config Save Note: Clicking Save in the Config Save > Config Save screen saves any changes, including the new IP address of the SAM1316-22, in the Flash memory. Otherwise, the SAM1316-22 reverts to the default settings (IP address is 192.168.1.1) once it is turned off.
Page 59: Home And Port Statistics Screens
The following table describes the labels in this screen. Table 5 Home LABEL DESCRIPTION System up Time This field shows how long the system has been running since the last time it was started. The following fields are related to the Ethernet ports. SAM1316-22 User’s Guide...
Page 60 Select a port from the Port drop-down list box and then click Clear Counter to erase the recorded statistical information for that port. Clear Counter Reset Click this to set the Poll Interval(s) and Port fields to their default values and to refresh the screen. SAM1316-22 User’s Guide...
Page 61: Ethernet Port Statistics Screen
This field shows the number of good multicast frames received of 64 to 1518 octets in length (for non VLAN) or 1522 octets (for VLAN), not including Broadcast frames. Frames with range or length errors are also not taken into account. SAM1316-22 User’s Guide...
Page 62 Maximum Receive Unit frame size. Rx dropped This field shows the number of received frames that were received into the SAM1316-22, but later dropped because of a lack of system resources. Rx jabber This field shows the number of frames received that were longer than 1518 octets (non VLAN) or 1522 octets (VLAN) and contained an invalid FCS, including alignment errors.
Page 63 Select a port from the Port drop-down list box and then click Clear Counter to erase the recorded statistical information for that port. Clear Counter Reset Click this to set the Poll Interval(s) and Port fields to their default values and to refresh the screen. SAM1316-22 User’s Guide...
Page 64: Dsl Port Statistics Screen
This field shows the number of packets received on this port. Tx broadcast This field shows the number of broadcast packets transmitted on this packets port. Rx broadcast This field shows the number of broadcast packets received on this packets port. SAM1316-22 User’s Guide...
Page 65 This field shows the number of outgoing packets that were dropped packets on this port. The “Tx discard packets” counter always displays “0” because the SAM1316-22 does not discard packets that it sends. Rx discard This field shows the number of received packets that were dropped on packets this port.
Page 66: Rmon Statistics Screen
This field displays the total number of packets that were dropped on this port. EtherStatsOctets This field displays the total number of octets received/ transmitted on this port. EtherStatsPkts This field displays the total number of good packets received/transmitted on this port. SAM1316-22 User’s Guide...
Page 67 (this includes FCS octets but excludes framing bits). Poll Interval(s) The text box displays how often (in seconds) this screen refreshes. You may change the refresh interval by typing Set Interval a new number in the text box and then clicking Set Interval. SAM1316-22 User’s Guide...
Page 68: Rmon History Screen
This field displays the number of broadcast packets received or transmitted since the last sample time. MulticastPkts This field displays the number of multicast packets received/ transmitted since the last sample time. Utilization This field displays the port utilization status. SAM1316-22 User’s Guide...
Page 69: Rmon History Detail Screen
BroadcastPkts This field displays the total number of broadcast packets received/ transmitted in the sampling period. MulticastPkts This field displays the total number of multicast packets received/ transmitted in the sampling period. SAM1316-22 User’s Guide...
Page 70 This is the number of frames for which transmission failed due to excessive collisions. Excessive collision is defined as the number of maximum collisions before the retransmission count is reset. Utilizations This field displays the port utilization status in the sampling period. SAM1316-22 User’s Guide...
Page 71: System Information
(such as temperature status). You can check the firmware version number and monitor the hardware status in this screen. To open this screen, click Basic Setting, System Information. Figure 34 System Info SAM1316-22 User’s Guide...
Page 72 This field displays the lowest voltage limit at this sensor. Threshold (Hi) This field displays the highest voltage limit at this sensor. Status Normal indicates that the voltage is within an acceptable operating range at this point; otherwise Abnormal is displayed. SAM1316-22 User’s Guide...
Page 73 The text box displays how often (in seconds) this screen refreshes. You may change the refresh interval by typing a new number in the Set Interval text box and then clicking Set Interval. Stop Click Stop to halt statistic polling. SAM1316-22 User’s Guide...
Page 74 Chapter 7 System Information SAM1316-22 User’s Guide...
Page 75: General Setup
It also allows you to set the system time manually or get the current time and date from an external server when you turn on your device. The real time is then displayed in the logs. To open this screen, click Basic Setting, General Setup. Figure 35 General Setup SAM1316-22 User’s Guide...
Page 76 Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 77: User Account
H A P T E R User Account The User Account screens allows you to set up and configure system administrator accounts for the SAM1316-22. You can also configure the authentication policy for SAM1316-22 administrators. This is different than port authentication in Chapter 24 on page 175.
Page 78: Authentication Screen
Low privilege commands are read only. Click Add to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 79 User account Click this to open the User Account screen. See Section 9.1 on page Authentication Select the process by which the SAM1316-22 authenticates Mode administrators. local - Search the local database. You maintain this database in the User Account screen.
Page 80 There is a high, medium or low privilege level for each command. You can also choose to deny access to the SAM1316-22. Select high to allow the administrator to use all commands including the lower privilege commands.
Page 81: Switch Setup
Figure 38 on page 82 for an example). When the SAM1316-22 is in standalone mode, you can use it in a network topology that uses loops (you should also enable RSTP). You can have multiple SAM1316-22 connected on the same network and set both of them to use standalone mode in order to use them with a network topology that uses loops.
Page 82: Port Isolation With Standalone Switch Mode Example
10.2.2 Port Isolation with Standalone Switch Mode Example The following graphic shows SAM1316-22 1 and 2 connected to each other and the Ethernet backbone switch (3) in a network topology that creates a loop. The SAM1316-22 are using the standalone switch mode and have RSTP enabled.
Page 83: Port Isolation With Daisychain Switch Mode Example
Chapter 10 Switch Setup not have loops. When you daisychain multiple SAM1316-22 they must all be set to daisychain mode. Daisychain switch mode with port isolation enabled blocks communications between subscriber ports on an individual SAM1316-22 and between the subscribers of any daisychained SAM1316-22 (see...
Page 84: Switch Setup Screen
Chapter 10 Switch Setup 10.3 Switch Setup Screen To open this screen, click Basic Setting, Switch Setup. Figure 40 Switch Setup SAM1316-22 User’s Guide...
Page 85 When you enable port isolation you do not need to configure Active the VLAN to isolate subscribers. MAC Anti- Select this if you want the SAM1316-22 to generate an alarm and Spoofing issue a SNMP trap when an existing MAC address appears on another port.
Page 86 Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 87: Ip Setup
Click Apply IP setting to save your changes to the device’s IP address and/or subnet mask to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 88 SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 89: Enet Port Setup
Ethernet port has. When the peer Ethernet device has auto-negotiation turned on, the SAM1316-22 negotiates with the peer to determine the connection speed. If the peer Ethernet port does not have auto- negotiation turned on, the SAM1316-22 determines the connection speed by detecting the signal on the cable and using full duplex.
Page 90 Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 91: Xdsl Port Setup
You still get to individually enable or disable each port, as well as configure its channels and operational mode. 13.2 Alarm Profiles Alarm profiles define DSL port alarm thresholds. The SAM1316-22 sends an alarm trap and generates a syslog entry when the thresholds of the alarm profile are exceeded. See Section 14.8 on page 116...
Page 92: Efm And Atm Modes
Chapter 13 xDSL Port Setup 13.4 EFM and ATM Modes The SAM1316-22 can operate in two modes: Ethernet in the First Mile (EFM) and Asynchronous Transfer Mode (ATM). • IEEE 802.3-2004’s EFM (Ethernet First Mile) lets you run Ethernet protocol over G.SHDSL.
Page 93 These are configured in the xDSL Port Setting screen (see Section 13.6.1 on page 95). Profile Select this check box to copy this port’s port profile settings. These are configured in the xDSL Port Profile Setup screens (see Chapter 14 on page 107). SAM1316-22 User’s Guide...
Page 94 This is configured in the xDSL Port Setting screen (see Section 13.6.1 on page 95). Channels This field displays the number of PVCs (Permanent Virtual Circuits) that are configured for this port. This is configured in the VC Setup screen (see Section 13.8 on page 98). SAM1316-22 User’s Guide...
Page 95: Xdsl Port Setting Screen
Central) and STU-R (SHDSL Termination Unit - Remote) end points. An SHDSL regenerator amplifies the SHDSL signal in order to increase the connection distance. Use the Alarm Profile screen to configure alarm profiles. (See Section 14.8 on page 116). SAM1316-22 User’s Guide...
Page 96 Select efm to use Ethernet frames inside SHDSL framing. This option has less overhead and better data transmission rates. Select atm to use ATM cells inside SHDSL framing. Select this when your CPE device only supports this mode. SAM1316-22 User’s Guide...
Page 97: Virtual Channels
For example, you want to give high priority to voice service on one of the DSL ports. Use the Edit Static VLAN screen to configure a static VLAN on the SAM1316-22 for voice on the port. Use the DSL Edit Port Channel Setup screen to: •...
Page 98: Llc
You can also change an individual virtual channel by assigning it a different profile. The SAM1316-22 provides two default virtual channel profiles: DEFVAL (for LLC encapsulation) and DEFVAL_VC (for VC encapsulation). By default, all virtual channels are associated to DEFVAL.
Page 99 This field is read-only once you click on a port number below. Super Channel The SAM1316-22 forwards frames belonging to VLAN groups that are not assigned to specific channels to the super channel. Enable the super channel option to have this channel forward frames belonging to multiple VLAN groups (that are not assigned to other channels).
Page 100 PVC number in the Index column.) This saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 101 5. Select to which ports you want to copy the settings. Use All to select every port. Use None to clear all of the check boxes. 6. Click Apply to delete the channels. Figure 48 Select Ports SAM1316-22 User’s Guide...
Page 102: Priority-Based Pvcs
A PPVC (Priority-based PVC) allows you to give different priorities to PVCs that are members of the same VLAN. The SAM1316-22 uses eight priority queues (also called levels) for the member PVCs. The system maps frames with certain IEEE 802.1p priorities to a PVC with a particular priority queue.
Page 103: Ppvc Setup Screen
Select the encapsulation type (llc or vc) for this PPVC. Type the Virtual Path Identifier for this PPVC. Type the Virtual Circuit Identifier for this PPVC. The SAM1316-22 uses this PVC channel internally. This PVC is not needed on the subscriber’s device.
Page 104: Ppvc Setup Members Screen
Clicking Add / Modify saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 105 Clicking Delete saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 106 Clicking Add / Modify saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 107: Xdsl Profiles Setup
It can also give increased bandwidth for LAN-to-LAN applications. When using 4 or 8-wire groups, you must apply the same DSL profile to every port in a specific set of ports. For example, a profile for a 4-wire group can be used SAM1316-22 User’s Guide...
Page 108: Port Profile Screen
116) IGMP Filter Profile Click IGMP Filter Profile to open the IGMP Filter Profile screen where you can configure IGMP multicast filter profiles (see Section 14.10 on page 119). Index This is the port profile index number. SAM1316-22 User’s Guide...
Page 109 Enable Mode the best possible transmission rate. This is used in rate adaptation. Select lp_off to have the SAM1316-22 skip the rate adaptation phase to shorten connection set up time. Select lp_on_cur to enable line probing using the current target Signal to Noise Ratio margin.
Page 110: Atm Qos
DESCRIPTION Click Add to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 111: Traffic Parameters
SCR again. At this time, more cells (up to the MBS) can be sent at the PCR again. Note: If the PCR, SCR or MBS is set to the default of “0”, the system will assign a maximum value that correlates to your upstream line rate. SAM1316-22 User’s Guide...
Page 112 TAT is calculated based on the PCR or SCR. The following figure illustrates the relationship between TAT, CDVT and BT. If a cell arrives at time A, then according to PCR or SCR, the next cell is expected to arrive SAM1316-22 User’s Guide...
Page 113: Upstream Policing
If a subscriber attempts to enlarge his device's PVC shaping parameters in order to get more upstream traffic bandwidth, it will violate the SAM1316-22's upstream policing profile and the traffic will be discarded. Operators can use this feature to prevent subscribers from changing their device settings.
Page 114: Vc Profile Screen
This field displays the accepted tolerance of the difference between a cell’s transfer delay and the expected transfer delay. The Sustained Cell Rate (SCR) sets the average cell rate (long-term) in cells per second that can be transmitted. SCR applies with the vbr traffic class. SAM1316-22 User’s Guide...
Page 115 VBR traffic classes. Click Add to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 116: Alarm Profile Screen
Chapter 14 xDSL Profiles Setup 14.8 Alarm Profile Screen Alarm profiles define DSL port alarm thresholds. The SAM1316-22 sends an alarm trap and generates a syslog entry when the thresholds of the alarm profile are exceeded. To open this screen, click Basic Setting, xDSL Profiles Setup, Alarm Profile.
Page 117: Alarm Profile Map Screen
Use this screen to look at and to assign the ports to which alarm profiles are assigned. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 118: Igmp Filtering
(such as content information distribution) based on service plans and types of subscription. You can set the device to filter the multicast group join reports on a per-port basis by configuring an IGMP filtering profile and associating the profile to a port. SAM1316-22 User’s Guide...
Page 119: Igmp Filter Profile Screen
IGMP Filter Profile screen to configure a different profile and then assign it to the subscriber’s DSL port in the XDSL Port Setting screen (see Section 13.6.1 on page 95). To open this screen, click Basic Setting, xDSL Profiles Setup, IGMP Filter Profile. SAM1316-22 User’s Guide...
Page 120 You cannot edit the DEFVAL profile. Name This name identifies the IGMP filter profile. Delete Select the Delete check box and click Delete to remove an IGMP filter profile. You cannot delete the DEFVAL profile. SAM1316-22 User’s Guide...
Page 121 Start IP and End IP fields. Click Add to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 122 Chapter 14 xDSL Profiles Setup SAM1316-22 User’s Guide...
Page 123: Xdsl Line Data
Click Refresh to display updated information. Port Name This section displays the name of the port. Rate The rate fields display the transmission rates. “Line Down” indicates that the DSL port is not connected to a subscriber. SAM1316-22 User’s Guide...
Page 124 Stur vendor This field displays the other vendor information. other Stur software This field displays the vendor software version. version Stur equipment This field displays the equipment code conforming to ANSI T1.213, code Coded Identification of Equipment Entities. SAM1316-22 User’s Guide...
Page 125: Xdsl Performance Screen
Section 15.1 on page 123). Port Use this drop-down list box to select a port for which you wish to view information. Refresh Click Refresh to display updated information. Port Name This section displays the name of the port. SAM1316-22 User’s Guide...
Page 126 There is a mechanism in SHDSL for the STU-C and STU-R to (since last boot exchange information about line performance. As a result, the SAM1316-22 can report the errors detected by the STU-C and the STU-R. Stuc: This refers to what is detected by the Central Office (CO) end point.
Page 127 The number of Errored Seconds detected within the period. The number of Severely Errored Seconds detected within the period. losws The number of Loss of Sync Word Seconds detected within the period. The number of UnAvailable Seconds detected within the period. SAM1316-22 User’s Guide...
Page 128 Chapter 15 xDSL Line Data SAM1316-22 User’s Guide...
Page 129: G.bond
This chapter explains how to combine multiple ports into a logical link. 16.1 Bonding Overview Bonding combines multiple ports into a logical link. This lets the SAM1316-22 transmit at higher bandwidths over longer distances. In addition, bonding is a cheaper alternative than installing fiber.
Page 130: G.bond Setup Screen
Select this to clear the fields in this screen without saving any changes. Bond Name Enter the name of the bond. You can use up to 31 English keyboard characters; double quotation marks (“) and spaces are not allowed. SAM1316-22 User’s Guide...
Page 131: G.bond Status Screen
Section 16.2 on page 130). Index This is the number of the bond. Bond Name This is the name of the bond. (STUC/STUR) This is the length of the sequence ID used in this bond. The STU-C specifies this value. SAM1316-22 User’s Guide...
Page 132 V: This port is sending and receiving information in the bond. T: This port is only sending information in the bond. R: This port is only receiving information in the bond. X: This port does not have a DSL connection. SAM1316-22 User’s Guide...
Page 133: Vlan
Tagged VLAN uses an explicit tag (VLAN ID) in the MAC header to identify the VLAN membership of a frame across bridges - they are not confined to the device on which they were created. The VLANs can be created statically by hand or SAM1316-22 User’s Guide...
Page 134: Forwarding Tagged And Untagged Frames
802.1Q VLAN-aware switch to an 802.1Q VLAN-unaware switch, the SAM1316-22 first decides where to forward the frame and then strips off the VLAN tag. To forward a frame from an 802.1Q VLAN-unaware switch to an 802.1Q VLAN-aware switch, the SAM1316-22 first decides where to forward the...
Page 135: Vlan Status Screen
VLAN Port Setting Click VLAN Port Setting to specify Port VLAN IDs (PVIDs). See Section 17.5 on page 138. The Number of This is the number of VLANs configured on the SAM1316-22. VLAN Page X of X This identifies which page of VLAN status information is displayed and how many total pages of VLAN status information there are.
Page 136: Static Vlan Setting Screen
This field shows how long it has been since a normal VLAN was registered or a static VLAN was set up. Status This field shows that this VLAN was added to the SAM1316-22 statically, that is, added as a permanent entry. Poll Interval(s) The text box displays how often (in seconds) this screen refreshes.
Page 137 Table 34 Static VLAN Setting LABEL DESCRIPTION VLAN Status Click VLAN Status to see which of the SAM1316-22’s ports are members of which VLANs (see Section 17.3 on page 135) VLAN Port Setting Click VLAN Port Setting to specify Port VLAN IDs (PVIDs). See Section 17.5 on page...
Page 138: Vlan Port Setting Screen
Clicking Add saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 139 136). Port The port numbers identify the SAM1316-22’s ports. PVID Type the Port VLAN ID (PVID) from 1 to 4094. The SAM1316-22 assigns the PVID to untagged frames or priority frames (0 VID) received on this port. Priority Select an IEEE 802.1p priority to assign to untagged frames or priority frames (0 VID) received on this port.
Page 140 4. Click Apply to paste the settings. Figure 66 Select Ports At the time of writing, the VLAN Acceptable Frame Type field is read-only for the Ethernet ports. The SAM1316-22 accepts both tagged and untagged incoming frames on the Ethernet ports. SAM1316-22 User’s Guide...
Page 141: Igmp
IGMP snooping allows the SAM1316-22 to learn multicast groups without you having to manually configure them. The SAM1316-22 forwards multicast traffic destined for multicast groups (that it has learned from IGMP snooping or that you have manually configured) to ports...
Page 142: Igmp Proxy
There should only be one upstream interface (also known as the query port) for one query VLAN on the SAM1316-22. A downstream interface is a port that connects to a host (such as a computer).
Page 143: Igmp Status Screen
Chapter 18 IGMP The SAM1316-22 only sends an IGMP leave messages via the upstream interface when the last host leaves a multicast group. In daisychain mode, Ethernet interface 1 is set as the upstream interface and Ethernet interface 2 and the DSL ports are set as downstream interfaces.
Page 144 This is the total number of Report packets received. Leave This is the total number of Leave packets received. Number of IGMP This is how many IGMP groups the SAM1316-22 has identified on the Groups local network. Previous Click one of these buttons to show the previous/next screen if all of the information cannot be seen in one screen.
Page 145: Igmp Bandwidth Screen
Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 146: Bandwidth Port Setup Screen
Clicking Apply saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 147: Igmp Setup Screen
Select None Click this to un-select all entries in the table. 18.5 IGMP Setup Screen Use this screen to configure your IGMP settings. To open this screen, click Advanced Application, IGMP, IGMP Setup. Figure 71 IGMP Setup SAM1316-22 User’s Guide...
Page 148: Igmp Filter Setup Screen
Click Apply to save your IGMP mode settings. Clicking Apply saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 149: Igmp Count Screen
Select this, and click Active or Inactive to enable or disable the specified IGMP count limit on this port. Active Click this to enable the specified IGMP count limits on the selected ports. Inactive Click this to disable the specified IGMP count limits on the selected ports. SAM1316-22 User’s Guide...
Page 150: Igmp Port Info Screen
This is the total number of Join packets received on this port. Leave Count This is the total number of Leave packets received on this port. Clear Click Clear to delete the information the SAM1316-22 has learned about multicast groups. This resets every counter in this screen. SAM1316-22 User’s Guide...
Page 151: Igmp Port Group Screen
This field shows the IP address of the multicast group joined by this port. Source IP This field shows the IP address of the client that joined the multicast group on this port. Refresh Click Refresh to display updated information. SAM1316-22 User’s Guide...
Page 152 Chapter 18 IGMP SAM1316-22 User’s Guide...
Page 153: Static Multicast
The Number of This is the number of static multicast entries configured on the Static Multicast SAM1316-22. Page X of X This identifies which page of information is displayed and the total number of pages of information. SAM1316-22 User’s Guide...
Page 154 01:00:5E:10:10:10 Clicking Add saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 155: Multicast Vlan
It is suggested to use a super channel for multicast VLAN. If a normal PVC is used and the multicast VLAN ID is not the same as the PVC’s VID, the SAM1316-22 does not forward traffic to this PVC even if the subscriber’s port has joined the multicast VLAN.
Page 156: Mvlan Status Screen
Chapter 20 Multicast VLAN 20.2 MVLAN Status Screen Use this screen to look at a summary of all multicast VLAN on the SAM1316-22. To open this screen, click Advanced Application, Multicast VLAN. Figure 76 MVLAN Status The following table describes the labels in this screen.
Page 157: Mvlan Setup Screen
LABEL DESCRIPTION MVLAN Status Click MVLAN Status to open the MVLAN Status screen where you can view a summary of all multicast VLAN on the SAM1316-22 (see Section 20.2 on page 156). MVLAN Group Click MVLAN Group to open the MVLAN Group screen where you...
Page 158 Use the None button to clear all of the ports check boxes. Click Add to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 159: Mvlan Group Screen
LABEL DESCRIPTION MVLAN Status Click MVLAN Status to open the MVLAN Status screen where you can view a summary of all multicast VLAN on the SAM1316-22 (see Section 20.2 on page 156). MVLAN Setup Click MVLAN Setup to open the MVLAN Setup screen where you...
Page 160 Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 161: Filtering
Filtering This chapter describes how to configure the Packet Filter screen. 21.1 Packet Filter Screen Use this screen to set which types of packets the SAM1316-22 accepts on individual DSL ports. To open this screen, click Advanced Application, Filtering. Figure 79 Packet Filter...
Page 162 Apply Clicking Add or Apply saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 163 PPPoE, IP, ARP, These are the packet filter settings for each port. NetBios, DHCP, “V” displays for the packet types that the SAM1316-22 is to accept on EAPOL, IGMP, the port. “-“ displays for packet types that the SAM1316-22 is to PPPoE Only reject on the port (packet types that are not listed are accepted).
Page 164 Chapter 21 Filtering SAM1316-22 User’s Guide...
Page 165: Mac Filter
Use the MAC filter to control from which MAC (Media Access Control) addresses frames can (or cannot) come in through a port. 22.2 MAC Filter Screen To open this screen, click Advanced Application, MAC Filter. Figure 80 MAC Filter SAM1316-22 User’s Guide...
Page 166 The MAC address must be a valid MAC address. Click Add to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 167: Spanning Tree Protocol
Protocol (RSTP). 23.1 RSTP and STP RSTP adds rapid reconfiguration capability to STP. The SAM1316-22 supports RSTP and the earlier STP. RSTP and STP detect and break network loops and provide backup links between switches, bridges or routers. They allow a device to interact with other RSTP or STP-aware devices in your network to ensure that only one path exists between any two stations on the network.
Page 168 Hello BPDU after a predefined interval (Max Age), the device assumes that the link to the root bridge is down. This device then initiates negotiations with other devices to reconfigure the network to re-establish a valid network topology. SAM1316-22 User’s Guide...
Page 169 Forwarding Forwarding All BPDUs are received and processed. All information frames are received and forwarded. See the IEEE 802.1w standard for more information on RSTP. See the IEEE 802.1D standard for more information on STP. SAM1316-22 User’s Guide...
Page 170: Spanning Tree Protocol Status Screen
The following table describes the labels in this screen. Table 51 Spanning Tree Protocol Status LABEL DESCRIPTION STP Config Click STP Config to modify the SAM1316-22’s STP settings (see Section 23.3 on page 172). Spanning Tree This field displays On if STP is activated. Otherwise, it displays Off.
Page 171 This is the time (in seconds) the root switch will wait before changing delay (second) states (that is, listening to learning to forwarding). Max age (second) This is the maximum time (in seconds) the SAM1316-22 can wait without receiving a configuration message before attempting to reconfigure.
Page 172: Spanning Tree Protocol Screen
The following table describes the labels in this screen. Table 52 Spanning Tree Protocol LABEL DESCRIPTION STP Status Click STP Status to display the SAM1316-22’s STP status (see Section 23.2 on page 170). Active Select this check box to turn on RSTP.
Page 173 Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 174 Chapter 23 Spanning Tree Protocol SAM1316-22 User’s Guide...
Page 175: Port Authentication
Figure 84 RADIUS Server 24.1.2 Introduction to Local User Database By storing user profiles locally on the SAM1316-22, your SAM1316-22 is able to authenticate users without interacting At the time of writing, Windows XP of the Microsoft operating systems supports 802.1x. See the Microsoft web site for information on other Windows operating system support.
Page 176: Radius Screen
802.1x Click 802.1x to configure individual port authentication settings (see Section 24.3 on page 178). Enable Select this check box to have the SAM1316-22 use an external Authentication RADIUS server to authenticate users. Server IP Address Enter the IP address of the external RADIUS server in dotted decimal notation.
Page 177 Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 178: Screen
Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 179 Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 180 Chapter 24 Port Authentication SAM1316-22 User’s Guide...
Page 181: Port Security
Select this check box to restrict the number of MAC addresses that can be learned on the port. Clear this check box to not limit the number of MAC addresses that can be learned on the port. SAM1316-22 User’s Guide...
Page 182 Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 183: Dhcp Relay
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to obtain TCP/IP configuration at start-up from a DHCP server. You can configure the SAM1316-22 to relay DHCP requests to one or more DHCP servers and the server’s responses back to the clients. You can specify default DHCP servers for all VLAN, and you can specify DHCP servers for each VLAN.
Page 184: Format
Slot No Port No VLAN ID The Agent Information field that the SAM1316-22 adds also contains an “Agent Remote-ID sub-option” of information that you specify. The following table shows the format of the private Agent Remote ID sub-option. The “2” in the first field identifies this as an Agent Remote ID sub-option. The length N gives the total number of octets in the Agent Information Field.
Page 185: Dhcp Relay Screen
Enter the ID of the VLAN served by the specified DHCP relay(s). Enter 0 to set up the IP address(es) of the default DHCP relay(s). Enable DHCP Enable DHCP relay to have the SAM1316-22 relay DHCP requests to a Relay: DHCP server and the server’s responses back to the clients.
Page 186 23 English keyboard characters of additional information for the SAM1316-22 to add to the DHCP requests that the SAM1316-22 relays to a DHCP server. Examples of information you could add would be the system name of the SAM1316-22 or the ISP’s name. Enable Option 82...
Page 187 Table 60 DHCP Relay (continued) LABEL DESCRIPTION Relay Mode This field displays how the SAM1316-22 relays DHCP requests for the selected VLAN. Auto - The SAM1316-22 routes DHCP requests to the active server for the VLAN. Both - The SAM1316-22 routes DHCP requests to the primary and secondary server for the VLAN, regardless of which one is active.
Page 188 Chapter 26 DHCP Relay SAM1316-22 User’s Guide...
Page 189: Dhcp Snoop
27.1 DHCP Snoop Overview DHCP snooping prevents clients from assigning their own IP addresses. The SAM1316-22 can store every (DSL port, MAC address, IP address) tuple offered by the DHCP server. Then, it only forwards packets from clients whose MAC address and IP address are recorded.
Page 190 Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 191: Dhcp Snoop Status Screen
DHCP server assigned an IP address. This field displays the VID assigned to a client on this port. Flush Click Flush to remove all of the entries from the DHCP snooping table for the selected port(s). SAM1316-22 User’s Guide...
Page 192: Dhcp Counter Screen
The DHCP server can assign up to 32 IP addresses at one time to each port. This field displays the number of requests from DHCP clients above this limit. Clear Click Clear to delete the information the SAM1316-22 has learned about DHCP packets. This resets every counter in this screen. SAM1316-22 User’s Guide...
Page 193: 2684 Routed Mode
IP address 192.168.10.102 and is in VLAN 1. The SAM1316-22 uses IP address 192.168.20.101. The subscriber’s device (the CPE) is connected to DSL port 1 on the SAM1316-22 and the 2684 routed mode traffic is to use the PVC SAM1316-22 User’s Guide...
Page 194 WAN IP address or routed gateway IP address. • The SAM1316-22’s management IP address should not be in the same subnet as the one defined by the WAN IP address and netmask of the subscriber’s device.
Page 195: 2684 Routed Pvc Screen
255 converts to eight 1’s in binary. There are three 255’s, so add three eights together and you get the bit number (24). Make sure that the routed PVC’s subnet does not include the SAM1316-22’s IP address. SAM1316-22 User’s Guide...
Page 196: 2684 Routed Domain Screen
Click Add to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 197 Click Add to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 198: Rpvc Arp Proxy Screen
Clicking Delete saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 199: 2684 Routed Gateway Screen
Click Apply Setting to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 200 Click Add to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 201 Clicking Delete saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 202 Chapter 28 2684 Routed Mode SAM1316-22 User’s Guide...
Page 203: Pppoa To Pppoe
H A P T E R PPPoA to PPPoE This chapter shows you how to set up the SAM1316-22 to convert PPPoA frames to PPPoE traffic and vice versa. 29.1 PPPoA to PPPoE Overview Before migrating to an Ethernet infrastructure, a broadband network might consist of PPPoA connections between the CPE devices and the DSLAM and PPPoE connections from the DSLAM to the Broadband Remote Access Server (BRAS).
Page 204 US VC Profile Use the drop-down list box to select a VC profile to use for this channel’s upstream traffic. The SAM1316-22 does not perform upstream traffic policing if you do not specify an upstream VC profile. Note: Upstream traffic policing should be used in conjunction with the ATM shaping feature on the subscriber’s device.
Page 205 Click this to add or save channel settings on the selected port. This saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 206 Select the check box in the Select column for an entry, and click Delete to remove the entry. Delete Select All Click this to select all entries in the table. Select None Click this to un-select all entries in the table. SAM1316-22 User’s Guide...
Page 207: Pppoa To Pppoe Status Screen
Session Status Session State This field displays whether or not the current session is Up or Down. Session ID This field displays the ID of the current session. It displays 0 if there is no current session. SAM1316-22 User’s Guide...
Page 208 Reply SAM1316-22 from the CPE (client) device. PPPoE PADI This field displays the number of padi PDUs sent by the SAM1316-22 to the BRAS. PPPoE PADO This field displays the number of pado PDUs sent by the BRAS to the SAM1316-22.
Page 209: Dscp
30.2 DSCP Setup Screen Use this screen to activate or deactivate DSCP on each port. To open this screen, click Advanced Application, DSCP. Figure 101 DSCP Setup SAM1316-22 User’s Guide...
Page 210: Dscp Map Screen
Click this to un-select all entries in the table. 30.3 DSCP Map Screen Use this screen to convert DSCP priority to IEEE 802.1p priority. To open this screen, click Advanced Application, DSCP, DSCP Map. Figure 102 DSCP Map SAM1316-22 User’s Guide...
Page 211 Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 212 Chapter 30 DSCP SAM1316-22 User’s Guide...
Page 213: Tls Pvc
Before the SAM1316-22 sends the frames from the customers, the VLAN ID is added to the frames. When packets intended for specific customers are received on the SAM1316-22, the outer VLAN tag is removed before the traffic is sent. 31.1.1 TLS Network Example In the following example figure, both A and B are Service Provider’s Network...
Page 214: Tls Pvc Screen
Use this screen to set up Transparent LAN Services on each port. This is set up by creating a TLS PVC. See Chapter 13 on page 91 for background information about creating PVCs. To open this screen, click Advanced Application, TLS PVC. SAM1316-22 User’s Guide...
Page 215 US VC Profile Use the drop-down list box to select a VC profile to use for this channel’s upstream traffic. The SAM1316-22 does not perform upstream traffic policing if you do not specify an upstream VC profile. Note: Upstream traffic policing should be used in conjunction with the ATM shaping feature on the subscriber’s device.
Page 216 Click this to add or save channel settings on the selected port. This saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 217: Acl
This chapter shows you how to set up ACL profiles on each port. 32.1 Access Control Logic (ACL) Overview An ACL (Access Control Logic) profile allows the SAM1316-22 to classify and perform actions on the upstream traffic. Each ACL profile consists of a rule and an action, and you assign ACL profiles to PVCs.
Page 218: Acl Profile Actions
• <tos>: 0~255 • <port>: 0~65535 If you apply multiple profiles to a PVC, the SAM1316-22 checks the profiles by rule number. The lower the rule number, the higher the priority the rule (and profile) has. For example, there are two ACL profiles assigned to a PVC. Profile1 is for VLAN ID 100 (rule number 9) traffic, and Profile2 is for IEEE 802.1p priority 0...
Page 219: Acl Setup Screen
SAM1316-22 checks the ACL rule and changes the traffic to VLAN 901. When the SAM1316-22 finally compares the VLAN ID of the traffic (901) to the VID of the PVC (900), the SAM1316-22 drops the packets because they do not match.
Page 220 Apply Click this to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 221: Acl Profile Setup Screen
Chapter 32 ACL 32.3 ACL Profile Setup Screen Use this screen to set up ACL profiles. To open this screen, click Advanced Application, ACL, ACL Profile Setup. Figure 106 ACL Profile Setup SAM1316-22 User’s Guide...
Page 222 Select the IEEE 802.1p priority that this traffic should have. priority deny Select this if you want the SAM1316-22 to reject this kind of traffic. ACL Profile List Index This field displays a sequential value. The sequence in this table is not important.
Page 223: Acl Profile Map Screen
This field displays the DSL port number on which the PVC is configured. VPI/VCI This field displays the Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI). The VPI and VCI identify a channel on this port. SAM1316-22 User’s Guide...
Page 224 Chapter 32 ACL SAM1316-22 User’s Guide...
Page 225: Downstream Broadcast
Use this drop-down list box to select a port for which you wish to configure settings. VLAN Specify the number of a VLAN (on this entry’s port) to which you do not want to send broadcast traffic. The VLAN must already be configured in the system. SAM1316-22 User’s Guide...
Page 226 Click Add to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 227: Syslog
Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 228 Chapter 34 Syslog SAM1316-22 User’s Guide...
Page 229: Access Control
No limit No limit 35.3 SNMP Simple Network Management Protocol is a protocol used for exchanging management information between network devices. SNMP is a member of TCP/IP protocol suite. A manager station can manage and monitor the SAM1316-22 SAM1316-22 User’s Guide...
Page 230 An agent is a management software module that resides in a managed device (the SAM1316-22). An agent translates the local management information from the managed device into a form compatible with SNMP. The manager is the console through which network administrators perform network management functions. It executes applications that control and monitor managed devices.
Page 231: Supported Mibs
MIBs the SAM1316-22 supports. 35.3.2 SNMP Traps The SAM1316-22 can send the following SNMP traps to an SNMP manager when an event occurs. ATUC refers to the downstream channel (for traffic going from the SAM1316-22 to the subscriber). ATUR refers to the upstream channel (for traffic coming from the subscriber to the SAM1316-22).
Page 232 Send a message to the manager that the 1.3.6.1.4.1.890.1.5.13.0. low-voltage condition is over. The variable in the binding list is the current voltage in volt of the system. thermalSensorFailure The trap signifies that the thermal sensor 1.3.6.1.4.1.890.1.5.13.0. failed. sysMacAntiSpoofing MAC Anti-spoofing. 1.3.6.1.4.1.890.1.5.5.6.1 2.4.1 SAM1316-22 User’s Guide...
Page 233: Snmp Screen
Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 234: Service Access Control Screen
Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 235 Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 236 Chapter 35 Access Control SAM1316-22 User’s Guide...
Page 237: Pppoe Intermediate Agent
36.1 PPPoE Intermediate Agent Tag Format If the PPPoE Intermediate Agent is enabled, the SAM1316-22 adds a vendor- specific tag to PADI (PPPoE Active Discovery Initialization) and PADR (PPPoE Active Discovery Request) packets from PPPoE clients. This tag is defined in RFC 2516 and has the following format for this feature.
Page 238 Agent Circuit ID Sub-option. In addition, the SAM1316-22 puts the PPPoE client’s MAC address into the Agent Remote ID Sub- option. The slot ID is zero, if this value is not applicable. If the SAM1316-22 adds extra information, it does not append a trailing 0x00 (00h).
Page 239: Pppoe Intermediate Agent Screen
Chapter 36 PPPoE Intermediate Agent 36.2 PPPoE Intermediate Agent Screen Use this screen to configure the SAM1316-22 to give a PPPoE termination server additional information that the server can use to identify and authenticate a PPPoE client. To open this screen, click Advanced Application > PPPoE Intermediate Agent.
Page 240 Clicking Add saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 241: Maximum Mtu Size
Click Apply Setting to save your MTU settings. Clicking Apply Setting saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 242 Chapter 37 Maximum MTU Size SAM1316-22 User’s Guide...
Page 243: Pvc Upstream Limit
VC profile and get poor throughput through the SAM1316-22. If there are limits on the transmission rate for upstream traffic both in upstream VC profiles and in this feature, the SAM1316-22 enforces the limit in the upstream VC profile first. SAM1316-22 User’s Guide...
Page 244: Pvc Upstream Limit Screen
Type the Virtual Path Identifier for the PVC for which you wish to configure the maximum upstream transmission rate. Type the Virtual Circuit Identifier for the PVC for which you wish to configure the maximum upstream transmission rate. SAM1316-22 User’s Guide...
Page 245 Clicking Apply saves your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 246 Chapter 38 PVC Upstream Limit SAM1316-22 User’s Guide...
Page 247: Oui Filter
The OUI value is assigned by the IANA. Click Advanced Application > OUI Filter to display the following screen. Figure 118 OUI Filter SAM1316-22 User’s Guide...
Page 248 Cancel Click this to reset the OUI field. Port This displays the SAM1316-22’s port number. Mode Specify the action on matched frames. Select accept to allow frames with a matched OUI field in the MAC addresses. The switch blocks frames with other OUIs not specified.
Page 249: Static Routing
Static Routing This chapter shows you how to configure the static routing function. Static routes tell the SAM1316-22 how to forward the SAM1316-22’s own IP traffic when you configure the TCP/IP parameters manually. This is generally useful for allowing management of the device from a device with an IP address on a different subnet from that of the device’s IP address (remote management).
Page 250 Click Add to save the new rule to the SAM1316-22’s volatile memory. It then displays in the summary table at the bottom of the screen. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 251: Alarm
41.1 Alarm The SAM1316-22 monitors for equipment, DSL and system alarms and can report them via SNMP or syslog. You can specify the severity level of an alarm(s) and where the system is to send the alarm(s). You can also set the alarm severity threshold for recording alarms on an individual port(s).
Page 252: Alarm Descriptions
41.3 Alarm Descriptions This table describes alarms that the system can send. ATUC refers to the downstream channel (for traffic going from the SAM1316-22 to the subscriber). ATUR refers to the upstream channel (for traffic coming from the SAM1316-22 User’s Guide...
Page 253: Alarm Event Setup Screen
Chapter 41 Alarm subscriber to the SAM1316-22). A “V” in the CLEARABLE column indicates that an administrator can remove the alarm. Table 95 Alarm Descriptions ALARM CONDITION FACILITY SNMP SYSLOG SEVERITY CLEARABLE (5000)line_up local1 info (5001)line_down local1 minor (5002)shdsl_tca_atten local1...
Page 254 Ethernet alarms. sys represents system alarms. Condition Code This field displays the condition code number for the specific alarm message. Condition This field displays a text description for the condition under which the alarm applies. SAM1316-22 User’s Guide...
Page 255: Edit Alarm Event Setup Screen
Ethernet alarms. sys represents system alarms. Condition Code This field displays the condition code number for the specific alarm message. Condition This field displays a text description for the condition under which the alarm applies. SAM1316-22 User’s Guide...
Page 256: Alarm Port Setup Screen
Apply Click Apply to save your changes to the SAM1316-22’s volatile memory. The SAM1316-22 loses these changes if it is turned off or loses power, so use the Config Save link on the navigation panel to save your changes to the non-volatile memory when you are done configuring.
Page 257 Severity Select an alarm severity level (Critical, Major, Minor or Info) as the threshold for events on this port that trigger the SAM1316-22 to send SNMP traps or sys logs. Critical alarms are the most severe, major alarms are the second most severe, minor alarms are the third most severe and info alarms are the least severe.
Page 258: Alarm History Screen
Chapter 41 Alarm 41.6 Alarm History Screen This screen displays the alarms that have been raised by the SAM1316-22, including the severity level of an alarm(s) and the date/time when the alarm occured. To open this screen, click Alarm, Alarm History.
Page 259 This identifies which page of information is displayed and the total number of pages of information. Previous Page Click this to display the preceding page of entries. Next Page Click this to display the following page of entries. SAM1316-22 User’s Guide...
Page 260 Chapter 41 Alarm SAM1316-22 User’s Guide...
Page 261: Maintenance
Make sure you have downloaded (and unzipped) the correct model firmware and version to your computer before uploading to the device. Note: Be sure to upload the correct model firmware as uploading the wrong model firmware may damage your device. SAM1316-22 User’s Guide...
Page 262: Restore Configuration Screen
Note: Warning! If you load an invalid configuration file, it may corrupt the settings, and you might have to use the console to reconfigure the system. SAM1316-22 User’s Guide...
Page 263: Backing Up A Configuration File
Note: Warning! Restoring the default configuration deletes all the current settings. It is recommended to back up the configuration file before restoring the default configuration. To do this, click Management, Maintenance, Click here (Restore Default Configuration). Figure 128 Restore Default Configuration SAM1316-22 User’s Guide...
Page 264: Reboot System
This takes up to two minutes. This does not affect the device’s configuration. 42.7 Command Line FTP Chapter 57 on page 375 for how to upload or download files to or from the device using FTP commands. SAM1316-22 User’s Guide...
Page 265: Diagnostic
H A P T E R Diagnostic This chapter explains the Diagnostic screens. 43.1 Diagnostic Screen Use this screen to check system logs, ping IP addresses or perform loopback tests. To open this screen, click Management, Diagnostic. Figure 131 Diagnostic SAM1316-22 User’s Guide...
Page 266 Then the local device sends an ATM F5 cell to be returned by the remote DSL device (both DSL devices must support ATM F5 in order to use this test). The results (“Passed” or “Failed”) display in the multi-line text box. SAM1316-22 User’s Guide...
Page 267: Mac Table
44.1 Introduction to MAC Table The MAC table lists device MAC addresses that are dynamically learned by the SAM1316-22. The table shows the following for each MAC address: the port upon which Ethernet frames were received from the device, to which VLAN groups the device belongs (if any) and to which channel it is connected (for devices connected to DSL ports).
Page 268: Mac Table Screen
This identifies which page of information is displayed and the total number of pages of information. Previous/Next Click one of these buttons to show the previous/next screen if all of the information cannot be seen in one screen. SAM1316-22 User’s Guide...
Page 269 This is the MAC address of the device from which this incoming frame came. Refresh Click Refresh to update the list of dynamically learned MAC addresses. Flush Click Flush to remove all of the dynamically learned MAC address entries from the MAC table. SAM1316-22 User’s Guide...
Page 270 Chapter 44 MAC Table SAM1316-22 User’s Guide...
Page 271: Arp Table
ARP updates the ARP Table for future reference and then sends the packet to the MAC address that replied. 45.2 ARP Table Screen The ARP table can hold up to 500 entries. SAM1316-22 User’s Guide...
Page 272 This is the MAC address of the device with the listed IP address. Previous Page Click one of these buttons to show the preceding or following screen if the information cannot be displayed in one screen. Next Page SAM1316-22 User’s Guide...
Page 273: Commands
The | symbol means “or”. Note: Using commands not documented in the User’s Guide can damage the unit and possibly render it unusable. 46.2 Command Privilege Levels There is a high, middle or low privilege level for each command. SAM1316-22 User’s Guide...
Page 274: Saving Your Configuration
This command saves all system configurations to nonvolatile memory. You must use this command to save any configuration changes that you make, otherwise the SAM1316-22 returns to its default settings when it is restarted. Save your changes after each configuration session.
Page 275 [snmp]] can be used. Displays the syslog settings. syslog show Turns on the syslog logging. syslog enable Turns off the syslog logging. syslog disable Sets the IP address of the syslog server <ip> syslog server. SAM1316-22 User’s Guide...
Page 276 Sets the watchdog count. 0 wdog set <msec|0:disable> turns the watchdog off. Displays the hardware monitor show monitor’s statistics. Turns the hardware monitor monitor enable Turns the hardware monitor monitor disable off. SAM1316-22 User’s Guide...
Page 277 Set remote authentication user server <ip> <port> server IP address and secret <secret> [high|middle|low|d eny] shdsl Displays the DSL settings. show [portlist] Turns on the specified DSL enable <portlist> ports. Turns off the specified DSL disable <portlist> ports. SAM1316-22 User’s Guide...
Page 278 Displays the current rate-limit uslimit show [<portlist>[<vpi>< settings of pvcs vci>]] Shows a virtual channel vcprofile show [vcprofile] profile’s contents. Creates a UBR or CBR virtual vcprofile set <vcprofile> channel profile (with <vc|llc> <ubr|cbr> encapsulation). <pcr> <cdvt> SAM1316-22 User’s Guide...
Page 279 <gateway ip> delete Display gateway for RPVC rpvc gateway show Set RPVC on a port rpvc set <portlist> <vpi> <vci> <DS vcprofile[,US vcprofile]> <ip>/ <netmask> <gateway ip> Delete RPVC on a port rpvc delete <portlist> <vpi> <vci> SAM1316-22 User’s Guide...
Page 280 <profile>: <vci> <DS vcprofile[,US <vid>: s-tag VLAN id vcprofile]> <pvid> <priority> <priority>: priority for s-tag Display TLS PVC setting by tlspvc show [<portlist> [<vpi> ‘port’ <vci>]] Displays the xDSL priority queuemap show level to physical queue mapping. SAM1316-22 User’s Guide...
Page 281 <portlist> the specified port(s). Sets the PBO(Power back off) pbo set <portlist> mode <normal_epl|forced _epl|forced_no_epl <value>> alarm Clear current alarm clear Alarm cutoff cutoff Edit system alarm table xedit <alarm>|all <cond>|<condcode> <severity> <fac> <target>[,<target> ] [clearable] SAM1316-22 User’s Guide...
Page 282 Enable bandwidth budget igmpsnoop <portlist> control for a port bandwidth port enable Set bandwidth threshold for a igmpsnoop <portlist> port bandwidth port set <bandwidth> <bandwidth>: 1..100,000, in unit of kbps SAM1316-22 User’s Guide...
Page 283 <vid> <index> translation entry. group set <start_mcast_ip> <end_mcast_ip> up to 16 entries <index>: 1~16, Note: IP address in each entry should be disjointed Delete a multicast to VLAN igmpsnoop mvlan <vid> <index> translation entry. group delete SAM1316-22 User’s Guide...
Page 284 Turn system’s rstp on. rstp enable Turn system’s rstp off. rstp disable Set system rstp’s priority. rstp priority <priority> Set system rstp’s hello time. rstp hellotime <hellotime sec> Set system rstp’s max age. rstp maxage <maxage sec> SAM1316-22 User’s Guide...
Page 285 VLAN(s). Adds the specified dhcprelay option82 <vid>|all <relay information for the relay info> agent. Selects the method (Private dhcprelay <<vid>|all> or TR-101) by which DHCP optionmode <private|tr101> relay information is sent on the specified VLAN(s). SAM1316-22 User’s Guide...
Page 286 The primary server is [<secondary- required; the secondary server>] server is optional. The SAM1316-22 routes DHCP requests to the specified DHCP server(s) according to relaymode Use VLAN ID 0 to set up the default DHCP server(s) for all non-listed VLAN.
Page 287 3 static IP addresses per port. This command displays dhcpsnoop lan2lan whether LAN to LAN DHCP show services are enabled or disabled. This command disables LAN dhcpsnoop lan2lan to LAN DHCP services. disable SAM1316-22 User’s Guide...
Page 288 <<vid>|all> description. Removes PPPoE Agent poeagent delete <<vid>|all> Information settings for the specified VLAN. Sets the SAM1316-22 to not poeagent disable <<vid>|all> add line information to PPPoE discover packets. Sets the SAM1316-22 to add poeagent enable <<vid>|all> a vendor-specific tag to PADI...
Page 289 DSCP mapping Displaying the DSCP code to dscp map show 802.1p mapping table Setting the DSCP code to dscp map set <srccp> <mappri> 802.1p mapping table <srccp>: source code point, 0~63, example: 1,3~5,10~15 <mappri> mapping priority, SAM1316-22 User’s Guide...
Page 290 <<vid>|all> description. Removes PPPoE Agent poeagent delete <<vid>|all> Information settings for the specified VLAN. Sets the SAM1316-22 to not poeagent disable <<vid>|all> add line information to PPPoE discover packets. Sets the SAM1316-22 to add poeagent enable <<vid>|all> a vendor-specific tag to PADI...
Page 291 Set the port(s) to enable or vlan gvrp <portlist> disable gvrp. <enable|disable> Sets the specified DSL port to vlan frametype <portlist> accept tagged, untagged or <all|tag> Ethernet frames (or both). Note: enet1, enet2 are fixed at ‘all’. SAM1316-22 User’s Guide...
Page 292 Set packet filter to PPPoE only pktfilter pppoeonly for port. pppoeonly <portlist> Display dot1x settings. dot1x show [portlist] Turn on dot1x. dot1x enable Turn off dot1x. dot1x disable Set authentication method to dot1x auth <profile|radius> profile or radius. SAM1316-22 User’s Guide...
Page 293 Display all MAC addresses smcast show joined to DSL ports. Use join/leave to add/ smcast set <dsl_port> <mac> remove multicast MAC <join|leave> addresses on specified DSL ports, a range of DSL ports or all DSL ports. MAC example: 01005E010203 SAM1316-22 User’s Guide...
Page 294 Sets the device’s default route set default <gateway route. ip> <metric> Removes a routing table route delete <dst ip>[/netmask] entry. Clears the routing table. route flush Pings a remote host. ping <ip> [count] statistics Displays hardware monitor monitor status. SAM1316-22 User’s Guide...
Page 295 This command displays and/ port <portlist> [<vpi> or erases port statistics. <vci>] [clear] dot1x [portlist] Displays Ethernet port enet settings and statistics. Displays a Management port’s status and performance data. config Displays the device’s show <sys|sw|ip|stat|al configuration. l> [nopause] SAM1316-22 User’s Guide...
Page 296 Chapter 46 Commands Table 103 Commands (continued) CLASS COMMAND PARAMETERS DESCRIPTION Saves the current save configuration. Reloads the factory default restore configuration. Ends the console or telnet exit session. SAM1316-22 User’s Guide...
Page 297: Command Examples
This chapter gives some examples of commands. 47.1 Command Examples Overview These are commands that you may use frequently in configuring and maintaining your SAM1316-22. See Chapter 50 on page 323 for commands that deal with the IEEE 802.1Q Tagged VLAN.
Page 298: Info Show Command
Turn on port isolation to block communications between subscriber ports. When you enable port isolation, you do not need to configure the VLAN to isolate subscribers. 47.3.1 Isolation Show Command Syntax: ras> switch isolation show This command displays the current setting of the subscriber isolation feature. SAM1316-22 User’s Guide...
Page 299: Isolation Enable Command
Note: Per-VLAN isolation only works when the regular switch isolation feature is disabled (see Section 47.3.3 on page 299). The following example turns off per-VLAN isolation for VLAN 5. ras> switch isolation vlan delete 5 ras> switch isolation show port isolation :disabled isolated vlan list: ---- SAM1316-22 User’s Guide...
Page 300: Switch Isolation Vlan Set Command
The following example turns on per-VLAN isolation for VLAN 5. ras> switch isolation vlan set 5 ras> switch isolation show port isolation :disabled isolated vlan list: ---- 47.4 Statistics Monitor Command Syntax: ras> statistics monitor This command shows the current hardware status. SAM1316-22 User’s Guide...
Page 301: Statistics Port Command
<1,3,enet1>. You can also include a range of ports <1,5,6~8,enet1>. The VPI and VCI of an individual PVC. <vpi> <vci> Use clear to have the SAM1316-22 set the specified [clear] port(s) or PVC’s counters back to zero. SAM1316-22 User’s Guide...
Page 302 This field shows the number of non-unicast (broadcast rx nonuni- and multicast) packets received on this port. packets Chapter 6 on page 59 for details on the other port statistics fields. SAM1316-22 User’s Guide...
Page 303: Alarm Commands
This is the text description for the condition under which the alarm <condition> applies. Use the alarm tablelist to find alarm conditions. SAM1316-22 User’s Guide...
Page 304: Alarm Show Command
48.4 Alarm Port Show Command Syntax: ras> alarm port show [<severity>|all] This command displays port alarm severity level thresholds. The system reports an alarm on a port if the alarm has a severity equal to or higher than the port’s threshold. SAM1316-22 User’s Guide...
Page 305: Alarm Port Set Command
The system sends SNMP traps or sys logs if the alarm has a severity equal to or higher than the port’s threshold. The following example has the SAM1316-22 only record critical alarms on DSL port 7.
Page 306 (10003)hw_mon_fail local1 critical eqpt (10004)cold_start local1 info eqpt (10005)warm_start local1 info (15000)reboot local1 info (15001)aco local1 info (15002)alm_clear local1 info (15003)login_fail local1 minor Press any key to continue, 'e' to exit, 'n' for nopause SAM1316-22 User’s Guide...
Page 307: Log Format
Use rev to display in reverse chronological order starting from the most recent alarm. Display in-depth alarm information. [detail] This command displays historic alarms by severity, alarm category, alarm condition and/or dates. SAM1316-22 User’s Guide...
Page 308: Alarm History Clear Command
<cond> condition under which the alarm applies. Use the alarm tablelist to find alarm conditions. The condition code is the number of a specific alarm <condcode > message. Use the alarm tablelist to find alarm condition codes. SAM1316-22 User’s Guide...
Page 309: Alarm Cutoff Command
This command cancels an alarm. This stops the sending of the alarm signal current. This is useful in stopping an alarm if you have the alarm output connector pins connected to a visible or audible alarm. The alarm entry remains in the system. SAM1316-22 User’s Guide...
Page 310: Alarm Clear Command
Chapter 48 Alarm Commands 48.12 Alarm Clear Command Syntax: ras> alarm clear This command erases the clearable alarm entries. SAM1316-22 User’s Guide...
Page 311: Dhcp Commands
This command displays whether or not the DHCP relay feature is activated, which relay mode the SAM1316-22 is using, the current list of DHCP servers by VLAN, the status of the DHCP relay agent info option 82 feature and the information configured for it.
Page 312: Disable Command
The IP address of one DHCP server. <primary- server> The IP address of a second DHCP server. <secondary- server> This command specifies the DHCP server(s) that serve the specified VLAN. The primary server is required; the secondary server is optional. The SAM1316-22 SAM1316-22 User’s Guide...
Page 313: Server Delete Command
This command has no effect if the relaymode is both. If the relaymode is auto, this command specifies to which DHCP server (the primary one or the secondary one) the SAM1316-22 should relay DHCP requests for the selected VLAN. 49.1.7 Optionmode Command Syntax: ras>...
Page 314: Relaymode Command
This command controls how the SAM1316-22 routes DHCP requests for the specified VLAN. The SAM1316-22 can route DHCP requests to the active DHCP server for the VLAN, or it can route DHCP requests to all DHCP servers set up for the VLAN.
Page 315: Dhcp Relay Option 82 (Agent Information) Sub-Option 1 (Circuit Id)
This command turns off the DHCP relay agent information (Option 82, Sub-option 1) feature for the specified VLAN. 49.2.3 Option 82 Sub-option 1 Set Command Syntax: ras> switch dhcprelay option82 set <vid>|all [<relay info>] where The ID of the VLAN served by the specified DHCP <vid> server(s). SAM1316-22 User’s Guide...
Page 316: Dhcp Relay Option 82 (Agent Information) Sub-Option 2 (Remote Id)
Chapter 49 DHCP Commands Up to 23 ASCII characters of additional information for [<relay info>] the SAM1316-22 to add to the DHCP requests that it relays to a DHCP server. Examples of information you could add would be the name of the SAM1316-22 or the ISP.
Page 317: Option 82 Sub-Option 2 Set Command
Up to 23 ASCII characters of additional information for [<relay info>] the SAM1316-22 to add to the DHCP requests that it relays to a DHCP server. Examples of information you could add would be the name of the SAM1316-22 or the ISP.
Page 318: Dhcp Snoop Disable Command
<1,5,6~8,enet1>. This command clears the DHCP snooping binding table on the specified port(s). The system also automatically clears the binding table when you disable DHCP snooping. 49.4.4 DHCP Snoop Show Command Syntax: ras> switch dhcpsnoop show <portlist> SAM1316-22 User’s Guide...
Page 319: Dhcp Counter Statistics Command
1 port discover offer request overflow ----- -------- -------- -------- -------- -------- Each field is described in the following table. The selected DSL port number(s). port The number of DHCP Discover packets on this port. discover SAM1316-22 User’s Guide...
Page 320: Dhcp Snoop Statistics Command
The MAC address of a client on this port to which the DHCP server assigned an IP address. The IP address assigned to a client on this port. 49.4.7 DHCP Snoop Pool Set Command Syntax: ras> switch dhcpsnoop pool set <slot-port> <ip-address> SAM1316-22 User’s Guide...
Page 321: Dhcp Snoop Pool Delete Command
This command disables LAN to LAN DHCP services. By default, the LAN to LAN DHCP service should be disabled except if you have the DHCP server connected to one of the DSL ports. SAM1316-22 User’s Guide...
Page 322: Dhcp Snoop Lan To Lan Enable Command
Chapter 49 DHCP Commands If LAN to LAN DHCP service is disabled, the SAM1316-22 forwards DHCP Discover and DHCP Request packets to the uplink port. 49.4.11 DHCP Snoop LAN to LAN Enable Command Syntax: ras> switch dhcpsnoop lan2lan enable This command enables LAN to LAN DHCP services. The LAN to LAN DHCP service can be enabled in special cases where you have the DHCP server connected to one of the DSL ports.
Page 323: Ieee 802.1Q Tagged Vlan Commands
VLAN frame. The IEEE 802.1Q Tagged VLAN uses both explicit and implicit tagging. It is important for the SAM1316-22 to determine what devices are VLAN-aware and VLAN-unaware so that it can decide whether to forward a tagged frame (to a VLAN-aware device) or first strip the tag from a frame and then forward it (to a VLAN-unaware device).
Page 324: Filtering Databases
Chapter 50 IEEE 802.1Q Tagged VLAN Commands 50.3 Filtering Databases A filtering database stores and organizes VLAN registration information useful for switching frames to and from the SAM1316-22. A filtering database consists of static entries (Static VLAN or SVLAN table). 50.3.1 Static Entries (SVLAN Table) Static entry registration information is added, modified and removed by administrators only.
Page 325: Vlan Pvid Command
This command sets the priority of incoming frames with an IEEE 802.1Q VLAN tag. The following example sets a priority of three for frames (with an IEEE 802.1Q VLAN tag) that come in on DSL port 2. Figure 154 VLAN CPU Set Command Example ras> switch vlan priority 2 3 SAM1316-22 User’s Guide...
Page 326: Vlan Set Command
50.4.4.1 Modify a Static VLAN Table Example The following is an example of how to modify a static VLAN table. Figure 155 Modifying the Static VLAN Example ras> switch vlan set 2000 1:FU ras> switch vlan set 2001 2:FU SAM1316-22 User’s Guide...
Page 327: Vlan Frame Type Command
SAM1316-22 does not send a frame to the port from which it came. The SAM1316-22 also does not forward frames to “forbidden” ports. If after looking at the SVLAN, the SAM1316-22 does not have any ports to which it will send the frame, it drops the frame.
Page 328: Vlan Cpu Show Command
This command sets the specified DSL ports to accept VLAN tagged Ethernet frames, or both tagged and untagged Ethernet frames. Note: The SAM1316-22 accepts both tagged and untagged incoming frames on the Ethernet ports. The following example sets the SAM1316-22 to accept only VLAN tagged Ethernet frames on DSL port 3.
Page 329: Configuring Management Vlan Example
(VID 1). The following procedure shows you how to configure a tagged VLAN that limits management access to just one Ethernet port. Note: Use the console port to configure the SAM1316-22 if you misconfigure the management VLAN and lock yourself out.
Page 330: Vlan Enable
<vlanlist> where You can specify a single VID: <1>, all VIDs: <*>, a list <vlanlist> of VIDs: <1,3>, you can also include a range of VIDs: <1,5,6~8>. This command shows information about the specified port’s VLAN settings. SAM1316-22 User’s Guide...
Page 331 The following example shows the settings for all VIDs. Figure 162 VLAN Show Command Example ras> switch vlan show * vid name F:fixed X:forbidden N:normal U:untag T:tag ---- ---------------- ---------------------------------------------------- 1 DEFAULT enabled 1234567890123456 12 FFFFFFFFFFFFFFFF FF UUUUUUUUUUUUUUUU UU SAM1316-22 User’s Guide...
Page 332 Chapter 50 IEEE 802.1Q Tagged VLAN Commands SAM1316-22 User’s Guide...
Page 333: Mac Commands
H A P T E R MAC Commands This chapter describes how to configure the SAM1316-22’s MAC commands. 51.1 MAC Commands Overview Use the MAC commands to configure MAC filtering or limit the MAC count. 51.2 MAC Filter Commands Use the MAC filter to control from which MAC (Media Access Control) addresses frames can (or cannot) come in through a port.
Page 334: Mac Filter Enable Command
<*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. This command turns off the MAC filtering feature on the specified DSL port(s) or on all DSL ports if no port is specified. SAM1316-22 User’s Guide...
Page 335: Mac Filter Mode Command
= Block frames from MAC addresses that you specify and allow frames from other MAC addresses. This command sets whether the SAM1316-22 allows or blocks access for the MAC addresses you specify. The following example sets DSL port 5 to allow frames from the MAC addresses specified for DSL port 5.
Page 336: Mac Filter Delete Command
MAC count commands are listed next. When the MAC filter accept mode is enabled (see Section 51.2 on page 333), the SAM1316-22 ignores the MAC count setting and accepts all of the MAC addresses listed for the port in the MAC filter settings.
Page 337: Mac Count Enable Command
Section 51.2 on page 333), the SAM1316-22 ignores the MAC count setting and accepts all of the MAC addresses listed for the port in the MAC filter settings. The following example turns on the MAC count filter on DSL port 4.
Page 338: Mac Count Set Command
The following example sets the MAC count filter to allow up to 50 MAC addresses to be dynamically learned on DSL port 7. Figure 172 MAC Count Set Command Example ras> switch mac count set 7 50 SAM1316-22 User’s Guide...
Page 339: Igmp Commands
This command displays the IGMP mode (proxy, snooping or disabled). The following is an example. Figure 173 IGMP Snoop Show Command Example ras> switch igmpsnoop show IGMP Snooping/Proxy is Disable 52.2.2 IGMP Snoop Enable Command Syntax: ras> switch igmpsnoop enable <proxy|snooping> SAM1316-22 User’s Guide...
Page 340: Igmp Snoop Disable Command
52.2.5 IGMP Snoop qryvid Set Command Syntax: ras> switch igmpsnoop qryvid set <vid> This command configures an IGMP query VLAN ID in IGMP proxy mode. The following example configures VLAN 10 as an IGMP query VLAN. ras> switch igmpsnoop qryvid 10 SAM1316-22 User’s Guide...
Page 341: Igmp Snoop Qryvid Show Command
Chapter 52 IGMP Commands 52.2.6 IGMP Snoop qryvid Show Command Syntax: ras> switch igmpsnoop qryvid show This command displays information about the SAM1316-22’s IGMP query VLAN IDs, as follows. ras> switch igmpsnoop qryvid show igmp proxy query vlan table static/dynamic...
Page 342: Igmp Filter Set Command
31 ASCII characters; spaces are not allowed. The number (1~16) to identify a multicast IP address <index> range. Type the starting multicast IP address for a range of <startip> multicast IP addresses that you want to belong to the IGMP filter profile. SAM1316-22 User’s Guide...
Page 343: Igmp Filter Profile Delete Command
52.3.5 IGMP Filter Profile Show Command Syntax: ras> switch igmpfilter profile show [<name>|*] where The name of an IGMP filter profile or all of the IGMP [<name>|*] filter profiles <*>. This command displays an IGMP filter profile’s settings. SAM1316-22 User’s Guide...
Page 344: Igmp Bandwidth Commands
This command sets the default bandwidth for multicast channels for which you have not configured bandwidth requirements yet. Multicast bandwidth settings on channels (using the switch igmpsnoop bandwidth set command) have higher priority over this default setting. SAM1316-22 User’s Guide...
Page 345: Igmp Bandwidth Set Command
This command removes the specified multicast bandwidth configuration profile. 52.5 IGMP Bandwidth Port Commands Use the IGMP bandwidth port commands to set up bandwidth budgets for multicast traffic on specific ports. 52.5.1 IGMP Bandwidth Port Disable Command Syntax: ras> switch igmpsnoop bandwidth port disable <portlist> SAM1316-22 User’s Guide...
Page 346: Igmp Bandwidth Port Enable Command
1..100000, in units of kbps <bandwidth> This command sets the bandwidth allowed for multicast traffic on the specified port(s). It does not automatically enable it, however. 52.5.4 IGMP Bandwidth Port Show Command Syntax: ras> switch igmpsnoop bandwidth port show <portlist> SAM1316-22 User’s Guide...
Page 347: Igmp Count Limit Commands
You can specify a single DSL port <1>, all DSL ports <portlist> <*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. This command turns off the IGMP count limit for the specified DSL port(s). SAM1316-22 User’s Guide...
Page 348: Igmp Count Enable Command
<*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. 0..16; the maximum number of IGMP groups <count> subscribers on the specified port(s) can join. This command sets the IGMP count limit for the specified DSL port(s). SAM1316-22 User’s Guide...
Page 349: Igmp Count Show Command
1~5 port enable count ---- ------ ----- 52.7 IGMP Snoop Statistics Commands Use the IGMP Snoop Statistics commands to display current IGMP settings and statistics. 52.7.1 IGMP Snoop Info Statistics Command Syntax: ras> statistics igmpsnoop info [clear] SAM1316-22 User’s Guide...
Page 350: Igmp Group Statistics Command
Syntax: ras> statistics igmpsnoop port info [portlist] where You can specify a single DSL port <1>, all DSL ports [portlist] <*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. SAM1316-22 User’s Guide...
Page 351: Igmp Port Group Statistics Command
Use these commands to configure VLAN multicast settings and set multicast port members. Multicast VLAN allows one single multicast VLAN to be shared among different subscriber VLANs on the network. This improves bandwidth utilization by reducing multicast traffic in the subscriber VLANs and simplifies multicast group management. SAM1316-22 User’s Guide...
Page 352: Multicast Vlan Set Command
52.8.2 Multicast VLAN Delete Command Syntax: ras> switch igmpsnoop mvlan delete <vlanlist> where You can specify a single VLAN: <1>, all VLAN: <*>, a <vlanlist> list of VLAN: <1,3>, you can also include a range of VLAN: <1,5,6~8>. SAM1316-22 User’s Guide...
Page 353: Multicast Vlan Disable Command
52.8.5 Multicast VLAN Show Command Syntax: ras> switch igmpsnoop mvlan show <vlanlist> where You can specify a single VLAN: <1>, all VLAN: <*>, a <vlanlist> list of VLAN: <1,3>, you can also include a range of VLAN: <1,5,6~8>. SAM1316-22 User’s Guide...
Page 354: Multicast Vlan Group Set Command
10 1 224.224.224.1 224.224.224.10 52.8.7 Multicast VLAN Group Delete Command Syntax: ras> switch igmpsnoop mvlan group delete <vid> <index> where The multicast VLAN ID [1 – 4094]. <vid> 1..16; a unique number for this setting. <index> SAM1316-22 User’s Guide...
Page 355: Multicast Vlan Group Show Command
This command removes the specified multicast VLAN group setting. 52.8.8 Multicast VLAN Group Show Command Syntax: ras> switch igmpsnoop mvlan group show [<vid>] where The multicast VLAN ID [1 – 4094]. <vid> This command displays a multicast to VLAN translation entry. SAM1316-22 User’s Guide...
Page 356 Chapter 52 IGMP Commands SAM1316-22 User’s Guide...
Page 357: Pppoe Intermediate Agent Commands
Commands 53.1 PPPoE Agent Information Use these commands if you want the SAM1316-22 to add a vendor-specific tag to PADI (PPPoE Active Discovery Initialization) and PADR (PPPoE Active Discovery Request) packets from PPPoE clients. This tag gives a PPPoE termination server additional information (such as the port number, VLAN ID, and MAC address) that the server can use to identify and authenticate a PPPoE client.
Page 358: Pppoe Intermediate Agent Delete Command
The ID of the VLAN to which to apply the setting. Type <vid>|all all to apply the setting to all VLAN. This command removes the vendor-specific tag from PADI and PADR packets for PPPoE clients in the selected VLAN(s) or for all VLAN. SAM1316-22 User’s Guide...
Page 359: Pppoe Intermediate Agent Info Command
VLAN or from all VLAN. Enter a description (up to 24 alphanumerical characters). This command specifies the extra information the SAM1316-22 adds to PADI and PADR packets in the specified VLAN or in all VLANs, if the PPPoE intermediate agent is enabled.
Page 360: Pppoe Intermediate Agent Show Command
VLAN. The following example shows the PPPoE intermediate agent settings for all VLAN. Figure 196 PPPoE Intermediate Agent Show Command Example ras> switch poeagent show vid enable info ---- ------ ----------------------------- testing Note: vid 0 is the default agent. SAM1316-22 User’s Guide...
Page 361: Oui Filter Commands
This command deactivates MAC OUI filtering on the specified port(s). 54.1.2 OUI Filter Enable Command Syntax: switch ouifilter enable <port> This command activates MAC OUI filtering on the specified port(s). 54.1.3 OUI Filter Mode Command Syntax: switch ouifilter mode <port> accept|deny SAM1316-22 User’s Guide...
Page 362: Oui Filter Set Command
<port> This command displays the OUI filtering status (V for enabled, - for disabled) and the OUI value(s) of the MAC address on a DSL port(s) or on all of the DSL ports if SAM1316-22 User’s Guide...
Page 363 The following example displays the OUI filter setting of port 1. ras> switch ouifilter show 1 status:V, enable oui filter function. status:-, disable oui filter function. port mode status oui ---- ------ ------ ----------------- 1 accept SAM1316-22 User’s Guide...
Page 364 Chapter 54 OUI Filter Commands SAM1316-22 User’s Guide...
Page 365: Packet Filter Commands
The following example displays the packet type filter settings for DSL ports 1 and 2. “V” displays for the packet types that the SAM1316-22 is to accept on the port. “-“ displays for packet types that the SAM1316-22 is to reject on the port (packet types that are not listed are accepted).
Page 366: Packet Filter Set Command
Chapter 55 Packet Filter Commands all of the packet types. With PPPoE only, the SAM1316-22 rejects all packet types except for PPPoE (packet types that are not listed are also rejected). Figure 197 Packet Filter Show Command Example ras> switch pktfilter show 1~2...
Page 367: Packet Filter Pppoe Only Command
Syntax: ras> switch pktfilter pppoeonly <portlist> This command sets the SAM1316-22 to allow only PPPoE traffic on the specified DSL port(s). The system will drop any non-PPPoE packets. The following example sets DSL port 1 to accept only PPPoE packets.
Page 368 Chapter 55 Packet Filter Commands SAM1316-22 User’s Guide...
Page 369: Ip Commands
Ethernet 1 and 2, and DSL ports, VID and default gateway. With the Ethernet 1 and 2, and DSL ports, you must connect to the SAM1316-22 through a port that is a member of the management (CPU) VLAN in order to perform in-band management.
Page 370: General Ip Commands
The second command changes the default gateway (next hop). This tells the SAM1316-22 where to send packets that have a destination IP address that is not on the same subnet as the SAM1316-22’s IP address.
Page 371: Show
A name to identify this static route. Up to 31 ASCII <name> characters. Spaces and tabs are not allowed. Use this to configure the SAM1316-22’s default route. default This command defines a new, static IP forwarding route or edits an existing one.
Page 372: Route Show Command
Syntax: ras> ip arp show This command displays the SAM1316-22’s IP Address Resolution Protocol table. This is the list of IP addresses and matching MAC addresses that the SAM1316-22 has resolved. An example is shown next. Figure 203 ARP Show Command Example ras>...
Page 373: Arp Flush Command
Chapter 56 IP Commands 56.3.7 ARP Flush Command Syntax: ras> ip arp flush This command clears the SAM1316-22’s IP Address Resolution Protocol table. 56.4 Statistics IP Command Syntax: ras> statistics ip This command shows the statistics for the CPU IP traffic.
Page 374 Chapter 56 IP Commands SAM1316-22 User’s Guide...
Page 375: Firmware And Configuration File Maintenance
The firmware or configuration file upgrade is done during operation (run- time). Note: Do not turn off the power to the SAM1316-22 during the file transfer process, as it may permanently damage your SAM1316-22. Note: The SAM1316-22 automatically restarts when the upgrade process is complete.
Page 376: Editable Configuration File
SAM1316-22 and the external filename refers to the filename not on the SAM1316-22, that is, on your computer, local network or FTP site and so the name (but not the extension) may vary. After uploading new firmware, use the sys version command on the SAM1316-22 to confirm that you have uploaded the correct firmware version.
Page 377: Editable Configuration File Backup
Do the following to backup the configuration file: Use an FTP client to connect to the SAM1316-22. Figure 207 Example: Use an FTP Client to Connect to the SAM1316-22 C:\> ftp <SAM1316-22 IP address> Type your user name and press [ENTER].
Page 378: Editable Configuration File Upload
Attempting to edit it and upload it to the SAM1316-22 will lock you out after the system restarts. If this happens you will have to use the console port to restore the default configuration file, and all of your configuration changes will be lost.
Page 379: Firmware File Upgrade
Figure 217 Example: Enter the Management Password Password: 1234 230 Logged in Transfer the firmware file to the SAM1316-22. The firmware file on your computer (that you want to put onto the SAM1316-22 is named firmware.bin. The internal firmware file on the SAM1316-22 is named ras.
Page 380 Chapter 57 Firmware and Configuration File Maintenance Quit FTP. Figure 219 Example: Close FTP Client ftp> quit Wait for the update to finish. The SAM1316-22 restarts automatically. SAM1316-22 User’s Guide...
Page 381: Snmp
Enter this command with the community to set the password. 58.1.2 Set Community Command Syntax: ras> sys snmp setcommunity <community> where The password for the incoming Set- requests from the <community> management station. Enter this command with the community to set the password. SAM1316-22 User’s Guide...
Page 382: Trusted Host Set Command
Use this command specify the IP address (and port number) of a trap server to which the SAM1316-22 sends SNMP traps. If you leave the trap destination set to 0.0.0.0 (default), the SAM1316-22 will not send any SNMP traps.
Page 383: Show Snmp Settings Command
Chapter 58 SNMP 58.1.6 Show SNMP Settings Command Syntax: ras> sys snmp show This command displays the current SNMP get community, set community, trap community, trusted hosts and trap destination settings. SAM1316-22 User’s Guide...
Page 384 Chapter 58 SNMP SAM1316-22 User’s Guide...
Page 385: Dsl Commands
The following example displays information on DSL port 1. Figure 220 DSL Port Show Command Example ras> shdsl show 1 port enable mode min/max rate profile ---- ------ ---- ------------- ------------------------------- stuc 192/ 2304 DEFVAL Subscriber Info: port name ---- -------------------------------- ---------------- SAM1316-22 User’s Guide...
Page 386: Dsl Port Enable Command
Note: The factory default of all ports is enabled. 59.1.4 DSL Port Profile Show Command Syntax: ras> shdsl profile show [profile] where A profile name. <profile> This command displays the specified DSL profile or all DSL profiles if you do not specify one. SAM1316-22 User’s Guide...
Page 387: Dsl Port Profile Set Command
2wire|4wire|mpair4 2wire = a normal connection using a single DSL port’s two wires, this is the default. 4wire = a 4-wire group (two DSL ports grouped together). mpair4 = an 8-wire group (four DSL ports grouped together). SAM1316-22 User’s Guide...
Page 388 5 db. Figure 222 DSL Port Profile Set Command Example ras> shdsl profile set gold 2112 4096 annexa 4wire lp_on_cur 5 SAM1316-22 User’s Guide...
Page 389: Dsl Port Profile Delete Command
59.1.8 DSL Port Name Command Syntax: ras> shdsl name <portlist> <name> where You can specify a single DSL port <1>, all DSL ports <portlist> <*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. SAM1316-22 User’s Guide...
Page 390: Dsl Port Tel Command
<portlist> <f5> <vpi> <vci> where You can specify a single DSL port <1>, all DSL ports <portlist> <*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. SAM1316-22 User’s Guide...
Page 391: Statistics Dsl Commands
When you perform an OAMF5 loopback test, specify a <vpi> <vci> VPI/VCI. This command has the SAM1316-22 perform an OAMF5 loopback test on the specified DSL port(s). The following example has the SAM1316-22 perform an OAMF5 loopback test on DSL port 1’s PVC at VPI 0 and VCI 33.
Page 392: Dsl Port Lineinfo Command
This is the minimum rate (in Kbps) of the DSL line. Max Rate(kbps) This is the maximum rate (in Kbps) of the DSL line. Actual Rate(kbps) This is the rate (in Kbps) at which the port has been sending and receiving data. SAM1316-22 User’s Guide...
Page 393: Dsl Port Lineperf Command
Performance since boot up STUC STUR 0 seconds 0 seconds losws 0 seconds 0 seconds segment anomaly : segment defect Performance since link up 0 seconds 0 seconds losws 8 seconds 0 seconds segment anomaly : segment defect SAM1316-22 User’s Guide...
Page 394: Dsl Port 15 Minute Performance Command
15mperf <portlist> [count <0..96>] where You can specify a single DSL port <1>, all DSL ports <portlist> <*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. SAM1316-22 User’s Guide...
Page 395: Dsl Port 1 Day Performance Command
59.2.5 DSL Port 1 Day Performance Command Syntax: ras> statistics shdsl 1dayperf <portlist> where You can specify a single DSL port <1>, all DSL ports <portlist> <*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. SAM1316-22 User’s Guide...
Page 396 SES: CRC: LOSWS: UAS: In the list above, STUC refers to data detected by the STU-C, and STUR refers to data detected by the STU-R. See Table 108 on page 394 for an explanation of these counters. SAM1316-22 User’s Guide...
Page 397: Alarm Profile Commands
<es>] [ses <ses>][crc <crc>] [losws <losws>] [uas <uas>] where A name for the alarm profile (up to 31 ASCII <profile> characters). The permitted loop attenuation of a port, 0~127 <atten> The permitted signal to noise ratio margin, 0~15. <snrmgn> SAM1316-22 User’s Guide...
Page 398: Alarm Profile Delete Command
DSL ports. The following example sets an alarm profile named SESalarm that has the SAM1316-22 send an alarm trap and generate a syslog whenever the connection’s number of severely errored seconds exceeds three within a 15 minute period.
Page 399: Alarm Profile Map Command
You can specify a single DSL port <1>, all DSL ports <portlist> <*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. Displays which alarm profiles the SAM1316-22 is set to use for specific (or all) DSL ports. SAM1316-22 User’s Guide...
Page 400 Chapter 59 DSL Commands The following example displays which alarm profile the SAM1316-22 is set to use for DSL ports 1-3. Figure 235 Alarm Profile Showmap Command Example ras> shdsl alarmprofile showmap 1~3 port span/endpoint alarm profile name ---- ------------- -------------------------------...
Page 401: Virtual Channel Management
Displays the settings of the specified virtual channel profile (or all of them if you do not specify one). 60.2.2 Set Virtual Channel Profile Command Syntax: ras> shdsl vcprofile set <vcprofile> <vc|llc> <ubr|cbr> <pcr> <cdvt> ras> shdsl vcprofile set <vcprofile> <vc|llc> <vbr(rt-vbr)|nrt-vbr> <pcr> <cdvt> <scr> <bt> SAM1316-22 User’s Guide...
Page 402 This command creates a virtual channel profile. After you create a virtual channel profile, you can assign it to any of the DSL ports in the SAM1316-22. The following example creates a virtual channel profile named gold that uses LLC encapsulation.
Page 403: Delete Virtual Channel Profile Command
You set the PVID that is assigned to untagged frames received on each channel. You also set an IEEE 802.1p priority for each of the PVIDs. In this way you can assign different SAM1316-22 User’s Guide...
Page 404: Pvc Show Command
<1,5,6~8>. The VPI setting can be 0 to 255. <vpi> The VCI setting can be 32 to 65535 if the vpi is 0 or 1 to <vci> 65535 if the vpi is not 0. SAM1316-22 User’s Guide...
Page 405: Pvc Delete Command
Enable the super channel option to allow a channel <super |vid forward frames belonging to multiple VLAN groups (that are not assigned to other channels). The SAM1316-22 forwards frames belonging to VLAN groups that are not assigned to specific channels to the super channel. The super channel functions in the same way as the channel in a single channel environment.
Page 406: Priority-Based Pvcs
A PPVC (Priority-based PVC) allows you to give different priorities to PVCs that are members of the same VLAN. The SAM1316-22 uses eight priority queues (also called levels) for the member PVCs. The system maps frames with certain IEEE 802.1p priorities to a PVC with a particular priority queue.
Page 407: Ppvc Member Set Command
The following example creates a PPVC with VPI 8 and VCI 35 for port 5. The PPVC uses llc encapsulation and default VID 25. Any frames received without an IEEE 802.1p priority tag will be assigned a priority of 3. The SAM1316-22 uses this PVC channel internally. This PVC is not needed on the subscriber’s device.
Page 408: Ppvc Member Delete Command
The following example removes a PVC that uses VPI 8 and VCI 36 from a PPVC with VPI 8 and VCI 35 for port 5. Figure 243 PPVC Member Delete Command Example ras> shdsl ppvc member delete 5 8 35 8 36 SAM1316-22 User’s Guide...
Page 409: Ppvc Member Show Command
You can specify a single DSL port <1>, all DSL ports <*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. The VPI of the PPVC. <vpi> The VCI of the PPVC. <vci> This command displays the runtime configured PPVCs. SAM1316-22 User’s Guide...
Page 410: Ppvc Delete Command
5 8 35 60.7 2684 Routed Mode Commands Use the 2684 routed mode to have the SAM1316-22 add MAC address headers to 2684 routed mode traffic from a PVC that connects to a subscriber device that uses 2684 routed mode.
Page 411: 2684 Routed Mode Example
1. The SAM1316-22 uses IP address 192.168.20.101. The subscriber’s device (the CPE) is connected to DSL port 1 on the SAM1316-22 and the 2684 routed mode traffic is to use the PVC identified by VPI 8 and VCI 35. The CPE device’s WAN IP address is 192.168.10.200.
Page 412 WAN IP address or routed gateway IP address. • The SAM1316-22’s management IP address should not be in the same subnet as the one defined by the WAN IP address and netmask of the subscriber’s device.
Page 413: Rpvc Gateway Set Command
Chapter 60 Virtual Channel Management Use the following command sequence to configure the SAM1316-22 for this example set up. Figure 248 2684 Routed Mode Commands Example ras> shdsl rpvc gateway set 192.168.10.102 1 ras> shdsl rpvc set 1 8 35 DEFVAL 192.168.10.200/32 192.168.10.102 ras>...
Page 414: Rpvc Gateway Delete Command
You can specify a single DSL port <1>, all DSL ports <*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. The VPI of the RPVC. <vpi> The VCI of the RPVC. <vci> SAM1316-22 User’s Guide...
Page 415: Rpvc Show Command
DS vcprofile traffic shaping. Assign a VC profile to use for policing this channel’s [,US upstream traffic. The SAM1316-22 does not perform vcprofile]> upstream traffic policing if you do not specify an upstream VC profile. The subscriber’s CPE WAN IP address in dotted decimal <ip>...
Page 416: Rpvc Delete Command
This command removes a PVC for 2684 routed mode traffic. The following example removes a PVC for 2684 routed mode traffic. It is for DSL port 1, VPI 8, VCI 35. Figure 254 RPVC Delete Command Example ras> shdsl rpvc delete 1 8 35 SAM1316-22 User’s Guide...
Page 417: Rpvc Route Set Command
The following example adds a domain for a CPE device is connected to DSL port 1 on the SAM1316-22 and the 2684 routed mode traffic is to use the PVC identified by VPI 8 and VCI 35. The CPE device’s LAN IP address is 10.10.10.10 and uses a subnet mask of 255.255.255.0.
Page 418: Rpvc Route Delete Command
The following example removes a domain for a CPE device is connected to DSL port 1 on the SAM1316-22 and the 2684 routed mode traffic is to use the PVC identified by VPI 8 and VCI 35. The CPE device’s LAN IP address is 10.10.10.10...
Page 419: Rpvc Arp Agingtime Set Command
This command displays how long the device stores the IP addresses of 2684 routed mode gateways in the Address Resolution Protocol table. The following is an example. Figure 259 RPVC ARP Agingtime Show Command Example ras> shdsl rpvc arp agingtime show rpvc aging time (sec): 600 SAM1316-22 User’s Guide...
Page 420: Rpvc Arp Show Command
DSL port <1>, all DSL ports <*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. The VPI of the PAE PVC. <vpi> The VCI of the PAE PVC. <vci> SAM1316-22 User’s Guide...
Page 421: Pae Pvc Set Command
<DS vcprofile traffic shaping. Assign a VC profile to use for policing this channel’s [,US upstream traffic. The SAM1316-22 does not perform vcprofile]> upstream traffic policing if you do not specify an upstream VC profile. 1 – 4094; the VLAN Identifier to add to Ethernet frames <pvid>...
Page 422: Pae Pvc Show Command
US/DS vcprofile/acname/srvcname ---- --- ----- ---- --- ----- ----------------------------------- 10 dsprofile: DEFVAL usprofile: acname : vom srvcname : video 60.8.4 PAE PVC Session Command Syntax: ras> shdsl paepvc session <portlist> [<vpi> <vci>] SAM1316-22 User’s Guide...
Page 423: Pae Pvc Counter Command
DSL port <1>, all DSL ports <*> or a list of DSL ports <1,3,5>. You can also include a range of ports <1,5,6~8>. The VPI of the PAE PVC. <vpi> The VCI of the PAE PVC. <vci> This command displays statistics about PPPoA-to-PPPoE PVC activity. SAM1316-22 User’s Guide...
Page 424 The number of echo-reply PDUs received by the ppp lcp echo- SAM1316-22 from the CPE (client) device. reply The number of padi PDUs sent by the SAM1316-22 to pppoe padi the BRAS. The number of pado PDUs sent by the BRAS to the pppoe pado SAM1316-22.
Page 425: Transparent Lan Service (Tls) Commands
This value does not include the number of times the SAM1316-22 checks the AC name field in the BRAS's reply PDU and finds a mismatch, however. The number of other types of errors that occur in the pppoe generic PPPoE session between the SAM1316-22 and the BRAS.
Page 426: Tls Pvc Show Command
<DS vcprofile traffic shaping. Assign a VC profile to use for policing this channel’s [,US upstream traffic. The SAM1316-22 does not perform vcprofile]> upstream traffic policing if you do not specify an upstream VC profile. 1 – 4094; the (second) VLAN Identifier to add to <pvid>...
Page 427 This command displays the TLS settings for the specified port(s) or PVC(s). The following example shows the TLS settings on port 2. Figure 266 TLS PVC Show Command Example ras> shdsl tlspvc show 2 port vpi pvid pri DS/US vcprofile ---- --- ----- ----- --- ---------------------------------- 0 DEFVAL SAM1316-22 User’s Guide...
Page 428 Chapter 60 Virtual Channel Management SAM1316-22 User’s Guide...
Page 429: Acl Commands
The following lists the set of criteria you can configure for rules in ACL profiles. The rules are listed in sequence from highest priority to lowest priority. The criteria within a rule are position-independent. SAM1316-22 User’s Guide...
Page 430 • You cannot create a classifier that contains matching criteria for layer 2 and layer 3 fields. For example switch acl profile set test protocol tcp vlan 15 deny is not allowed as protocol type and VLAN do not belong to the same network layer. SAM1316-22 User’s Guide...
Page 431: Acl Profile Delete Command
Note: You cannot remove the ACL profile(s) that is currently in use. 61.1.3 ACL Profile Show Map Command Syntax: ras> switch acl profile showmap <name> where The name of the ACL profile. <name> This command displays the DSL port(s) to which the specified ACL profile is applied. SAM1316-22 User’s Guide...
Page 432: Acl Profile Show Command
:1000 61.2 ACL Assignment Commands Use these commands to apply ACL profiles to PVCs. 61.2.1 ACL Assignment Set Command Syntax: ras> switch acl set <portlist> <vpi> <vci> <profile> SAM1316-22 User’s Guide...
Page 433: Acl Assignment Delete Command
The VCI of the PVC. <vci> The name of the ACL profile. <profile> This command allows you to remove an ACL profile from the specified PVC. 61.2.3 ACL Assignment Show Command Syntax: ras> switch acl show [<portlist>] [<vpi> <vci>] SAM1316-22 User’s Guide...
Page 434 This command displays the current ACL profiles applied to the specified PVC(s). The following figure shows an example. Figure 271 ACL Assignment Show Command Example ras> switch acl show port vpi vci type profile ---- --- ----- ---- -------------------------------- 33 PVC test SAM1316-22 User’s Guide...
Page 435: Troubleshooting
The LED itself or the unit may be faulty; contact your vendor. 62.2 The ALM LED Is On The ALM (alarm) LED lights when the SAM1316-22 is overheated or the voltage readings are outside the tolerance levels. Table 110 ALM LED Troubleshooting...
Page 436: Lan Port Leds Do Not Turn On
Make sure that the SAM1316-22’s IP settings are properly configured. Check the VLAN configuration. Ping the SAM1316-22 from a computer behind the peer Ethernet device. If you cannot ping, check the Ethernet cable and connections between the Ethernet port and the Ethernet switch or router.
Page 437: Dsl Data Transmission
DSL modem or router match those of the DSL port. If the subscriber is having problems with a video or other high-bandwidth services, make sure the SAM1316-22’s DSL port’s data rates are set high enough. Check the VLAN configuration.
Page 438: Data Rate
The configured settings do not take effect. Table 116 Troubleshooting the SAM1316-22’s Configured Settings CORRECTIVE ACTION Use the “config save” command after you finish configuring to save the SAM1316-22’s settings. 62.9 Password If you forget your password, you will need to use the console port to reload the factory-default configuration file (see Section 62.13 on page...
Page 439: Snmp
Table 117 Troubleshooting the SNMP Server STEPS CORRECTIVE ACTION Ping the SAM1316-22 from the SNMP server. If you cannot, check the cable, connections and IP configuration. Check to see that the community (or trusted host) in the SAM1316-22 matches the SNMP server’s community.
Page 440: Resetting The Defaults
Table 118 Troubleshooting Telnet (continued) STEPS CORRECTIVE ACTION Ping the SAM1316-22 from your computer. If you are able to ping the SAM1316-22 but are still unable to telnet, contact the distributor. If you cannot ping the SAM1316-22, check the cable, connections and IP configuration.
Page 441: Uploading The Default Configuration File
SAM1316- 22’s console port. Turn the SAM1316-22 off and then on to begin a session. When you turn on the SAM1316-22 again you will see the initial screen. When you see the message Press any key to enter Debug Mode within 3 seconds press any key to enter debug mode.
Page 442: Recovering The Firmware
• No parity, 8 data bits, 1 stop bit • No flow control Turn off the SAM1316-22 and turn it back on to restart it and begin a session. When you see the message Press any key to enter Debug Mode within 3 seconds, press a key to enter debug mode.
Page 443 Type the firmware file's location, or click Browse to search for it. Choose the 1K Xmodem protocol. Then click Send. 10 After a successful firmware upload, type atgo to restart the SAM1316-22. The console port speed automatically changes back to 9600 bps when the SAM1316- 22 restarts.
Page 444 Chapter 62 Troubleshooting SAM1316-22 User’s Guide...
Page 445: Specifications
H A P T E R Specifications This chapter provides the specifications for the SAM1316-22. Table 119 Default Settings VLAN Default Settings One VLAN is created (this is also the management VLAN). VID: Registration: Fixed for the Ethernet and DSL ports...
Page 446 The DEFVAL IGMP filter profile is assigned to all of the Settings DSL ports by default. It allows a port to join all multicast IP addresses (224.0.0.0~239.255.255.255). The SAM1316-22 DSL ports’ PVCs use ATM Adaptation Layer (AAL) 5. Table 120 Hardware Specifications FEATURE DESCRIPTION...
Page 447 OAM F5 end-to-end loopback (ATM mode) Ethernet Standalone and daisy chain mode RSTP support Bridging IEEE 802.1Q VLAN aware bridging - Accept untagged packets from SHDSL ports - Accept tagged and untagged packets from Ethernet interface - GVRP Port isolation SAM1316-22 User’s Guide...
Page 448 IEEE 802.1x port-based authentication with remote radius server Multicast IPv4 multicast forwarding (through L2 MAC) Static multicast membership configuration IGMP v1& v2 snooping & IGMP proxy mode support Shared VLAN multicast IGMP filtering profile IGMP count limiting MVLAN DSL port multicast bandwidth control SAM1316-22 User’s Guide...
Page 449 Security and Memory Backup − Support login authorization − Provides non-volatile memory to back-up system database − Keep previous system parameters during re-booting Self diagnostics − FLASH memory − DRAM − LAN port − Line interface loop-back test Remote reset SAM1316-22 User’s Guide...
Page 450 • MAC learning: 10k (128 per SHDSL port, 4k per ENET port) • RPVC gateway IP address: 96 • RPVC routing entries: 96 • ACL profile: 128 Per DSL port limitations: • Number of MAC filter: 10 SAM1316-22 User’s Guide...
Page 451: Hardware Telco-50 Connector Pin Assignments
The following diagram shows the pin assignments of the Telco-50 connector. Figure 275 Telco-50 Pin Assignments This table lists the ports and matching pin numbers for the hardware Telco-50 connectors. Table 123 Hardware Telco-50 Connector Port and Pin Numbers PORT NUMBER PIN NUMBER 25, 50 24, 49 SAM1316-22 User’s Guide...
Page 452 Table 123 Hardware Telco-50 Connector Port and Pin Numbers (continued) PORT NUMBER PIN NUMBER 23, 48 22, 47 21, 46 20, 45 19, 44 18, 43 17, 42 16, 41 15, 40 14, 39 13, 38 12, 37 11, 36 10, 35 SAM1316-22 User’s Guide...
Page 453: Console Cable Pin Assignments
Figure 276 Console Cable RJ-11 Male Connector Figure 277 Console Cable DB-9 Female Connector Table 124 Console Cable Connector Pin Assignments RJ-11 MALE DB-9 FEMALE Pin 2: TXD Pin 2 Pin 3: RXD Pin 3 Pin 4: GND Pin 5 SAM1316-22 User’s Guide...
Page 454 Chapter 63 Specifications SAM1316-22 User’s Guide...
Page 455: Appendix A Legal Information
ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimers ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein.
Page 456 Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Viewing Certifications Go to http://www.zyxel.com. Select your product on the ZyXEL home page to go to that product's page. Select the certification you wish to view from this page. SAM1316-22 User’s Guide...
Page 457: Zyxel Limited Warranty
To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought the device at http:// www.zyxel.com/web/support_warranty_info.php. Registration Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com. SAM1316-22 User’s Guide...
Page 458 SAM1316-22 User’s Guide...
Page 459 262, 375 modes for administrators using FTP user console port 38, 442 authentication modes pin assignments administrator Constant Bit Rate (CBR) contact person’s name copyright CRC anomalies Cyclic Redundancy Checking back up configuration Bridge Protocol Data Units (BPDU) SAM1316-22 User’s Guide...
Page 460 IEEE 802.1x. See also RADIUS. Extensible Authentication Protocol. See EAPoL. IGMP leave packets modes query packets report packets IGMP Filter Profile Screen factory defaults 263, 440 IGMP snooping 141, 142 FCC interference statement initial configuration filtering databases SAM1316-22 User’s Guide...
Page 461 Maximum Burst Size (MBS) PPVC Setup Media Access Control. See MAC address. PPVC Setup Members metric priority queue assignment model product registration mpair4 97, 403 multicast MAC address PVID Multicast VLAN. See MVLAN. default MVLAN PWR LED troubleshooting NetBIOS SAM1316-22 User’s Guide...
Page 462 Timeout save configuration Secured Client Setup screen Bridge Protocol Data Units (BPDU) Service Access Control designated bridge Service Provider’s Network (SPN) hello time SAM1316-22 User’s Guide...
Page 463 Virtual Local Area Network. See VLAN. VLAN explicit tagging Tag Control Information (TCI) forwarding Tag Protocol Identifier (TPID) implicit tagging tagged VLAN. See VLAN. priority frame registration information telco-50 connector VLAN ID pin assignments VLAN ID, maximum number of temperature SAM1316-22 User’s Guide...
Page 464 VLAN ID is zero VLAN stacking. See TLS. voltage warranty note XMODEM upload 441, 442 SAM1316-22 User’s Guide...
