ZyXEL Communications IES-612 Brochure

12-port ADSL2/2+ Device with a
Built-in Splitter for Broadband
Access Applications
ADSL2+ Standard Compliance:
- G.992.1 Annex A
- G.992.3 Annex A, Annex L, Annex M
- G.992.5 Annex A, Annex M
ATM Multi-paired Port Bonding (*)
AC (100 V ~ 240 V) or DC (-36 V ~
-72 V) Power Input
Easy Network Expansion for
Subscriber Growth
Sophisticated QoS Mechanism
for Triple-play Services

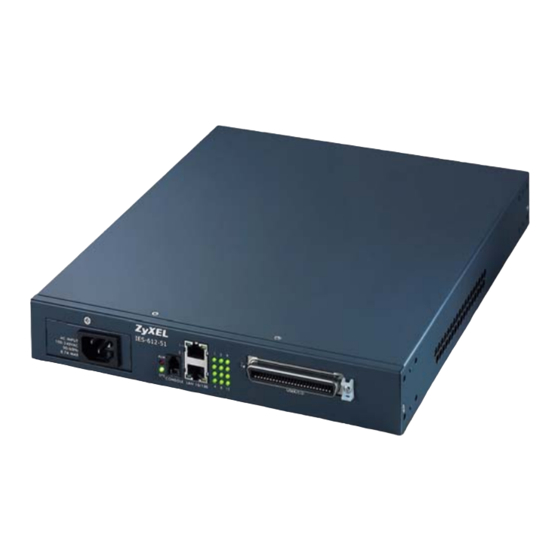

12-port ADSL2+
IP DSLAM with AC/DC
Power Input
IES-612-51A
IES-612-51
A Cost-Effective Solution for Triple-Play
Services in MxU and Sparsely
Populated Markets
Benefits
Two Fast Ethernet Uplinks for Various Network Topologies
The ZyXEL IES-612-51A/IES-612-51 is a 12-port ADSL2/2+ mini DSLAM. It has 2 Fast Ethernet (100Base-Tx) WAN
ports that can be configured as uplinks or cascading ports. In order to support more than 12 subscribers, three
network topologies can be constructed for different circumstances: Daisy Chain is the one with the minimum
number of uplink connections; Loop structure is the topology where the single point failure issue can be avoided
in the uplink connections with RSTP (IEEE 802.1w) protocol; Tree structure is the most robust one where each IES-
612-51 has its own uplink connections.
ADSL2+ Port-bonding for Higher Bandwidth in Longer Loops
The IES-612-51A/IES-612-51 is equipped with ATM-based multi-paired bonding feature. Two physical ports can be
bonded together as a group, while all upper-layer traffics of a group can be segmented and transmitted over the
member ports. If one of the member ports fails, the conveyed traffic will be moved to the other port. When the
failed port recovers, it will seamlessly return to the group and share the transmission of the upper-layer traffics.
Within a bonded group, the underlying bit rates of the individual ports can be freely and independently changed
by their respective PHY layer. The port-bonding feature not only provides higher bandwidth to subscribers, but
also offers more reliable pipes for business applications.
Field-replaceable Power Module
The IES-612-51A/IES-612-51 can be powered thorough either AC or DC inputs; and the design of power modules
allows replacement to be performed manually in the field. As a result, Telco operators can inventory the necessary
PWBA first and order the correct power modules later for different requirements.
Sophisticated Features for Triple-Play Services
The IES-612-51A/IES-612-51 comes with complete ATM and Ethernet QoS, as well as various IP QoS features
(Packet classification/Rate Limitation/Queue Scheduling). The seamless QoS-mapping not only allows consistent
and appropriate traffic treatment of packets, but also enables fulfillment of triple-play services.
The number of supported multicast groups is 256, while each group can have 13 members. At least 30 multicast
IGMP join/leave requests can be processed in one second and the maximum channel processing time is less than
250 ms. For security, anti MAC address spoofing, broadcast storm prevention, MAC count limiting and packet
filtering features are provided. Triple-play services like high-speed Internet access, VoIP, Near VOD, Broadcast TV
and TV on Demand can be easily provided as well.
