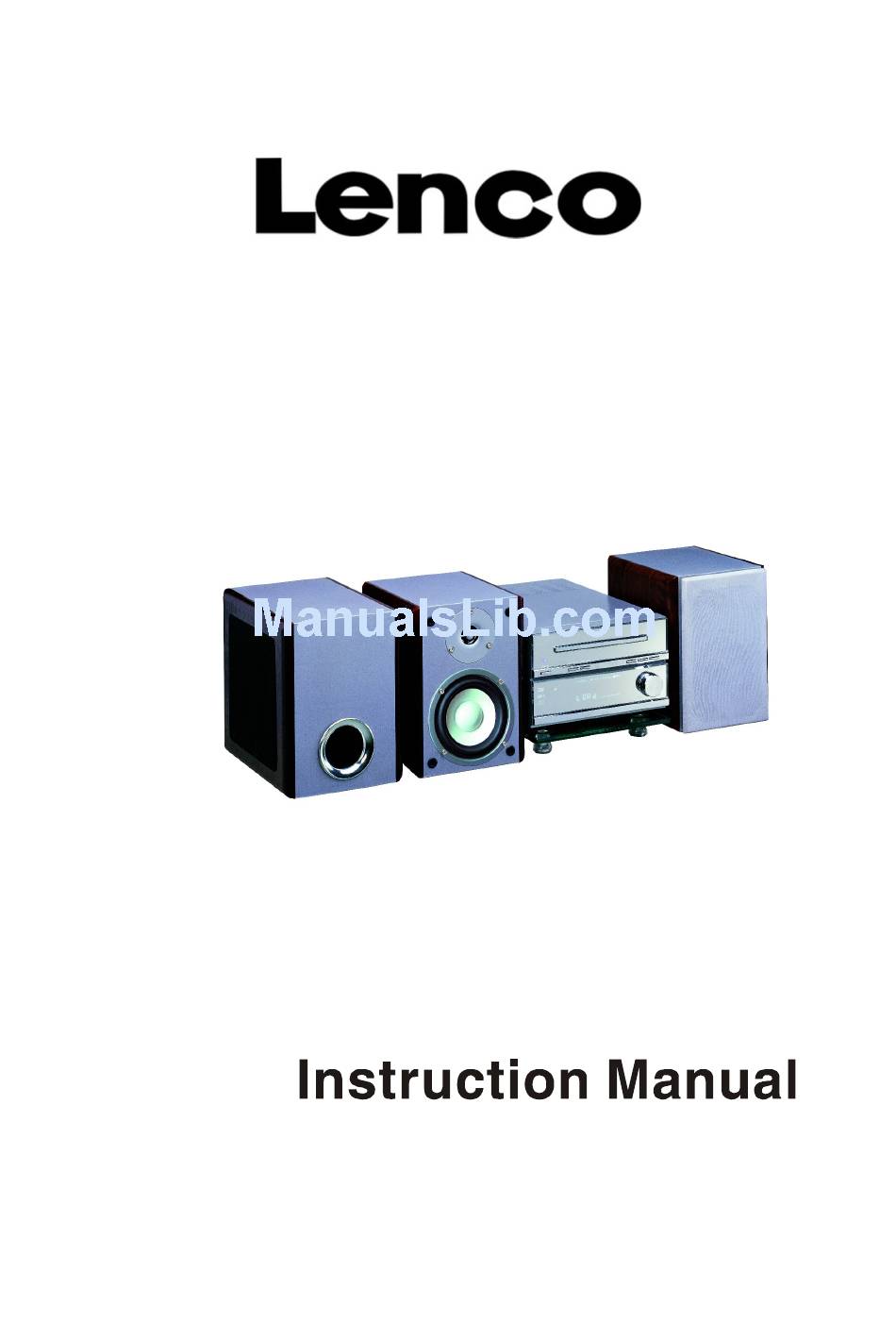

  • Page 1 MDV-3 Home Cinema Set - 1 -...
  • Page 2 FORW AWRD WELCOME Thank you for purchasing this product. It is recommended that you read this instruction manual before use to ensure safe and enjoyable operation. PLEASE Please unpack carefully, and keep all the accessories in the same place. Do not place objects filled with liquids, such as vases, on this unit. Do not place naked flame sources, such as lighted candles on this unit.

  • Page 3: Table Of Contents

    CONTENT FORWARD CONTENT ACCESSORIES ..2 WARNING PANEL REMOTE CONTROLLER CONNTECTION WITH TV ...6 CONNECTION WITH AMPLIFIER SYSTEM CONNECTION BASIC OPERATION ..9-14 MENU SETUP 15-20 SPECIFICATION . 21 TROUBLESHOOTING ..22 ACCESSORIES - 3 -...

  • Page 4: Warning

    WARNING Please read and understand all warnings and instructions given in this user guide and those marked on the unit. Retain this guide for future reference. Power sources: this unit should Keep unit and power plug away Only be used with indicated on from water.

  • Page 5: Panel

    PANEL 7 8 9 1. POWER 13.L/R FRONT AUDIO OUTPUT 2. REMOTE CONTROLLER SENSOR 14. S-VIDEO OUTPUT 3. PREV(CH-) 15. VIDEO OUTPUT 4. NEXT(CH+) 16. Pb/Cb, Y, Pr/Cr CHROMATISM OUTPUT 5. DISC DOOR 17. OPTICAL OUTPUT 6. VFD 18. COAXIAL OUTPUT 7.

  • Page 6: Remote Controller

    REMOTE CONTROLLER NOTE: 1. Turn on the player and have batteries installed in the remote controller, put the emitter against the sensor of player for remote control. 2. The distance of remote control should not exceed 7 meters, or else, it will be invalid. 3.

  • Page 7: Connection With Tv

    CONNECTION WITH TV If you TV has AV terminal, connect this unit to TV with A/V cables, and set TV to be AV status after confirming the connection is correct. (Figure 1) If your TV has S-Video terminal, please use the S-Video connection cable to connect the player and TV, to obtain a higher quality image.

  • Page 8: Connection With Amplifier

    CONNECTION WITH AMPLIFIER Super bass Left channel Dolby amplifier Right channel Central Connect to video input Surround L Surround R Setup of Digital Audio Output Connect the optical and coaxial output jack to the amplifier. In the status of play or stop, press setup button on the remote controller to open the system setup page, switch to audio setup page by pressing the direction buttons, then move the cursor to Audio Out, select SPDIF/RAW or SPDIF/PCM, press Play/Enter button to finish.

  • Page 9: System Connection

    SYSTEM CONNECTION Please refer to the following figure to connect your acoustic equipment! To keep all the connection correctly and firmly! Power supply will be connected finally. - 9 -...

  • Page 10: Forward

    BASIC OPERATION Preparative 1). Before turning on, check whether all the connection are correct and reliable. Plug the power plugs into the corresponding power socket. 2). Press Power button on the front panel to turn on. 3). Press Eject button on the remote controller or panel to carry the disc tray outside, put the disc into the tray, press Eject button again, this unit starts to read and play.
  • Page 11 BASIC OPERATION TIME SELECTION In play status, press T/F button on the remote controller, the TV screen displays, You can press direction button to move the cursor to the time position, then input the corresponding numbers by pressing number button, then press Play/Enter button to enter the desired part for playing.
  • Page 12 BASIC OPERATION STOP In play status, press the Stop button, the TV screen will return to the turn-on picture, press Play/Enter button, the player will begin to play at the stopping time, here the TV screen will display Play Resume. In play status, successively press Stop button twice and then press Play/Enter button, the disc will be played from the start.
  • Page 13 BASIC OPERATION OUTER AUDIO INPUT Correctly connect the PC computer and Tape cassette with this unit, then press the Input button to enter PC status or TAPE status to enjoy the outer audio source. Mp3 DISC PLAYING FUNCTION 1). Press the Eject button on the panel or remote controller to open the deck, put in an Mp3 disc, then press Eject button to close the deck.
  • Page 14 BASIC OPERATION JPEG PICTURE DISC PLAYING FUNCTION 1). Place the JPEG disc into the deck, this unit will begin to read, the mail directory will be displayed on the TV screen. 2). Press the direction button to move the cursor to the corresponding directory, press Play/Enter button to enter the next layer, and so on, until the desired picture is found for play.
  • Page 15 BASIC OPERATION FM/AM RADIO OPERATION Enter FM/AM Function In the turn-on or play status, press the FM/AM button on the remote controller, enter FM status, press the button again to enter AM status. Select Bands directly input frequency: press the T/F button on the remote controller, input the frequency that you want directly.

  • Page 16: Menu Setup

    MENU SETUP Press the Setup button on the remote controller to open the menu setup function, the TV screen will display the following figures, SYSTEM SETUP PAGE 1). TV System perform adjustment according to different disc applicable for different TV system, includes four options: NTSC, PAL, PAL60, AUTO.
  • Page 17 MENU SETUP 5). Password and Rating The password is used to prevent the children watching unproper discs. (1) Input a four-digit password (The initial password of this unit is 0000.) (2) move the cursor to Rating option, press Play/Enter button to select the desired rating.
  • Page 18 MENU SETUP AUDIO SETUP PAGE 1). Audio Out Each DVD disc has various audio output types for selection. You can set the type according to the acoustic system type you are using. Three options are available: SPDIF/OFF: no signal output from either coaxial or optical output port SPDIF/RAW: this option is chosen when the coaxial and optical port are connected with power amplifier.
  • Page 19 MENU SETUP VIDEO SETUP PAGE 1).Brightness this option is used to change the brightness of the screen, press the up / down direction buttons to adjust the brightness, press left direction button to exit. 2). Contrast this option is used to change the contrast of the screen, press up / down direction button to adjust the contrast, press left direction button to exit.
  • Page 20 MENU SETUP 2).Subwoofer this option is effective only in case of 5.1CH output. Select ON and the unit will automatically detect whether there is bass input or not. The bass output will result if there is sound input. In OFF status, there will be no bass output even though there is bass input. 3).

  • Page 21: Menu Setup

    MENU SETUP Examples: setting loudspeaker 5.1CH output Press the Setup button, and the system setting interface will appear on the TV screen. Press the direction button to switch over to the interface for loudspeaker as shown in the following figure: press the button , to move the cursor to the DOWNMIX option, press the button...

  • Page 22: Specification

    SPECIFICATION DVD (digital video and audio disc) VCD1.0, 1.1, 2.0 (laser audio and video disc) Disc Type CD-DA (common music laser disc) MP3 music disc Video Format MPEG 2 for DVD, MPEG 1 for VCD Audio Format MPEG 1, MPEG 2, PCM, STEREO Video system: NTSC, PAL, PAL60, AUTO Signal Output Video output 1.0 V p-p...

  • Page 23: Troubleshooting

    TROUBLESHOOTING NOTE: In most cases, whether the DVD player can work properly depends on the disc it plays, some functions listed in the instruction manual may not work properly due to disc problems, therefore, it is strongly recommended to read through this instruction manual first before using this DVD player.
