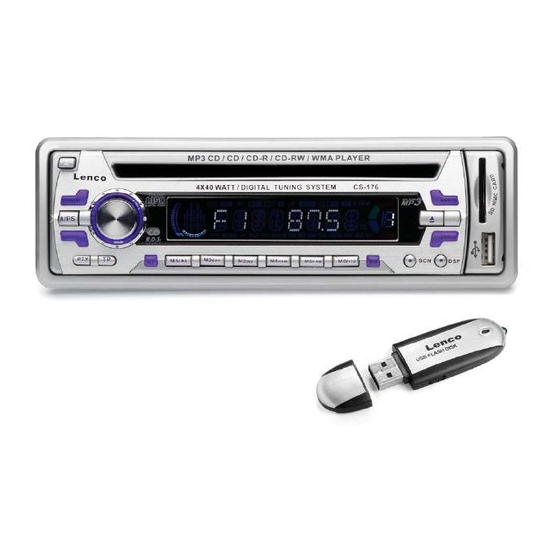

MP3 CD / CD / CD-R / CD-RW / WMA PLAYER 4X40 WATT / DIGITAL TUNING SYSTEM CS-176 A/PS MODEL NO: CS-176 Car Stereo Compact Disc CD/CD-R/CD-RW/MP3 WMA SD/MMC USB Media Player with PLL FM Stereo Radio Radio Data System with PTY...
Page 2
MP3 CD / CD / CD-R / CD-RW / WMA PLAYER 4X40 WATT / DIGITAL TUNING SYSTEM CS-176 A/PS (1-6) RESET FLASH LED...
English English English English Car Stereo Compact Disc CD/CD-R/CD-RW/MP3 WMA SD/MMC USB 21,22. +/- 10 TRACK SEARCH UP/DOWN 23. SCAN OR RECORD BUTTON(SCN/REC) Media Player with PLL FM Stereo Radio 24. RESET BUTTON Radio Data System with PTY 25. USB JACK AND SD/MMC CARD JACK Detachable Front Panel System FEATURES INSTRUCTION MANUAL...
Page 4
English English English English Mounting angle adjustment Adjust the mounting angle to less than 30°. MOUNTING EXAMPLE Installation in the dashboard Notes: • Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing it lightly against the unit.
English English English English Maintenance 4. PRESET STATIONS(M1,M2,M3,M4,M5,M6) FUSE REPLACEMENT (A) RADIO MODE: If the fuse blows, check the power connection and replace the fuse. IF the fuse blows again When press short, these keys select a preset station directly. When press longer after the replacement, there may be an internal malfunction.
English English English English -Regional mode OFF (B) CD/MP3/SD/MMC/USB MODE The regional code in the format of PI code is ignored when AF switching or PI SEEK is im- By pressing this key, user can execute search function. plemented. (C)SUB WOOFER 6.
English English English English 10 10 23. SCAN OR RECORD and DELETE FUNCTION (SCN/REC) CD/SD/MMC/USB CONTROL LOCATION OF PARTS A. RADIO MODE 11. SKIP TRACK/SEARCH BUTTON The key is operated as RADIO MODE. The operation is similar as normal search but different thing is holding 5 seconds on every station detected in RADIO SCAN mode.
English English English English 12 12 HOW TO SEARCH MP3 FILES Record file by microphone(MIC) Search function is activated by pressing down A/PS key. The unit also support recording from MIC. After enter recording mode, the unit will record Press this key at first, filenumber search function is activated, press again, filename searc the words what users said automatically .
Page 9
English English SPECIFICATIONS CD/MP3 PLAYER SECTION Signal to Noise Ratio >60dB Channel Separation >50dB(1KHz) Frequency Response 20Hz-20KHz FM SECTION Frequency range 87.5-108.0MHz Channel step 50KHz Intermediate frequency 10.7MHz Sensitivity 2µV at 30 dB S/N Stereo separation >30dB Signal to noise radio >60dB LINE-OUT Output...
