Where used:
1 screw securing the modem/network interface card compartment cover to the
base enclosure (refer to the Hardware Guide included with the computer for
installation procedure)
2 screws securing the memory expansion compartment cover to the base
enclosure (refer to the Hardware Guide included with the computer for
installation procedure)

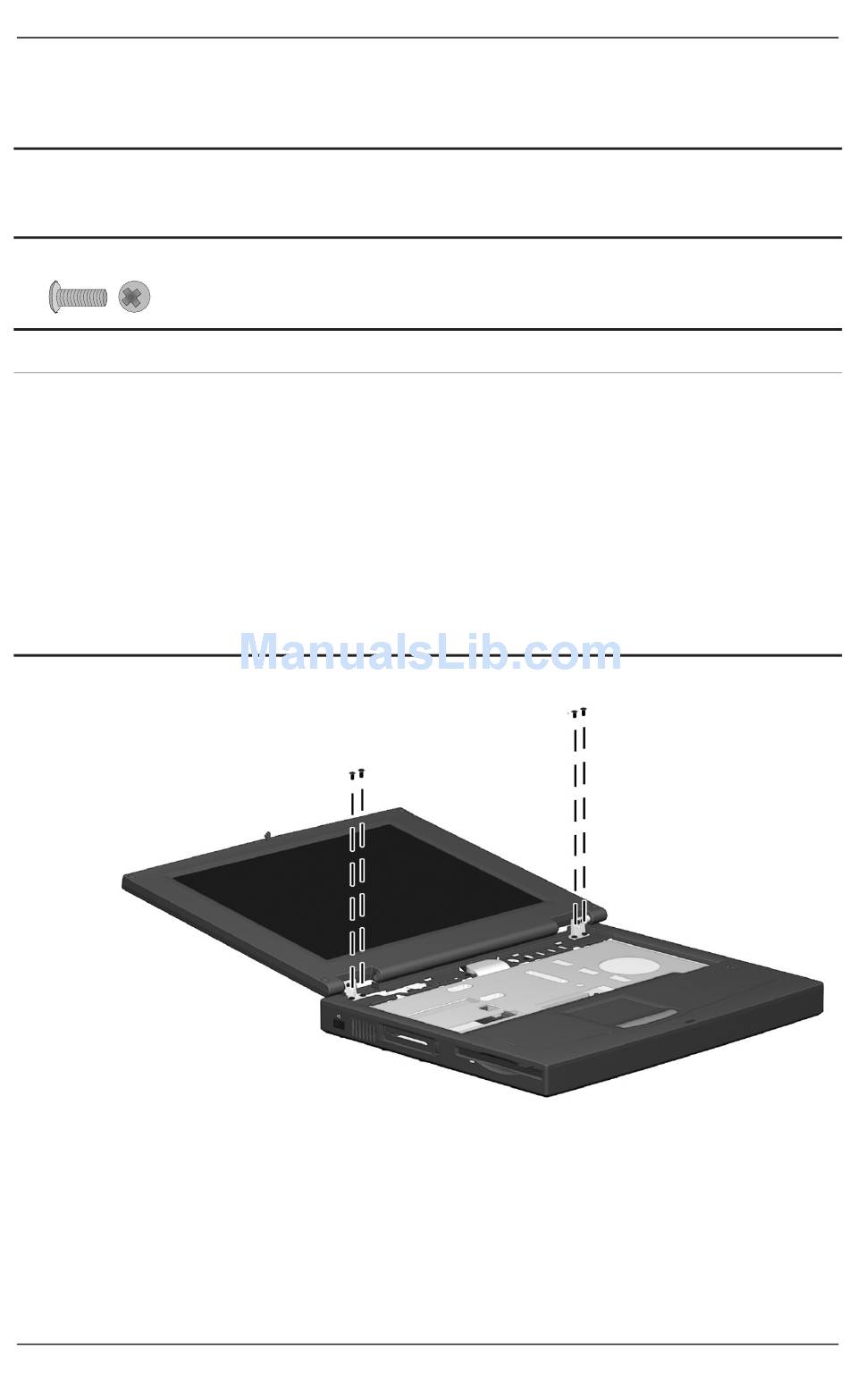

4 screws securing the display to the base enclosure (illustrated below;
documented in Section 5.9)
Maintenance and Service Guide
Table C-3
M2.5 × 7 Screw
Color Qty
Black 25
Length Thread
7 mm M2.5
Screw Listing
Head
Width
4.5 mm
C–7
