Summary of Contents for Gateway 205

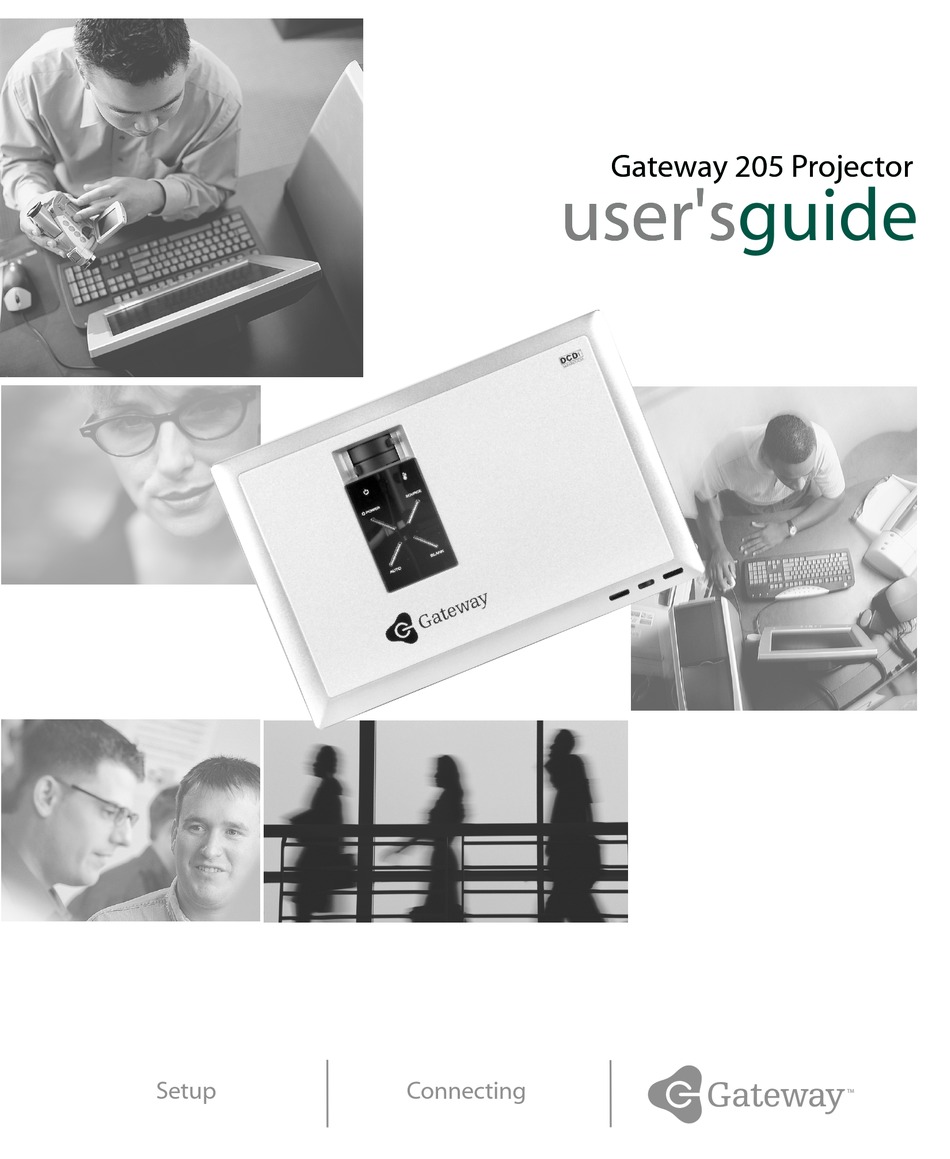

- Page 1 Gateway 205 Projector Gateway 205 Projector user'sguide user'sguide Setup Connecting...
- Page 2 www.gateway.com...
-
Page 3: Table Of Contents
Contents Using the Gateway 205 Projector ........1 Features . -
Page 5: Using The Gateway 205 Projector
Using the Gateway 205 Projector Read this guide to find out how to: ■ Use the projector safely ■ Use the remote control ■ Set up and connect the projector ■ Start and turn off the projector ■ Use the On-screen display (OSD) menus ■... -
Page 6: Features
Using the Gateway 205 Projector Features The Gateway 205 is a high-resolution projector with: ■ Compact, lightweight design ■ Full-function remote including laser pointer and mouse controls ■ 16 million-color display capability ■ Ultra-high brightness projection lamp ■ High-quality manual zoom lens ■... -
Page 7: Projector Front
Description Infrared remote sensor Picks up the signal from the remote control. Projection lens Projects the image on the screen. Adjustor-foot release button Press to release the adjustor-foot. For more information, see “Setting up the projector” on page 16. www.gateway.com... -
Page 8: Projector Back
Using the Gateway 205 Projector Projector back USB port Video port PC/HD port S-Video port Infrared remote sensor AC Power connector Kensington lock www.gateway.com... - Page 9 Infrared remote sensor Picks up the signal from the remote control. Kensington™ lock slot Connect a Kensington cable lock to this slot to secure the projector to an object. AC power connector Plug an AC power cable into this connector. www.gateway.com...
-
Page 10: Projector Top
Using the Gateway 205 Projector Projector top Lens adjustment wheels Power indicator Lamp indicator POWER button SOURCE button AUTO button BLANK button www.gateway.com... - Page 11 This function is only available when the projector is connected to your computer. BLANK button Press to select a blue display screen. SOURCE button Press to select the video input source. www.gateway.com...
-
Page 12: Projector Bottom
Using the Gateway 205 Projector Projector bottom Lamp access panel Adjustor-foot Item Icon Description Lamp access panel Remove the two screws to access the lamp bay. For more information, see “Changing the lamp module” on page 27. Adjustor-foot Press the button on the front of the projector to release the adjustor-foot. -
Page 13: Cables
The projector comes with several cables so you can connect to your computer or other video component. See “Connecting components” on page 17. Important The Gateway 205 does not support internal audio. You must use an external audio source, such as the speakers with your computer, to receive an audio signal. - Page 14 Using the Gateway 205 Projector Cable Description Composite video cable. Use this cable to connect a video component, such as a DVD player or VCR, to the projector. The video signal is carried through a single video (yellow) connection. The two additional connectors carry the left (white) and right (red) channel audio signals to an audio receiver.
-
Page 15: Remote Control
To insert batteries in the remote control: Remove the battery compartment cover. Insert two AA batteries into the battery compartment. Make sure that the – – symbols match the symbols inside the battery compartment. Replace the battery compartment cover. www.gateway.com... -
Page 16: Remote Front
Using the Gateway 205 Projector Remote front POWER button MENU SOURCE button button R-Mouse L-Mouse button button Enter Joystick button AUTO BLANK button button LASER button www.gateway.com... - Page 17 For more information about the OSD options, see “OSD options” on page 23. BLANK Press to view a blank screen. Choose between blue, black, green, and a Gateway Logo screen. MENU Press to view the OSD. Press again to exit. For more information about the OSD options, see “OSD options”...
-
Page 18: Remote Back
Using the Gateway 205 Projector Remote back MOUSE DRAG button STILL button RESIZE button KEYSTONE buttons ZOOM buttons www.gateway.com... - Page 19 To eliminate text distortion, do not use when displaying text or spreadsheets. ZOOM Press the button to zoom the display image in and out. Use the joystick to move within the zoomed display image. www.gateway.com...
-
Page 20: Setting Up The Projector
Using the Gateway 205 Projector Setting up the projector To set up the projector: Place the projector on a sturdy cart or table close to other components you plan to connect to the projector and an electrical outlet. Point the projector lens towards a blank wall or projection screen. -
Page 21: Connecting Components
If you are connecting to a notebook, you may need to make adjustments to the notebook’s display settings to view the display image through the projector. See the documentation that came with your notebook for information about changing display settings. www.gateway.com... - Page 22 Using the Gateway 205 Projector If you want to use the remote control as a mouse, plug the USB cable into the USB port on the back of the projector, then plug the other end into a USB port on the back of your computer.
-
Page 23: Connecting To A Dvd Player Or Vcr
DVD player or VCR. Plug the remaining red and white audio connectors from the composite video cable into the corresponding ports on the back of an audio receiver. www.gateway.com... - Page 24 Using the Gateway 205 Projector To connect the projector to a DVD player or VCR using S-Video: Plug the S-Video cable connector into the S-Video port on the back of the projector, then plug the other end into the S-Video port on the back of the DVD player or VCR.
-
Page 25: Connecting To A Satellite Dish
Plug the red and white connectors from a composite video cable into the corresponding ports on the back of the satellite dish receiver, then plug the red and white connectors on the other end to the corresponding ports on an audio receiver. www.gateway.com... -
Page 26: Operating The Projector
Using the Gateway 205 Projector Operating the projector After you have connected all components to the projector, you are ready to begin using the projector. Starting the projector To start the projector: Press the POWER button. The power LED turns on. -
Page 27: Osd Options
Move the joystick left or right to adjust the control to the desired level. Press the button to return to the main navigation bar on the left of MENU the OSD menu. When you have finished making all adjustments, press the button MENU to exit the OSD. www.gateway.com... -
Page 28: Osd Menus
Using the Gateway 205 Projector OSD menus OSD Menu Description VIDEO Contrast. Adjusts the contrast of the display image. Brightness. Adjusts the brightness of the display image. You may need to readjust brightness after the projector has warmed up. Color. Increases the color range of the display image. - Page 29 Blank Image. Displays a blank screen. Choose between blue, black, green, and a Gateway Logo screen. Lamp Time. Displays the hours that the lamp has been in use and resets the timer when the lamp module has been replaced.
-
Page 30: Shutting Down The Projector
Using the Gateway 205 Projector Shutting down the projector To shut down the projector: Turn off all connected components. Press the POWER button on the projector. A warning message appears. Press the POWER button again to turn off the projector. -
Page 31: Maintaining The Projector
Maintaining the projector Maintaining the projector The only user-replaceable part in the projector is the lamp module. Contact Gateway Technical Support for any additional service or repair. Warning To prevent electric shock, do not open the projector case. There are no user-replaceable parts inside. Contact Gateway Technical Support for service or repair. - Page 32 Using the Gateway 205 Projector Remove the two lamp access panel screws, then remove the lamp access panel. Screws Remove the lamp module retaining screw. Screw www.gateway.com...
- Page 33 If the lamp module does not fit, make sure that the cable connections line up with the connectors in the lamp bay. Replace the lamp module retaining screw. Replace the lamp bay access panel, then replace the access panel screws. www.gateway.com...
-
Page 34: Cleaning The Projector
Using the Gateway 205 Projector Turn the projector over. Connect the power cable and all external cables. To reset the lamp timer: Press the POWER button on the top of the projector twice, a warning message appears. Press the AUTO and BLANK buttons at the same time. A lamp hour icon will appear on the screen. -
Page 35: Accessories
Accessories Accessories Gateway offers accessories that can help you make the most of using the projector. To order accessories, visit the Accessory Store at accessories.gateway.com. Carrying cases Gateway has large-capacity carrying cases if you need additional space for accessories or supplies. -
Page 36: Troubleshooting
If an error message appears on the screen, see “On-screen status messages” on page 35. If the suggestions in the Troubleshooting section of this guide does not correct the problem, contact Gateway Technical Support at 800-846-2303. Before calling Gateway Technical Support: ■... -
Page 37: Common Problems And Solutions
Access the OSD menus to adjust the brightness and contrast. For more information, see “OSD options” on page 23. No sound ■ Make sure that all components are connected correctly and securely. For more information, see “Connecting components” on page 17. www.gateway.com... - Page 38 Using the Gateway 205 Projector Display image is wider on the top or bottom ■ Press the buttons on the remote control to adjust the display KEYSTONE image. For more information, see “Remote back” on page 14. ■ Reposition the projector to get a better angle on the projection screen.
-
Page 39: Led Status
You are too far away from the projector for the remote to function correctly. Replace the lamp! The lamp module has been in operation for more than 1500 hours. For information on replacing the lamp module, see “Changing the lamp module” on page 27. www.gateway.com... -
Page 40: Specifications
Using the Gateway 205 Projector Specifications Specifications are subject to change without notice or obligation. Model GW205 Resolution 800 × 600 SVGA Display system 1-chip DMD Lens F-number F/2.4 Lamp 150 W NSH lamp Power supply AC 100 ~ 240 V, 3 A, 50/60 Hz (automatic) Power consumption 250 W (max.) -
Page 41: Display Size Chart
(316.7 cm) (237.5 cm) (7 m) (304.5 cm) (243.6 cm) (182.7 cm) 178.1 in. 142.5 in. 106.9 in. 26.25 ft. 137.0 in. 109.6 in. 82.2 in. (452.4 cm) (362.0 cm) (271.5 cm) (8 m) (348.0 cm) (278.4 cm) (208.8 cm) www.gateway.com... -
Page 42: Timing Chart
1024 × 768 68.7 kHz 85.0 Hz VESA 1280 × 1024 64.0 kHz 60.0 Hz VESA Many products for Gateway and its subsidiaries are custom engineered by our suppliers to Gateway specifications and may vary from similarly marketed products. www.gateway.com... -
Page 43: Safety, Regulatory, And Legal Information
Legal Information Important safety information The Gateway projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed. - Page 44 The projector was dropped or the projector case is damaged. ■ The projector performance changes. Replacement parts and accessories Use only replacement parts and accessories recommended by Gateway. Important Do not use Gateway products in areas classified as hazardous locations. Such areas include patient care areas of medical and dental facilities, oxygen-laden environments, or industrial facilities.
- Page 45 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution Changes or modifications not expressly approved by Gateway could void the FCC compliance and negate your authority to operate the product. www.gateway.com...
- Page 46 Laser Radiation Warning Laser Radiation – Do not stare into the laser beam. California Proposition 65 Warning Warning This product contains chemicals, including lead, known to the State of California to cause cancer and/or birth defects or reproductive harm. www.gateway.com...
- Page 47 For the latest product updates, consult the Gateway Web site at www.gateway.com. In no event will Gateway be liable for direct, indirect, special, exemplary, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
- Page 48 Appendix A: Safety, Regulatory, and Legal Information www.gateway.com...
- Page 49 www.gateway.com...
- Page 50 MAN 205 PROJECTOR USR GDE R0 3/03...
