MO0610-EA
Operation Guide COMBIWAVE1
About This Manual
• The operational procedures for Modules 2735, 3747, and 4772 are identical. All of
the illustrations in this manual show Module 2735.
• Button operations are indicated using the letters shown in the illustration.
• This watch does not have a time zone that corresponds to the Greenwich
Mean Time differential of –3.5 hours. Because of this, the radio-controlled
timekeeping and World Time functions will not display the correct time for
Newfoundland, Canada.
Module 2735
• Each section of this manual provides you with the information you need to perform
operations in each mode. Further details and technical information can be found in
the "Reference" section.
General Guide
• Press C to change from mode to mode.
• In any mode, press B to illuminate the display.

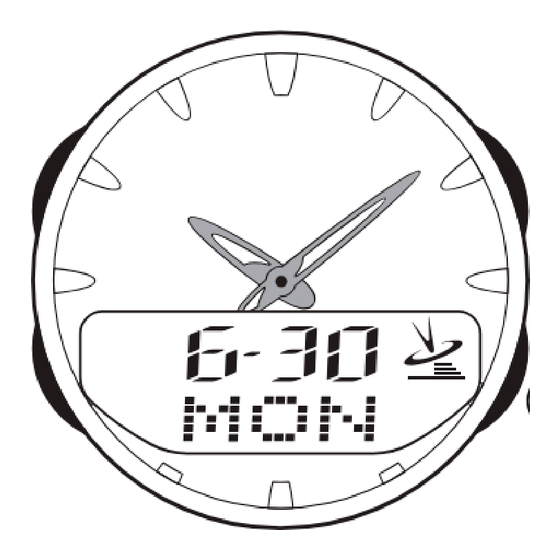

Timekeeping Mode
Radio-controlled Atomic Timekeeping
Hour hand
Minutes hand
Day of week
Month – Day
• The first thing you should do after purchasing this watch is to set your Home City,
which is the city where you will normally use the watch. For more information, see
"To set your Home City" below.
• When using the watch outside of the range of the transmitter in Fort Collins, you
need to manually adjust the time as required. See "Timekeeping" for information
about manual settings.
• The analog time of this watch is synchronized with the digital time. Because of this,
the analog time setting is automatically adjusted whenever you change the digital
setting. See "Analog Timekeeping" for more information.
To set your Home City
Transmitter
indicator
City code
Important!
• Normally, your watch should show the correct time as soon as you select your Home
City code. If it does not, it should adjust automatically after the next auto receive
operation (in the middle of the night). You can also perform manual receive or you
can set the time manually.
• If you are in an area that does not use Daylight Saving Time (summer time), turn off
the DST setting.
Time Calibration Signal Reception
There are two different methods you can use to receive the time calibration signal:
auto receive and manual receive.
• Auto Receive
With auto receive, the watch automatically picks up the time calibration signal four
times a day at 2:00 a.m., 3:00 a.m., 4:00 a.m., and 5:00 a.m. For more information,
see "About Auto Receive".
• Manual Receive
Manual receive lets you start a time calibration receive operation with the press of a
button. For more information, see "To perform manual receive".
Module 3747
Module 4772
World Time Mode
Press C.
Hand Setting Mode
This watch receives a time calibration signal and updates
its time setting accordingly. The time calibration signal
includes both Standard Time and Daylight Saving Time
(summer time) data.
• This watch is designed to pick up the time calibration
signal transmitted from Fort Collins, Colorado (USA).
Reception is possible within North America*.
* The term "North America" in this User's Guide refers to the
area that consists of Canada, the continental United States,
and Mexico.
Current Time Setting
This watch automatically adjusts its digital time setting in
accordance with a time calibration signal. You can also
perform a manual procedure to set the time and date,
when necessary.
1. In the Timekeeping Mode, hold down A until the
transmitter indicator (
USA
) starts to flash, which
indicates the setting screen.
2. Press C to display the city code setting screen.
3. Use D(east) and B(west) to select the city code you
want to use as your Home City.
• The following are the city codes for major cities in
North America.
: Los Angeles, San Francisco, Las Vegas,
LAX
Seattle, Vancouver, Tijuana
: Denver, El Paso, Edmonton, Culiacan
DEN
: Chicago, Houston, Dallas/Fort Worth,
CHI
New Orleans, Winnipeg, Mexico City
: New York, Detroit, Miami, Boston, Montreal
NYC
• Note that this watch does not have a city code that
corresponds to Newfoundland.
4. Press A twice to exit the setting screen.
• The first press of A displays the 12/24-hour setting
screen. Pressing A again exits the setting screen.
Alarm Mode
Stopwatch Mode
Important!
• Position the watch as shown in the nearby illustration, with its 12 o'clock side facing
towards a window. Make sure there are no metal objects nearby.
Metal Band
Resin Band
• The watch should not be on its side or facing the wrong way.
• Proper signal reception can be difficult or even impossible under the conditions listed
below.
Inside or
Inside a
Near
among
vehicle
household
buildings
appliances or
office
equipment,
or a mobile
phone
• Signal reception is normally better at night than during the day.
• Time calibration signal reception takes from two to six minutes, but in some cases it
can take as long as 12 minutes. Take care that you do not perform any button
operations or move the watch during this time.
600 miles
• At distances further than about 600 miles (1,000 kilometers) from the transmitter,
signal reception may not be possible during certain times of year or times of day.
Radio interference may also cause problems with reception.
• Even when the watch is within the reception range of the transmitter, signal
reception is impossible if the signal is blocked by mountains or other geological
formations between the watch and signal source.
• Signal reception is affected by weather, atmospheric conditions, and seasonal
changes.
• See the information under "Signal Receive Troubleshooting" if you experience
problems with time calibration signal reception.
About Auto Receive
When auto receive is turned on, the watch automatically starts to receive the time
calibration signal when the digital time in the Timekeeping Mode reaches 2:00 a.m.,
3:00 a.m., 4:00 a.m., and 5:00 a.m. each day (calibration times).
Date Alert Mode
Time Recorder Mode
Near a
Near high-
Among or
construction
tension
behind
site, airport, or
power lines
mountains
other sources
of electrical
noise
2,000 miles
Fort Collins
1
