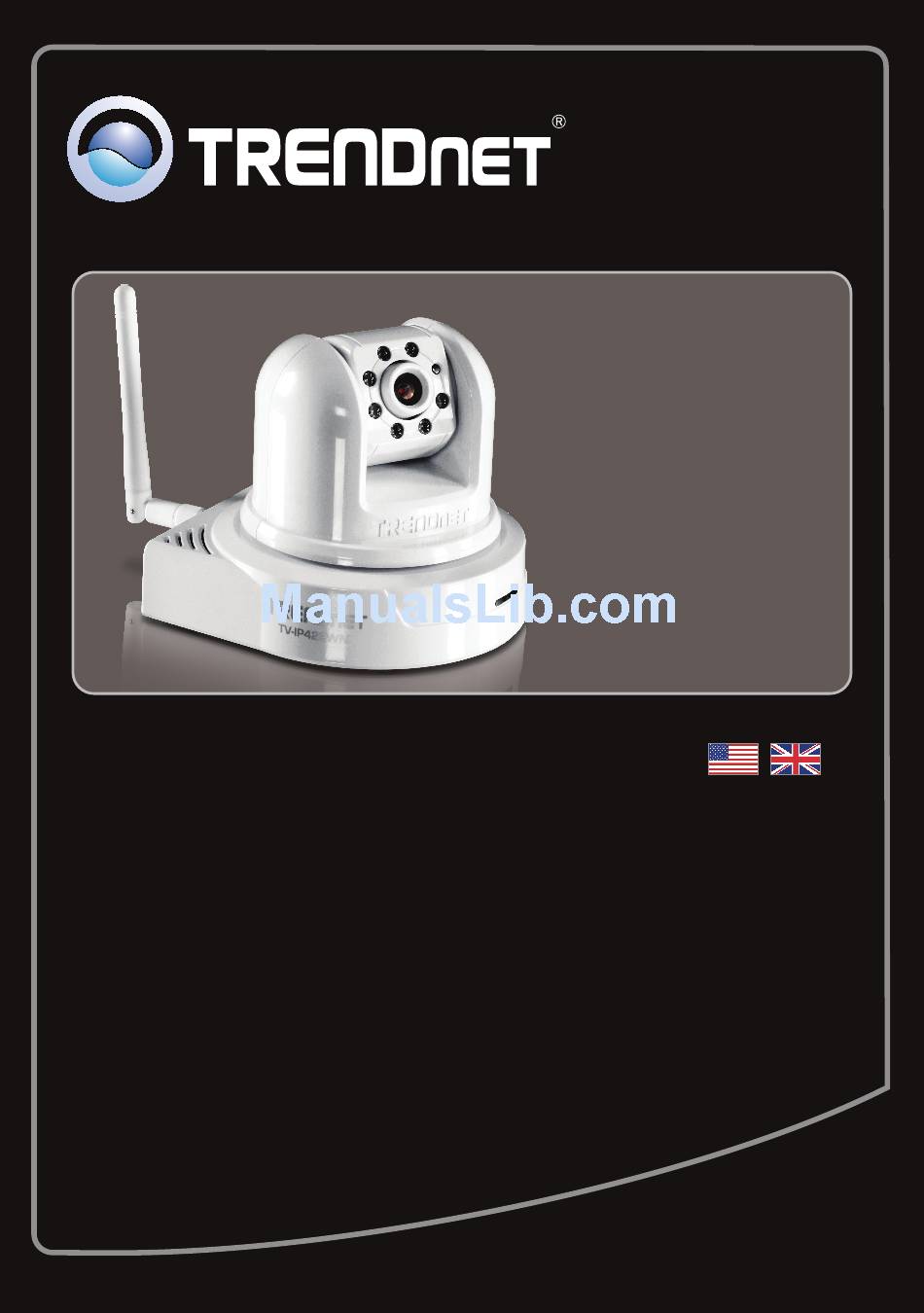

- Page 1 Quick Installation Guide TV-IP422WN 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation 3. Configure the IP Camera Troubleshooting Wireless Tips Version 03.09.2011... -
Page 3: English
1. Before You Start Package Contents Ÿ TV-IP422WN Ÿ CD-ROM (Utility and User's Guide) Ÿ Multi-Language Quick Installation Guide Ÿ Network Cable (1.5m / 5ft) Ÿ 1 x 2dBi Detachable Antenna Ÿ Mounting Kit Ÿ Power Adapter (12V DC, 1.5A) System Requirements Ÿ... -
Page 4: Hardware Installation
2. Hardware Installation 1. Attach the antenna to the IP Camera. 2. Connect the provided network cable from one of your Router's network portsto the Ethernet port on the IP Camera. 3. Connect the Power Adapter to the IP Camera and then to a power outlet. -
Page 5: Configure The Ip Camera
3. Click IPSetup. 4. Follow the Installation Wizard instructions. 5. Once installation is complete click Close. 6. Click the Start (Windows XP) or Windows (Windows 7) icon. 7. Go to Programs Ž TRENDnet Ž IP Setup | and click IP Setup. - Page 6 Note: By default, the IP setting on the TV-IP422WN is set to DHCP. If you want to give the TV-IP422WN a static IP address, please refer to the User's Guide on the Utility CD-ROM. 8. Double click the IP Camera to access the browser configuration.
- Page 7 12. Click Setup, Network and then click Wireless. 13. Click Site Survey. Select an ESSID. The ESSID (SSID) is the wireless network name for your wireless network (e.g. wireless router or access point). If encryption is enabled, select the proper Authentication and Encryption type, enter the Pre-Shared Key and then click Apply.
- Page 8 1. For detailed information regarding the TV-IP422WN ’s configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com. 2. If you would like to use SecurView Pro software, please install the software by clicking SecurView Pro in the Autorun window and refer to the User's Guide on the CD for more information.
-
Page 9: Troubleshooting
8 in Section 3: Configure the IP Camera. If you do not have a DHCP server on your network, the default IP address is 192.168.10.30. The default administrator ID and password is admin. If you still encounter problems or have any questions regarding the TV-IP422WN, please contact TRENDnet's Technical Support Department. -
Page 10: Wireless Tips
Wireless Tips The following are some general wireless tips to help minimize the impact of interference within an environment. Assign your network a unique SSID Do not use anything that would be identifying like “Smith Family Network”. Choose something that you would easily identify when searching for available wireless networks. Do not turn off the SSID broadcast The SSID broadcast is intended to be on and turning it off can cause connectivity issues. - Page 11 2. Keep the number of obstructions to a minimum. Each obstruction can reduce the range of a wireless device. Position the wireless devices in a manner that will minimize the amount of obstructions between them. 3. Building materials can have a large impact on your wireless signal. In an indoor environment, try to position the wireless devices so that the signal passes through less dense material such as dry wall.
- Page 13 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
- Page 14 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
- Page 16 Copyright ©2011, All Rights Reserved. TRENDnet.
