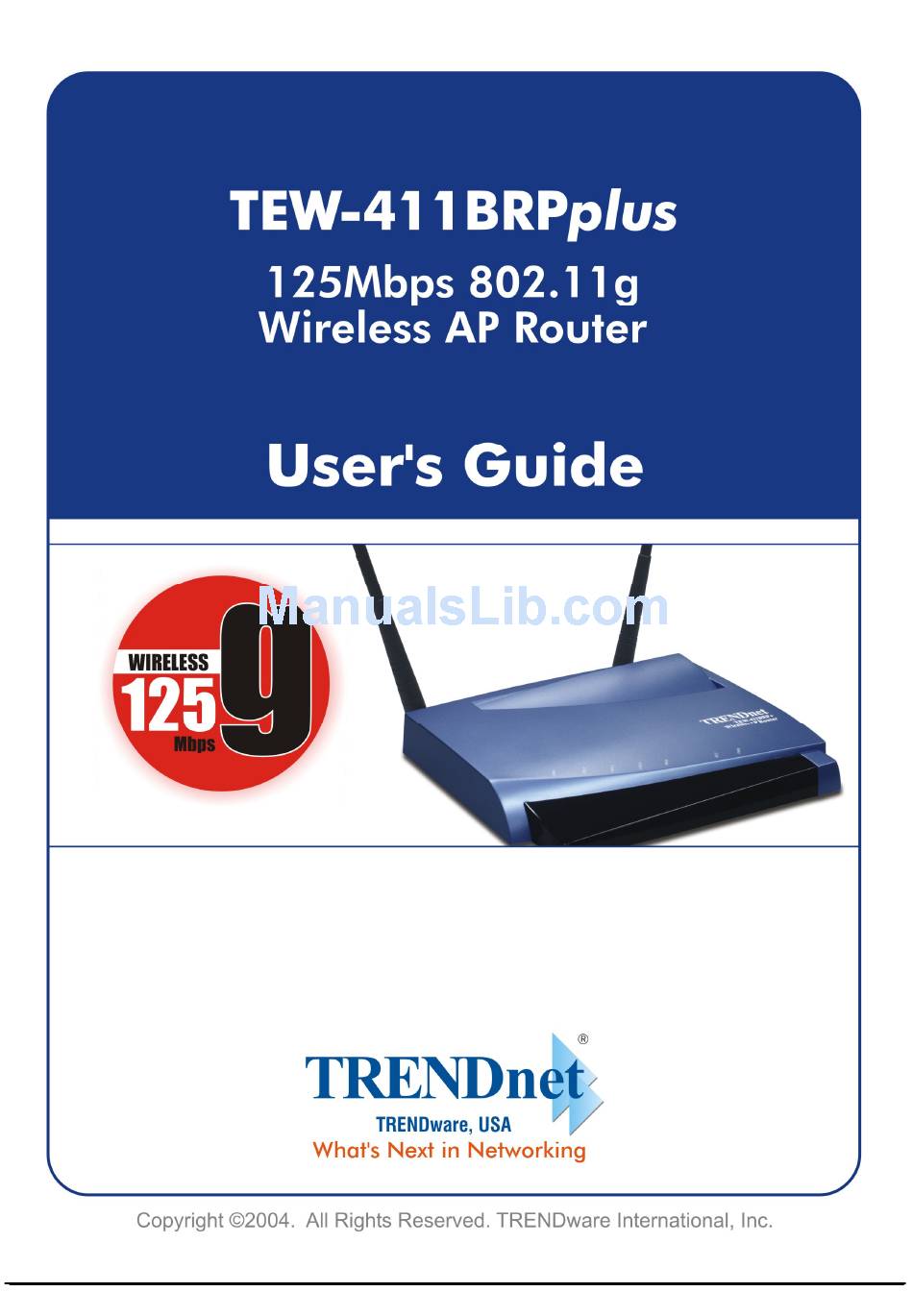

  • Page 1 User’s Guide ser’s Guide...

  • Page 2: Copyright Statement

    Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. MAY. 2004 User’s Guide...

  • Page 3: Table Of Contents

    Contents 1. Introduction ....................... 3 2. Safety Notification ....................4 3. Hardware Installation....................5 4. Web Management Settings ..................6 4.1. Primary Setup….. ……………………………………………………………………………………….7 4.2. Security …………………………………………………………………………………………………..12 4.3. System ……………………………………………………………………………………………………14 4.4. DHCP Server …….……………………………………………………………………………………..17 4.5. SNMP Info ……………………………………………………………………………………………….19 4.6. Status …………………………………………………………………………………………………….20 4.7.

  • Page 4: Introduction

    1. Introduction Thank you for purchasing your AP Router Wireless 802.11g AP Router. This user guide will assist you with the installation procedure. The package you have received should contain the following items: AP Router Wireless 802.11g AP Router Quick Installation Guide User’s Guide CD-ROM Power Adapter (5V DC, 2A) Ethernet Cable...

  • Page 5: Safety Notification

    2. Safety Notification Your Wireless AP Router should be placed in a safe and secure location. To ensure proper operation, please keep the unit away from water and other damaging elements. Please read the user manual thoroughly before you install the device. The device should only be repaired by authorized and qualified personnel.

  • Page 6: Hardware Installation

    3. Hardware Installation Front Panel The front panel provides LED’s for device status. Refer to the following table for the meaning of each feature. STATUS Description PWR/STAT No power 1. Power on 2. Reset to default 3. Firmware upgrade (first 1 Red On minute) Red Blink 1.

  • Page 7: Web Management Settings

    Web Management Settings TURN ON POWER SUPPLY Quick power cycle can caused system corruption. When power on, be careful not to shut down under about 5 seconds, because data is writing to the flash. START UP & LOGIN In order to configure the Wireless 11g AP Router, you must use your web browser and manually input http://192.168.1.1 into the Address box and press Enter.

  • Page 8: Primary Setup

    4.1. Primary Setup MAKE CORRECT NETWORK SETTINGS OF YOUR COMPUTER To change the configuration, use Internet Explorer (IE) or Netscape Communicator to connect the WEB management 192.168.1.1. Primary Setup This screen contains all of the Router's basic setup functions. Most users will be able to configure the AP Router and get it working properly using the settings on this screen.
  • Page 9 These types can be selected from the drop-down menu next to Connection Type. The information required and available features will differ depending on what kind of connection type you select. Some descriptions of this information are included here: • Internet IP Address and Subnet Mask This is the Router's IP Address and Subnet Mask as seen by external users on the Internet (including your ISP).

  • Page 10: Important Notice

    Mode: This unit supports 3 wireless mode – 11b+g , 11g Only and AfterBurner (turbo mode). Select disable to turn off wireless. Domain: displaying information related with each domain regulation. Channel: Select the appropriate channel from the list provided to correspond with your network settings.
  • Page 11 -WPA-Preshared key There are two encryption options for WPA Pre-Shared Key, TKIP and AES. TKIP stands for Temporal Key Integrity Protocol. TKIP utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers. AES stands for Advanced Encryption System, which utilizes a symmetric 128-Bit block data encryption.
  • Page 12 -WPA RADIUS WPA RADIUS uses an external RADIUS server to perform user authentication. To use WPA RADIUS, enter the IP address of the RADIUS server, the RADIUS Port and the shared secret from the RADIUS server. Please choose your algorithm method.

  • Page 13: Security

    4.2. Security Router Password: To change the password for the AP Router, type the new password into the Enter New Password field, then, type it again in the Re-enter to Confirm field. * Click the Apply button to save the setting. Use the default password when you first open the configuration pages, after you have configured these settings, you should set a new password for the Router (using the Security screen).
  • Page 14 Pass-Through is enabled by default. To disable PPTP Pass-Through, uncheck the box next to PPTP. Web Filters: Using the Web Filters feature, you may enable up to four different filters. Proxy - Use of WAN proxy servers may compromise network security. Denying Proxy will •...

  • Page 15: System

    4.3. System Restore Factory Defaults: Click the Yes button to reset all configuration settings to factory default values. Note: Any settings you have saved will be lost when the default settings are restored. Click the No button to disable the Restore Factory Defaults feature. Click the Apply button to save the setting.
  • Page 16 4. On the Firmware Upgrade screen, click the Browse button to find the firmware upgrade file. 5. Double-click the firmware upgrade file. 6. Click the Upgrade button, and follow the on-screen instructions. Note: Do not power off the Router or press the Reset button while the firmware is being upgraded.
  • Page 17 1. Select Enable. 2. Enter your adapter's MAC address in the MAC Address field. 3. Click the Apply button. To disable MAC address cloning, keep the default setting, Disable. Remote Management: This feature allows you to manage your Router from a remote location, via the Internet.

  • Page 18: Dhcp Server

    4.4. DHCP Server The DHCP Server screen allows you to configure the settings for the Router's Dynamic Host Configuration Protocol (DHCP) server function. The Router can be used as a DHCP server for your network. A DHCP server automatically assigns an IP address to each computer on your network. If you choose to enable the Router's DHCP server option, you must configure your entire network PCs to connect to a DHCP server, the Router.
  • Page 19 Maximum Number of DHCP Users: Enter the maximum number of PCs that you want the DHCP server to assign IP addresses to. The absolute maximum is 253 - possible if 192.168.1.1 is your starting IP address. The default is 50. Client Lease Time: The Client Lease Time is the amount of time a network user will be allowed connection to the Router with their current dynamic IP address.

  • Page 20: Snmp Info

    4.5. SNMP SNMP: The SNMP INFO screen allows you to customize the Simple Network Management Protocol (SNMP) settings. SNMP is a popular network monitoring and management protocol. SNMPv2c To enable the SNMP support feature, select Enable. Otherwise, select Disable. Identification Contact contact field,...

  • Page 21: Status

    4.6. Status This screen displays the Wireless Router's current status and settings. This information is read-only. This page will auto re-flash every 5 seconds to keep most update information. Host Name: The Host Name is the name of the Router. This entry is necessary for some ISPs. Domain Name: The Domain Name is the name of the Router's domain.

  • Page 22: Advanced Wireless

    4.7. Advanced Wireless Wireless MAC Filters: This function allow administrator to have access control by enter MAC address of client stations. When Enable is selected, two new options will show up. User’s Guide...
  • Page 23 Depend on the filtering propose, it can be selected to Prevent or Permit. Click on Edit MAC Filter List to add the client stations to the MAC Address Filter list. The table could store up to 40 different MAC addresses. Please follow the format that it required when an address is input.
  • Page 24 RTS Threshold: This value should remain at its default setting of 2346. Should you encounter inconsistent data flow, only minor modifications are recommended. If a network packet is smaller than the preset RTS threshold size, the RTS/CTS mechanism will not be enabled. The Router sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame.

  • Page 25: Access Filters

    4.8. Access Filters The Access Filter screen allows you to block or allow specific kinds of Internet usage. You can set up Internet access policies for specific PCs and set up filters by using network port numbers. This feature allows you to customize up to 10 different Internet Access Policies for particular PCs, which are identified by their IP or MAC addresses.
  • Page 26 MAC address. Enter the appropriate IP addresses into the IP fields. If you have a range of IP addresses to filter, complete the appropriate IP Range fields. Enter the appropriate MAC addresses into the MAC fields. Click the Apply button to save your changes. Click the Cancel button to cancel your unsaved changes.

  • Page 27: Virtual Server

    4.9. Virtual Server The Virtual Server screen sets up public services on your network, such as web servers, ftp servers, e-mail servers, or other specialized Internet applications. (Specialized Internet applications are any applications that use Internet access to perform functions such as videoconferencing or online gaming. Some Internet applications may not require any forwarding.) When users send this type of request to your network via the Internet, the Router will forward those requests to the appropriate PC.
  • Page 28 Customized Enter the name of the public service or other Internet application in the field provided. Applications Enter the numbers of the External Ports (the port numbers seen by users on the Internet). External Port TCP Protocol Click this checkbox if the application requires TCP. UDP Protocol Click this checkbox if the application requires UDP.

  • Page 29: Routing Table

    4.10. Routing Table On the Routing Table screen, you can set the routing mode and settings of the Router. Gateway mode is recommended for most users. The default setting is Gateway. Choose the correct working mode. Keep the default setting, Gateway, if the Router is Operating Mode hosting your network's connection to the Internet (Gateway mode is recommended for most users).
  • Page 30 host to which you want to assign a static route. • Subnet Mask - The Subnet Mask determines which portion of an IP address is the network portion, and which portion is the host portion. • Gateway - This is the IP address of the gateway device that allows for contact between the Router and the network or host.

  • Page 31: Dynamic Dns

    4.11. Dynamic DNS The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other server behind the Router. Before using this feature, you need to sign up for DDNS service with one of two DDNS service providers, DynDNS.org or TZO.

  • Page 32: Troubleshooting

    . Troubleshooting Basic Functions Note: If you are using a cable or DSL modem and are experiencing problems connecting to the Internet, follow these steps: 1. Power off your cable or DSL modem, PC, and the Router. 2. Power on your modem and wait a few minutes until the modem has established a connection with your ISP.
  • Page 33 Resolution: Make sure that each computer has a unique IP Address. If using DHCP through the AP Router, makes sure that each computer is enable DHCP function and restart the computer. Make sure that the Link LED is on. If it is not, try a different network cable. Check each computer for correct network settings.

  • Page 34: Limited Warranty

    TRENDware website. TRENDware provides FREE technical support for all customers for the duration of the warranty period on this product. TRENDware Technical Support Tel: +1-310-891-1100 Fax: +1-310-8911111 E-mail: support@trendware.com www.TRENDnet.com Monday ~ Friday, 7:30AM ~ 6:00PM Pacific Standard Time (Except holidays) User’s Guide...
  • Page 35 User’s Guide ser’s Guide...
