  • Page 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Table Of Contents

    How can I find my Bluetooth device information? ............28 What is my Bluetooth device name, and how to change it? ..........28 Can't find the remote device services? ................29 How Bluetooth passkey works? If I change the fixed passkey, will it affect the paired devices? ..........................29...
  • Page 4 How to protect my services from other’s unauthorized usage? ......... 29 Specification ............................30 Limited Warranty ..........................31...

  • Page 5: Introduction

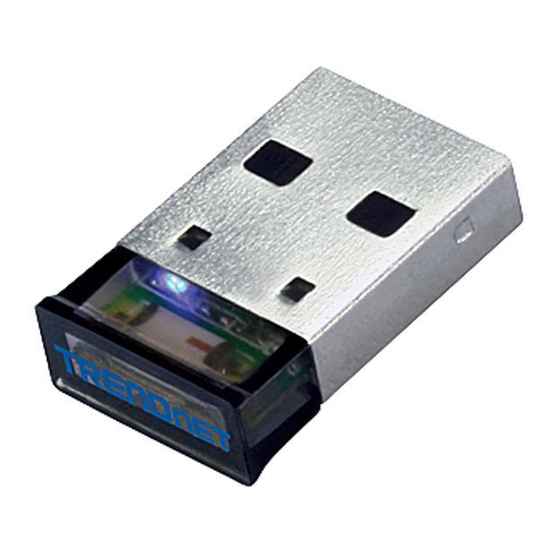

    The Micro-Bluetooth USB Adapter (Model TBW-106UB) networks Bluetooth enabled devices such as cell phones, keyboards and headsets. The size of a penny, simply plug this micro-device into an available USB port on your laptop or desktop and experience exceptional Bluetooth connectivity.

  • Page 6: Package Contents

    The box should contain the following items: TBW-106UB CD-ROM (Driver & User’s Guide) Multi-Language Quick Installation Guide If any item is found missing or damaged, please contact your local reseller for replacement. System Requirements CD-ROM drive Computer With An Available USB 1.1 or 2.0 Port...

  • Page 7: Installation Of The Bluetooth Software

    Installation of the Bluetooth Software Install the driver and software located on the CD BEFORE plugging in the Bluetooth USB Adapter into your computer. Insert the Bluetooth Driver/Software CD into your CD-ROM drive. The setup screen will appear, Click “Install Utility” to install the Bluetooth USB Adapter driver and software. Follow the InstallShield wizard instructions to complete the installation, if the installation CD does not automatically start.
  • Page 8 Please select I accept the terms in the license agreement. Click Next Please Click Next Click Install Click Finish and plug in the TBW-106UB.
  • Page 9 After the completion of the driver installation, the Welcome to Bluetooth screen will appear. Assign your Windows system a unique device name and device type. This name will be displayed to other Bluetooth devices. In most cases, you should leave the security setting checked. Click OK.

  • Page 10: Bluesoleil

    In order to connect and share services via Bluetooth wireless technology, two devices must support the same Bluetooth Profile(s) as well as opposite device roles (i.e., one must be the server, and the other must be the client). Bluetooth-enabled devices often support multiple profiles, and can perform different device roles simultaneously.

  • Page 11: Remote Bluetooth Devices

    Right-click on the red ball to display a pop-up menu of related operations (e.g., General Inquiry, My Services, Security, etc.). Remote Bluetooth Devices Remote devices are other Bluetooth enabled devices that are in the Bluetooth radio range of your local device. BlueSoleil uses different icons to indicated different types of remote devices. Icons:...

  • Page 12: Icon Meanings

    Right-click on the icon to display a pop-up menu of related operations (e.g. Refresh Services, Pair Devices, Connect, etc.). Bluetooth Service Buttons of Remote Device Service buttons at the top of the Main Window represent a range of Bluetooth services potentially supported by Remote Devices. Services Button Image...

  • Page 13: Local Service Status

    Local Service Status The local service status can be viewed from the Local Service Status dialog box. Right click whichever local service icon in service window and select the Status... on the pop-up menu. The Local Service Status dialog will be displayed.

  • Page 14: Local Service List

    Connection List: Display the names and addresses of remote devices which connect to the PAN Service. Local Service List The Local Service List displays all the Bluetooth services supported by the local computer. Use this screen to start/stop services. Services...

  • Page 15: Menus

    Always on Top --- Keep BlueSoleil window always on top. • Exit --- Exit BlueSoleil. Note: You can also exit BlueSoleil by right-clicking on the task tray icon at the bottom of your screen. In the pop-up menu, click Exit. View Menu: •...

  • Page 16: My Bluetooth Menu

    Refresh Devices --- Refresh the list of remote devices detected by BlueSoleil. Note: If you select Refresh Devices, the list of previously detected devices will not be cleared. To initiate a new device search that will first clear the list, press F5.
  • Page 17 Figure 1 Find Device • Add New Device --- Add a remote device by entering its Bluetooth device address. (Figure Figure 2 Add New Bluetooth Device • Add Device From History --- Add a remote device from history list. (Figure 3) (1) Add: Add the selected device to the Main Window.
  • Page 18 (Figure 5) Unplug: Unplug the selected HID device. When you first connect the HID device to your computer, BlueSoleil sets up the devices so that they will automatically reconnect in case the connection is ever broken. After you unplug an HID device, it will no longer automatically reconnect to your computer.

  • Page 19: Bluetooth Status Icon

    (2) Check for updates automatically --- A prompt will pop up to inform user checking update from BlueSoleil web site once BlueSoleil starting up. Note: The checking update function is enabled by default. Others: (1) Prompt me before adding a "Quick...

  • Page 20: Find Remote Devices

    • Exit --- Exit BlueSoleil program. Find Remote Devices To set up a Bluetooth connection, the remote device must be found first. There are 3 ways to find remote devices in BlueSoleil. Inquire Device: 1. Single-click the red ball in the main window to start inquiry.

  • Page 21: Connect And Disconnect

    Connect: 1. Select a remote device and double click it to browse its services. Bluetooth passkey may be asked if security level of either side is set to high and they are not paired devices. After service browsing, the services the remote device supports are highlighted by changing the color of the service buttons on the top of the main window.

  • Page 22: Remote Device Status

    Remote Device Status The remote device status can be viewed from the Remote Device Status dialog box. Right click the remote device icon and select the Status... on the popup menu. The Remote Device Status dialog box will be displayed.

  • Page 23: Remote Device Properties

    If the radio signal is too weak, the data transferring speed will be slow. • Properties Button: Display the remote device’s properties. • Disconnect Button: Disconnect one of the connection(s) between the remote device and the local device.

  • Page 24: Hardware Configuration

    To access the hardware configuration screens, click Tools | My Bluetooth Device..., • Bluetooth Device Select the type of Bluetooth enabled device that you plan to use, either a USB adapter or a CompactFlash (CF) card. (Figure 1). Figure 1 Select Bluetooth Device •...

  • Page 25: Properties Configuration

    Figure 2 Advanced Configurations for UART Hardware Device Properties Configuration To configure the properties of your local device, click My Bluetooth | Device Properties…, General: • Device Name The local device's name, which will be shown to other Bluetooth enabled devices.
  • Page 26 Bonding Mode (Pairing Mode) • Accepts Bonding: Allow other Bluetooth enabled devices to pair with your computer. If the other device initiates a pairing procedure with your computer, each device must enter the same passkey before they will be paired.
  • Page 27 View information about your Bluetooth hardware. • Manufacturer: The manufacturer of the local Bluetooth device. • HCI Version: The HCI version of the local Bluetooth device. • HCI Revision: The HCI revision of the local Bluetooth device. • LMP Version: The LMP version of the local Bluetooth device.

  • Page 28: Pair / Un-Pair Devices

    • Manually In the Main Window, right click on the device icon, and in the pop-up menu, select Pair Device. In the Enter Bluetooth Passkey dialog, enter the same passkey that you enter on the remote device. After a device has successfully paired with your computer, the remote device icon will have a red checkmark next to it.

  • Page 29: Paired Devices Management

    Click to remove the pairing relationship between the selected device and the local device. Authorize Services Button Click to select which services you authorize the selected paired device to use. A list of local services will appear. Select the services you wish to allow the remote device to use, and then click...

  • Page 30: Local Services Security

    Local Services Security To access the local services security configuration screen, click My Bluetooth | Security and click on the Services tab. You can only configure security for local services when the Security Level is set to Medium. Local Services: •...
  • Page 31 Connection requests will be accepted from every device. • Prompt to user if the device is not a trusted device of this service If a non-trusted device attempts to access the service, a dialog will appear to allow you to accept or reject the connection. •...

  • Page 32: Faq

    Notes: If a device is trusted for a service, it may connect to this service on your local device without informing you. What can Bluetooth do? • Dial-up to Internet wirelessly via Bluetooth modem or Bluetooth mobile phone. • Connect to LAN via LAN Access devices or PAN bridges.

  • Page 33: Can't Find The Remote Device Services

    • Verify whether the remote device is within the radio range. • Verify that whether the remote device is in connectable mode. If the remote device is set to non-connectable, other devices cannot connect to it, and service cannot be found.
  • Page 34 System Support (The product is driven by the bundled IVT BlueSoleil Bluetooth software or Windows XP SP2 Bluetooth stack) Dimensions 19.0 x 12.0 x 5.5 mm (0.75 x 0.47 x 0.22 in.) LED Indicator Single LED (activity/connection) Serial Port Profile...
  • Page 35 TRENDnet shall not be responsible for any software, firmware, information, or memory data of customer contained in, stored on, or integrated with any products returned to TRENDnet pursuant to any warranty. There are no user serviceable parts inside the product. Do not remove or attempt to service the product through any unauthorized service center.
  • Page 36 (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE...
