OWNER'S MANUAL
DVG - 9 1 0 0 N / DVG - 9 2 0 0 N

DVD PLAYER

Progressive Scan

Advertisement

Table of Contents
loading

Related Manuals for Daewoo DVG-9100N

Summary of Contents for Daewoo DVG-9100N

  • Page 1: Dvd Player

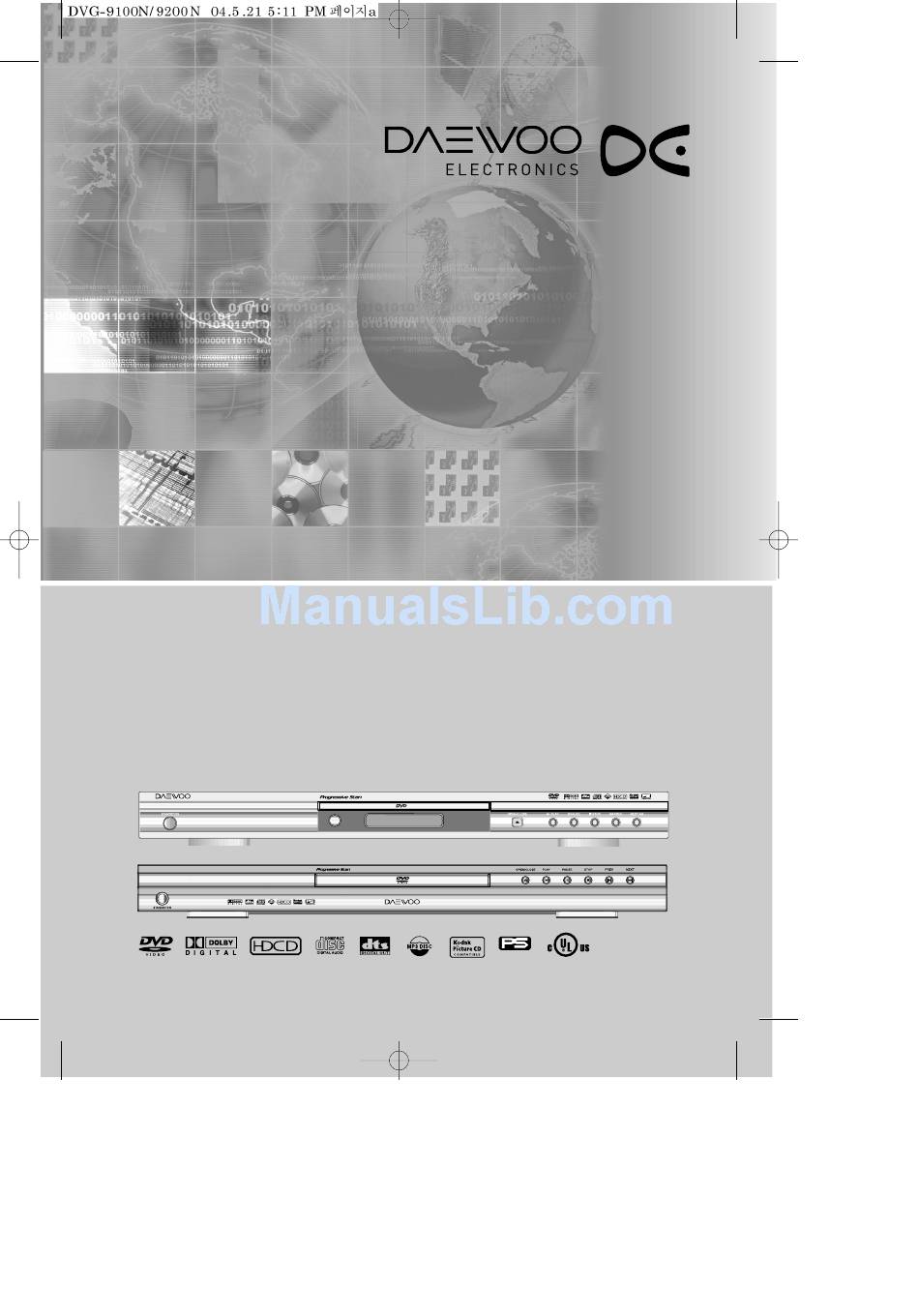

    OWNER’S MANUAL DVG - 9 1 0 0 N / DVG - 9 2 0 0 N DVD PLAYER Progressive Scan...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY PRECAUTIONS ... 2 FEATURES ... 5 ABOUT DISC ... 6 BEFORE OPERATION... 8 PREPARATIONS BEFORE OPERATION. 10 Front Panel ... 10 Rear Panel ... 11 VFD... 12 Names and Layout of Remote Controls ... 13 CONNECTIONS ...

  • Page 3: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
  • Page 4 This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.
  • Page 5 IMPORTANT SAFETY PRECAUTIONS This will prevent damage to the unit due to lightning and power line surges. 14 DISC TRAY Keep your fingers well clear of the disc as it is closing. It may cause serious personal injury. 15 OVERLOADING Do not overload wall outlets or extension cords as this can result in a risk of fire or electric shock.

  • Page 6: Features

    FEATURES OUTSTANDING SOUND QUALITY Dolby Digital system developed by Dolby Laboratories and DTS developed by DTS Inc., features high quality surround sound which can be played in DVD or CD disc at home, to reproduce high quality sound effects. HIGH DEFINITION The unit adopts MPEG2 coding format and brings the high horizontal resolution.

  • Page 7: About Disc

    ABOUT DISC PRINCIPLES FOR WRITING This manual mainly introduces how to use buttons on the remote control. You may operate the unit if the buttons on the unit have the same or similar names as or to those on the remote control. PLAYABLE DISCS •...
  • Page 8 TRACK In a CD, each track has a number to enable search functions. SCENE The menu pictures, motion and motionless pictures of a CD can be divided into some parts, these parts are scenes. Each scene has a number for search. REGION MANAGEMENT INFORMATION This unit is designed and manufactured to respond to the Region Management information that is recorded on a DVD disc.

  • Page 9: Before Operation

    BEFORE OPERATION SECURITY • Before operation, check if the voltage of the unit is in line with the local voltage. • Hold the plug to disconnect it from the mains outlet. Do not pull the power cord. • When the plug of the unit is connected to the mains outlet , the unit will be still connected to AC even if the power is turned off.
  • Page 10 CHECK ACCESSORIES Check if you have all the accessories after the carton is opened. Remote control AAA batteries Video/Audio cord Owner’s manual USE REMOTE CONTROL 1 Open the battery compartment. 2 Insert two AAA batteries, make sure to match "+" and "-" of the batteries to the marks in the battery compartment.

  • Page 11: Preparations Before Operation

    PREPARATIONS BEFORE OPERATION FRONT PANEL DVG-9100N DVG-9200N ! STANDBY/ON button To switch the unit On or Off when connected to AC power outlet @ OPEN/CLOSE button To open or close the disc tray. # PLAY button To play the loaded disc. Press this button to go to the preferred item when the menu is displayed on the TV screen.

  • Page 12: Rear Panel

    PREPARATIONS BEFORE OPERATION REAR PANEL ! AUDIO OUT (L/R TRACK) Two phono sockets for analogue 2 Channel audio in order to a TV or stereo amplifier. @ VIDEO OUT Connects composite video signal to input AV or PHONO sockets of TV or monitor to achieve high fidelity colour reproduction.

  • Page 13: Vfd

    PREPARATIONS BEFORE OPERATION ! Recognized DISC TYPE indicator : DVD @ Recognized DISC TYPE indicator : HDCD # PBC indicator This indicator is lit up in selecting PBC ON while this indicator disappears in selecting PBC OFF. $ DVD/CD indicator Indicates the chapter or track number.

  • Page 14: Names And Layout Of Remote Controls

    PREPARATIONS BEFORE OPERATION NAMES AND LAYOUT OF REMOTE CONTROLS * After setting the mode by using SETUP menu (for example, AUDIO select in PREFERENCE SETUP), the setting is kept though you switch the unit off and turn it on. MUTE BUTTON POWER BUTTON SETUP BUTTON ANGLE BUTTON...

  • Page 15: Connections

    CONNECTIONS Turn off all equipment before operation. The unit has many kinds of output modes like A/V output, S-VIDEO output and digital signal output (COAXIAL, OPTICAL). You may select as you need. CONNECTED TO A TV AND AN ORDINARY AMPLIFIER Connects either !+A, @+A, #+A, !+B, @+B, #+B, !+C, @+C or #+C.

  • Page 16: Basic Operations

    • Each amplifier is different from another, please cancelled if you refer to the manual for the amplifier. (e.g., do not connect the audio output of the DVD player to connect it to the the DVD audio input of an amplifier.) amplifier.

  • Page 17: System Setting

    BASIC OPERATIONS SYSTEM SETTING According to the system of the TV to be connected, set the system of the unit to make it match the TV. Push SYSTEM button on the remote control, then choose TV TYPE. • Every time the user presses the [SYSTEM] button, the video output system changes as belows.

  • Page 18: Fast Play

    FAST PLAY When playing disc, you may play it forward fast or reverse it fast to find what you need. N ote: Push to play forward fast. Each Push PLAY to play time you push the button, the speed of normally when picture changes like the right sides.

  • Page 19: Select Audio Language

    BASIC OPERATIONS SELECT AUDIO LANGUAGE You can choose the language according to your choice when playing mulit- language DVD. Press “AUDIO” button, select different languages. AUDIO *Attention: Please select the AUDIO language in SETUP menu to keep the setting!!! SELECT CHANNELS (CD, MP3) You may select the right channel or left channel or stereo from a multi-channel.

  • Page 20: Playing A Desired Scene

    PLAYING A DESIRED SCENE TO SKIP SCENES IN A DISC Push √ √ to move to the next chapter (or track). The current chapter (or track) moves to the next chapter (or track). Push œ œ to move to previous chapter (or track). The current chapter (or track) moves to the previous chapter (or track) or first scene of current chapter (or track).

  • Page 21: Playing A Disc Containing Mp3 Files

    PLAYING A DESIRED SCENE PLAYING A DISC CONTAINING MP3 FILES When a MP3 disc is loaded, MP3 menu screen is displayed automatically depending on MP3 disc’s folder structure. Use the direction button to select the folder you want to play, by pressing [PLAY] button.

  • Page 22: Repeating A Defined Period From A To B (Dvd)

    REPEATING A DEFINED PERIOD FROM A TO B You may press A-B to enjoy some parts repeatedly when playing a disc. 1. Press “A-B” to set a starting point A. 2. Press “A-B” twice to an end point B. Afterwards, the unit plays from A to B. 3.

  • Page 23: Searching

    PLAYING A DESIRED SCENE SEARCHING SEARCHING DVD WITH A TITLE/CHAPTER NUMBER OR A TIME You may directly enter a title or chapter number to search fast on a disc. The unit plays from the point. 1 If you want to search with a chapter or a title number, press [SEARCH] button.

  • Page 24: Play Discs In Various Ways

    PLAY DISCS IN VARIOUS WAYS SELECT ANGLE N ote: Some discs have images with different screen angles, you may select among Multi Angle them. For example, when you watch a running train, you may select to watch it function is limited from the front, the left window or the right window without stopping it.

  • Page 25: Program Play (Dvd)

    PLAY DISCS IN VARIOUS WAYS PROGRAM PLAY (DVD) You may program the title and chapter on a disc and play them in the programmed order. Push "PROGRAM" button, the screen shows: PROGRAM N ote: Input the sequence number you want to program playing.

  • Page 26: Digest Play (Dvd)

    PLAY DISCS IN VARIOUS WAYS DIGEST PLAY (DVD) Push "INTRO" button when the unit is playing disc, the screen shows : Push direction button to select the digest type. And push “PLAY” button. N ote: • TITLE DIGEST The player will play 5 seconds each title. After moving the cursor in the position “--”, push NUMBER button to select the title and push PLAY button.

  • Page 27: Play Mp3 Or Pic-Cd Disc

    PLAY DISCS IN VARIOUS WAYS PLAY MP3 OR PIC-CD DISC USE NUMBER BUTTONS TO SELECT TRACKS (MP3 OR PIC-CD) The screen will display as right after the disc is loaded Each time you press PROGRAM button, FOLDER and FILE LIST appear one by one.
  • Page 28 PLAY DISCS IN VARIOUS WAYS SELECT PLAYING MODE (MP3 OR PIC-CD) Push "REPEAT" button, you can select "SINGLE", "REPEAT ONE", "FOLDER REPEAT" "FOLDER", "SHUFFLE" and "RANDOM". • Single mode: the player will stop after finished playing the current item • Repeat one mode: repeat the current item •...

  • Page 29: Function Setting

    FUNCTION SETTING MENU SETTING According to the recorded information and external equipment, set the following functions for DVD to obtain the best playing status. Push "SETUP" button to set the main menu. GENERAL PAGE TV TYPE AUTO NTSC TV DISPLAY NORMAL/PS NORMAL/LB 16:9 WIDE...
  • Page 30 BASIC NAVIGATION To navigation through the setting on the screen, use the direction buttons to scroll through the list of settings and use “PLAY” button to select the high lighted function. SETUP MENU Press the SETUP button to enter the On Screen Display and to exit at any time. In each of the menus, selecting MAIN PAGE (SETUP menu) will immediately return you to the initial screen.

  • Page 31: General Setup

    FUNCTION SETTING GENERAL SETUP TV TYPE You may select according to the colour system of the TV to be connected. • Select "PAL" for a PAL TV. • Select "AUTO" for a multi-system TV. • Select "NTSC" for a NTSC TV. TV DISPLAY NORMAL/PS This is selected when the unit is...
  • Page 32 Dolby Digital, DTS and MPEG DVD is played, the optical or coaxial port will output in PCM 2-channel format. • SPDIF/PCM Select this when the DVD player is connected with a TV or a power amplifier through audio cord. CAPTIONS The hidden subtitle is shown or turn off.

  • Page 33: Dolby Digital Setup

    FUNCTION SETTING DOLBY DIGITAL SETUP DUAL MONO This is the output mode of the L and R signals of the set audio output. If it is set to "MIX MONO", the function only works when the DVD being played is 2.0-channel. •...
  • Page 34 DISC MENU • Selecting Disc Menu language. Please set it as the preferred DISC MENU language. In case the DISC MENU language is set and recorded in the DISC, it is automatically played in the set language in every playing. For example, English is set and recorded as a DISC MENU language in the DISC, it is played in English.

  • Page 35: Others

    OTHERS TROUBLESHOOTING If you experience the following problems while using the unit, this troubleshooting guide can help you. • NO SOUND - Check if the unit is connected securely. - Make sure you operate the TV or amplifier correctly. • NO IMAGE , IMAGE ROLLS AND NO COLOR - Check if the unit is connected securely.

  • Page 36: Technical Specifications

    TECHNICAL SPECIFICATIONS Laser wavelength 650nm Video PAL/AUTO/NTSC Frequency response 20Hz ~ 20KHz (±1dB) Signal/noise ratio 90dB Channel separation 85dB ( 1KHz) Dynamic range 80dB ( 1KHz) output level : 2.0 + 0/-0.2Vrms Analog (Load impedance : 10K ) Output Audio output level : 0.5 ±...
  • Page 37 ARRANTY DEAM (Daewoo Electronics America) warrants each new electronic product manufactured by it to be free from defective material and workmanship and agrees to remedy any such defect or to furnish a new part (at the Company’s option) in exchange for any part of any unit...
