Motorola M710 Installation Manual

M710 Installation Guide

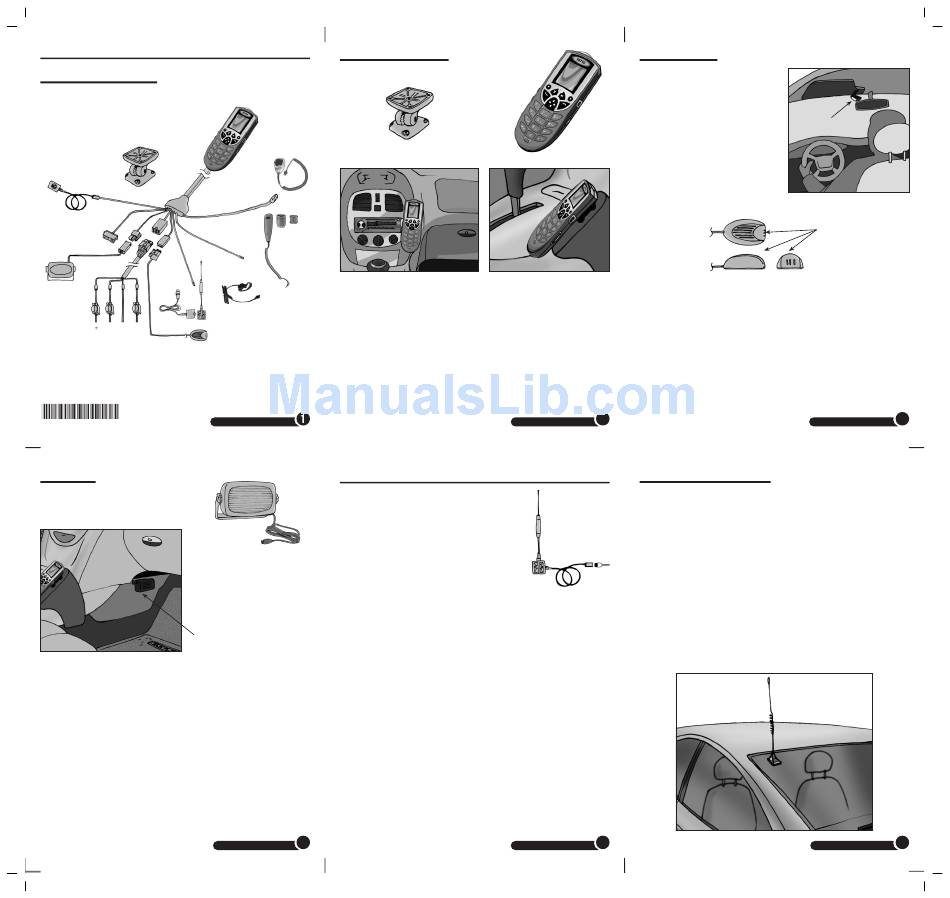

Product parts list
Transceiver Unit
Swivel
Mount
Active GPS Antenna
Maintenance Cable
Loudspeaker
Power Cable
and Fuses
Cellular
Antenna
2A Fuses
12V 24V GND MUTE IGN
Microphone
Motorola Proprietary
6889192v48
Speaker
speaker location
Install the speaker on the side of the central console, ideally alongside the legs of
the passenger sitting beside the driver, as far as possible from the microphone.
Thread the speaker cable under the carpet along the floor of the vehicle.
Plug the speaker cable into the compatible connection in the control cable.
Verify that the cable does not interfere with the proper operation of the vehicle and/or
its components.
Do not conceal the speaker behind any obstacle such as dashboard, carpet or any
other barrier which will result in bad audio quality.
Attention!
The speaker and microphone (which is fitted on the sun visor above the driver)
should be pointed towards opposite directions to avoid echo. speaker slots should
be pointed towards passenger door.
Motorola Proprietary
Transceiver Unit
Unit Holder
Hand-Held
Microphone
Privacy
Handest +
Holder
(Optional)
PTT Button
When installing the fixed mobile car phone avoid positioning the transceiver unit
where it may disrupt the proper operation of the vehicle and/or its components, such
as car stereo, air bags, cubbyhole, glove compartment, ashtray, lighter, gear stick,
hand brake, etc...
Attach the fixed mobile car phone on a stable surface, in a position
that is safe and convenient for the driver to use.
Special warning:
Do not position the transceiver unit in front of the air bag or where it may impair air
bag performance, as the air bag might inflate in an accident and cause damage.
Verify that the control unit does not face the sun or source of humidity,
such as air conditioner vents.
Antennas

Specifications

Physical & Environmental Specifications
* GPS Antenna connector: SMA Male
* Radio iDEN Antenna connector: Mini-UHF male
* Cable for the cellular: RG58U, PVC coated /
polyethylene dialectic cable, length 5M / 16Ft
* Cable for the GPS: RG174U, PVC coated /
polyethylene dialectic cable, length 5M / 16Ft
* Operating temperature: -30 ºC / -22 ºF to +85 ºC / +185 ºF
* Heat and UV stabilized
* All parts meet Flammability UL94 V0 grade
* Adhesive pads: Operating temperature: -40 ºC /-40 ºF to +90 ºC / +194 ºF
and bond not effected by moisture
Electrical - GPS
* Impedance: 50
* GPS Module Noise Figure: 2dB max
* Overall Gain: 26dB (GPS Antenna Element Gain 0dBi Min)
* Polarization: Right Hand Circular
* Operating voltage: 3V
* Current (typical): 14mA
* VSWR <2.0:1 @ 1575.4MHz +/- 2MHz
Electrical - Radio iDEN
* Impedance: 50
* Frequency Band:
* 800 MHz Band: TX 806 - 870 MHz.
* 900 MHz Band: TX 896 - 940 MHz.
* VSWR: Tx<=1.5:1; Rx <=2:1
* Gain: +3dBi @ 820 MHz
* Polarization: Vertical
Attention!
Ensure that antenna is at least 20cm from the driver or passengers
4
Motorola Proprietary
Ω
Ω
Motorola Proprietary
Microphone
Install the microphone at a distance of no
more than 30 cm (12 inch) away from the
driver's mouth, ideally on the upper right
hand side of the sun visor and away from
any noise source such as windscreens,
window, fan/air conditioner, car stereo etc.
Make sure the microphone is at a distance
of at least 1.5m (4.9 ft) from the speaker
and is not directed towards the speaker.
Make sure that the microphone is correctly
positioned. See picture below for
microphone position.
Do not thread the microphone cable close to antenna cable, to avoid audio interference.
Plug the microphone cable into the compatible connection in the control cable.
Important: Make sure that the microphone cable does not come in contact and
does not interfere with the steering wheel and/or the pedals of the vehicle.
Attention!
The speaker and microphone (which is fitted on the sun visor above the driver)
should be pointed towards opposite directions to avoid echo.
2

Antenna Installation

The preferred position for the antenna is on the upper right side of the windshield
Should additicnal antennas be installed in the vehicle, the antennas should be
located at least 30cm apart.
Remember:
In certain car models (such as "Renault Megane" and "Renault Kangoo"), the
anterior windshield has a radiation filter, and therefore it is necessary to paste the
antenna in the side or rear windshield only.
Attention!
Do not thread the antenna cable close to the microphone cable to avoid audio
interference.
Use original antenna plug and clamping tools only.
Test antenna and cable performance using a VSWR meter.
Note:
Avoid proximity to the rear fog heater metal strips. In case the rear heater cannot
be avoided, the metal base area of the antenna should be clear from strips. The
metal base area of the antenna and coupling box should be mounted vertically only.
5
Microphone location
Slots towards the driver
3
