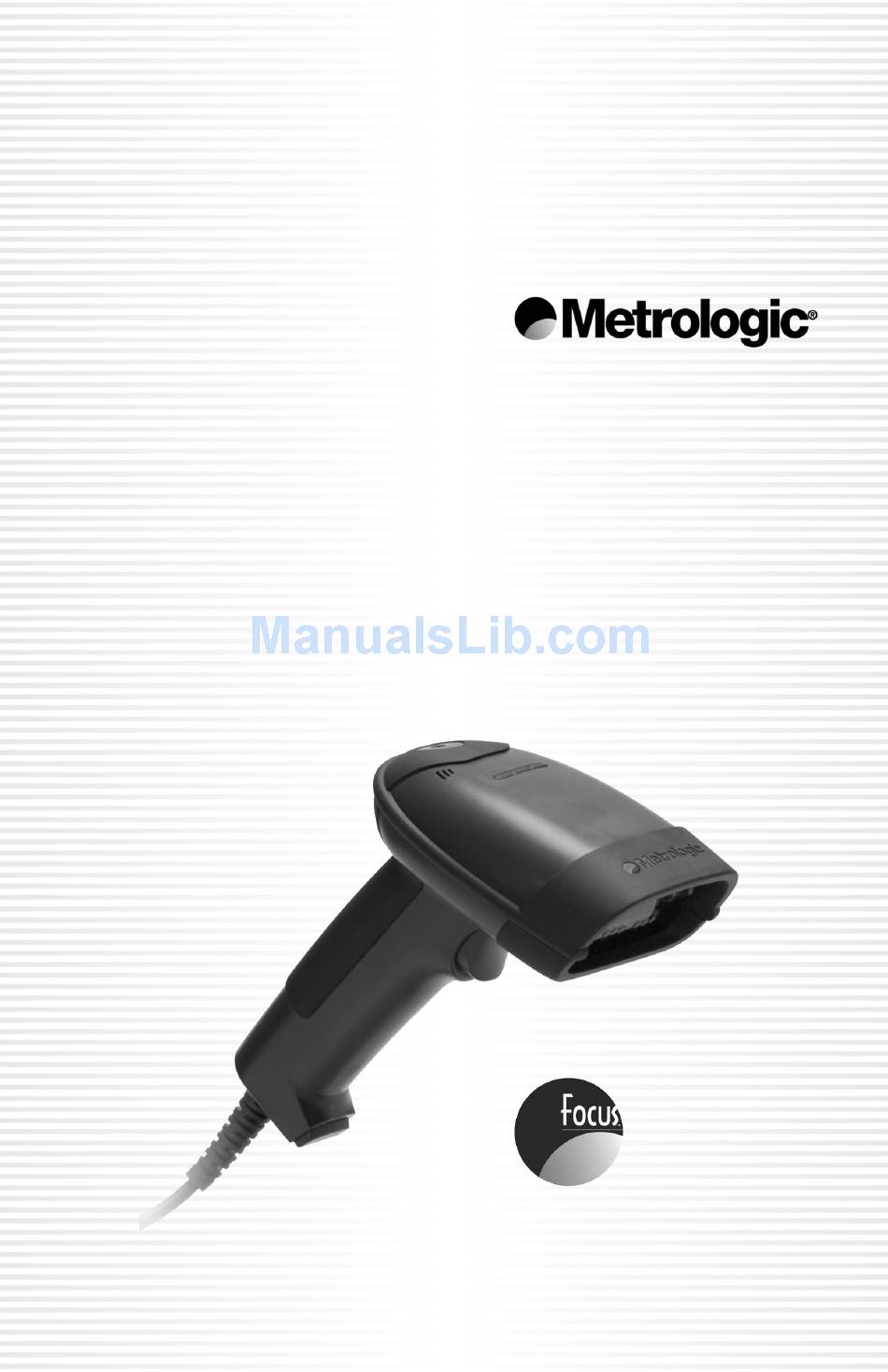

METROLOGIC INSTRUMENTS, INC.
MS1690 Focus
™
Area Imaging Bar Code Scanner
Installation and User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Metrologic MS1690 - Metrologic Focus - Wired Handheld Barcode Scanner

Summary of Contents for Metrologic MS1690 - Metrologic Focus - Wired Handheld Barcode Scanner

  • Page 1 METROLOGIC INSTRUMENTS, INC. MS1690 Focus ™ Area Imaging Bar Code Scanner Installation and User’s Guide...
  • Page 2 Copyright © 2005 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.

  • Page 3: Table Of Contents

    Scanner Operation Two Default Modes of Operation ..............15 Audible Indicators ....................16 Visual Indicators ....................17 Failure Modes ....................18 Depth of Field by Minimum Bar Code Element Width ........19 IR Activation Range ..................20 Troubleshooting Guide ..................21 Design Specifications ..................25 Applications and Protocols ..................27 Default Settings –...
  • Page 4 ABLE OF ONTENTS Scanner and Cable Terminations Scanner Pinout Connections ................34 Cable Connector Configurations ..............36 Limited Warranty ....................38 Product Safety Notices ......................39 Cautions ......................40 Patents ....................... 41 Index ........................42 Contact Information and Office Locations............45...

  • Page 5: Introduction

    Composite, Matrix and Postal Codes symbology types. Firmware updates are easily loaded via Flash ROM. Focus provides an extended depth of field width and a built in object detection sensor (IR) that instantly turns on the scanner when an object is presented within the scanner’s field of view.

  • Page 6: Scanner And Accessories

    53-53020-3 2.7 m (9 ft.) coiled cord, long strain relief, black Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s Customer Service Department at 1-800-ID-METRO or 1-800-436-3876.
  • Page 7 00-02001 MS1690 Focus Stand (46-00147) Installation Guide 46-00147 Modular Presentation Stand Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s Customer Service Department at 1-800-ID-METRO or 1-800-436-3876.

  • Page 8: Scanner Components

    See Visual Indicators (on page 17) Speaker See Audible Indicators (on page 16) Trigger Red Window LED Aperture Cable Release See The PowerLink Cable (on page 5) 10-pin RJ45, Female Socket, Cable Connection See Scanner Pinout Connections (on page 34)

  • Page 9: The Powerlink Cable

    Figure 3. ISCONNECTING Before removing the cable from the scanner, Metrologic recommends that the power on the host system is off and the power supply has been disconnected from the PowerLink cable. Figure 4. Releasing the PowerLink Cable Locate the small ‘pin-hole’ on the handle of the unit near the cable.

  • Page 10: Labels

    NTRODUCTION Labels Each scanner has a label located on the underside of the head. This label provides the unit’s model number, date of manufacture, serial number, CE and caution information. The following figure gives an example of the label and its location.

  • Page 11: Installing The Scanner To The Host System

    Figure 6. Connect AC power to the transformer. Focus will start to initialize. All LEDs (yellow, white, and blue) will light for approximately 2 seconds then start to alternately flash. When the scanner has finished initializing the LEDs will stop flashing and the unit will beep 3 times indicating that the scanner is ready for use.

  • Page 12: Keyboard Wedge Ms1690-47

    Connect AC power to the transformer. Focus will start to initialize. All LEDs (yellow, white, and blue) will light for approximately 2 seconds then start to alternately flash. When the scanner has finished initializing the LEDs will stop flashing and the unit will beep 3 times indicating that the scanner is ready for use.

  • Page 13: Stand Alone Keyboard Ms1690-47

    Figure 8. Connect AC power to the transformer. Focus will start to initialize. All LEDs (yellow, white, and blue) will light for approximately 2 seconds then start to alternately flash. When the scanner has finished initializing the LEDs will stop flashing and the unit will beep 3 times indicating that the scanner is ready for use.

  • Page 14: Ibm Ms1690-11

    Figure 9. Plugging the scanner into a port on the host system does not guarantee that scanned information will be communicated properly to the host system. The scanner is shipped from the factory configured with default settings.

  • Page 15: Full Speed Usb Ms1690-40 (Integrated)

    Configuration Guide ( 00-02544). MLPN Plugging the scanner into a port on the host device does not guarantee that scanned information will be communicated properly to the host device. The scanner is shipped from the factory configured with default settings. Please refer to the MetroSelect Single-Line Configuration Guide ( 00-02544) or MetroSet2’s help files for instructions on...

  • Page 16: Stand Kits

    Figure 11. Stand Components Item Description Qty. Stand Base Qty. 1 Flexible Shaft Qty. 1 Flexible Shaft Cover Qty. 1 Scanner Cradle Qty. 1 ¼" – 20 x 3/8" Flat Head Phillips, 82° Undercut Qty. 2 #8 Round Head Wood Screw Qty. 2...

  • Page 17: Hard Mounting The Stand

    OUNTING THE TAND PTIONAL Metrologic provides two #8 wood screws for securing the stand base to the counter top. The following figure provides the pilot hole dimensions for securing the stand base. Figure 12. Stand Base Hole Pattern (Not to Scale)

  • Page 18: Assembling The Stand

    TAND SSEMBLING THE TAND Figure 13. Assembling the Stand...

  • Page 19: Scanner Operation

    Figure 14. CodeGate, Out-of-Stand Presentation, In-Stand The IR detects an object in the IR activation range and the scanner’s light output automatically starts to flash as it attempts to scan the bar code. The scanner continuously attempts to scan the bar code until either it succeeds or the bar code is removed from the scanner’s field of view.

  • Page 20: Audible Indicators

    When the scanner successfully reads a bar code it will beep once and the white LED will turn on indicating data is being transmitted. If the scanner does not beep once and the white light does not turn on, then the bar code has not been successfully read.

  • Page 21: Visual Indicators

    When the scanner successfully reads a bar code it will beep once and the white LED will turn on indicating data is being transmitted. If the scanner does not beep once and the white light does not turn on, then the bar code has not been successfully read.

  • Page 22: Failure Modes

    PERATION Failure Modes Long Razzberry Tone – During Power Up Failed to initialize or configure the scanner. If the scanner does not respond after reprogramming, return the scanner for repair. Short Razzberry Tone – During Scanning An Invalid bar code has been scanned when in configuration mode or the...

  • Page 23: Depth Of Field By Minimum Bar Code Element Width

    CANNER PERATION Depth of Field by Minimum Bar Code Element Width Figure 16. Depth of Field by Minimum Bar Code Element Width INIMUM LEMENT IDTH .132 .254 .533 .254 .381 mils 10.4 15.9 Specifications are subject to change without notice.

  • Page 24: Ir Activation Range

    CANNER PERATION IR Activation Range The MS1690 has a built in object detection sensor that instantly turns on the scanner when an object is presented within the scanner’s IR activation Area. Figure 17. IR Activation Area Specifications are subject to change without notice...

  • Page 25: Troubleshooting Guide

    ROUBLESHOOTING UIDE The following guide is for reference purposes only. Contact a Metrologic representative at 1-800-ID-Metro or 1-800-436-3876 to preserve the limited warranty terms. All Interfaces MS1690 Series Troubleshooting Guide Symptoms Possible Causes Solution No power is being Check transformer, outlet and supplied to the power strip.
  • Page 26 UPC/EAN, Code 39, interleaved 2 The unit powers The bar code of 5, Code 93, Code 128, Codabar up, but does not symbology trying to and PDF are enabled by default. scan and/or be scanned is not Verify that the type of bar code beep.
  • Page 27 Make sure that the proper PC type AT, or PS2 is selected. Verify The configuration is correct country code and data not set correctly.
  • Page 28 Alpha Enable Caps Lock detect setting The computer is in characters show of the scanner to detect if the PC Caps Lock mode. as lower case. is operating in Caps Lock. Everything These characters works except for...

  • Page 29: Design Specifications

    Depth of Scan Field: 0.330 mm (13 mil) Bar Code at Default Setting 49 mm W x 19 mm H (1.9” W x 0.8” H) at 20 mm (0.8”) Field of View: 264 mm x 106 mm (10.4” W x 4.2” H) at 280 mm (11.0”) Minimum Bar Width: 0.127 mm (5.0 mil)
  • Page 30 EMC: FCC, ICES-003 & EN55022 Class A Class 1 LED Product: IEC 60825-1:1993+A1:1997+A2:2001 NVIRONMENTAL Operating = 0°C to 40° (32° to 104°F) Temperature: Storage = -40°C to 60°C (-40°F to 140°F) Humidity: 5% to 95% Relative Humidity, Non-Condensing Light Levels:...

  • Page 31: Applications And Protocols

    French Japanese United Kingdom For additional information on the MS 1690’s default settings refer to pages 28-31. For information on how to change the default settings, refer to help files in MetroSet2 or the MetoSelect Single-Line Configuration Guide 00-02544). MLPN...

  • Page 32: Default Settings - Communication Parameters

    The default parameter of the scanner has an asterisk (*) in the charts on the following pages. If an asterisk is not in the default column then the default setting is OFF or DISABLED. Every interface does not support every parameter.
  • Page 33 ETTINGS OMMUNICATION ARAMETERS PARAMETER DEFAULT RS232 IBM 46XX Maxicode Aztec Postals Mod 43 Check on Code 39 MSI-Plessy 10/10 Check Digit MSI-Plessy Mod 10 Check Digit Paraf Support ITF ITF Symbol Lengths Variable Symbol Length Lock None Beeper tone Normal...
  • Page 34 EFAULT ETTINGS OMMUNICATION ARAMETERS PARAMETER DEFAULT RS232 IBM 46XX Transmit lead zero on UPC-E Transmit UPC-A number system Transmit UPC-A Manufacturer ID# Transmit UPC-A Item ID# Transmit Codabar Start/Stop Characters CLSI Editing (Enable) Transmit Mod 43 Check digit on Code 39...
  • Page 35 10 avail Suffix characters 10 avail Prefixes for Individual Code types Editing Function/Control Key Support Omnidirectional Scanning Linear Only Scanning Linear 1D / Omni 2D † These options are mutually exclusive. One can not be used in conjunction with the other.

  • Page 36: Configuration Modes

    Serial Programming This mode of configuration is ideal for OEM applications. This mode gives the end-user the ability to send a series of commands using the serial port of the host system. The commands are equivalent to the numerical values of the bar codes located in the MetroSelect Single-Line Configuration Guide 00-02544).

  • Page 37: Upgrading The Flash Rom Firmware

    Press the “Flash Scanner” button to upgrade the scanner. The unit will go into a “flash mode” – the blue and white LEDs will be flashing alternately. The user can follow the progress of the upgrade by watching the screen for details.

  • Page 38: Scanner And Cable Terminations

    MS1690-14, RS232 The MS1690 scanner Function interfaces terminate to a Ground 10-pin, RJ45 Female Socket. RS232 Transmit Output The serial # label indicates the interface enabled when the RS232 Receive Input scanner is shipped from the RTS Output factory. CTS Input...
  • Page 39 CANNER AND ABLE ERMINATIONS Scanner Pinout Connections MS1690-38, Low Speed USB Function Ground RS232 Transmit Output RS232 Receive Input RTS Output CTS Input USB D+ V USB USB D- +5VDC Shield Ground MS1690-40, Full Speed USB Function Ground RS232 Transmit Output Figure 19.

  • Page 40: Cable Connector Configurations

    CANNER AND ABLE ERMINATIONS Cable Connector Configurations (Host End) “Standard” PowerLink Cable 53-53000-3 Coiled Function Shield Ground RS232 Transmit Output RS232 Receive Input DTR Input/Light Pen Source Power/Signal Ground Reserved CTS Input 9-Pin D-Type Connector RTS Output +5VDC Stand Alone Keyboard PowerLink...
  • Page 41 PC Clock No Connect Metrologic will supply an adapter cable with a 5-pin DIN male connector on one end and a 6-pin mini DIN female connector on the other. According to the termination required, connect the appropriate end of the adapter cable to the PowerLink cable, leaving the necessary termination exposed for connecting to the keyboard and the keyboard port on the PC.

  • Page 42: Limited Warranty

    Federal, state and local laws, regulations and ordinances pertaining to their production and labeling. This warranty is limited to repair, replacement of product or refund of product price at the sole discretion of Metrologic. Faulty equipment must be returned to one of the following Metrologic repair facilities: Blackwood, New Jersey, USA;...

  • Page 43: Product Safety

    AFETY Notices This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 44: Cautions

    LED scanner. Never attempt to look at the LED beam, even if the scanner appears to be nonfunctional. Never open the scanner in an attempt to look into the device. Doing so could result in hazardous radiation exposure.

  • Page 45: Patents

    ATENTS Worldwide Patents Pending...

  • Page 46: Index

    Audible Indicator ....17–18, 33 Firmware........33 Flash ROM ........33 Bar Code....21–24, 25, 32 Bar Code Element......19 Beep....17–18, 21–24, 25, 33 Blue LED... 4, 7–11, 17–18, 33 Host ........5, 7–11 Cable..........3 Indicator IBM ...........10 Audible ....4, 17–18, 25, 33 Keyboard Wedge ...8, 36–37 Failure ......4, 17–18...
  • Page 47 Pinouts ...... 34–35, 36–37 Power......7–11, 26, 33 Full Speed..1, 3, 11, 27, 28–31, Power Supply.......5, 7–11 34–35 PowerLink ........4 Low Speed ..1, 3, 11, 27, 28–31, Presentation.........15 34–35 Product Safety .......39–40 Protocols ........27 Ventilation ........26 Visual Indicator ....17–18, 33 Razz......
  • Page 48 OTES...

  • Page 49: Contact Information And Office Locations
