Marantz SR5006 Specifications

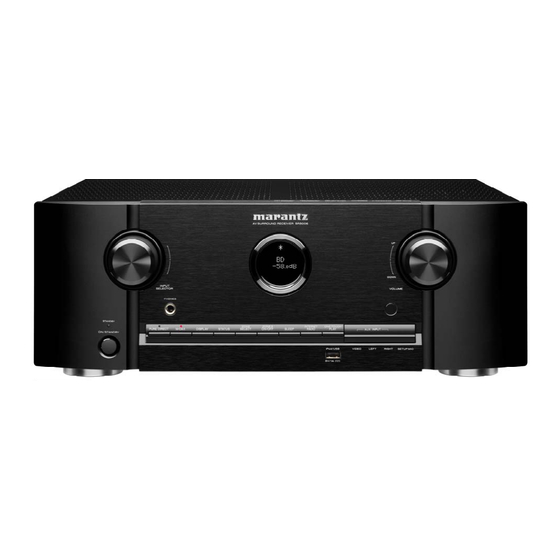

SR5006 Home Theater Receiver
The SR5006 delivers the kind of convenience, network capability and power that's sure to exceed your home entertainment needs for years to come.
A newly styled front panel, complete with "star and circle" display, recalls the classic components that have made Marantz an audiophile favorite for
decades. AirPlay allows you to stream music wirelessly; from your iPhone, iPod Touch and iPad; over your home network, and you're sure to enjoy
streaming audio content from online music services like Pandora, Rhapsody and Napster as well as from your own shared media files. Access thou-
sands of Internet radio stations from all over the world or dial in the ultimate set up with Audyssey MultEQ-XT room correction, Dynamic EQ and
Dynamic Volume. Two audio zones help deliver seamless audio content all around the house while a Set Up Wizard insures you'll be up and running
in no time.
AUDIO/VIDEO CONNECTIONS

7.1 Channels

AM/FM Tuner

56Tuner Presets: Group A-G: each 8 channels

6 RCA Analog inputs (incl. Front RCA)

2 Optical, 2 Coaxial SPDIF Digital Inputs

6/1 HDMI ver.1.4a In/Out
CEC (Control)
ARC (Audio Return Channel)
HDMI In Stand By
Auto Lip Sync.
Deep Color, x.v.Color
Pass through in Standby mode

2/1 Component In / Out

5/1 Composite In / Out

Assignable HDMI / Component inputs

Front USB input for digital iPod Connection

7.1 Channel Input

Headphone Out

Assignable 2.2 Channel Preamp-Out

Speaker A or B Switching
ADVANCED CONNECTIONS

iPhone/iPod Digital Connection

Bluetooth Wireless Audio Transmission Capability

External IR Receiver

Marantz D-Bus(RC-5), Remote In / Out, RS232
AUDIO/VIDEO PROCESSING

ANALOG DEVICES: SHARC 32-bit Processor

Dolby: True HD/Digital Plus&EX/Pro Logic IIz, IIx

Dolby: II/Virtual Speaker/Headphone

DTS: HD Master&High Res. Audio/ES/96/24/

DTS: Discrete&Matrix6.1/Neo:6/Express

DTS Neural Surround

Multi Ch Stereo

Audyssey MultEQ-XT Auto Calibration w/ MIC

Audyssey Dynamic EQ / Dynamic Volume

9 Band EQ, -20dB - +6dB

Independent Crossover Setting for each speaker

Lip-sync (digital audio delay) 0-200 msec

Volume Control Setting: Limit, Power On Vol

Mute Level, Display type (dB or 0-99)

Component/Composite to HDMI Trans-coding

OSD output over HDMI
USER CONFIGURABLE FEATURES

Input Level Adjust

Input Assign (Component In/Digital In)

Input Rename

Input Skip

On Screen Display (TEXT)

Display Status Info.

Software Upgradable
SR5006 Home Theater Receiver
NETWORK FEATURES

Ethernet port

WEB Interface

IP-based control, system backup/restore

DLNA1.5 certified

Stream audio and photos from all connected PC's

vTuner Internet Radio w/ 14000 pre-loaded stations

Stream audio and photos from Internet:
Rhapsody
Pandora
Napster
Flicker

App Control
MARANTZ AUDIO ADVANTAGE

All-discrete, 100w x 7 Class AB Output Stage

High Current Linear Power Supply

EI Core Power Transformer

Pure Direct / Source Direct

M-DAX (Marantz Dynamic Audio eXpander)

Front Bi-Amp Drive Capability (Speaker C)

Two audio zones

Fully Discrete Amplification

192kHz/24-bit Audio DACS
