New Connection Example 2 - Create a New Bridge Connection
You may create new connections to suit different purposes. For example, let's create a new Bridge connection
used to connect directly to a server acting as a firewall and proxy.
1. Click the New Connection button.
2. Select Bridge from the Type: menu.
3. Configure the remaining settings (including VPI: and VCI:) as necessary.
4. Click the Apply button. Notice that a new menu button, Connection 3, appears under WAN Setup.
5. Remember to save any newly created connections using the Save All procedure in the Tools/System
Commands menu.

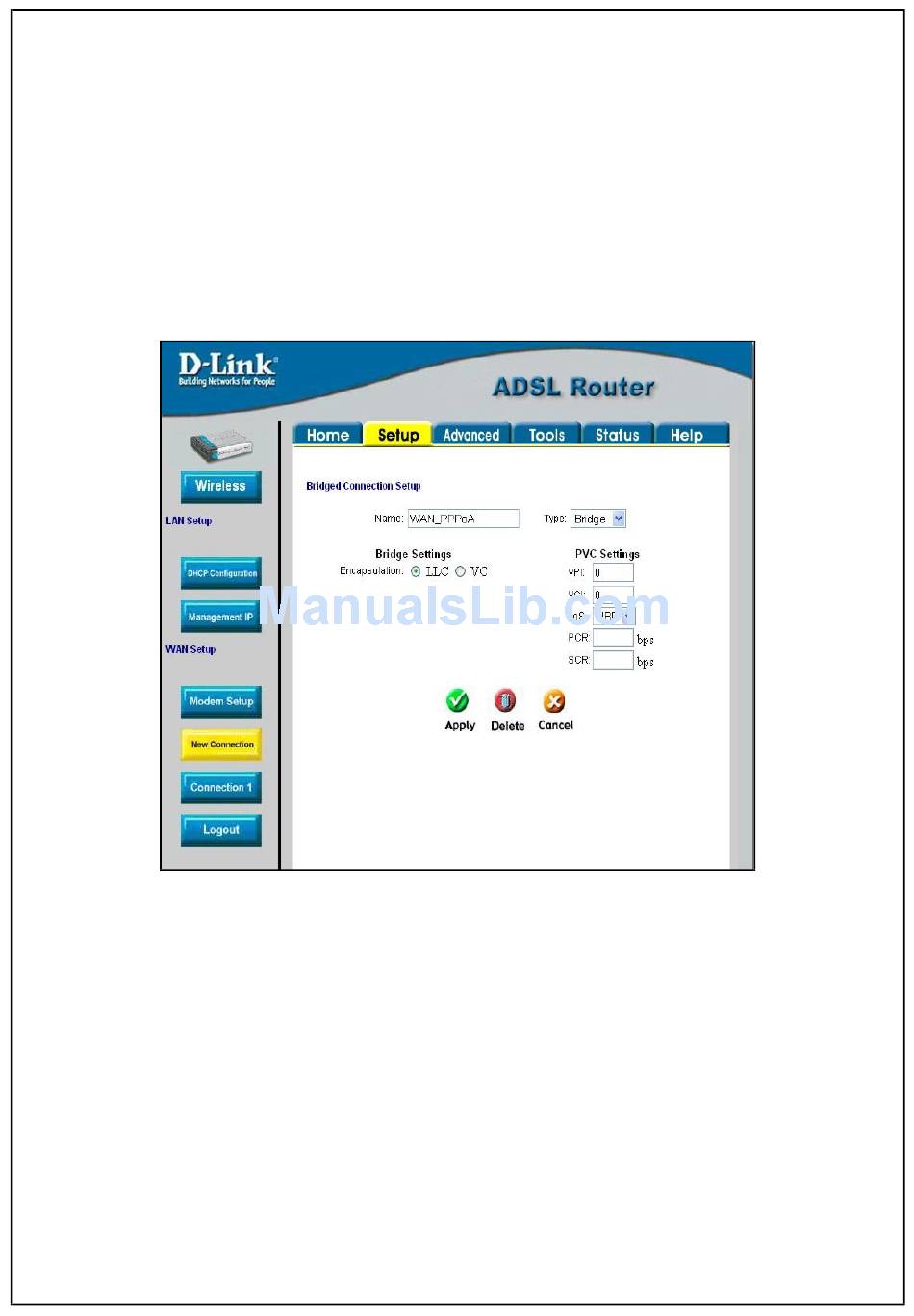

Figure 3- 16. Set up a New Connection – Connection 3
To delete the Bridge connection, click the Delete button.
35
