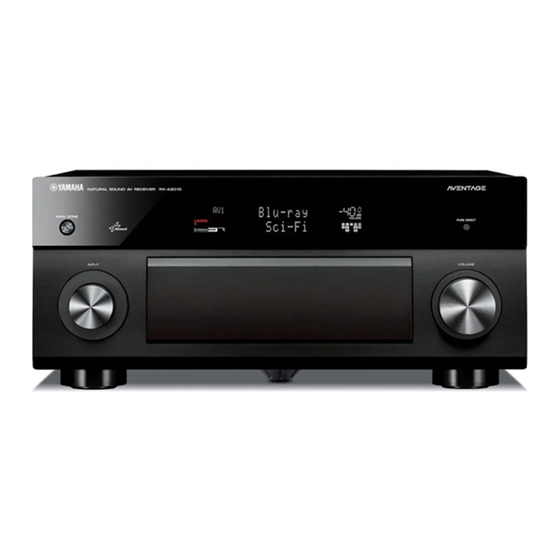

Yamaha RX-A2010 Easy Setup Manual

Setup guide
Hide thumbs Also See for RX-A2010:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Enlarged version
AV Receiver
Easy Setup Guide
English for U.S.A.
Th is do cument explai ns how to s e t up a 9.1- ch ann e l system and
p l ay b a c k s u r ro u n d s o u n d o f a BD / D VD o n t hi s u ni t.
For m o re i n fo r m a t i o n , re fe r t o "O w n e r 's M a n u a l " o n t h e s u p p l i e d
CD - R OM .
A P DF for ma t o f t h i s g u i d e a nd "O w n e r 's M an u a l " c a n b e d ow nl o a d e d
from th e following website.
http://dow nload.yamaha.com/
1
Preparations
Accessories
Check that the following accessories are supplied with this product.
■
Remote control
■
■
Simplified remote control
Power cable
* The figure of the supplied power
cable differs depending on regions.
■
AM antenna
■
■
CD-ROM
Safety Brochure
(Owner's Manual)
Cables necessary for connections
You need to separately prepare the following cables to build the system based on this
document.
■
Speaker cables (x 9)
■
HDMI cable (x 2)
■
Audio pin cable (x 1)
■
Digital optical cable or stereo pin cable (x 1) (unnecessary if your TV supports ARC)
■
Batteries (AAA, R03, UM-4) (x 4)
Insert into the remote control in the correct polarity (+/-)
■
YPAO microphone
■
FM antenna
* The figure of the supplied FM
antenna differs depending on
regions.
■
Easy Setup Guide
(this document)

Advertisement

Table of Contents
loading

Related Manuals for Yamaha RX-A2010

Summary of Contents for Yamaha RX-A2010

  • Page 1 A P DF for ma t o f t h i s g u i d e a nd “O w n e r ’s M an u a l ”...

  • Page 2: Placing The Speakers

    Placing the speakers Set up the speakers in the room by using the following diagram as a reference. For information on speaker systems other than the 9.1-channel system, refer to “Owner’s Manual”. 0.5 to 1 m 0.5 to 1 m (1.6 to 3.3 ft)

  • Page 3: Connecting The Speakers/Subwoofer

    ( ) to the CENTER terminal. • Use a subwoofer equipped with built-in amplifier. • Remove the power cable of this unit from an AC wall outlet and turn off the subwoofer before connecting the speakers. AUDIO 3 AUDIO 4...
  • Page 4 Connect the surround back speakers Connect the front presence speakers Connect the subwoofer ( ) to the SUBWOOFER (1) jack. ) to the SURROUND BACK ) to the EXTRA SP1 ( terminals. ) terminals. AUDIO 3 AUDIO 4 MULTI CH INPUT...

  • Page 5: Connecting The External Devices

    OPTICAL BD/DVD player b Connect the TV and this unit with another HDMI cable. c Connect the TV and this unit with a digital optical HDMI HDMI cable or a stereo pin cable. This connection is required to play back TV audio on this unit.

  • Page 6: Optimizing The Speaker Settings Automatically (Ypao)

    By using the Yamaha Parametric room Acoustic Optimizer (YPAO) function, this unit automatically detects speaker The following screen appears on the TV. connections and distances from the listening position, and optimizes the speaker settings such as volume balance and acoustic parameters to suit your room.
  • Page 7 Now optimization of the speaker settings is complete. • Since the YPAO microphone is sensitive to heat, do not place the microphone in any place where it will be subjected to direct sunlight or high temperatures (top of an AV equipment, etc).

  • Page 8: Playing Back A Bd/Dvd

    For more information, see “What you can do player. with this unit” (p.6). It may be set to output 2-channel audio (PCM, etc.) only. No sound is heard from a specific speaker See “Troubleshooting” (p.139) in “Owner’s Manual”. © 2011 Yamaha Corporation...
