Interfaces

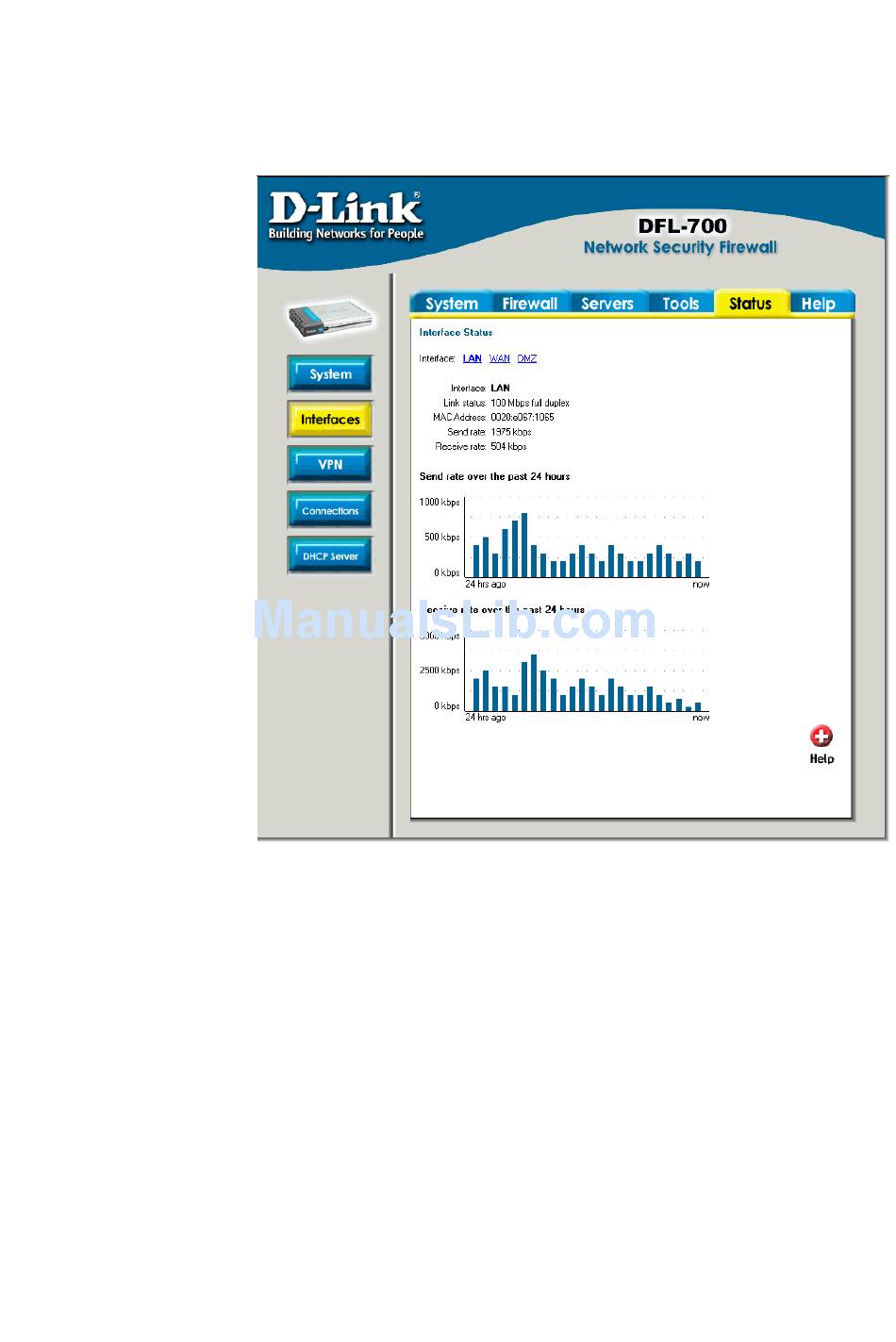

Click on Status in the menu bar, and then click Interfaces below it. A window will appear
providing information about the interfaces in the DFL-700. By default information about the
LAN interface will be show, to see another one click on that interface (WAN or DMZ).
Interface – Name of
the interface shown,
LAN, WAN or DMZ.
Link status
Displays what link the
current interface
the speed can be 10 or
100 Mbps and
duplex can be Half or
Full.
MAC Address
MAC address of the
interface.
Send rate – Current
amount of traffic sent
trough the interface.
Receive rate
Current amount of traffic
received trough
interface.
There are also two
graphs displaying
send and receive rate
trough the interfaces
during the last 24 hours.
–
has,
the
–
–
the
the
