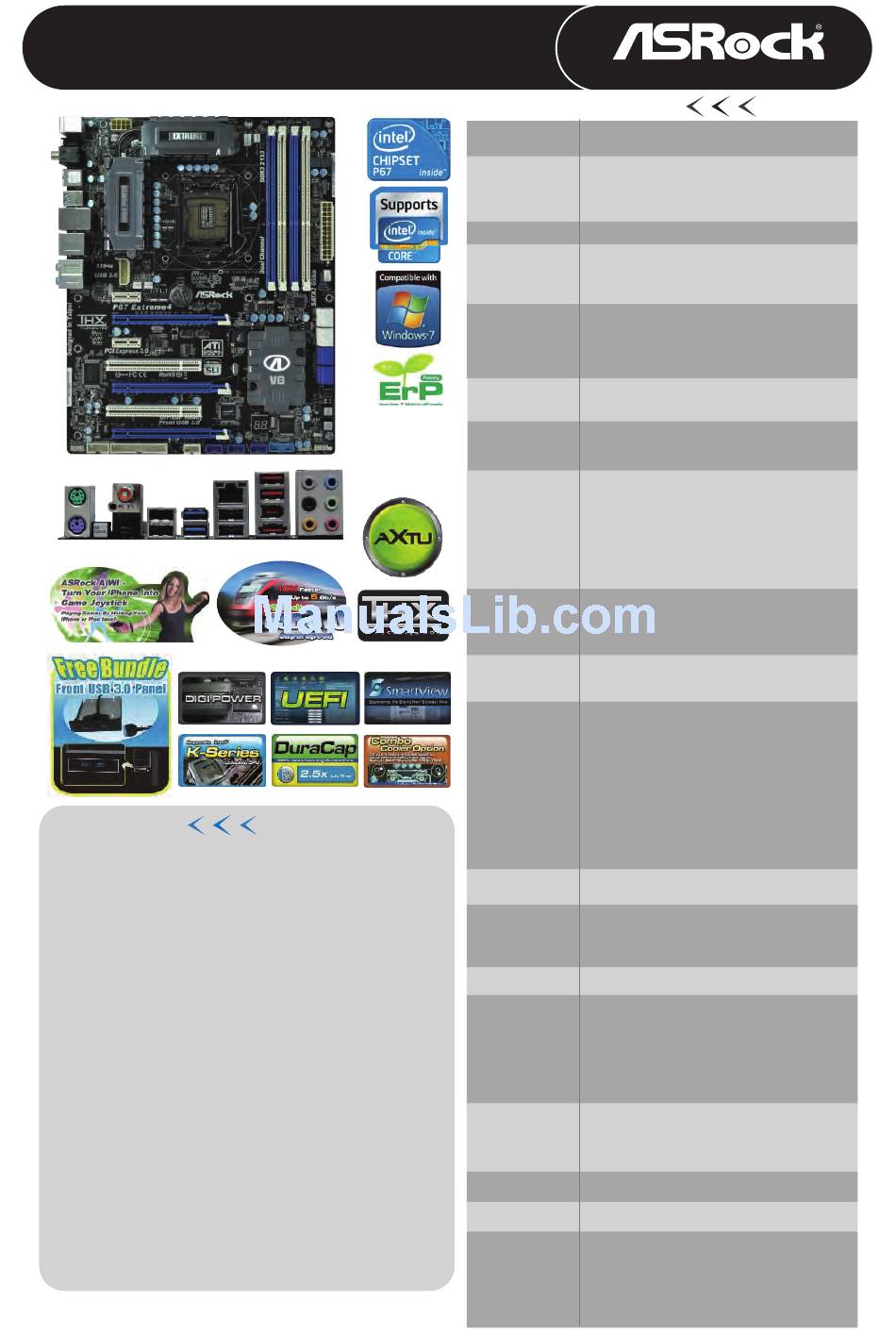

ASROCK P67 EXTREME4 Datasheet

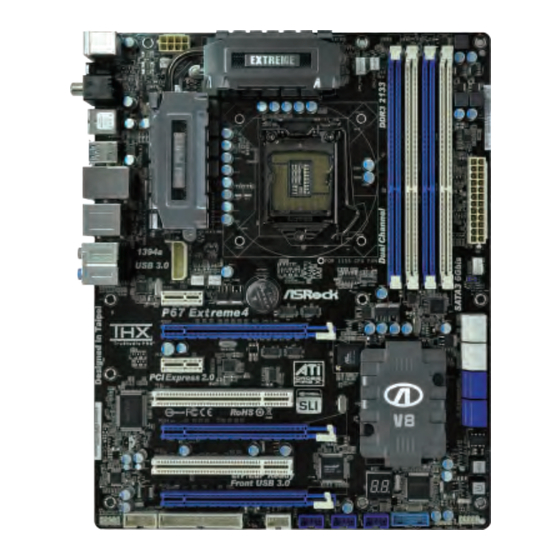

P67 Extreme4
®
Intel P67 Chipset
Product Brief
- ASRock DuraCap (2.5 x longer life time), 100% Japan-made
high-quality Conductive Polymer Capacitors
- Digi Power, Advanced V8 + 2 Power Phase Design
®
- Supports Intel K-Series unlocked CPU
- Supports Dual Channel DDR3 2133(OC)
- Supports ATI TM Quad CrossFireX
TM
CrossFireX
- Supports NVIDIA ® Quad SLI
- 2 x Front USB 3.0 ports, 2 x Rear USB 3.0 ports, 4 x SATA3
connectors, 1 x eSATA3 connector, 2 x IEEE1394 ports
- Dr. Debug, Smart Swith Design: Power/Reset/Clear CMOS
Switch with LED
- Supports ASRock Extreme Tuning Utility (AXTU), Instant Boot,
Instant Flash, Good Night LED, Multi-Fan Speed Control, AIWI,
APP Charger, SmartView
- Combo Cooler Option (C.C.O.)
- 7.1 CH HD Audio with Content Protection (Realtek ALC892
Audio Codec), THX TruStudio PRO
audio suppport
- ErP/EuP Ready
- Free Software : CyberLink DVD Suite - OEM and Trial
- Free Gift : 1 x ASRock SLI_Bridge_2S Card , 1 x Front
USB 3.0 Panel, 1 x Rear USB 3.0 Bracket
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
TM , 3-Way CrossFireX TM
TM and SLI TM
TM and Premium Blu-ray
Detail Specification
Platform
CPU
Chipset
Memory
Expansion Slot
Audio
LAN
Rear Panel I/O
SATA3
USB 3.0
Connector
Smart Switch
BIOS Feature
and
Support CD
Unique Feature
Hardware Monitor
OS
Certifications
Accessories
w w w. a s rock . co m
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
- Supports 2 nd Generation Intel ® Core TM i7 / i5 / i3 in LGA1155
Package
- Advanced V8 + 2 Power Phase Design
- Supports Intel ® Turbo Boost 2.0 Technology
®
- Supports Intel K-Series unlocked CPU
- Supports Hyper-Threading Technology
®
- Intel P67
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-
buffered memory
- Max. capacity of system memory: 32GB
®
- Supports Intel Extreme Memory Profile (XMP)
- 3 x PCI Express 2.0 x16 slots (PCIE2/PCIE4: single at x16 or dual at
x8/x8 mode; PCIE5: x4 mode)
- 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots
TM TM
- Supports ATI Quad CrossFireX , 3-Way CrossFireX
CrossFireX TM
- Supports NVIDIA ® Quad SLI TM and SLI TM
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Codec)
- Premium Blu-ray audio support
- Support THX TruStudio PRO TM
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA3 Connector
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone
- 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1,
RAID 10, RAID 5 and Intel ® Rapid Storage), NCQ, AHCI and
"Hot Plug" functions
- 2 x SATA3 6.0 Gb/s connectors by Marvell SE9120, support NCQ,
AHCI and "Hot Plug" functions
(SATA3_M2 connector is shared with eSATA3 port)
- 2 x Rear USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0
up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by Etron
EJ168A, supports USB 1.0/2.0/3.0 up to 5Gb/s
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID
10, RAID 5 and Intel ® Rapid Storage)NCQ, AHCI and Hot Plug
functions
- 4 x SATA3 6.0 Gb/s connectors
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- SLI/XFire power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)
- 1 x Dr. Debug with LED
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software
Suite (CyberLink DVD Suite - OEM and Trial)
- ASRock Extreme Tuning Utility (AXTU)
- Instant Boot
- ASRock Instant Flash
- ASRock AIWI
- ASRock APP Charger
- SmartView
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU or MB Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
- Microsoft ® Windows ® 7 / 7 64-bit / Vista TM / Vista
XP 64-bit compliant
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- 1 x ASRock SLI_Bridge_2S Card
- Quick Installation Guide, Support CD, I/O Shield
- Floppy Cable
- 4 x SATA Data Cables (Optional)
- 2 x SATA 1 to 1 Power Cables (Optional)
- 1 x Front USB 3.0 Panel
- 4 x HDD Screws
- 6 x Chassis Screws
- 1 x Rear USB 3.0 Bracket
TM
and
TM 64-bit / XP /
