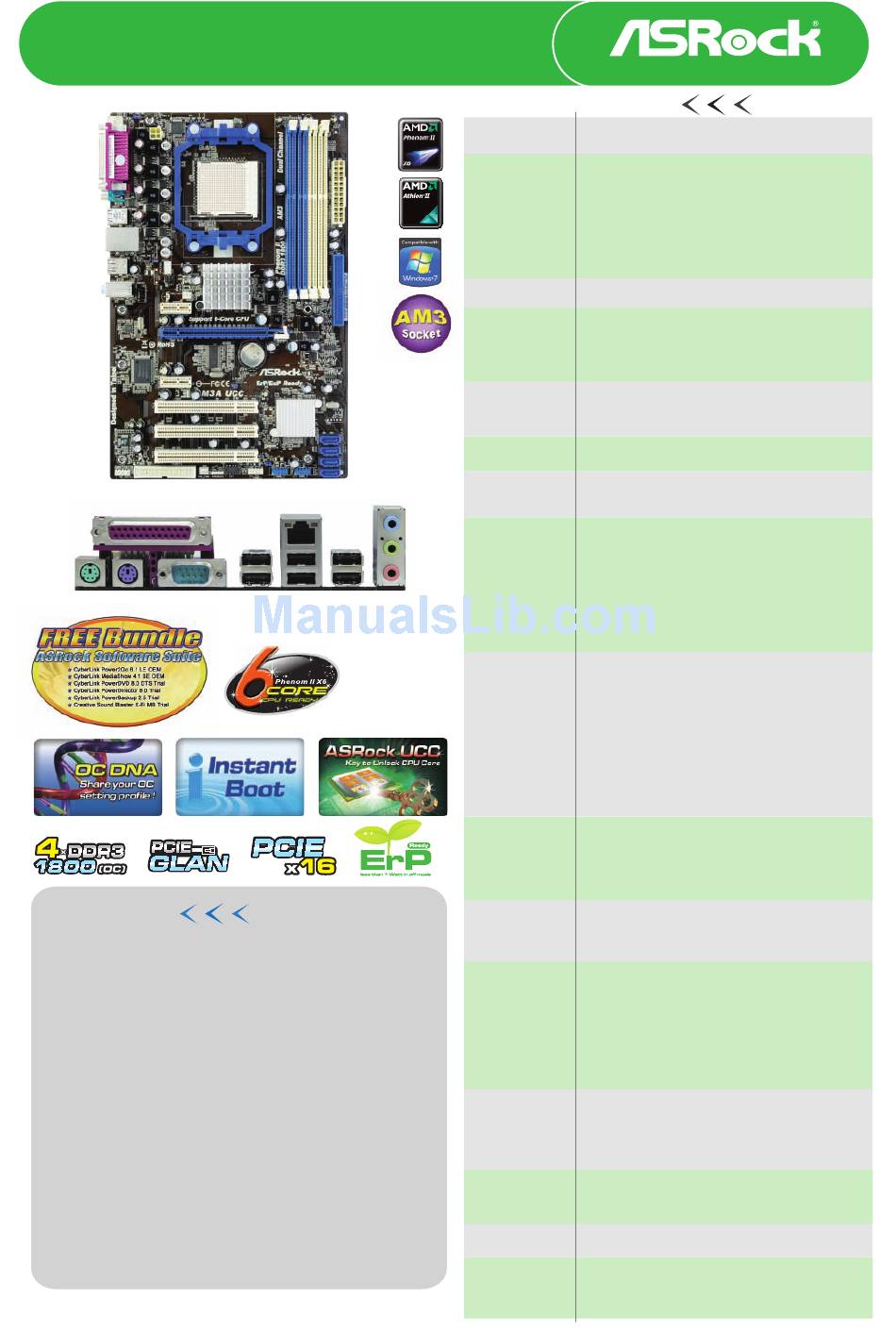

ASROCK M3A UCC Brochure

M3A UCC
AMD 480X CrossFire
Product Brief
- Phenom II X6 Six-Core CPU Ready
- Supports Exclusive ASRock UCC Chip -
Unlock CPU Core feature
- Supports Dual Channel DDR3 1800(OC)
- 1 x PCI Express x16 slot, PCIE Gigabit LAN
- Supports ASRock Instant Boot, Instant Flash,
OC DNA, OC Tuner, IES
- ErP/EuP Ready
- Free Software: CyberLink DVD Suite - OEM
and Trial; Creative Sound Blaster X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
+ SB600 Chipsets
TM
w w w. a s ro ck.c o m
Detail Specification
Platform
- ATX Form Factor: 12.0-in x 7.8-in, 30.5 cm x 19.8 cm
CPU - Support for Socket AM3 processors: AMD Phenom
X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron
processors
- Six-Core CPU Ready
- Supports UCC feature (Unlock CPU Core)
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
Chipset - Northbridge: AMD 480X CrossFire
- Southbridge: AMD SB600
Memory - Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 1800(OC)/1600/1333/1066/800 non-ECC,
un-buffered memory
- Max. capacity of system memory: 16GB
- 1 x PCI Express x16 slot
Expansion Slot
- 2 x PCI Express x1 slots
- 3 x PCI slots
Audio
- 5.1 CH HD Audio (VIA
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
Rear Panel I/O
ASRock HD 6CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Connector
- 4 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1 and RAID 10), NCQ, AHCI and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
BIOS Feature
- 4Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU Voltage Multi-adjustment
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock
Software Suite (CyberLink DVD Suite - OEM and Trial;
Creative Sound Blaster X-Fi MB - Trial)
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
OS
- Microsoft Windows
®
/ XP Media Center / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- 2 x SATA data cables (optional)
II X4 /
TM
TM Chipset
VT1705 Audio Codec)
®
7 / 7 64-bit / Vista / Vista 64-bit / XP
® TM TM
