ASROCK H61M-GS User Manual

Hide thumbs Also See for H61M-GS:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Manual
Enlarged version

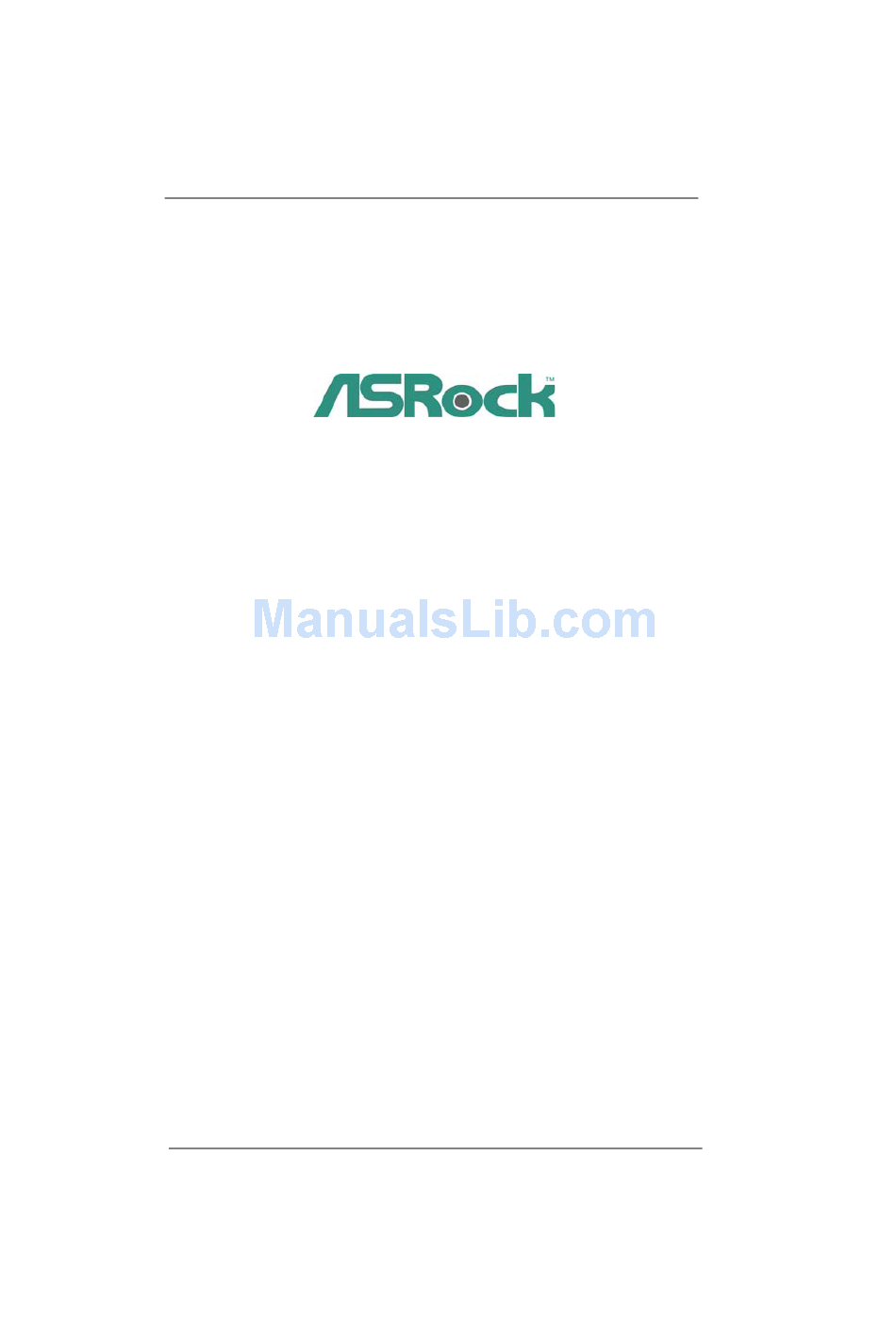

H61M-GS /
H61M-S

User Manual

Version 1.0
Published February 2011
Copyright©2011 ASRock INC. All rights reserved.
1

Advertisement

Table of Contents
loading

Related Manuals for ASROCK H61M-GS

Summary of Contents for ASROCK H61M-GS

  • Page 1: User Manual

    H61M-GS / H61M-S User Manual Version 1.0 Published February 2011 Copyright©2011 ASRock INC. All rights reserved.

  • Page 2: Copyright Notice

    (including damages for loss of profi ts, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the manual or product.

  • Page 3: Table Of Contents

    ......24 2.10 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks Installation ..............28 2.11 Hot Plug Function for SATA / SATAII HDDs ....28 2.12 SATA / SATAII HDD Hot Plug Feature and Operation Guide ................. 29 2.13 Driver Installation Guide ..........
  • Page 4 3.4.5 Super IO Confi guration ........46 3.4.6 ACPI Confi guration..........47 3.4.7 USB Confi guration ..........48 3.5 Hardware Health Event Monitoring Screen ....49 3.6 Boot Screen ..............50 3.7 Security Screen ............. 51 3.8 Exit Screen ..............52 4 Software Support ..........

  • Page 5: Introduction

    ASRock’s commit- ment to quality and endurance. In this manual, chapter 1 and 2 contain introduction of the motherboard and step- by-step guide to the hardware installation. Chapter 3 and 4 contain the confi guration guide to BIOS setup and information of the Support CD.

  • Page 6: Specifi Cations

    Specifications Platform - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm - Solid Capacitor for CPU power ® - Supports 2nd Generation Intel Core i7 / i5 / i3 in LGA1155 Package ® - Supports Intel Turbo Boost 2.0 Technology...
  • Page 7 - 6 x Ready-to-Use USB 2.0 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Line in/Front Speaker/Microphone Connector - 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions...
  • Page 8 Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
  • Page 9 BIOS setup menu to access ASRock Instant Flash. Just launch this tool and save the new BIOS fi le to your USB fl ash drive, fl oppy disk or hard drive, then you can update your BIOS only in a few clicks without prepar- ing an additional fl...
  • Page 10 CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156. Please be noticed that not all the 775 and 1156 CPU Fan can be used. 13. EuP, stands for Energy Using Product, was a provision regulated by Eu- ropean Union to defi...

  • Page 11: Motherboard Layout (H61M-Gs / H61M-S)

    Clear CMOS Jumper (CLRCMOS1) ATX Power Connector (ATXPWR1) Print Port Header (LPT1, White) Intel H61 Chipset PCI Express 2.0 x1 Slot (PCIE3, White) 32Mb SPI Flash Infrared Module Header (IR1) SATA2 Connector (SATA2_0, Blue) PCI Express 2.0 x1 Slot (PCIE2, White) SATA2 Connector (SATA2_1, Blue) PCI Express 2.0 x16 Slot (PCIE1, Blue)

  • Page 12: I/O Panel (H61M-Gs)

    VGA/D-Sub Port Microphone (Pink) PS/2 Keyboard Port (Purple) USB 2.0 Ports (USB45) * There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications. LAN Port LED Indications ACT/LINK SPEED...

  • Page 13: I/O Panel (H61M-S)

    VGA/D-Sub Port Microphone (Pink) PS/2 Keyboard Port (Purple) USB 2.0 Ports (USB45) * There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications. LAN Port LED Indications ACT/LINK SPEED...

  • Page 14: Installation

    Chapter 2: Installation This is a Micro ATX form factor (9.6" x 7.8", 24.4 x 19.8 cm) motherboard. Before you install the motherboard, study the confi guration of your chassis to ensure that the motherboard fi ts into it. Make sure to unplug the power cord before installing or removing the motherboard.

  • Page 15: Cpu Installation

    Before you insert the 1155-Pin CPU into the socket, please check if the CPU surface is unclean or if there is any bent pin on the socket. Do not force to insert the CPU into the socket if above situation is found. Other- wise, the CPU will be seriously damaged.
  • Page 16 1155-Pin CPU For proper inserting, please ensure to match the two orientation key notches of the CPU with the two alignment keys of the socket. Step 3-3. Carefully place the CPU into the socket by using a purely vertical mo- tion.

  • Page 17: Installation Of Cpu Fan And Heatsink

    Installation of CPU Fan and Heatsink This motherboard is equipped with 1155-Pin socket that supports Intel 1155-Pin CPU. Please adopt the type of heatsink and cooling fan compliant with Intel 1155- Pin CPU to dissipate heat. Before you installed the heatsink, you need to spray thermal interface material between the CPU and the heatsink to improve heat dis- sipation.

  • Page 18: Installation Of Memory Modules (Dimm)

    DIMMs or the system components. Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot. notch break...

  • Page 19: Expansion Slots (Pci Express Slots)

    Remove the bracket facing the slot that you intend to use. Keep the screws for later use. Step 4. Align the card connector with the slot and press fi rmly until the card is completely seated on the slot. Step 5.

  • Page 20: Dual Monitor And Surround Display Features

    Dual Monitor Feature This motherboard supports dual monitor feature. With the internal VGA output sup- port (DVI-D and D-Sub), you can easily enjoy the benefi ts of dual monitor feature without installing any add-on VGA card to this motherboard. This motherboard also provides independent display controllers for DVI-D and D-Sub to support dual VGA output so that DVI-D and D-sub can drive same or different display contents.
  • Page 21 Please refer to the following steps to set up a surround display environment: 1. Install the PCI Express VGA card on PCIE1 slot. Please refer to page 19 for proper expansion card installation procedures for details.
  • Page 22 C. Click “OK” to save your change. D. Repeat steps A through C for the display icon identifi ed by the number three and four. 6. Use Surround Display. Click and drag the display icons to positions representing the physical setup of your monitors that you would like to use.

  • Page 23: Jumpers Setup

    CMOS when you just fi nish updating the BIOS, you must boot up the system fi rst, and then shut it down before you do the clear-CMOS ac- tion. Please be noted that the password, date, time, user default profi le, 1394...

  • Page 24: Onboard Headers And Connectors

    2.9 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! Serial ATAII Connectors...

  • Page 25: Front Panel Audio Header

    Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys- tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (S5).
  • Page 26 Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.
  • Page 27 Though this motherboard provides 8-pin ATX 12V power connector, it can still work if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 5.

  • Page 28: Serial Ata (Sata) / Serial Ataii (Sataii) Hard Disks Installation

    STEP 3: Connect one end of the SATA data cable to the motherboard’s SATAII con- nector. STEP 4: Connect the other end of the SATA data cable to the SATA / SATAII hard disk. 2.11 Hot Plug Function for SATA / SATAII HDDs This motherboard supports Hot Plug function for SATA / SATAII in AHCI mode.

  • Page 29: Sata / Sataii Hdd Hot Plug Feature And Operation Guide

    3. Please make sure the SATA / SATAII driver is installed into system properly. The latest SATA / SATAII driver is available on our support website: www.asrock.com 4. Make sure to use the SATA power cable & data cable, which are from our motherboard package.
  • Page 30 Please do follow below instruction sequence to process the Hot Unplug, improper procedure will cause the SATA / SATAII HDD damage and data loss. Step 1 Unplug SATA data cable from SATA / SATAII HDD side. Step 2 Unplug SATA 15-pin power cable connector (Black) from SATA / SATAII HDD side.

  • Page 31: Driver Installation Guide

    fi rst. Then, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from up to bottom side to install those required drivers. Therefore, the drivers you install can work properly.

  • Page 32: 64-Bit / Vista

    7 / 7 64-bit / Vista / Vista 64-bit OS on your SATA / SATAII HDDs without RAID functions, please follow below steps. Using SATA / SATAII HDDs with NCQ function STEP 1: Set Up UEFI. A. Enter UEFI SETUP UTILITY Advanced screen SATA Confi...

  • Page 33: Uefi Setup Utility

    To exit the current screen or the UEFI SETUP UTILITY Use < > key or < > key to choose among the selections on the menu bar, and then press <Enter> to get into the sub screen. You can also use the mouse to click your required item.

  • Page 34: Navigation Keys

    To save changes and exit the UEFI SETUP UTILITY <ESC> To jump to the Exit Screen or exit the current screen 3.2 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. H61M-GS...
  • Page 35 H61M-S...

  • Page 36: Oc Tweaker Screen

    Vista / 7 and want to enable this function, please set this item to [Enabled]. This item will be hid- den if the current CPU does not support Intel SpeedStep technology. Please note that enabling this function may reduce CPU voltage and lead to system stability or compatibility issue with some power supplies.
  • Page 37 Core Current Limit Use this item to add voltage when CPU is in Turbo mode. DRAM Timing Control DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assigns appropriate frequency automatically. CAS# Latency (tCL) Use this item to change CAS# Latency (tCL) Auto/Manual setting.
  • Page 38 Use this item to change ODT NOM (CHB) Auto/Manual setting. The de- fault is [Auto]. Voltage Control Power Saving Mode Use this to enable or disable Power Saving Mode. The default value is [Disabled]. CPU Core Voltage Offset Use this to select CPU Core Voltage Offset. The default value is [Auto].

  • Page 39: Advanced Screen

    fi rst like MS-DOS or Windows . Just launch this tool and save the new UEFI fi le to your USB fl ash drive, fl oppy disk or hard drive, then you can update your UEFI only in a few clicks without preparing an additional fl...

  • Page 40: Cpu Confi Guration

    CPU does not support Hyper-Threading technology. Active Processor Cores Use this item to select the number of cores to enable in each processor package. Confi guration options: [All], [1], [2] and [3]. The default value is [All].
  • Page 41 IA-32 Intel Architecture. An IA-32 processor with “No Execute (NX) Memory Protection” can prevent data pages from being used by malicious software to execute code. This option will be hidden if the current CPU does not support No-Excute Memory Protection.

  • Page 42: North Bridge Confi Guration

    Device. The default value is [Disabled]. DVMT Mode Select Use this option to adjust DVMT mode. The default value is [DVMT Mode]. DVMT (Dynamic Video Memory Technology) is an architecture that offers breakthrough performance for the motherboard through effi cient memory utilization.
  • Page 43 DVMT Memory You are allowed to adjust the shared memory size in this item. Configuration options: [128MB], [256MB] and [Maximum]. The option [Maximum] only appears when you adopt the memory module with 1024MB or above.

  • Page 44: South Bridge Confi Guration

    Mobile platforms support Deep S4/S5 in DC only and desktop platforms support Deep S4/S5 in AC only. Confi guration options: [Disabled], [Enabled in S5] and [Enabled in S4 and S5]. The default value is [Enabled in S5]. Onboard LAN This allows you to enable or disable the “Onboard LAN” feature.

  • Page 45: Storage Confi Guration

    3.4.4 Storage Configuration SATA Mode Use this to select SATA mode. Confi guration options: [IDE Mode], [AHCI Mode] and [Disabled]. The default value is [IDE Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages.

  • Page 46: Super Io Confi Guration

    Serial Port Use this item to enable or disable the onboard serial port. Serial Port Address Use this item to set the address for the onboard serial port. Confi guration options: [3F8 / IRQ4] and [3E8 / IRQ4]. Infrared Port Use this item to enable or disable the onboard infrared port.

  • Page 47: Acpi Confi Guration

    Use this item to enable or disable PS/2 keyboard to turn on the system from the power-soft-off mode. PCI Devices Power On Use this item to enable or disable PCI devices to turn on the system from the power-soft-off mode. Ring-In Power On Use this item to enable or disable Ring-In signals to turn on the system from the power-soft-off mode.

  • Page 48: Usb Confi Guration

    3.4.7 USB Configuration USB 2.0 Controller Use this item to enable or disable the use of USB 2.0 controller. Legacy USB Support Use this option to select legacy support for USB devices. There are four confi guration options: [Enabled], [Auto], [Disabled] and [UEFI Setup Only].

  • Page 49: Hardware Health Event Monitoring Screen

    3.5 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.

  • Page 50: Boot Screen

    3.6 Boot Screen In this section, it will display the available devices on your system for you to confi g- ure the boot settings and the boot priority. Setup Prompt Timeout This shows the number of seconds to wait for setup activation key.

  • Page 51: Security Screen

    3.7 Security Screen In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it.

  • Page 52: Exit Screen

    When you select this option, it will pop-out the following message, “Discard changes?” Select [OK] to discard all changes. Load UEFI Defaults Load UEFI default values for all the setup questions. F9 key can be used for this operation. Launch EFI Shell from fi lesystem device Attempts to Launch EFI Shell application (Shell64.efi) from one of the...

  • Page 53: Software Support

    CD automatically displays the Main Menu if “AUTORUN” is enabled in your computer. If the Main Menu did not appear automatically, locate and double click on the fi le “ASSETUP.EXE” from the BIN folder in the Support CD to dis- play the menus.
  • Page 54 2. Press <F2> or <Delete> at system POST. Set AHCI Mode in UEFI Setup Utility > Advanced > Storage Confi guration > SATA Mode. 3. Choose the item “UEFI:xxx“ to boot in UEFI Setup Utility > Boot > Boot Option #1. ®...
