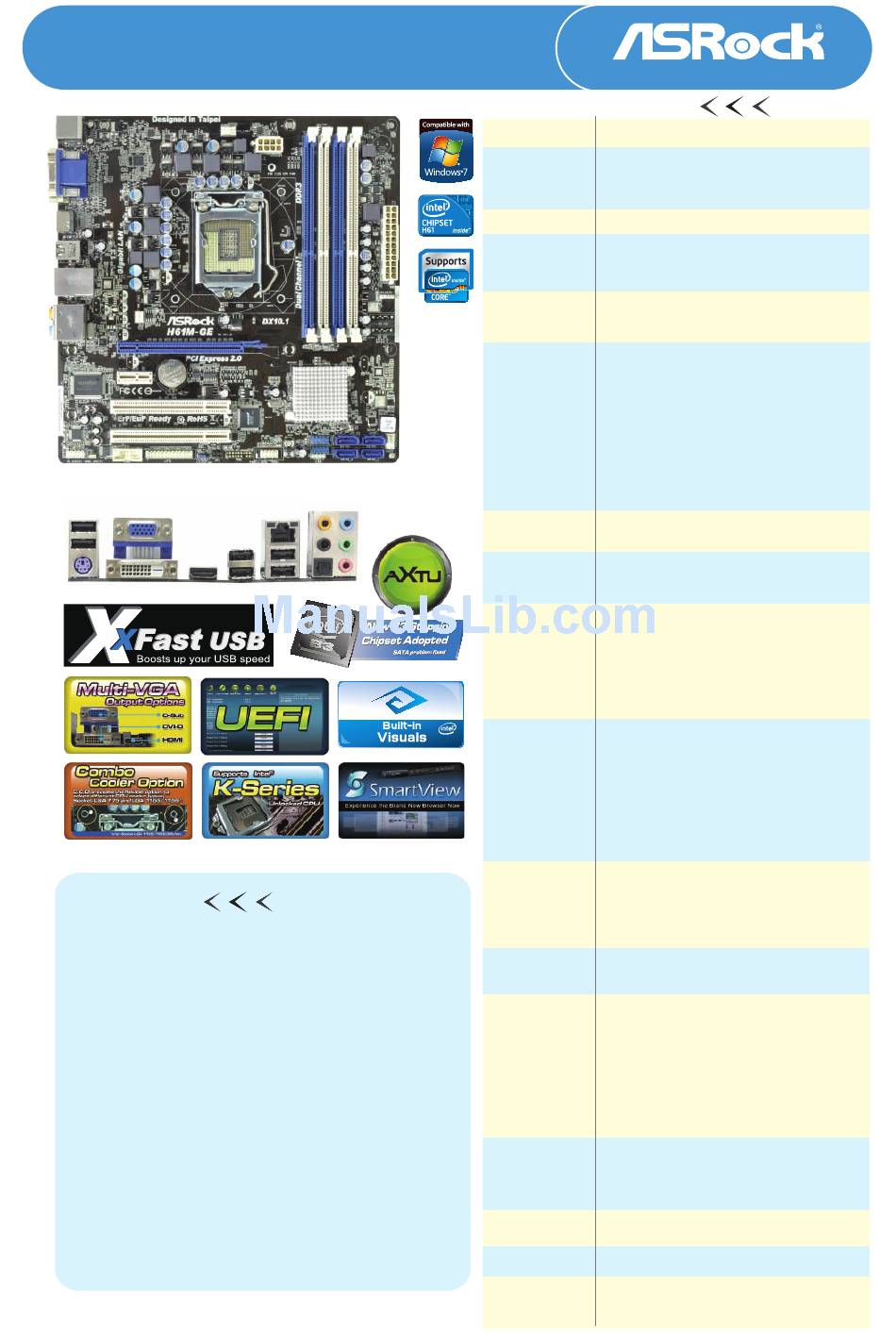

ASROCK H61M-GE Brochure & Specs

H61M-GE
®
Intel H61 Chipset
Product Brief
- Solid Capacitor for CPU power
- Supports Intel ® K-Series unlocked CPU
- Supports Dual Channel DDR3 1333
®
- Supports Intel HD Graphics 2000/3000
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports XFast USB, AXTU, UEFI, Instant Boot,
Instant Flash, APP Charger, SmartView
- Combo Cooler Option (C.C.O.)
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
w w w. a s rock . co m
Detail Specification
Platform
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- Solid Capacitor for CPU power
CPU
- Supports 2 nd Generation Intel
- Supports Intel
- Supports Intel
- Supports Hyper-Threading Technology
Chipset
®
- Intel H61
- Dual Channel DDR3 memory technology
Memory
- 4 x DDR3 DIMM slots
- Supports DDR3 1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
Expansion Slot
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports Intel
Graphics
- Pixel Shader 4.1, DirectX 10.1
- Max. shared memory 1759MB
- Three VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.4a Technology with max. resolution up to
1920x1200 @ 60Hz
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR
(High Bit Rate Audio) with HDMI
(Compliant HDMI monitor is required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI
and HDMI ports
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Audio
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
LAN
®
- Atheros AR8151
- Supports Wake-On-LAN
I/O Panel
Rear Panel I/O
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker /
Microphone
- 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug
Connector
functions
- 1 x IR header
- 1 x Print Port header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
BIOS Feature
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage
Multi-adjustment
- Drivers, Utilities, AntiVirus Software (Trial Version),
Support CD
ASRock Software Suite (CyberLink DVD Suite - OEM and Trial;
Creative Sound Blaster X-Fi MB - Trial)
Unique Feature
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock AIWI
- ASRock APP Charger
- ASRock SmartView
- ASRock XFast USB
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft ® Windows
64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- 2 x SATA Data Cables (Optional)
® Core TM i7 / i5 / i3 in LGA1155 Package
® Turbo Boost 2.0 Technology
®
K-Series unlocked CPU
® HD Graphics 2000/3000
® 7 / 7 64-bit / Vista TM / Vista TM 64-bit / XP / XP
