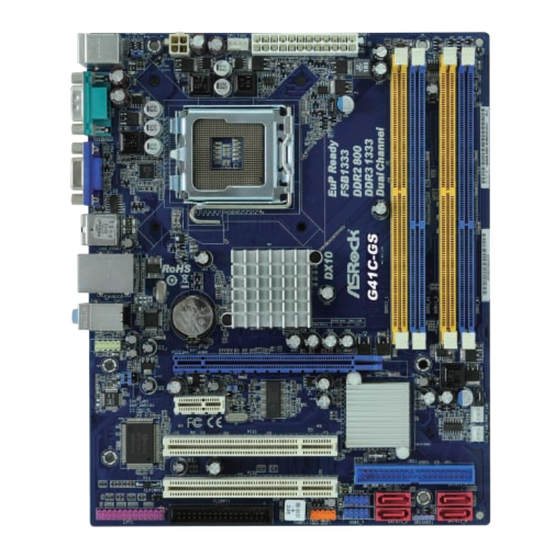

ASROCK G41C-GS Specifications

G41C-GS
Intel G41+ ICH7 Chipsets
®
Product Brief
- Supports FSB1333/1066/800/533 MHz CPUs
- Supports Dual Channel DDR3 1333 (OC) +
DDR2 800
- Intel Graphics Media Accelerator X4500,
®
Pixel Shader 4.0, DirectX 10, Max. shared
memory 1759MB
- PCIE Gigabit LAN
- EuP Ready
- Supports ASRock Instant Boot, Instant Flash,
OC DNA, ASRock OC Tuner (Up to 143% CPU
frequency increase)
- Supports Intelligent Energy Saver
(Up to 20% CPU Power Saving)
- Free Bundle : CyberLink DVD Suite - OEM and
Trial; Creative Sound Blaster X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
www.as rock.com
Detail Specification
Platform - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
CPU
- LGA 775 for Intel
Core 2 Duo / Pentium
TM
/ Celeron ® , supporting Penryn Quad Core Yorkfield and
Dual Core Wolfdale processors
- Supports FSB1333/1066/800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset - Northbridge: Intel
- Southbridge: Intel
- Dual Channel DDR3/DDR2 memory technology
Memory
- 2 x DDR3 DIMM slots
- Supports DDR3 1333(OC)/1066/800 non-ECC,
un-buffered memory
- Max. capacity of system memory: 8GB
- 2 x DDR2 DIMM slots
- Supports DDR2 800/667/533 non-ECC, un-buffered
memory
- Max. capacity of system memory: 8GB
- 1 x PCI Express x16 slot
Expansion Slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Graphics - Intel Graphics Media Accelerator X4500
®
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Supports D-Sub with max. resolution up to 2048x1536
@ 75Hz
Audio - 5.1 CH HD Audio (VIA
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and
SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Connector
- 4 x SATAII 3.0 Gb/s connectors (No support for RAID
and "Hot Plug" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x Print port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
BIOS Feature
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- VCCM, NB, VTT, GTLRef Voltage Multi-adjustment
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version),
ASRock Software Suite (CyberLink DVD Suite - OEM
and Trial ; Creative Sound Blaster X-Fi MB - Trial)
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft Windows
®
/ XP / XP 64-bit compliant
Certifications
- FCC, CE
- EuP Ready (EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- 2 x SATA Data Cables (Optional)
Core 2 Extreme / Core 2 Quad /
® TM TM
Dual Core / Celeron Dual Core
® ®
G41
®
® ICH7
VT1705 Audio Codec)
®
7 / 7 64-bit / Vista / Vista 64-bit
® TM TM
