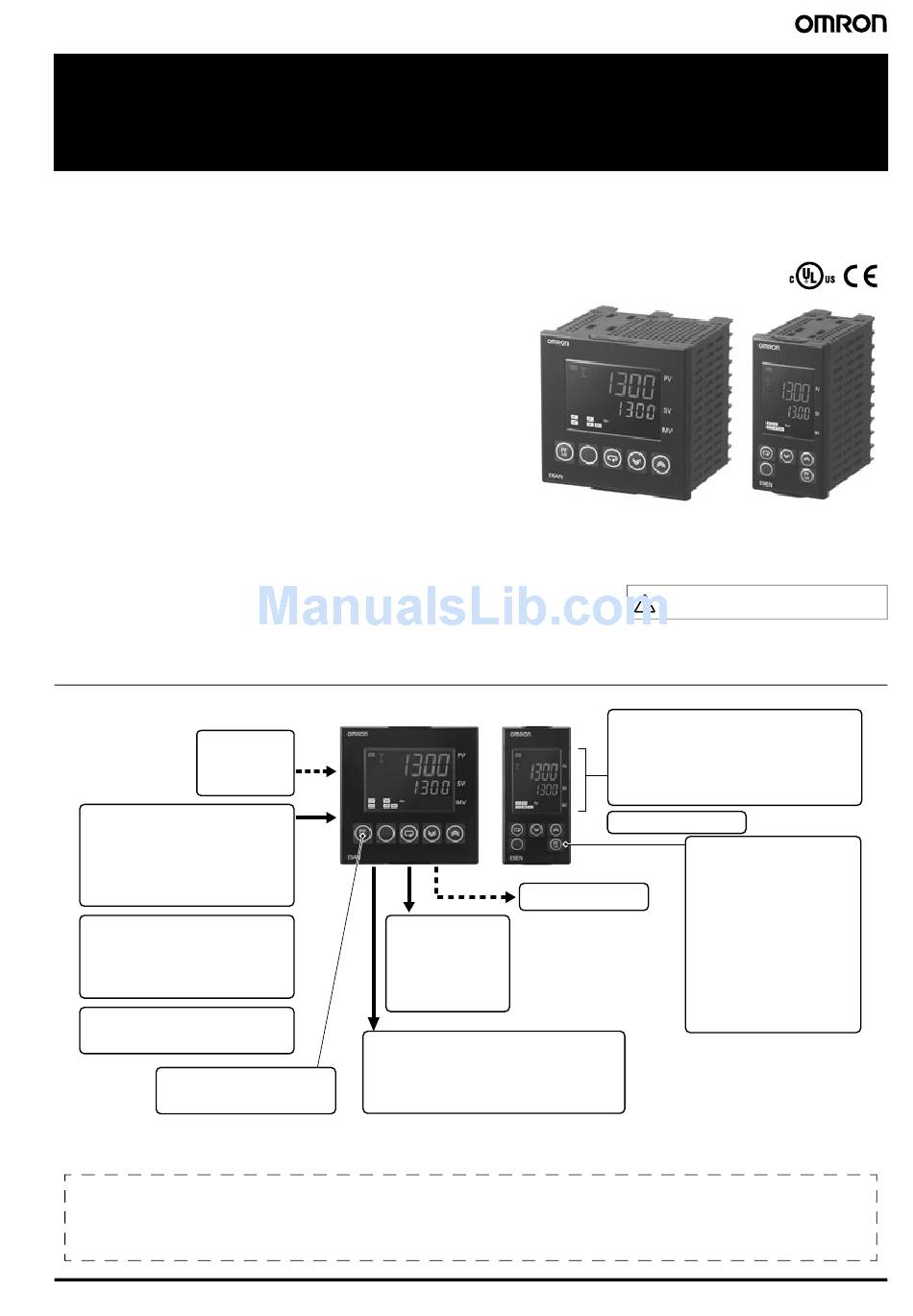

Basic-type Digital Temperature Controller
E5AN/E5EN
New 96 x 96-mm and 48 x 96-mm Basic Temperature Controllers with
Enhanced Functions and Performance.
Improved Indication Accuracy and
Preventive Maintenance Function.
• Indication Accuracy
Thermocouple input: ±0.3% of PV (previous models: ±0.5%)
Pt input: ±0.2% of PV (previous models: ±0.5%)
Analog input: ±0.2% FS (previous models: ±0.5%)
• A PV/SV-status display function can be set to alternate between
displaying the PV or SV and the status of the Temperature
Controller (auto/manual, RUN/STOP and alarms).
• Preventive maintenance for relays using a Control Output
ON/OFF Counter.
• Three-level display that simultaneously displays
the PV, SV, and MV.
• One-touch operation with PF Key that can be assigned to
auto/manual, RUN/STOP, or other functions.
Main I/O Functions
Event Inputs
• None
• Two
Sensor Inputs
• Universal thermocouple/Pt inputs
(Models with temperature inputs)
• Analog current/voltage inputs
(Models with analog inputs)
Indication Accuracy
• Thermocouple input: ±0.3% of PV
• Pt input: ±0.2% of PV
• Analog input: ±0.2% FS
Sampling Period and control update
• 250 ms
PF Key
(Programmable function key)
This data sheet is provided as a guideline for selecting products. Be sure to refer to the following user manuals for application precautions
and other information required for operation before attempting to use the product.
E5CN/E5AN/E5EN Digital Temperature Controllers User's Manual Basic Type (Cat. No. H156)
E5CN/E5AN/E5EN Digital Temperature Controllers Communications Manual Basic Type (Cat. No. H158)
(96 x 96 mm and 48 x 96 mm)
E5AN
E5EN
3 auxiliary outputs
Control Output 2
• Voltage output
(for driving SSR)
• Long-life relay
output (hybrid)
Control Output 1
• Relay output
• Voltage output (for driving SSR)
• Current output
Basic-type Digital Temperature Controller
96 × 96 mm
E5AN
Refer to Safety Precautions on page 18.
3-line Display ✽
Simultaneously displays set items,
such as the PV, SV, and MV.
✽ A 2-line display when shipped from the factory. A
3-line display is activated if parameters are
initialized. For details on the third display level, refer
to the User's Manual, Basic Type (Cat. No. H156).
4 digit, 11 segments Display
• Auto/manual switching
• Temperature Controller
status display
• Simple program function
• Control output ON/OFF
count alarm
• PV change rate alarm
• Models optional available
with RS-485 or RS-232C
communications
E5AN/E5EN
48 × 96 mm
E5EN
1

Advertisement

Table of Contents
loading

Summary of Contents for Omron E5AN

  • Page 1 • Current output (Programmable function key) This data sheet is provided as a guideline for selecting products. Be sure to refer to the following user manuals for application precautions and other information required for operation before attempting to use the product.
  • Page 2: Option Units

    Basic Type 1 control output 3 auxiliary outputs Analog input 2 control outputs 3 auxiliary outputs Note: all models can be used for Heating, Cooling and Heating & Cooling control. Model Number Structure Model Number Legend Controllers Option Units E53-@...
  • Page 3: Ordering Information

    3-phase E5AN-Q3HHMTD-500-N (for driving SSR) Note: Heater alarm = heater burnout + SSR short detection + SSR overcurrent Note: Add power supply voltage to model to complete ordering code (ie. E5AN-R3MT-500-N AC100-240 or E5AN-R3MTD-500-N AC/DC24) E5AN/E5EN Basic-type Digital Temperature Controller...
  • Page 4 3-phase E5EN-Q3HHMTD-500-N (for driving SSR) Note: Heater alarm = heater burnout + SSR short detection + SSR overcurrent Note: Add power supply voltage to model to complete ordering code (ie. E5EN-R3MT-500-N AC100-240 or E5EN-R3MTD-500-N AC/DC24) E5AN/E5EN Basic-type Digital Temperature Controller...
  • Page 5 Connectable models Model E5AN Model E53-COV16 E5EN EST2-2C-MV4 Note: The Terminal Cover comes with the E5EN/AN-@@@-500 models. Waterproof Packing Connectable models Model E5AN Y92S-P4 E5EN Y92S-P5 Note: The Waterproof Packing is included with the Controller. E5AN/E5EN Basic-type Digital Temperature Controller...
  • Page 6: Specifications Ratings

    Storage temperature ✽ A 2-line display when shipped from the factory. A 3-line display is activated if parameters are initialized (factory default setting recall). For details on the third display line, refer to the User’s Manual, Basic Type (Cat. No. H156).
  • Page 7: Input Ranges

    Shaded settings are the default settings. The applicable standards for the input types are as follows: K, J, T, E, N, R, S, B: JIS C 1602-1995, IEC 584-1 JPt100: JIS C 1604-1989, JIS C 1606-1989 L: Fe-CuNi, DIN 43710-1985...
  • Page 8: Alarm Outputs

    Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified. Note: For models with heater burnout, SSR failure, and heater overcurrent detection, alarm 1 will be an OR output of the alarm selected from the following alarm types and the alarms for heater burnout, SSR failure, and heater overcurrent.
  • Page 9 L thermocouples at any temperatures is ±2°C ±1 digit max. The indication accuracy of the B thermocouple at a temperature of 400°C max. is not specified. The indication accuracy of B thermocouples in the 400 to 800°C range is ±3°C max. The indication accuracy of the R and S thermocouples at a temperature of 200°C max.
  • Page 10: Communications Specifications

    Conversion Cable. when the control output is ON, and the output assigned to the alarm 1 function will turn ON if the heater current is lower than the Communications Specifications set value (i.e., heater burnout detection current value).
  • Page 11: External Connections

    • A voltage output (control output 1, for driving SSR) is not electrically insulated from the internal circuits. When using a grounding thermocouple, do not connect any of the control output terminals to ground. If the control output terminals are connected to ground, errors will occur in the measured temperature values as a result of leakage current.
  • Page 12 Level Key Mode Key ✽ A 2-level display when shipped from the factory. A 3-level display is activated if parameters are initialized. For details on the third display level, refer to the User’s Manual, Basic Type (Cat. No. H156). Dimensions...
  • Page 13: Terminal Covers

    • Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.) • To mount the Controller so that it is waterproof, insert the waterproof packing onto the Controller. • When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifications.
  • Page 14: Current Transformers

    Y92S-P5 (for DIN 48 × 96) Order the Waterproof Packing separately if it becomes lost or damaged. The Waterproof Packing can be used to achieve an IP66 degree of protection. (Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66.
  • Page 15: Basic Type

    Setting Levels Diagram This diagram shows all of the setting levels. To move to the advanced function setting level and calibration level, you must enter passwords. Some parameters are not displayed depending on the protect level setting and the conditions of use.
  • Page 16: Manual Control Level

    Press the O and M Keys for Press the O Key alt1 Alarm 1 Type at least 3 s. Press the O and M Keys for at least 1 s. less than 1 s. Communications Wait Band wt-b HS Alarm 2...
  • Page 17: Advanced Function Setting Level

    Item Display 5 Item Display 2 Note: The monitor/setting items to be displayed is set in the Monitor/Setting Item 1 to 5 parameters (advanced function setting level). Press the O Key for at least 1 s. Advanced Function Setting Level...
  • Page 18: Safety Precautions

    30 V r.m.s. and 42.4 V peak or 60 VDC. connected to the product. Malfunction may occur due to ✽2. A class 2 power supply is one tested and certified by UL as having noise in the cable. the current and voltage of the secondary output restricted to specific levels.
  • Page 19: Precautions For Correct Use

    3. Mount the product so that it is horizontally level. use RAM write mode when frequently overwriting data during 4. If the measurement accuracy is low, check to see if input shift has communications or other operations. been set correctly.
  • Page 20: Removing The Temperature Controller From The Case

    2. Insert the flat-blade screwdriver in the gap between the front panel and rear case (two on the top and two on the bottom), and use it to pry and pull out the front panel slightly. Then, pull out on the front panel gripping both sides.
  • Page 21 E5AN/E5EN Basic-type Digital Temperature Controller...
  • Page 22: Warranty And Application Considerations

    CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted. IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE...
