CIMR-A
A1000
High performance Vector Control
• Current vector control, with or without PG
• High starting torque (200% / 0.3 Hz, spd range 1:200 OLV),
(200% at 0 r/min, spd range 1:1500 CLV)
• Double rating ND 120%/1min and HD 150%/1 min
• IM&PM motor control
• Advanced Auto-Tuning for IM & PM Motors
• Open Loop Control of PM Motors
• Low-noise Low carrier technology
• 10 years lifetime design
• Screw-less terminals
• Control Terminals with memory backup
• 24 VDC control board power supply option
• Fieldbus communications: Modbus, Profibus, CanOpen,
DeviceNet, ML-II
• Safety embedded: EN954-1 safety cat. 3, stop category 0,
IEC EN 61508 SIL 2 and EN61800-5-1 with EDM
• CE, UL, cUL and TUV
Ratings
• 200 V Class three-phase 0.4 to 110 kW
• 400 V Class three-phase 0.4 to 315 kW

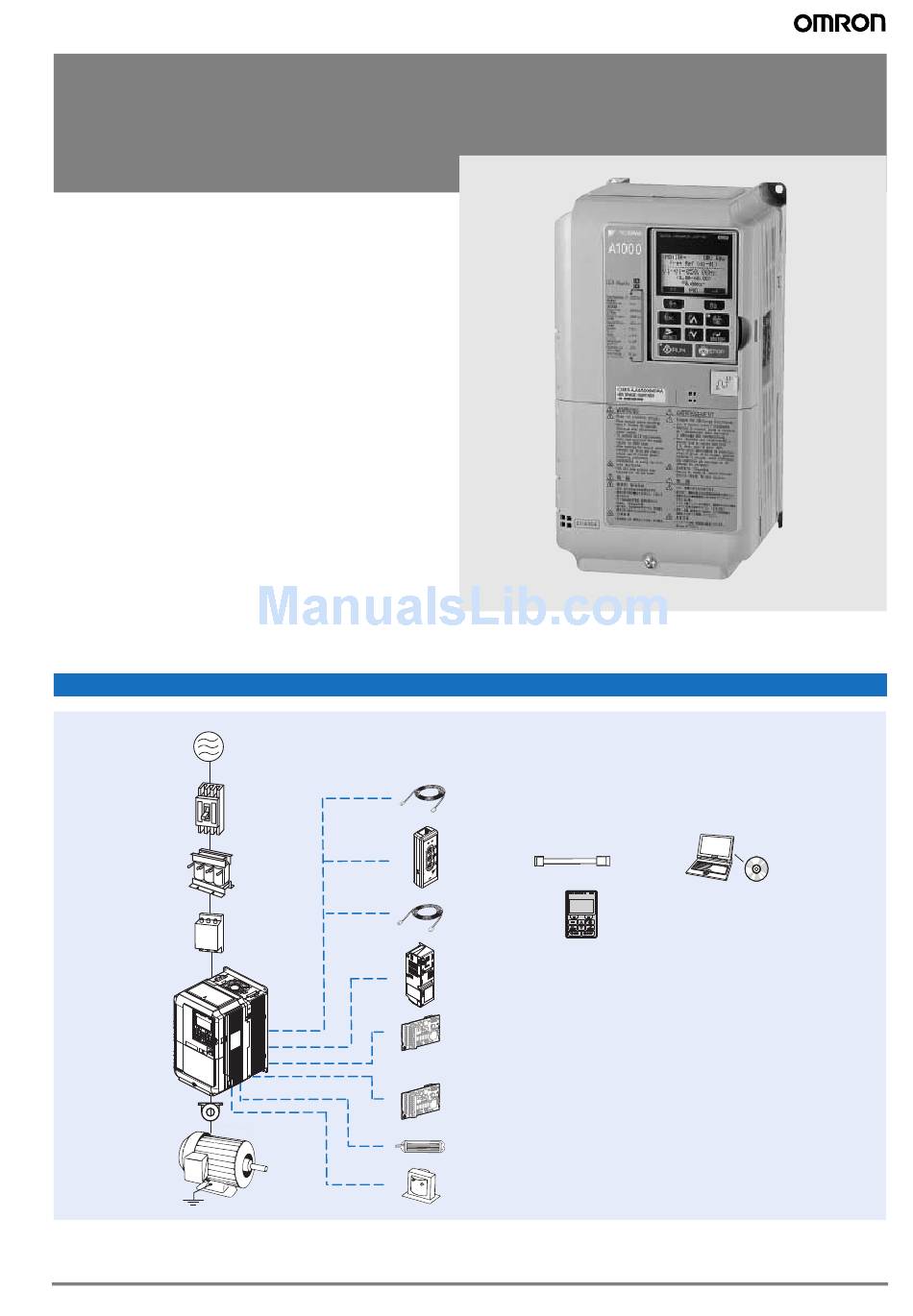

System configuration
Power
Supply
MCCB
AC Reactor
Filter
A1000
Choke
Motor
Ground
A1000
Communications cable with PC
ni t
y U
C op
U SB
R
ER
M
C O
RJ-45 / USB
Adapter
C K
LO
A
SK
AW
18
1
YA
O P-
JV
Remote Operator
Extansion Cable
24 VDC Control Board Power Supply
Communication Option Board
Feedback Speed Option Cards
Braking Resistor
DC Reactor
USB Cable
CX-Drive
CX-One
LCD Remote
Operator
1
