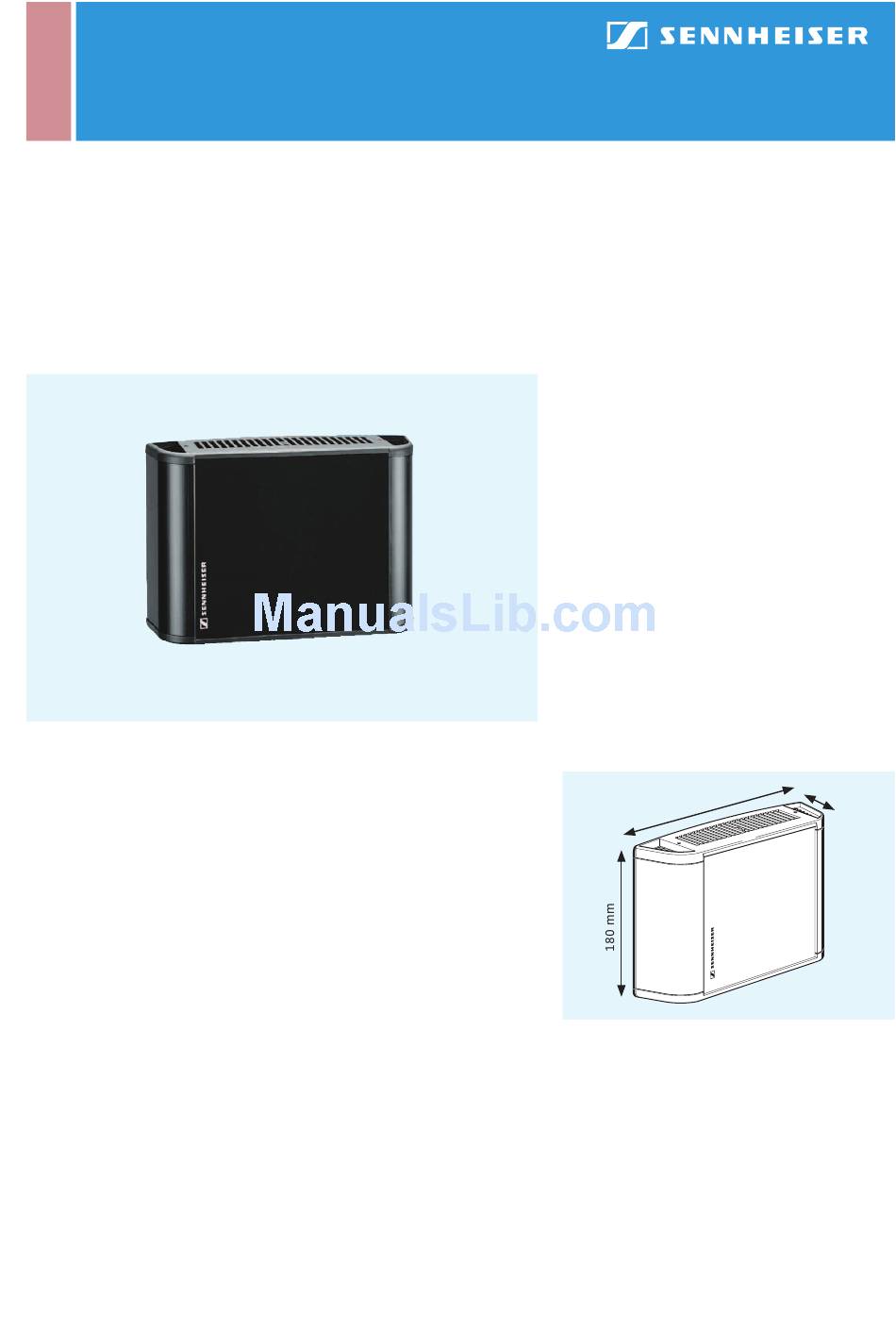

IR Audio Transmission Technology |
General Description
The SZI 1029 is a 5-W high-power radiator for use with all wideband and narrow-
band modulators. The radiator is automatically switched on by the RF carrier and
can cover areas of up to 800 m
transmitting diodes have been arranged in 12 independent groups to ensure
re liable transmission. A malfunction indicator is triggered when the radiating power
is reduced by more than 30 %.
Features
High-power radiator with a maximum coverage area of 800 m
RF output for connecting additional radiators
Automatic on/off function
Versatile installation due to 5/8", 3/8" and 1/2" threads
Excellent reliability due to 12 independent groups of transmitting diodes
and malfunction indicator
Delivery includes: 1 radiator
1 mains cable
Recommended Accessories
BNC-BNC co-axial cable
GZA 1019 A 1 (1 m)
GZA 1019 A 5 (5 m)
GZA 1019 A 10 (10 m)
GZV 1019 A BNC coupler
GZP 10 mounting plate
GZG 1029 swivel joint
MZT 100 anti-vibration table stand
Product Variants
SZI 1029-EU: High-power radiator, Euro mains cable,
5 W radiating power, black housing
SZI 1029-UK: as SZI 1029-EU, but with UK mains cable
SZI 1029-120: as SZI 1029-EU, but with USA mains cable
SZI 1029-EU-W: as SZI 1029-EU, but with white housing
SZI 1029-24: as SZI 1029-EU,
but with operating voltage of 24 V DC
2
in single-channel operation. High-quality GaAlAs
Modulators/Radiators
Technical Data
IR diodes............................................................... 132 GaAlAs
Average radiating power ............................................... 5 W
Operating voltage.......................... 85 – 260 V, 50 – 60 Hz
Current consumption
– operation.................................. 350 mA (120 V: 610 mA)
– stand-by.....................................................................50 mA
RF input ................................................................. BNC socket
Input impedance ..............................................approx. 5 kΩ
Max. coverage area..................................... approx. 800 m
Threshold voltage for
automatic on/off function ................... 50 mV (RF signal)
RF output .............................................................. BNC socket
Weight ..............................................................approx. 2.1 kg
2
Cat. No. 002324
Cat. No. 002325
Dimensions of the SZI 1029
Cat. No. 002326
Cat. No. 002368
Cat. No. 003193
Cat. No. 003226
Cat. No. 001883
Cat. No. 003664
Cat. No. 004077
Cat. No. 004078
Cat. No. 004076
Cat. No. 004100
80 mm
250 mm
2
