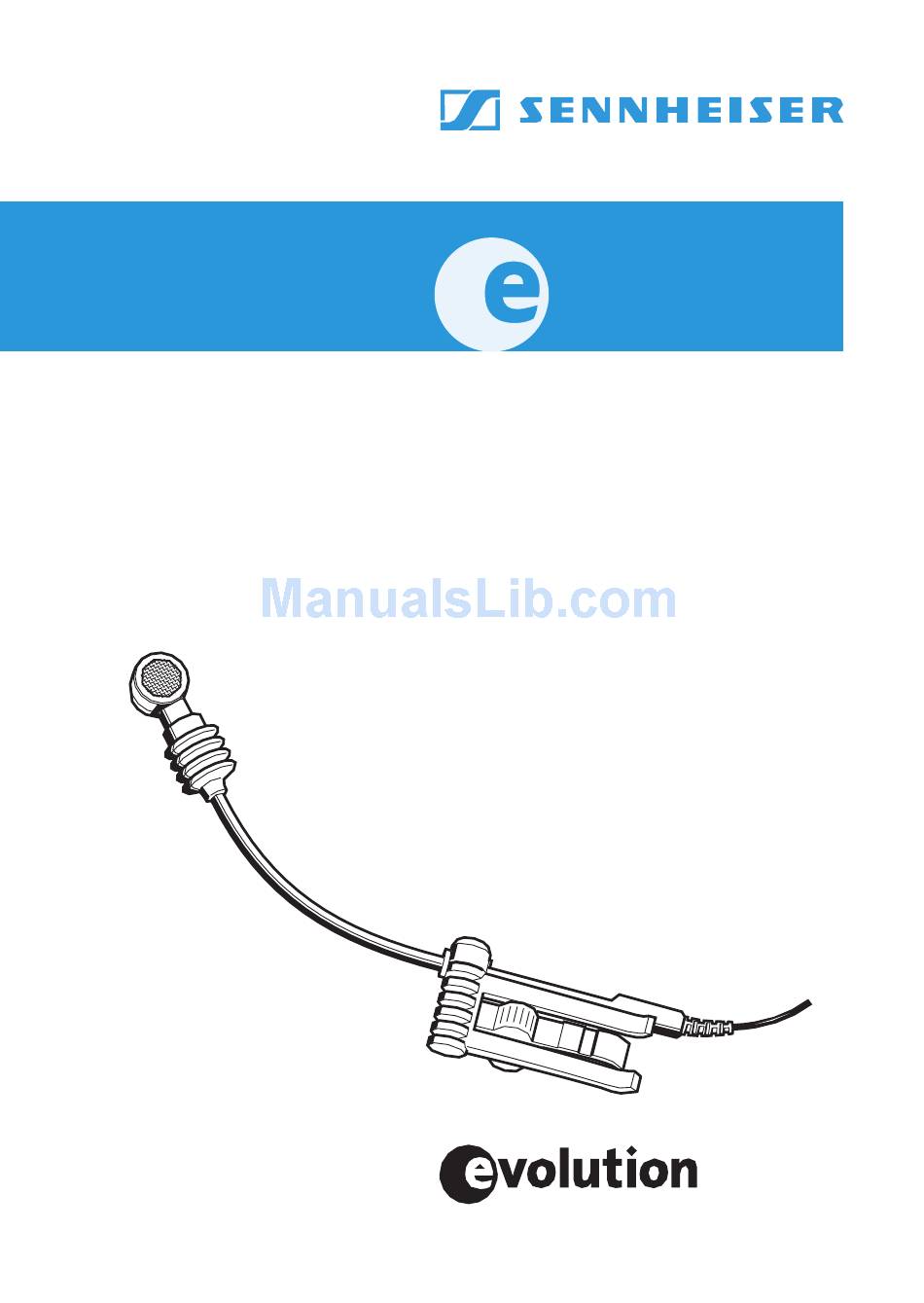

- Page 1 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
- Page 2 608 is a dynamic microphone ideal for almost invisible clip-miking of drums, percussions, brass and woodwind (except certain flutes). The goose- neck mounting enables the capsule to be positioned close to the signal source for high realism and high-level output.
-
Page 3: Positioning The Microphone
To reduce ambient noise (at the expense of the true “Saxophone sound”) direct the microphone into the bell. In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so... -
Page 4: Polar Diagram
250 Hz 4000 Hz 500 Hz 8000 Hz 16000 Hz 1000 Hz Frequency response curve - 40 - 50 - 60 - 70 - 80 - 90 500 1000 2000 5000 10000 20000 Hz 0°, 1 m 0°, 5 cm... - Page 5 Specifications Transducer principle dynamic Frequency response 40..16,000 Hz Pick-up pattern super-cardioid Sensitivity (free field, no load) (at 1 kHz) 0.8 mV/Pa Nominal impedance (at 1 kHz) 250 Ω Min. terminating impedance 1 kΩ Connector XLR-3 3 m, with XLR-plug Connection cable Dimensions Ø...
-
Page 6: Overview Of Microphone Applications
Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchestra Brass / Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overheads... -
Page 7: Manufacturer Declarations
CE standards and regula- tions. WEEE Declaration Please dispose of this product at the end of its operational li- fetime by bringing it to your local collection point or recycling centre for such equipment. - Page 8 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 01/07 094285/A02...
