Summary of Contents for Sennheiser Evolution E 602

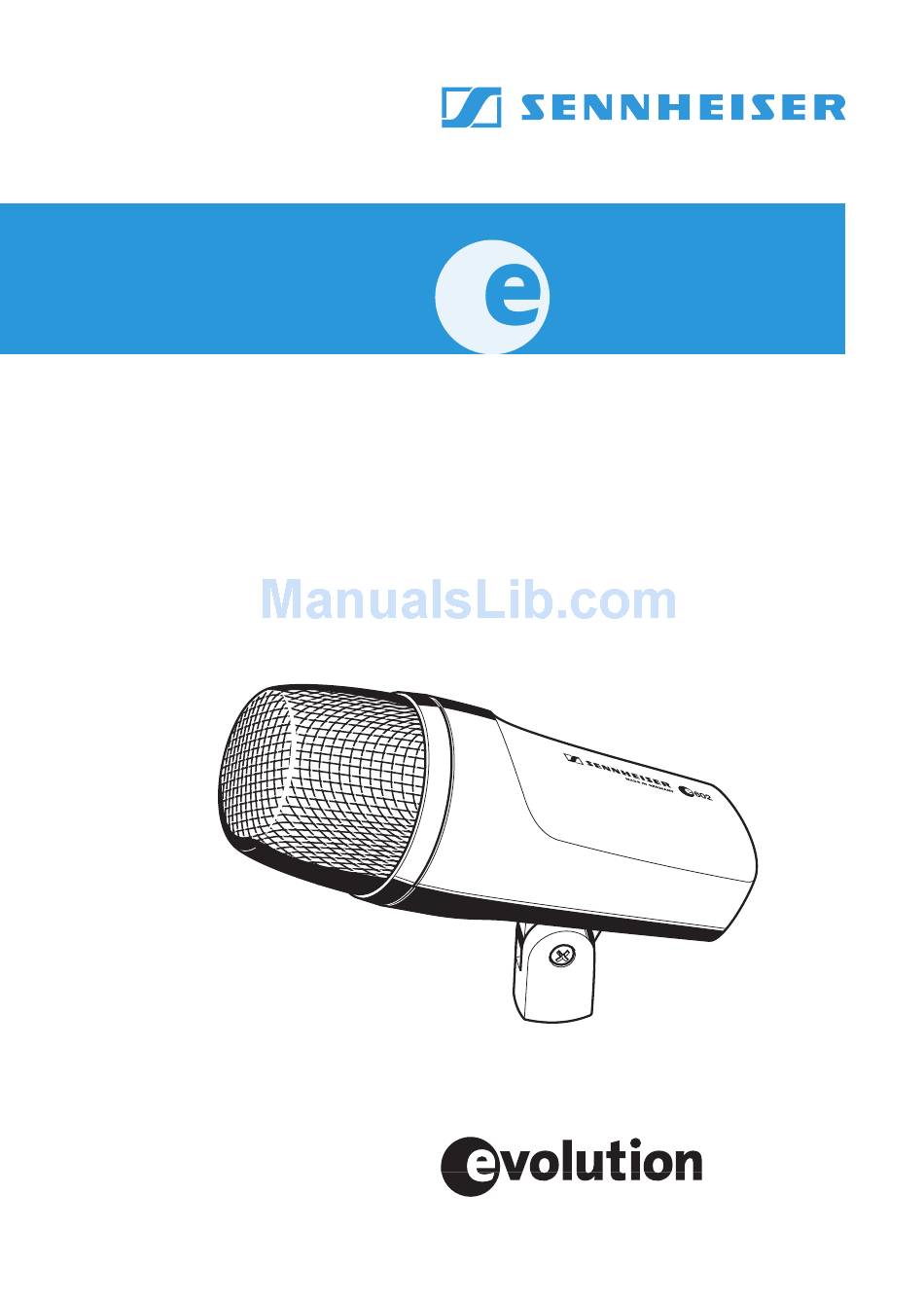

- Page 1 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
- Page 2 Bedienungsanleitung.............. 3 Instructions for use ..............9 Notice d’emploi ..............15 Istruzioni per l’uso..............21 Instrucciones para el uso............27 Gebruiksaanwijzing...............33...
- Page 3 The cardioid 602 is a dynamic microphone especially suitable for use with kick drums, bass guitar cabs, tubas and other low frequency instruments. It combines a lightweight high-performance voice coil construction with a traditional large diaphragm capsule design to deliver a very low bass response and fast transient signals.
- Page 4 Delivery includes 602 microphone Pouch Instructions for use Warranty Certificate Removing the sound inlet basket...
-
Page 5: Positioning The Microphone
In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. 180°; see polar diagram). -
Page 6: Frequency Response Curve
250 Hz 4000 Hz 500 Hz 8000 Hz 16000 Hz 1000 Hz Frequency response curve - 40 - 50 - 60 - 70 - 80 - 90 500 1000 2000 5000 10000 20000 Hz 0°, 1 m 0°, 5 cm... -
Page 7: Specifications
Specifications Transducer principle dynamic Frequency response 20..16,000 Hz Pick-up pattern cardioid Sensitivity (free field, no load at 1 kHz) 1.0 mV/Pa 250 Ω Nominal impedance (at 1 kHz) Min. terminating impedance 1 kΩ Connector XLR-3 Dimensions Ø 60 x L 153 mm... -
Page 8: Overview Of Microphone Applications
Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchestra Brass / Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overheads... - Page 9 Sennheiser electronic GmbH & Co. KG erklären, dass dieses Gerät die anwendbaren CE-Normen und Vorschriften erfüllt. Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations. Certification Sennheiser electronic GmbH & Co. KG déclarons que cet appareil est en conformité...
- Page 10 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 09/04 511649/A01...
