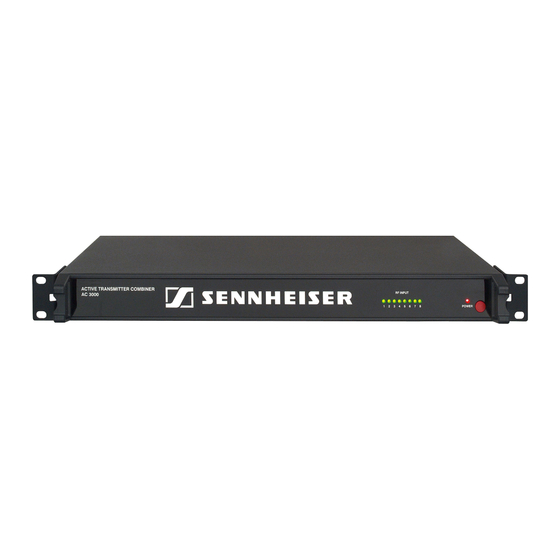

Sennheiser AC 3000 - 04-06 Instructions For Use Manual
Active transmitter combiner 8:1
Hide thumbs
Also See for AC 3000 - 04-06:
- Product sheet (2 pages) ,
- Instructions for use manual (13 pages)
Related Manuals for Sennheiser AC 3000 - 04-06
Summary of Contents for Sennheiser AC 3000 - 04-06
- Page 1 Active Transmitter Combiner 8:1 AC 3000 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
- Page 3 Active Transmitter Combiner 8:1 AC 3000 Instructions for use...
-
Page 4: Table Of Contents
Brief description With the AC 3000 8-to-1 active transmitter combiner, the signals of up to eight SR 3054 transmitters or up to four SR 3056 twin transmitters can be combined onto a single antenna (A 2003 UHF directional antenna or A 1031 U omni-directional antenna). - Page 5 If units and cables are set up improperly, persons can be injured or units can be damaged! Set up the unit on an even surface or mount it into a rack! Lay the cables in such a way that no-one can stumble over...
-
Page 6: Delivery Includes
You additionally require BNC cables for connecting the transmitters and the antenna to the AC 3000, an antenna (A 2003 UHF passive directional antenna or A 1031 U pas- sive omni-directional antenna) and up to eight SR 3054 transmitters or up to four SR 3056 twin transmitters. -
Page 7: Connection Diagram
8-channel system. Putting the unit into operation Setting up the unit Set up the AC 3000 on an even, horizontal surface so that it cannot fall over or mount it into a 19" rack. Warning! During operation, the AC 3000 and the connected... - Page 8 Connecting the antenna The AC 3000 active transmitter combiner can be used with either the A 2003 UHF directional antenna or the A 1031 U omni-directional antenna. The antenna transmits the sig- nals of all connected transmitters. The signals are combined onto the antenna output with no distribution attenuation.
-
Page 9: Operation
POWER goes off. RF signal indication The AC 3000 features eight control LEDs which will light up if an input signal is present at the corresponding input. Troubleshooting One or several LEDs for input signal indication do not light up Check if transmitters are connected to the corresponding inputs. -
Page 10: Accessories
Distribution attenuation 0 dB (±1 dB) RF input power max. 100 mW per input 50 Ω Impedance Power supply 100 V – 240 V AC, 50 – 60 Hz Current consumption max. 120 VA Temperature range –10 °C to +55°C Weight... -
Page 11: Manufacturer Declarations
The guarantee is void if the product is manipulated by non-authorised persons or repair stations. In the case of a claim under the terms of this guarantee, send the device, inclu- ding acces-sories and sales receipt, to the responsible service partner. To mini- mise the risk of transport damage, we recommend that the original packaging is used. - Page 14 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 04/06 093908 / A04...
