Summary of Contents for AOC E970SWN

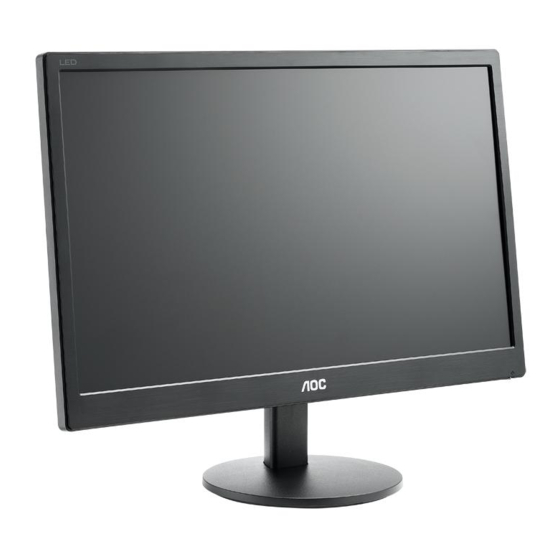

- Page 1 E970SWN/E970SWNL/E970SWN5 E2270S /E2270SWN6/E2270SWN5 (LED Backlight)
-
Page 2: Table Of Contents
Contents of Box ..............................9 Setup Stand ..............................10 Adjusting Viewing Angle ........................... 11 Connecting the Monitor ............................ 12 AOC Anti-Blue Light Feature Description(Optional) ..................13 Adjusting ................................. 14 Hotkeys ................................14 OSD Setting ..............................15 LED Indicator ..............................16 Driver .................................. -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 7: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too roughas it will scratch the screen surface. -
Page 8: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 9: Setup
Setup Contents of Box Monitor CD Manual Monitor Base Power Cable Analog Cable... -
Page 10: Setup Stand
Setup Stand Please setup or remove the Stand following the steps as below. Setup: Remove:... -
Page 11: Adjusting Viewing Angle
For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor's angle from-3° to 10 ° (E970SWN/E970SWNL/E970SWN5) or -5° to 15 ° (E2270S /E2270SWN6/E2270SWN5). -
Page 12: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 1. Power 2. Analog (D-Sub 15-Pin VGA cable) To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the AC port on the back of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port. -
Page 13: Aoc Anti-Blue Light Feature Description(Optional)
Studies have shown that just as ultra-violet rays can cause eye damage, blue light rays from LED displays can cause damage to different parts of the eye and affect vision over time. AOC Anti-Blue Light feature uses a smart technology to reduce the harmful blue light waves without affecting the color or image of the display. -
Page 14: Adjusting
Adjusting Hotkeys Power/MENU Power/ MENU When Power off, press button to turn on the monitor. When Power on, press button continuously about 3 seconds to turn off the monitor . -
Page 15: Osd Setting
OSD Setting Basic and simple instruction on the control keys. 1).Press the bottom key to activate the OSD window. 2). You can now select any one of the functions by quickly repeat-pressing the bottom key . The blue box will navigate towards the right as you press the key. -
Page 16: Led Indicator
LED Indicator Status LED Color Full Power Mode Green Active-off Mode Flickering Green... -
Page 17: Driver
Driver i-Menu Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. -
Page 18: E-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep/Standby mode or Screen Saver); the actual shutdown time depends on your preferences (see example below). -
Page 19: Screen
Screen+ Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the... -
Page 20: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Picture Is Fuzzy & Has Adjust the Contrast and Brightness Controls. - Page 21 Regulation & Service Please refer to Regulation & Service Information which is in the CD manual or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page.
-
Page 22: Specification
Specification General Specification Product name E970SWN/E970SWNL/E970SWN5 Driving system TFT Color LCD Viewable Image Size 47.00cm diagonal Pixel pitch 0.3 mm(H) x 0.3 mm(V) Panel Video R, G, B Analog lnterface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 85.5MHz... - Page 23 Product name E2270S /E2270SWN6/E2270SWN5 Driving system TFT Color LCD Viewable Image Size 54.7cm diagonal Pixel pitch 0.2482mm(H)X0.2482mm(V) Panel R, G, B Analog lnterface Video Separate Sync H/V TTL Display Color 16.7M Colors Dot Clock 148.5 MHz Horizontal scan range 30 kHz - 83 kHz Horizontal scan Size(Maximum) 476.64mm Vertical scan range 50 Hz - 76 Hz...
-
Page 24: Preset Display Modes
Preset Display Modes Inch Standard Resolution Frequency Frequency 18.5" 19" 19.5" 20" 21.5" 22" 23" 23.6" (kHz) (Hz) √ √ √ √ √ √ √ √ 640 X 480@60Hz 31.469 59.940 √ √ √ √ √ √ √ √ 640 X 480@67Hz 35.000 66.667 √... -
Page 25: Pin Assignments
Pin Assignments Pin Number 15-Pin Side of the Signal Cable Video-Red Video-Green Video-Blue N.C. Detect Cable GND-R GND-G GND-B Ground N.C. DDC-Serial data H-sync V-sync DDC-Serial clock... -
Page 26: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
