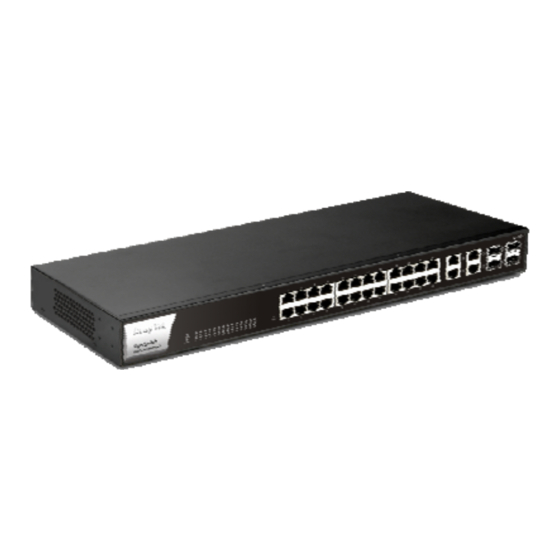

VigorSwitch G1282 (without PoE) VigorSwitch P1282 (with PoE) VigorSwitch P1281x (with PoE) Rack Mount Kit (brackets) Quick Start Guide The type of the power cord depends on the country that the switch will be installed. UK-type Power Cord EU-type Power Cord...
Page 5
Combo Ports RJ45 Ports / PoE Ports (Port 1 to 24) SFP (LNK/ACT) Status Explanation On (Green) Connected over the PoE maximum power PoE/Max budget. (P1282) Connected within the PoE maximum power budget. The switch finishes system booting and the On (Green) system is ready.
Page 6
the device connected Port 25 to Port 28 are used for fiber Combo Port (25-28) connection. Power inlet for AC input (100~240V/AC, 50/60Hz). The following limitation is suitable for VigorSwitch P1282 Note Power Output -- IEEE 802.3af Max. 15.4W Output Supported ...
Page 7
10G ~1G SFP (LNK/ACT) RJ45 Ports / PoE Ports (Port 1 to 24) Status Explanation On (Green) Connected over the PoE maximum power PoE/Max budget. Connected within the PoE maximum power budget. The switch finishes system booting and the On (Green) system is ready.
Page 8
Note The following limitation is suitable for VigorSwitch P1281x Power Output -- IEEE 802.3af Max. 15.4W Output Supported IEEE 802.3at Max. 30W Output Supported PoE Power Budget –- 140 Watts (Max) ...
Page 9
Before starting to configure the switch, you have to connect your devices correctly. Use a Cat. 5e twisted-pair cable to connect a PoE device to the port (1~24) of this switch. The switch will supply power to PoE Device over the twisted-pair cable. ...
Page 10
The switch can be installed easily by using rack mount kit. Fasten the rack mount kit on both sides of the VigorSwitch using specific screws. Then, install the VigorSwitch (with rack mount kit) on the 19-inch chassis by using other four screws.
Page 11
In this section, we take VigorSwitch P1282 as an example: Before using the switch, perform the following steps: 1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5e cable with RJ-45 connector. If a PC directly connects to the switch, you have to setup the same subnet mask for PC and the switch.
Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com. & & Due to the continuous evolution of DrayTek technology, all switches will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. https://www.draytek.com GPL Notice This DrayTek product uses software partially or completely licensed under the terms of the GNU GENERAL PUBLIC LICENSE.
