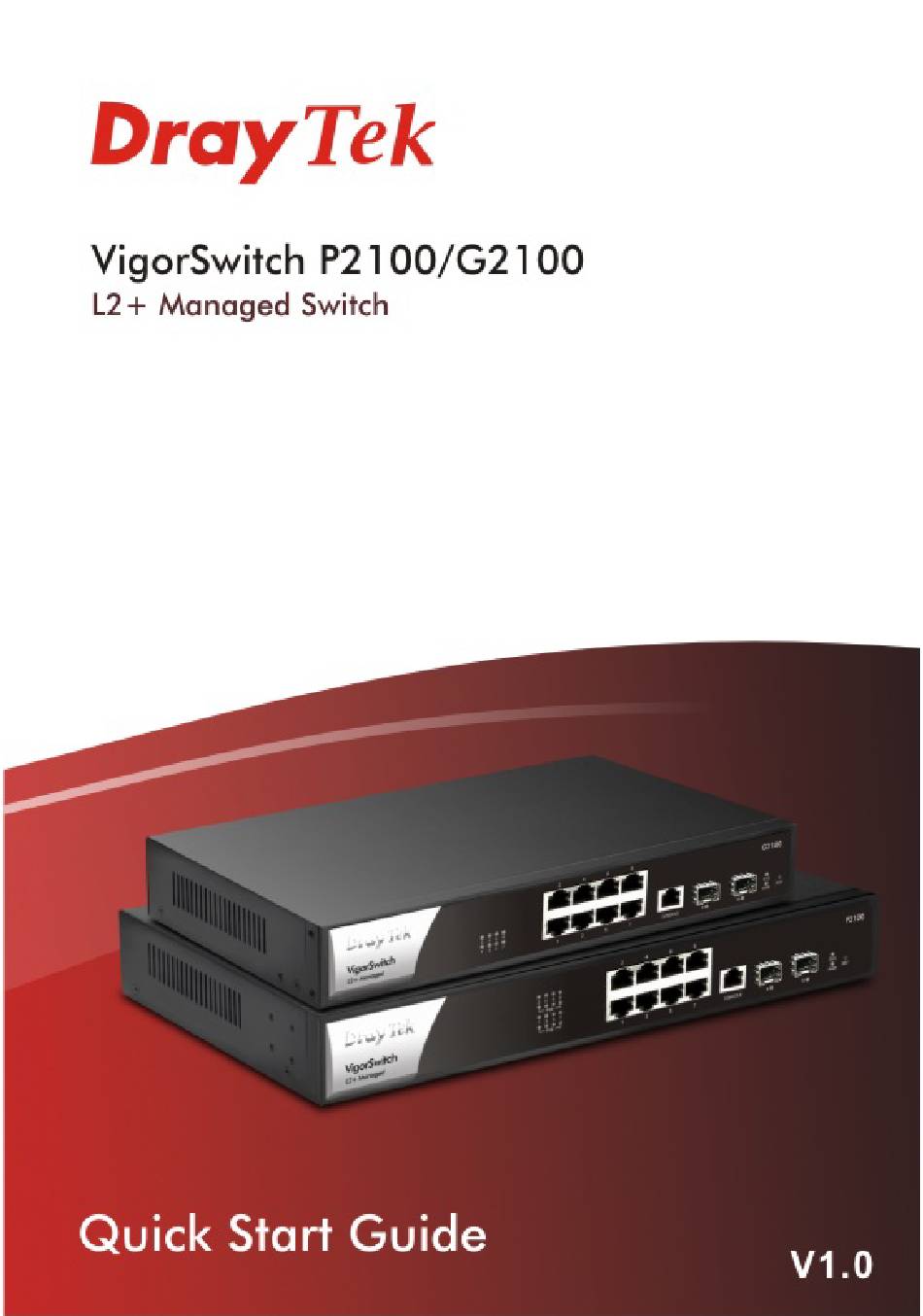

- Page 2 L2+ Managed Switch Quick Start Guide Version: 1.0 Firmware Version: V2.6.5 (For future update, please visit DrayTek web site) Date: January 27, 2021 © All rights reserved. This publication contains information that is protected by copyright. No part Copyrights may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders.
-
Page 3: Eu Declaration Of Conformity
EU Declaration of Conformity We DrayTek Corp. , office at No.26, FuShing Road, HuKou, HsinChu Industrial Park, Hsinchu 303, Taiwan , R.O.C., declare under our sole responsibility that the product Product name: PoE 8+2 Gigabit Switch Model number: VigorSwitch P2100 ... -
Page 4: Regulatory Information
EU Declaration of Conformity We DrayTek Corp., office at No.26, Fu Shing Road, HuKou County, Hsin-Chu Industry Park, Hsinchu 300, Taiwan , R.O.C., declare under our sole responsibility that the product Product name: 8+2 Gigabit Switch Model number: VigorSwitch G2100 ... - Page 5 If any of these items is found missing or damaged, please contact your local supplier for replacement. Note The following limitation is suitable for VigorSwitch P2100 Power Output -- IEEE 802.3af Max. 15.4W Output Supported IEEE 802.3at Max. 30W Output Supported PoE Power Budget –-...
- Page 6 PoE for Port 1 to Port 8 CONSOLE RJ45 LNK/ACT Port 1 to Port 8 LNK/ACT Status Explanation PoE (for On (Green) Devices connected over the PoE maximum power budget. P2100) Blinking (Green) More than 80% of maximum power budget is supplied for PoE device(s). Devices connected within the PoE maximum power budget.
- Page 7 Other PCs, servers and network devices can be connected to the switch using a standard ‘straight through’ twisted pair cable. (Take VigorSwitch P2100 as an example.) The switch can be installed easily by using rack mount kit. Attach the brackets to the chassis of a 19- or a 23-inch rack.
- Page 8 In this section, we take VigorSwitch P2100 as an example: Before using the switch, perform the following steps: 1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5e cable with RJ-45 connector.
-
Page 9: Gnu General Public License
Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com. & & Due to the continuous evolution of DrayTek technology, all switches will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. https://www.draytek.com...
