*15G067050000AK*
P/N: 15G067050000AK V1.0

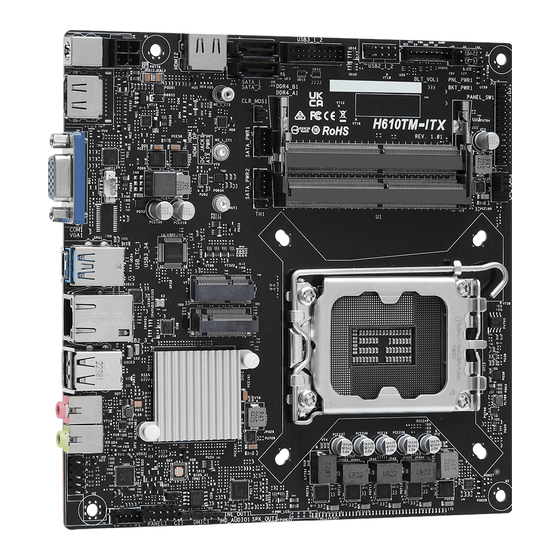

H610TM-ITX
Take note of the following precautions before you install motherboard components or change any
motherboard settings.
1.
Unplug the power cord from the wall socket before touching any components.
2.
To avoid damaging the motherboard's components due to static electricity, NEVER place your
motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3.
Hold components by the edges and do not touch the ICs.
4.
Whenever you uninstall any component, place it on a grounded anti-static pad or in the bag
that comes with the component.
5.
When placing screws into the screw holes to secure the motherboard to the chassis, please do
not over-tighten the screws! Doing so may damage the motherboard.
Specifications
2
Form
• Thin Mini-ITX Form Factor
Factor
Dimen-
• 6.7" x 6.7"
sion
th
th
CPU
• Supports 14
, 13
& 12
TM
Gen Intel® Core
Processors
(LGA1700)
• 4 Power Phase design
• Supports Intel® Hybrid
Technology
• Supports Intel® Turbo Boost Max
3.0 Technology
Chipset
• Intel® H610
Memory
• Supports 2 x DDR4
SO-DIMM Slots, Max. 64GB
Expansion
• 1 x M.2 Socket (Key E), supports
Slot
type 2230 WiFi/BT module
Audio
• Realtek ALC269
LAN
• Realtek RTL8111H
Storage
• 1x Blazing M.2 (2260/2280) PCIe
Gen5 x4
• 1x M.2 (2280) SATA 6Gb
• 2 x SATA 6Gb
Rear USB
• 1 x USB 3.2 Gen2 Type-A
• 1 x USB 3.2 Gen2 Type-C
• 2 x USB 2.0
Video
• HDMI1 (Rear)
Output
HDMI2 (Internal)
• 1 x LVDS
• D-Sub
Onboard
• 1 x Chassis Intrusion Header
header
• 1 x Panel Voltage Selection
Header
• 1 x Backlight Inverter Voltage
Selection Header
• 1 x FPD Brightness Header
• 1 x Panel Off Header
• 1 x LVDS Connector
• 1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports
the CPU fan of maximum 1A (12W)
fan power.
• 1 x 4 pin 19V Power Connector
(2-Pin)
• 1 x Thermal Sensor Header
• 1 x Front Panel Audio Connector
• 1 x Internal Speaker Header (4-
Pin)
• 1 x Digital MIC Header
• 2 x SATA Power Connectors
• 1 x USB 2.0 Header (Supports 2
USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header
(Supports 2 USB 3.2 Gen1 ports)
Power
• 1 x DC Jack (Supports 19V DC
Power Adapters)
Certifica-
• FCC, CE
tions
• ErP/EuP ready (ErP/EuP ready
power supply is required)

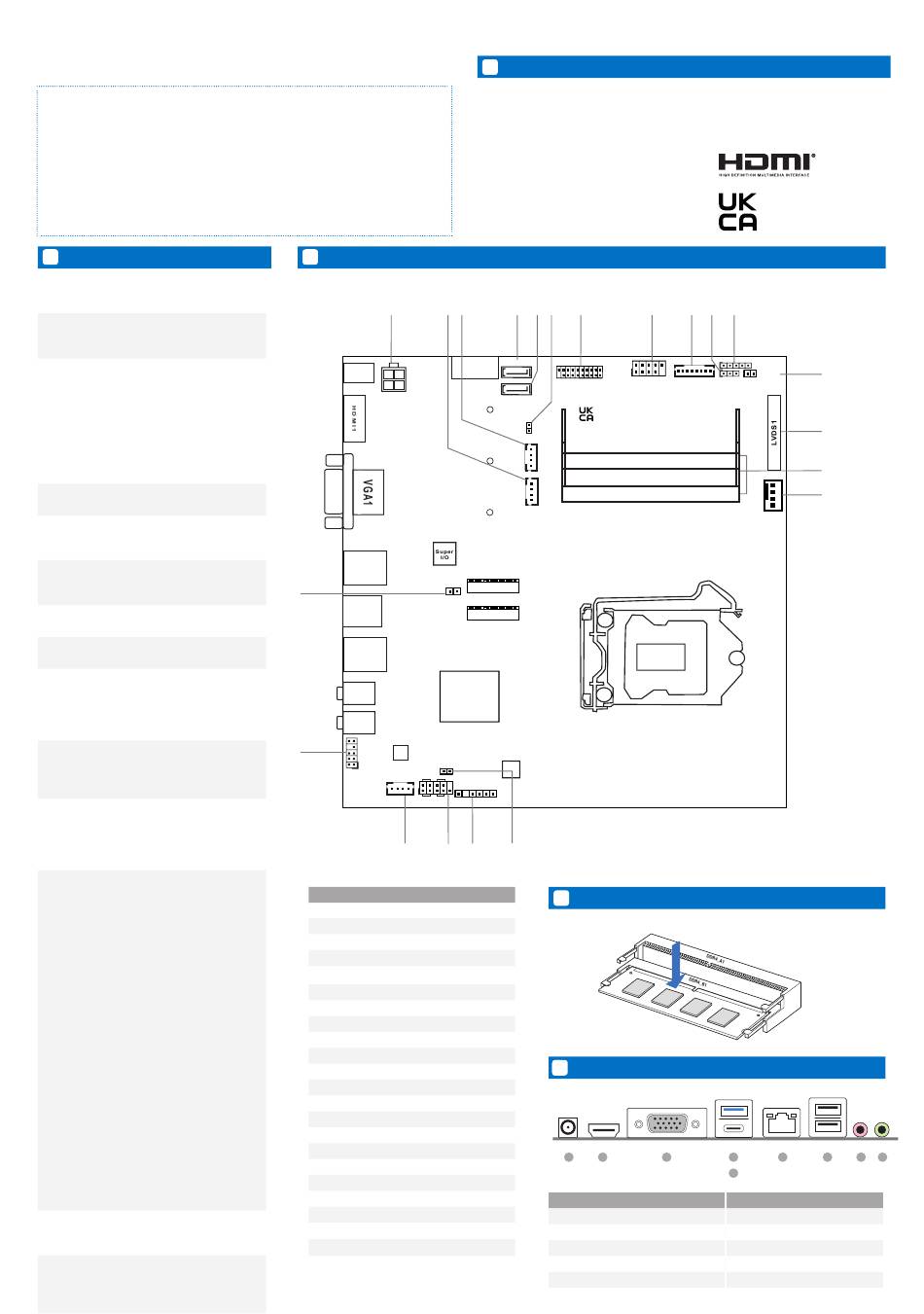

Quick Installation Guide
Motherboard Layout
3
1
ATX_PWR1
th
DC Jack
USB 3.2 Gen2
T: USB3_3
B: USB_TC_1
21
RJ-45
USB 2.0
T: USB_3
B: USB_4
Mic In
Line out
20
1
HD_AUDIO1
SPK_OUT1
1
No. Description
1
4 pin 19V Power Connector (ATX_PWR1)
2
SATA Power Connector (SATAPWR2)
3
SATA Power Connector (SATAPWR1)
4
SATA3 Connector (SATA_1)
5
SATA3 Connector (SATA_2)
6
Clear CMOS Jumper (CLR_MOS1)
7
USB 3.2 Gen1 Header (USB3_1_2)
8
USB 2.0 Header (USB2_1_2)
9
FPD Brightness Header (BLT_VOL1)
10
Backlight Inverter Voltage Selection Header
(BKT_PWR1)
11
Panel Voltage Selection Header (PNL_PWR1)
12
Panel Off Header (PANEL_SW1)
13
LVDS Connector (LVDS1)
14
2 x 260-pin DDR4 SO-DIMM Slots
(DDR4_A1, DDR4_B1)
15
CPU Fan Connector (CPU_FAN1)
16
Chassis Intrusion Header (CI1)
17
Digital MIC Header (DMIC1)
18
System Panel Header (PANEL1)
19
Internal Speaker Header (SPK_OUT1)
20
Front Panel Audio Header (HD_AUDIO1)
21
Thermal Sensor Header (TH1)
1
Package Contents
• H610TM-ITX Motherboard (Thin Mini-ITX Form Factor)
• H610TM-ITX Quick Installation Guide (Optional)
• 1 x Thin-Mini ITX I/O Shield (Optional)
• 1 x Mini ITX I/O Shield (Optional)
• 1 x Serial ATA (SATA) Data Cable (Optional)
• 1 x SATA Power Cable (Optional)
• 3 x Screws for M.2 Sockets (M2*2) (Optional)
• 1 x Standoff for M.2 Socket (Optional)
2
3
4
5
6
SATA_1
HDMI2
SATA_2
M2_1_CT1
CLR_MOS1
1
SATAPWR1
1
M2_1_CT2
SATAPWR2
1
NUT1
TH1
M.2 WiFi
1
M.2 SSD
Intel
H610
Audio
CODEC
CI1
BIOS
1
ROM
PLED PWRBTN
DMIC1
1
HDLED RESET
1
PANEL1
19
18
17
16
4
5
1
No. Description
1
2
3
4
5
The terms HDMI
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
7
8
9
10
11
PNL_PWR1
1
1
1
1
1
1
USB2_1_2
BKT_PWR1
USB3_1_2
BLT_VOL1
H610TM-ITX
RoHS
DDR4_B1
DDR4_A1
SO-DIMM
I/O Panel
2
3
4
5
No. Description
DC Jack (19V)
6
HDMI Port (HDMI1)
7
D-Sub Port
8
USB 3.2 Gen2 Type-A Port (USB3_3)
9
USB 3.2 Gen2 Type-C Port (USB_TC_1)
®
and HDMI High-Definition
12
PANEL_SW1
13
14
15
CPU_FAN1
6
7
8
9
LAN RJ-45 Port*
USB 2.0 Ports (USB_3_4)
Microphone (Pink)
Line out (Lime)
