- Page 1 Clamp Meter PN 4045148 (English) June 2012 Rev. 2, 5/24 ©2012-2024 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All Product names are trademarks of their respective companies.
- Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for two years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
-
Page 3: Table Of Contents
Table of Contents Title Page Introduction ................................1 Contact Fluke ................................1 Safety Information..............................2 Jaw Maintenance..............................2 How to Clean the Product .............................3 Product Disposal ..............................3 Specifications ................................4 Electrical Specifications ..........................4 Mechanical Specifications ..........................5 Environmental Specifications ........................5 The Product ................................6... - Page 4 Users Manual...
-
Page 5: Introduction

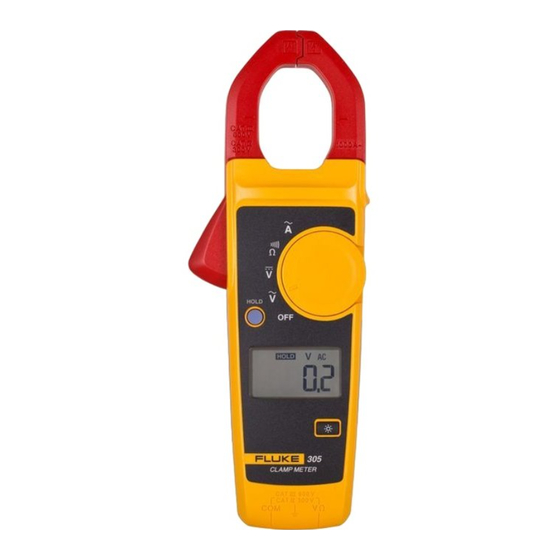

Introduction The Fluke 305 Clamp Meter (the Product) measures ac and dc voltage, ac current, resistance, and continuity. XW Warning Read Safety Information before you use the Product. Contact Fluke Fluke Corporation operates worldwide. For local contact information, go to our website: www.fluke.com. -
Page 6: Safety Information
General Safety Information is in the printed Safety Information document that ships with the Product and at www.fluke.com. More specific safety information is listed where applicable. Note The Measurement Category (CAT) and voltage rating of combinations of test probes, test probe accessories, current clamp accessories, and the Product is the LOWEST rating of individual components. -
Page 7: How To Clean The Product
Clamp Meter How to Clean the Product How to Clean the Product Regularly wipe the case with a damp cloth and mild detergent. W Caution To prevent damage to the Product, do not use abrasives or solvents to clean the Product case. -
Page 8: Specifications
Users Manual Specifications Electrical Specifications AC Current (Jaw) Range ..........999.9 Resolution ........0.1 A Accuracy ........1.5 % ±5 digits (45 Hz to 400 Hz) Note Add 2 % for position sensitivity. AC Voltage Range ..........600.0 V Resolution ........0.1 V Accuracy ........1.5 % ±5 digits (45 Hz to 400 Hz) DC Voltage Range ..........600.0 V Resolution ........0.1 V... -
Page 9: Mechanical Specifications
Clamp Meter Specifications Resistance Range ..........400.0 Ω/4000 Ω Resolution ........0.1 Ω/1 Ω Accuracy ........1 % ±5 digits Continuity Beeper .....≤70 Ω Mechanical Specifications Size (L x W x H)......207 mm x 75 mm x 34 mm Weight ...........205 g Environmental Specifications Temperature Coefficients..Add 0.1 x specified accuracy for each °C above 28 °C or below 18 °C... -
Page 10: The Product
Users Manual The Product... - Page 11 Clamp Meter The Product...
- Page 12 Users Manual 2:00 HOLD 2:00...
- Page 13 Clamp Meter The Product 600 V 600 V 300 V 300 V CLAMP METER CLAMP METER 600 V 600 V 300 V 300 V...
- Page 14 Users Manual >30 V CLAMP METER 600 V 300 V...
- Page 15 Clamp Meter The Product CLAMP METER CLAMP METER 600 V 600 V 300 V 300 V < 70...
- Page 16 Users Manual HOLD > 30 V 20 V...
- Page 17 Clamp Meter The Product...
- Page 18 Users Manual...
