Related Manuals for Seiki SC-800AU9FLMK2
Summary of Contents for Seiki SC-800AU9FLMK2

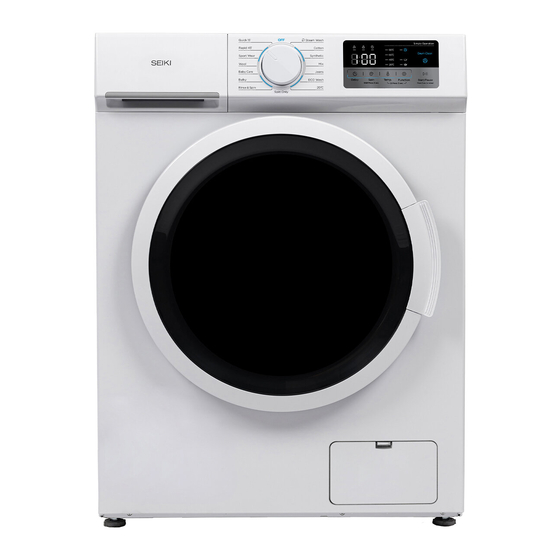

- Page 1 FRONT LOAD WASHING MACHINE SC-800AU9FLMK2 INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Product Overview Accessories Control Panel Getting Started Unpackaing Transportation and removal of Transport Bolts Levelling the appliance Connecting the water inlet hose Connecting the Drain Hose Instructions Before First Use Wash Care Symbols Detergent Dispenser Wash Programs Cleaning and Maintenance FAQs ERROR CODES... -
Page 4: General Safety
GENERAL SAFETY IMPORTANT INFORMATION Read this manual thoroughly before you start using the Front Load Washing Machine. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. Pay close attention to messages that follow this safety alert symbol or the words DANGER, WARNING... - Page 5 GENERAL SAFETY INSTRUCTIONS (Cont.) ELECTRICAL SAFETY • Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power outlet, it must be in good working order. • Power connection: Do not use an adaptor or an extension cord. Plug the power plug directly into a separate power point that cannot be accidentally turned off, and that is easily accessible so you can switch it off if needed.
- Page 6 GENERAL SAFETY INSTRUCTIONS (Cont.) USAGE CONDITIONS AND RESTRICTIONS • Supervision over children is to ensure that they do not play with the appliance. Never allow them to use, play with or crawl inside the appliance. Cleaning and maintenance must not be done by children. •...
- Page 7 GENERAL SAFETY INSTRUCTIONS (Cont.) CLEANING AND MAINTENANCE • Before cleaning or maintenance, always unplug the appliance from the power socket. Make sure you pull by the plug, not the cord as this can damage the power cord and cause a hazard. •...
-
Page 8: Product Overview
PRODUCT OVERVIEW ACCESSORIES Supply hose Cover Caps manual Acoustic sponge cold water... -
Page 9: Control Panel
PRODUCT OVERVIEW (Cont.) CONTROL PANEL START/PAUSE Select between extra rinse or standard. OPTION When using Pre-Delay, you can delay washing of up to 24 hours. PROGRAMMES DISPLAY DRUM CLEAN CHILD LOCK Press and hold *Temp. and Function for 3 seconds to activate child lock, follow same sequence to unlock. -
Page 10: Getting Started
GETTING STARTED Before installing your appliance, read all safety instructions in this manual, especially the sections on electrical safety and installation. UNPACKING • When unpacking the appliance, be sure to keep all the packaging materials until you have made sure your new appliance is undamaged and in good working order. -
Page 11: Levelling The Appliance
GETTING STARTED (Cont.) LEVELLING THE APPLIANCE IMPORTANT! Make sure to level the appliance carefully with a spirit level to ensure the most accurate levelling of the appliance. This is a must if your floor in unbalanced to level the washing machine. •... -
Page 12: Connecting The Water Inlet Hose
GETTING STARTED (Cont.) CONNECTING THE WATER INLET HOSE IMPORTANT! To prevent leakage or water damage please follow the below instructions. Do not kink, crush, modify or sever the water inlet hose. Minimum Inlet Water Pressure: 0.03MPa/Maximum Inlet Water Pressure: 1MPa Be sure to only use new hose sets when connecting the washing machine. -
Page 13: Connecting The Drain Hose
GETTING STARTED (Cont.) CONNECTING THE DRAIN HOSE Do not kink or protract the drain hose. Position the drain hose correctly otherwise dam- age will result in water leakage. There are two ways to place the end of drain hose: 1. Put it through the water trough. 2. -
Page 14: Instructions
INSTRUCTIONS BEFORE FIRST USE • Before any first wash make sure everything is installed correctly. Make sure to do one wash with no items inside to clean out the tube before your first loaded wash. After the above steps have been completed, In a few simple steps shown below you can select the type of wash you want and get started. - Page 15 INSTRUCTIONS (Cont.) • Make sure that the appliance is in a correct working temperature (0-40˚C). If the appliance is used under 0˚C the inlet valve and draining system may be damaged. • Make sure that all labels are checked on items if they can be washed. •...
-
Page 16: Wash Care Symbols
INSTRUCTIONS (Cont.) WASH CARE SYMBOLS When choosing a wash program, check for any labels on your clothes and follow the instructions. below are some commonly used symbols. -
Page 17: Detergent Dispenser
INSTRUCTIONS (Cont.) DETERGENT DISPENSER Only use low-subsiding detergents and clothing care preparations that are for use in a front load washing machine. -
Page 18: Wash Programs
INSTRUCTIONS (Cont.) WASHING PROGRAMS TABLE... - Page 19 INSTRUCTIONS (Cont.) WASHING PROGRAMS TABLE...
-
Page 20: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING: • Before starting maintenance, ensure that the appliance is unplugged and close the tap. CLEANING THE CABINET Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a wet cloth to wipe it off immediately. - Page 21 CLEANING AND MAINTENANCE (Cont.) CLEANING THE INLET FILTER Washing the filter in the tap 1 Close the tap 2 Remove the water supply hose from the tap 3 Clean the filter 4 Reconnect the water supply hose Washing the filter in the washing machine 1 Screw off the inlet pipe from the back of appliance 2 Pull out the filter with long nose pliers and reinstall after being washed 3 Use the brush to clean the filter...
- Page 22 CLEANING AND MAINTENANCE (Cont.) CLEANING THE DETERGENT DISPENSER 1 Press down the arrow location on the softener cover inside the washing machine dispenser. 2 Lift the clip up and take out the softener cover and wash all the grooves with water. 3 Restore the softener cover and push the drawer into position.
- Page 23 CLEANING AND MAINTENANCE (Cont.) CLEANING THE DRAIN PUMP FILTER 1 Be careful of the hot water. 2 Allow the detergent solution to cool down. 3 Drain pump filter can filter the yarns and small foreign matters from the washing. 4 Clean the filter periodically to ensure the washing machine operates normally. CAUTION •...
-
Page 24: Faqs
FAQs Problem Possible Cause Solution Washing Door is not closed Restart after the door is closed, check if the machine is not clothes are stuck properly starting Washer’s Door can’t be Disconnect the power and restart safety protection opened the appliance is active The connection between inlet... -
Page 25: Error Codes
ERROR CODES CUSTOMER SERVICE ON info@ayonz.com IF THERE ARE ANY OTHER ISSUES. -
Page 26: Specifications
SPECIFICATIONS Power Supply 220-240V~50Hz Standard Water Pressure 0.05MPa~1MPa Washing Capacity Rated Power 1950W Dimensions 595 (w) x 475 (d) x 850 (h) mm Weight Net: 60 kg / Gross: 63 kg... -
Page 28: Customer Helpline
CUSTOMER HELPLINE: info@ayonz.com 02 8279 8606 DISTRIBUTED BY: Ayonz Pty Ltd...
