Page 1

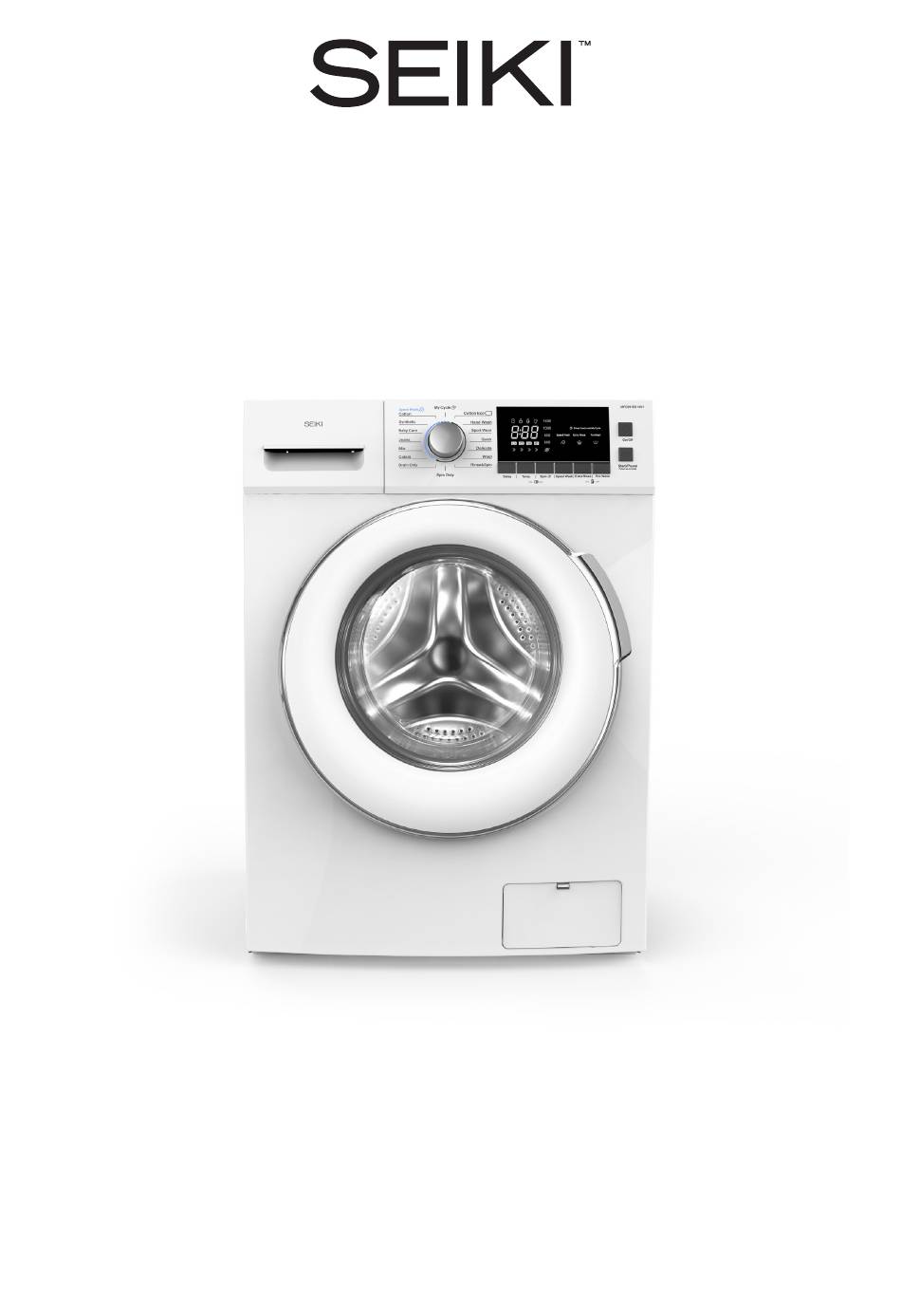

10KG FRONT LOAD WASHING MACHINE INSTRUCTION MANUAL MODEL: SC-1000AU9FLIN Please read this manual carefully before using, and keep it for future reference.
GENERAL SAFETY IMPORTANT INFORMATION Read this manual thoroughly before you start using the Washing Machine. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. Pay close attention to messages that follow this safety alert symbol or the words DANGER, WARNING...
Page 5
GENERAL SAFETY INSTRUCTIONS (Cont.) ELECTRICAL SAFETY • Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power outlet, it must be in good working order. • Power connection: Do not use an adaptor or an extension cord. Plug the power plug directly into a separate power point that cannot be accidentally turned off, and that is easily accessible so you can switch it off if needed.
Page 6
GENERAL SAFETY INSTRUCTIONS (Cont.) USAGE CONDITIONS AND RESTRICTIONS • Supervision over children is to ensure that they do not play with the appliance. Never allow them to use, play with or crawl inside the appliance. Cleaning and maintenance must not be done by children. •...
Page 7
GENERAL SAFETY INSTRUCTIONS (Cont.) CLEANING AND MAINTENANCE • Before cleaning or maintenance, always unplug the appliance from the power socket. Make sure you pull by the plug, not the cord as this can damage the power cord and cause a hazard. •...
Page 9
PRODUCT OVERVIEW (Cont.) CONTROL PANEL ON/OFF: ON/OFF button allows you to turn the appliance off or on. START/PAUSE: Press this button to start or pause the washing cycle. OPTION: This will allow you to select an additional function and will light when selected.
OPERATION PRE-WASH The Prewash function can get an extra wash before the main wash, it is suitable for washing the dust rises to surface off the clothes. You need to put detergent into the case when you select “Prewash”. EXTRA RINSE The laundry will undergo an extra rinse once you select it.
Page 11
OPERATION (Cont.) TEMP Press this button to regulate the temperature (Cold, 20°, 30°, 40°, 60°, 90°) SPIN Spin. Press the button to change the spin speed. 1400: 0-600-800-1000-1200-1400...
Page 13
OPERATION (Cont.) WASHING PROGRAM TABLE *“Cotton ECO” is the washing program to which the information in the efficiency label relates, and is suitable to clean normally soiled cotton laundry and that it is the most efficient programme in terms of combined energy and water consumptions for washing that type of cotton laundry, The actual water temperature may differ from the declared cycle temperature.
GETTING STARTED Before installing your appliance, read all safety instructions in this manual, especially the sections on electrical safety and installation. UNPACKING • When unpacking the appliance, be sure to keep all the packaging materials until you have made sure your new appliance is undamaged and in good working order.
Page 15
GETTING STARTED (Cont.) LEVELLING THE APPLIANCE IMPORTANT! Make sure to level the appliance carefully with a spirit level to ensure the most accurate levelling of the appliance. This is a must if your floor in unbalanced to level the washing machine. •...
Page 16
GETTING STARTED (Cont.) CONNECTING THE WATER INLET HOSE IMPORTANT! To prevent leakage or water damage please follow the below instructions. Do not kink, crush, modify or sever the water inlet hose. • Connect the inlet pipe as indicated, there are two ways of connecting the inlet pipe.
Page 17
GETTING STARTED (Cont.) CONNECTING THE DRAIN HOSE • Do not kink or protract the drain hose. Position the drain hose correctly other wise damage will result in water leakage. • The height of the water drain hose can be from 60 to 100cm. •...
INSTRUCTIONS BEFORE FIRST USE • Make sure the washing machine is completely level as to previous instructions on how to level your washing machine. • Make sure the water inlet hose is installed correctly. • Make sure that the washing machine is plugged into the power socket. •...
Page 19
INSTRUCTIONS (Cont.) WASH CARE SYMBOLS When choosing a wash program, check for any labels on your clothes and follow the instructions. below are some commonly used symbols.
CLEANING AND MAINTENANCE WARNING: • Before starting maintenance, ensure that the appliance is unplugged and close the tap. CLEANING THE CABINET Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary.
Page 21
CLEANING AND MAINTENANCE (Cont.) CLEANING THE DRAIN PUMP FILTER • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing. •...
Page 22
CLEANING AND MAINTENANCE (Cont.) CLEANING THE DETERGENT DISPENSER 1. Press down the arrow location on the softener cover inside the dispenser drawer. 2. Lift the clip up and take out softener cover and wash all grooves with water. 3. Restore the softener cover and push the drawer into position.
SPECIFICATIONS Power Supply 220-240V ~ 50Hz Standard Water Pressure 0.05MPa~1MPa Max Current Washing Capacity 10KG Rated Power 1950W Energy Consumption 3.5 stars / Per year: 487 kWh/year 4 Stars / Consumption: 100L per wash WELS Water Ratings WELS Wash Program: Cotton Eco Program Dimensions 595 x 587 x 850 mm (W x D x H) Net: 73kg...
