User Manual
Refillable pH Probe: Model PHC30101 or PHC30103
Safety information
Precautionary labels
Electrical equipment marked with this symbol may not be disposed of in European public disposal systems after 12
August of 2005. In conformity with European local and national regulations (EU Directive 2002/98/EC), European
electrical equipment users must now return old or end-of-life equipment to the Producer for disposal at no charge to
the user.
Note: For return for recycling, please contact the equipment producer or supplier for instructions on how to return end-of-life
equipment, producer-supplied electrical accessories, and all auxillary items for proper disposal.
Specifications
Specifications
Probe type
pH range
pH resolution
Sodium (alkalinity) error
Slope
Temperature accuracy
Operating temperature range
Storage temperature range
Junction
Reference type
Minimum sample depth
Dimensions
Cable connection
Product overview
Read all labels and tags attached to the instrument. Personal injury or damage to the
instrument could occur if not observed.
Note: Specifications are subject to change without notice.
Details
Digital combination probe with refillable double junction reference and built-in
temperature sensor
pH 0 to 14
User-selectable stabilization time and resolution—Fast: 0.1, Fast: 0.01,
Medium: 0.01, Slow: 0.01 or Slow: 0.001
-0.6 pH at pH 12.6 in 1 M NaOH
-59 mV/pH (90 to 110% at 25 °C per Nernstian theoretical value)
±0.3 °C (±0.54 ° F)
0 to 50 °C (32 to 122 °F)
5 to 40 °C (41 to 104 °F)
Ceramic
Ag/AgCl
15 mm (0.59 in.)
Diameter: 12 mm (0.47 in.)
Length: 103 mm (4.1 in.)
Total length: 200 mm (7.87 in.)
Cable length: 1 or 3 m (3.28 or 9.84 ft)
M12 digital output and connector compatible with HQd meters

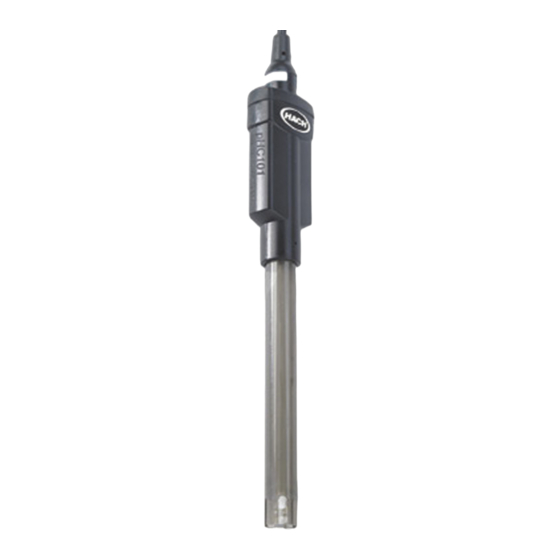

The PHC301 series probe is a pH refillable combination probe with a built-in temperature
sensor
(Figure
1). The PHC30101 or PHC30103 probe is available with a 1 or 3 m (3.28 or
9.84 ft) cable and is intended for laboratory use. The pH refillable combination probe
measures pH in wastewater, drinking water and general aquous applications. The probe is
not suitable for use with organic solvents. A 28-mL bottle of reference electrolyte filling
solution (3 M KCl solution saturated with AgCl) is included with the probe.
DOC022.53.80032
1
