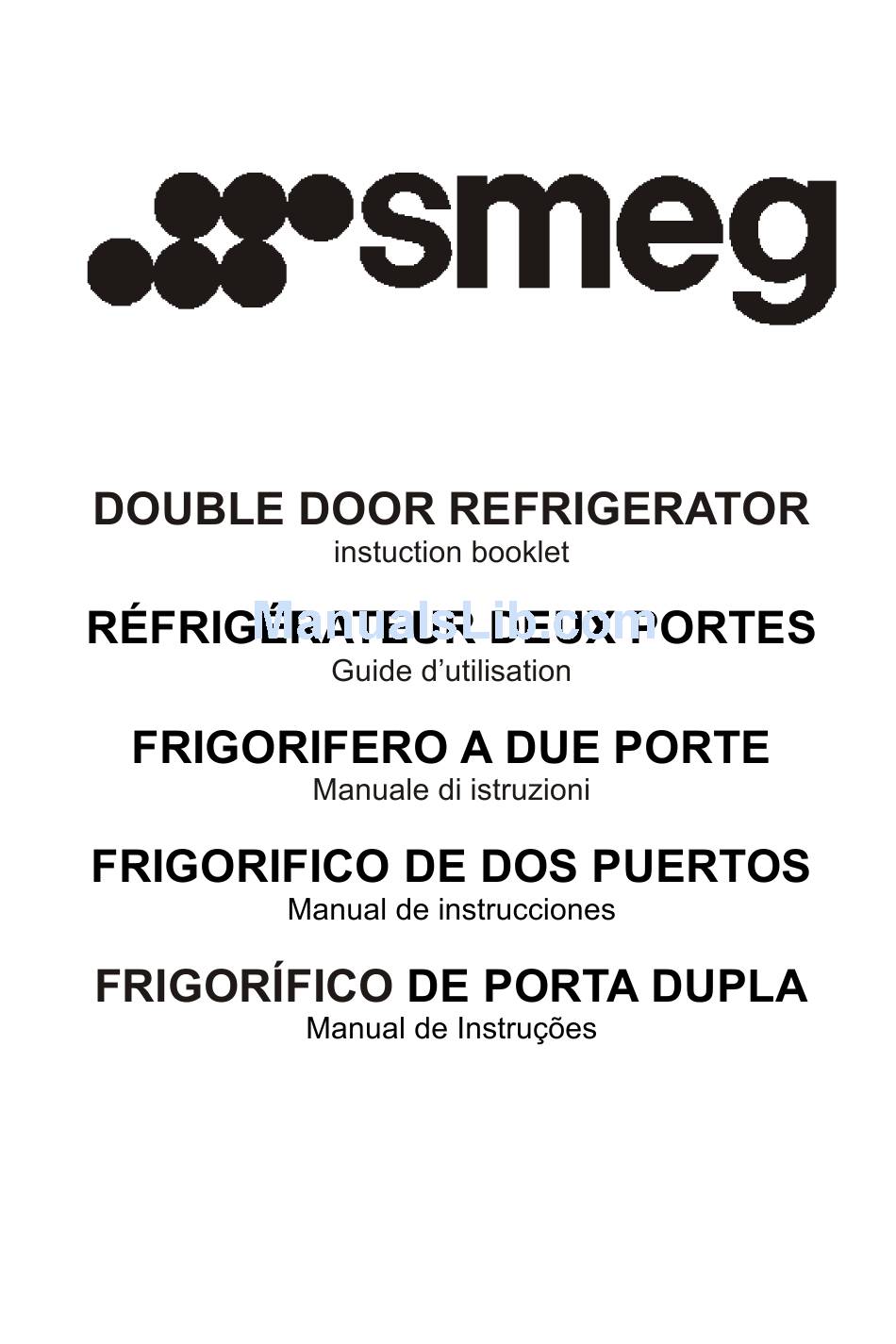

Smeg FD239A Instruction Booklet

Double door refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Smeg FD239A

Summary of Contents for Smeg FD239A

  • Page 2: Table Of Contents

    BEFORE USING THE APPLIANCE ... 2 Safety Instructions ... 2 Safety warnings ... 3 Installing and operating your fridge ... 4 Before using your fridge ... 4 THE VARIOUS FUNCTION AND POSSIBILITIES ... 5 Thermostat setting ... 5 Super switch ... 6 Accessoires ...

  • Page 3: Before Using The Appliance

    PART - 1. BEFORE USING THE APPLIANCE Safety Instructions • If the model contains R600a-see name plate under refrigerant (the coolant isobutane), naturals gas that, is very environmentally friendly but also combustible. W hen transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged.

  • Page 4: Safety Warnings

    Safety warnings Notice: Do not use mechanical devices or other artificial methods to quicken to the defrosting. Do not use electrical devices on the food storage areas of your appliance. Keep the ventilation areas of your appliance open. Do not damage your fridge's refrigerant circuit.

  • Page 5: Installing And Operating Your Fridge

    Installing and operating your fridge • Before making the connection to the power supply, ensure that the voltage on the nameplate corresponds to the voltage of electrical system at your home. • Operating voltage for your fridge is 220-240 V at 50Hz. •...

  • Page 6: The Various Function And Possibilities

    PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES Thermostat setting • Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment.By rotating the knob from position 1 to 5, colder temperatures can be obtained. «0» position shows thermostat is closed and no cooling will be avaible.

  • Page 7: Super Switch

    Super switch (If super switch is avaible) If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor. Accessoires Making ice cubes (In some models) •...

  • Page 8: Ice Tray

    Ice tray • Fill the ice tray with water and place in freezer compartment. • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube. Magic shelf (In some models) Magic shelf which is on the Crisper Cover(safety glass) (see part 7-page 13) was designed to give you more place and comfort placing the things in the appliance.

  • Page 9: Arranging Food In The Appliance

    PART - 3. ARRANGING FOOD IN THE APPLIANCE Refrigerator compartment • To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting. •...

  • Page 10: Cleaning And Maintenance

    CLEANING AND MAINTENANCE PART - 4. • Make sure to unplug the fridge before starting to clean it. • Do not wash your fridge by pouring water. • You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

  • Page 11: Defrosting

    Defrosting Refrigerator compartment; • Defrosting occurs automatically in refrigerator compartment during operation ; the defrost water is collected by the evaporating tray and evoparates automatically. • The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

  • Page 12: Replacing The Light Bulb

    Replacing the light bulb To replace the bulb in freezer and fridge departments; 1- Unplug your fridge. 2- Remove the cover of the box from the claws using a screwdriver. 3- Replace with a bulb of maximum 15 Watts. 4- Install the cover. 5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

  • Page 13: Before Calling Your After Sales Service

    BEFORE CALLING YOUR AFTER SALES SERVICE PART - 6. If your refrigerator is not working properly,it may be a minor problem, therefore check the following, before calling an electrician to save time and money. What to do if your refrigerator does not operate ; Check that ;...

  • Page 14: The Parts Of The Appliance And The Compartments

    PART - 7. A) FREEZER COMPARTMENT B) REFRIGERATOR COMPARTMENT 1) ICE TRAY 2) ICE BOX 3) FREEZER SHELF 4) MEAT TRAY/COVER 5) REFRIGERATOR SHELF 6) MAGIC SHELF 7) CRISPER COVER 8) LEVVELING FEET 9) CRISPER 10) KICK PLATE 11) THERMOSTAT BOX 12) BOTTLE HOLDER 13) BOTTOM SHELF 14) BOTTLE SHELF...
  • Page 15 248/238 LT - 66 -...
  • Page 16 332LT - 67 -...
  • Page 17 356LT - 68 -...
  • Page 18 449LT - 69 -...
  • Page 19 183LT - 70 -...
