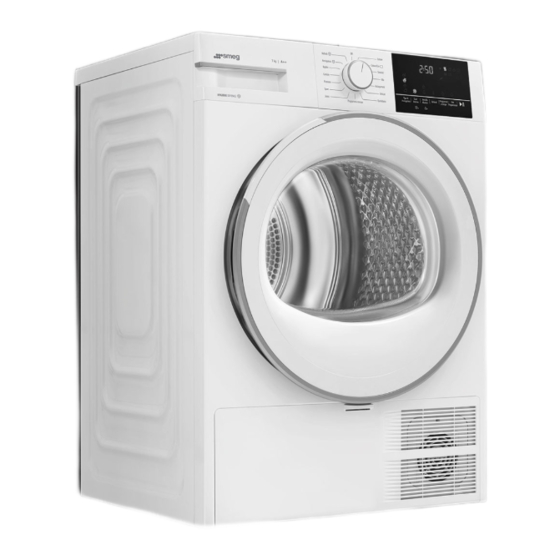

- Page 1 DN72CE Dryer User Manual Asciugatrice Manuale utente 2960313257_EN/ 08-09-22.(14:47)
- Page 2 Please read this guide prior to use this product! Thank you for choosing Smeg product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use.
-
Page 3: Table Of Contents
Table Of Contents 1 Safety Instructions ................5 1.1 Intended use .....................5 1.2 Safety of children, vulnerable persons and pets ..........5 1.3 Electrical Safety ....................6 1.4 Transporting safety ....................7 1.5 Installing safety ....................7 1.6 Usage safety .....................9 1.7 Maintenance and cleaning safety ..............10 1.8 Lighting safety ....................11 2 Environmental instructions.............. - Page 4 6 Running the product ................19 6.1 Control Panel ....................19 6.2 Symbols ......................19 6.3. Preparation of drying machine ................19 6.4 Program selection and consumption chart ............20 6.5 Auxiliary functions ....................22 6.6 Warning indicators ...................23 6.7 Starting the program ..................23 6.8 Child Lock .......................23 6.9 Changing the program after it is started ............23 Adding and removing clothes during stand-by ............23 6.10 Cancelling the program ..................24...
-
Page 5: Safety Instructions
1 Safety Instructions This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. • Our company shall not be held responsible for damages that may occur if these instructions are not observed. • Installation and repair operations shall always be performed by Authorized Service. -
Page 6: Electrical Safety
• Electrical products are dangerous for children and pets. Children and pets shall not play with the product, climb on or get inside the product. • Keep the product door closed even when not operated. Children or pets could be locked inside the product and suffocate. •... -
Page 7: Transporting Safety
1.4 Transporting safety • Unplug the product prior to transport, empty the water tank and if any, remove the water drain connections. • This product is heavy, do not handle it by yourself. • Take required precautions for the product against falling and tipping. Do not crash or drop the product when transporting. - Page 8 • Install the product where periodic maintenance and cleaning can be done with ease. • Place the product with its back surface to the wall (for heater models). • After placing the product, ensure that the back wall does not come in contact with any extrusion (a water tap, electrical outlet etc.).
-
Page 9: Usage Safety
• Washing machine cannot be placed on top of the drying machine. Installation Table for Washing Machine and Dryer Washing Machine Depth Dryer Depth 62 cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm Can be Can be installed 54 cm installed... -
Page 10: Maintenance And Cleaning Safety
• Do not use the drying machine without the fibre filter. • Do not allow fibre accumulation around the drying machine. • To prevent back draft of gas in the room from the devices that consume other fuels, including open fire, appropriate ventilation shall be provided (for models with flue). -
Page 11: Lighting Safety
• The fibre filter shall be regularly cleaned. After each drying cycle, clean the fibre filter and the inner surface of the loading door. • Clean the fibre accumulation on the fins of the evaporator behind the filter drawer with a vacuum cleaner. You can clean by hand, provided you wear protective gloves. -
Page 12: Environmental Instructions
2 Environmental instructions 2.1 Compliance with the WEEE Regulations and Waste Disposal This product does not contain the dangerous and prohibited materials indicated in the “Regulation on The Control of Waste Electrical and Electronic Equipment” published by Ministry of Environment and Urbanisation of Republic of Turkey. Complies WEEE Regulations. -
Page 13: Your Drying Machine
3 Your drying machine 3.1 Technical specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,7 cm Depth 54,3 cm Capacity (max.) 7 kg** Net weight (± %10) 42 kg Voltage Rated power input See type label*** Model code * Min. -
Page 14: General Appearance
3.2 General appearance 3.3 Scope of delivery 1. Water 6. Water discharge filling cap* hose* 2. Filter drawer 7. Pure spare Water* sponge* 8. Odour 3. User Capsule Manual Group* 4. Drying 9. Brush* basket* 5. Drying 10. Filter 1. Top panel basket user cloth* manual*... -
Page 15: Installation
4 Installation • Once the drying machine is installed, the connections must stay stable. After Read the “Safety Instructions” first! placing the drying machine, ensure that the back wall does not come in contact Before consulting the nearest Authorized with any extrusion (a water tap, electrical Service for installing the drying machine, see outlet etc.). -
Page 16: Water Connection
4.3 Water connection 4.4 Adjusting the stands Instead of periodically draining the water accumulated in the water tank, you can Until the drying discharge via the water discharge hose machine stands level supplied with the drying machine. and sturdy, adjust the stands by turning Connecting the water drainage hose them left and right. -
Page 17: Preparation
5.3 Preparing the laundry to be dried 5 Preparation Items such as coins, metal parts, needles, nails, screws, stones etc. may damage the drum group of the product or may cause functional Read the “Safety Instructions” first! operation issues. Therefore check all laundry that will be loaded to the product. -
Page 18: Correct Load Capacity
• If you are using environment friendly filter, you are not required to clean the filter after every cycle. When the environment friendly icon is lit on the screen, change the filter cloth. 5.5 Correct load capacity NOTICE If the laundry in the product exceed maximum load capacity, it may not... -
Page 19: Running The Product
6 Running the product 6.1 Control Panel 1. On/Off/Program Selection button. 6. Audible warning and child lock selection button. 2. Start / Stand-by button. 7. Wrinkle prevention selection button/ Drum 3. End time selection button. light button. 4. Time program selection button. 8. -
Page 20: Program Selection And Consumption Chart
6.4 Program selection and consumption chart Programmes Programme Description You can dry your heat-resistant cotton textiles with this programme. A drying setting suitable for Cottons 1000 the thickness of the products to be dried and the desired level of dryness should be selected. It dries single layer, casual cotton textiles in the Cottons Eco 1000... - Page 21 You can dry your feather or fibre filled textile that bears can be dried in drier label as a single piece Downwear of laundry. You can dry double duvet, pillow or coats as single piece of laundry. Dry your cloths such as coats and jackets turned inside out.
-
Page 22: Auxiliary Functions
6.5 Auxiliary functions Audible warning Dryness level Drying machine makes an audible warning when the program is completed. Press the Dryness level button is used for adjusting to “Audible Warning” button if you do not want desired dryness. Program time may change audible warning. -
Page 23: Warning Indicators
If you want to cancel the end time countdown Press the Audible Warning button for 3 and start the program immediately: seconds in order to activate the child lock. Pause the program and Turn the On/Off/ The child lock has to be deactivated to be Program Selection button and cancel the able to start a new program after the current program. -
Page 24: Cancelling The Program
If the Wrinkle Prevention mode is active and the laundry is not Adding laundry after the drying removed after the program is operation starts may cause the completed, the wrinkle prevention dried laundry inside the drying function activates for 2 hours to machine to mix with wet laundry prevent the laundry inside the and leave the laundry damp at the... -
Page 25: Maintenance And Cleaning
7 Maintenance and cleaning • Open both of the lint filters (outer and inner) and remove the fibres with your hands or with the brush on the air deflector. You can clean the hair in the filters with a vacuum Read the “Safety Instructions”... -
Page 26: Cleaning The Sensor
• Insert the lint filters on one another and 7.2 Cleaning the sensor place it back in its place. The drying machine has humidity sensors that detect whether the laundry is dry. To clean the sensors: Open the drying machine loading door. If the machine is hot due to drying operation, wait until it cools. -
Page 27: Emptying The Water Tank
7.3 Emptying the water tank During drying, the moisture is removed from Open the toe board the laundry and condensed, then the water by pulling its button. is accumulated in the water tank. Empty the water tank after each drying session. Condensed water is not potable water! Move the latches to... - Page 28 If you see fibre After cleaning the accumulation on the filter, door and the fan cover and the toe condenser, drag the board, remove with a brush to the right and cloth. lock it in its place. After the cleaning Do not have weight process is completed, on the toe board...
-
Page 29: Troubleshooting
8 Troubleshooting Drying operation takes too long. Fibre filter (interior and exterior filter) pores may be clogged. >>> Wash the fibre filters with warm water and dry. Condenser front side may be clogged. >>> Clean the front side of the condenser. The ventilation grills in front of the machine may be closed. - Page 30 The lighting inside the drying machine does not turn on. (In models with lamp) The drying machine might not have been turned on using On/Off button. >>> Check that the drying machine is turned on. Lamp might be malfunctioning. >>> Contact Authorized Service to replace the lamp. Wrinkle prevention icon or light is lit.
- Page 31 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 SMEG Supplier name or trademark DN72CE Model name Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class 212,0 Annual Energy Consumption (kWh) Automatic Type of Control Non-automatic...
