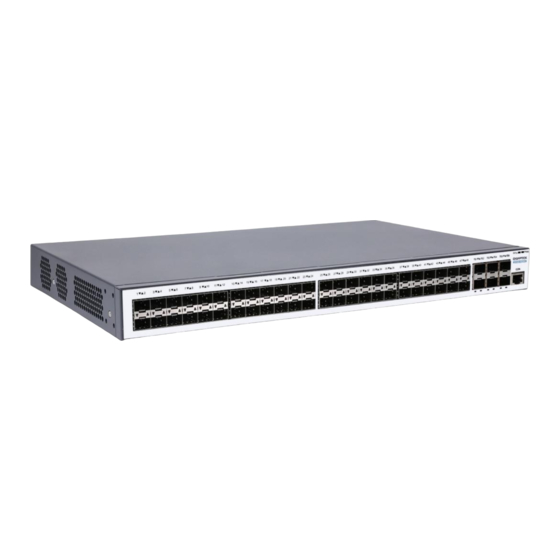

QSFPTEK S5300-48S6X Quick Start Manual

48-port gigabit ethernet l2+ switch, 48x 1g sfp ports, with 6x 10g sfp+ uplinks, support stacking
Hide thumbs Also See for S5300-48S6X:

Advertisement

Quick Links

S5300-48S6X Quick Start Guide
48-Port Gigabit Ethernet L2+ Switch
48x 1G SFP Ports, with 6x 10G SFP+ Uplinks, Support
Stacking
www.qsfptek.com
V2.0
V2.0
0
1 / 10

Advertisement

Table of Contents
loading

Summary of Contents for QSFPTEK S5300-48S6X

  • Page 1 S5300-48S6X Quick Start Guide V2.0 48-Port Gigabit Ethernet L2+ Switch 48x 1G SFP Ports, with 6x 10G SFP+ Uplinks, Support Stacking www.qsfptek.com V2.0 1 / 10...
  • Page 2 Introduction The S5300-48S6X switch is an access switch for telecom IP and diskless working environments. This switch is built on new-generation high-performance hardware and offers powerful features, including ACL, flexible QinQ, 1:1 and N:1 VLAN swapping, Ethernet OAM, carrier-grade QoS, industrial-grade 10 Gigabit Ethernet ring, and support for Layer 3 routing protocols.
  • Page 3: Hardware Overview

    Description 1G port link. SFP+ 10G port link. If the SYS indicator flickers, the SYS LED system works normally. If the PWR indicator is always PWR LED on, the device is powered on. Back Panel www.qsfptek.com V2.0 3 / 10...
  • Page 4: Installation Requirements

     discharged Avoid damaging devices by following the electrostatic discharge prevention procedure.  S5300-48S6X Hardware Installation Manual  Put the machine box in a place where cool air can blow off the heat inside the machine box.  Make sure the machine box is sealed.
  • Page 5: Connecting The Power

    Connect the other end of the power cord to an AC power source equipment.  Connecting the SFP Port Insert the SFP module into the SFP port.  Plug a fiber patch cable into the SFP transceiver.  www.qsfptek.com V2.0 5 / 10...
  • Page 6: Connecting The Management Ports

    Insert the SFP+ module into the SFP+ port.  Plug a fiber patch cable to the SFP+ transceiver.  Connect the other end of the fiber to the device that you want to realize data communication.  Connecting the Management Ports www.qsfptek.com V2.0 6 / 10...
  • Page 7: Connecting The Console Port

    Connect the DB9 female connector on the other end of the console cable to the serial port  on the computer host. Configuring the Switch Configuring the Switch Using the Web-based Interface Step 1: Connect your computer to the switch using an Ethernet cable and open a web browser. www.qsfptek.com V2.0 7 / 10...
  • Page 8 Step 2: Launch the terminal simulation software such as Hyper Terminal on the computer. Step 3: Configure the parameters of the terminal emulation software as follows: 9600 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control. www.qsfptek.com V2.0 8 / 10...
  • Page 9: Troubleshooting

    2. If the switch is too hot, check whether the air outlet and air inlet are clean and then do relative operations in section 2.3 “Requirements for Common Locations”. If the switch cannot be started and the PWR indicator is off, check the power. www.qsfptek.com V2.0 9 / 10...
  • Page 10: Support And Other Resources

     Product Warranty S5300 series switches are backed by a 5-year limited warranty supported by QSFPTEK. You are eligible to apply for a return within 14 days and exchange within 90 days of receiving them. For more details about applying qualifications, please live chat or email sales@qsfptek.com...
