SERVICE MANUAL
LED COLOR TELEVISION

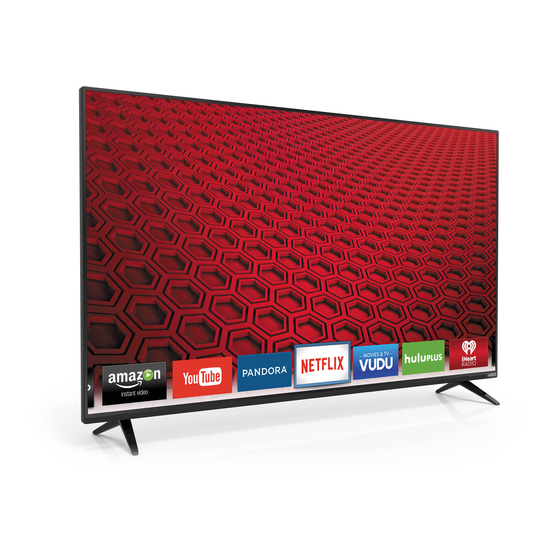

MODEL: Vizio E60-C3

Advertisement

Table of Contents
loading

Related Manuals for Vizio E60-C3

Summary of Contents for Vizio E60-C3

  • Page 1 SERVICE MANUAL LED COLOR TELEVISION MODEL: Vizio E60-C3...

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTION IMPORTANT SERVICE SAFETY PRECAUTION CHAPTER 1. SPECIFICATIONS [1] SPECIFICATIONS ............................2 [2] DIMENSIONS ..............................2 CHAPTER 2. REMOVING OF MAJOR PARTS [1] REMOVING OF MAJOR PARTS ....................... 4 CHAPTER 3. ADJUSTMENT PROCEDURE [1] ADJUSTMENT PROCEDURE ........................9 [2] SERVICE MODE .............................

  • Page 3: Specifications

    CHAPTER 1. OPERATION MANUAL [1] SPECIFICATIONS Vizio E60-C3 ''...

  • Page 4: Dimensions

    [2]DIMENSIONS Vizio E60-C3 '' VESA-compatible wall bracket TV screen size (Inches) Screw type (millimeters)(W*H) 60'' 400*400mm Metric 6*12mm...

  • Page 5: Removing Of Major Parts

    CHAPTER 2. Removing of Major Parts Vizio E60-C3 1. Assy/Panel Removal Notes: Please put your machine on soft material to avoid scrape panel when you disassemble it. Front view Fig.1 Back view Fig.2 Step1. Remove the FEET Assy.
  • Page 6 Remove the 4 crews as Fig.3 and pull out the FEET ASSY module Fig.3 Step 2. Remove the REAR COVER Assy. 1. Remove the 5screws, around the I/O cover area as Fig.4. Fig.4 2. Remove the 1 screw at the AC socket area as Fig.5. Fig.5 3.
  • Page 7 Fig.6...
  • Page 8 Remove the REAR COVER Assy SOP Step3. Remove Main, Power, IR board, Key pad ASSY, Ac Socket and speakers Fig.7 Remove 11 screws as Fig 7 shows, Separate Cables from the boards and detach boards. 2. Remove 3 screws as Fig 8, Detach IR ASSY and KEY ASSY.
  • Page 9 Fig.8 Detach speakers as Fig 9 Fig 9 5. Move 2 screws as Fig 10, Detach AC socket ASSY. Fig 10 Step4. Remove feet BKT. 1. Remove the 12 screws. Detach the feet BKT as Fig.11 Fig.11...

  • Page 10: Chapter 3. Adjustment Procedure

    CHAPTER 3. ADJUSTMENT PROCEDURE [1]ADJUSTMENT PROCEDURE 1. Main Menu (The default value is marked in red) Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Standard Calibrated Calibrated Dark Picture Mode Vivid Game Computer Auto Brightness control Medium High Backlight...
  • Page 11 Reduce Block Noise Medium High Game Low Latency Picture Picture Size Size&Position Picture Position Film Mode Auto Gamma Save Picture Mode Picture Lock Picture Mode Edit Mode Reset Picture Mode-Standard* Picture Mode Standard Color Normal Color Temperature Calibration Color Tuner Reset Color Tuner Speakers Surround...
  • Page 12 Audio Out Variable Equalizer Audio Mode Flat 100HZ -12~12(0) 300HZ -12~12(0) 1KHZ -12~12(0) 3KHZ -12~12(0) 10KHZ -12~12(0) Dynamic Center Bass Bosst Bright Delete Audio Mode Sleep Timer 30 minutes 60 minutes 90 minutes 120 minutes 180 minutes Timers Auto Power 10 minutes Screen Saver...
  • Page 13 Cancel ENTER ACCESS Hidden POINT NAME Network Show Keyboard Connect Test Retest Connection Manual Setup Channel Antenna Source Cable Find Cancel Channels Done Partial Scan Mode Analog/Digital Channel Analog Search Digital From Channel To Channel Tuner Start (for TV Enter Channel Add Analog Source Channel...
  • Page 14 Digital Style Caption Style As Broadcast Custom Text Style As Broadcast Playbill Newsprint Computer Modern Casual Script Capitols Text Size As Broadcast Small Standard Large Text Color As Broadcast Black White Green Blue Cyan Yellow Magenta Text Opacity As Broadcast Solid Flashing Translucent...
  • Page 15 Text Edges Color As Broadcast Black White Green Blue Cyan Yellow Magenta Background Color As Broadcast Black White Green Blue Cyan Yellow Magenta Background As Broadcast Opacity Solid Flashing Translucent Transparent Window Color As Broadcast Black White Green Blue Cyan Yellow Magenta Window Opacity...
  • Page 16 Devices HDMI-1 HDMI-1 HDMI-1 Blu-ray Cable Box Computer Game Satellite Space for key in device name Show Keyboard Cancel HDMI-2 HDMI-2 HDMI-2 Blu-ray Cable Box Computer Game Satellite Space for key in device name Show Keyboard Cancel HDMI-3 HDMI-3 HDMI-3 Blu-ray Cable Box Computer...
  • Page 17 Cancel COMP COMP COMP Blu-ray Cable Box Computer Game Satellite Space for key in device name Show Keyboard Cancel System System Information Menu English Language Español Français Time &Local Time Zone Hawaii(-10) Settings Alaska(-9) Pacific(-8) Mountain(-7) Arizona(-7) Central(-6) Indiana(-5) Eastern(-5) Atlantic(-4) Newfoundland(- 3.5)
  • Page 18 Canada Mexico Parental Locks Controls(for TV source Channel Locks only) USA TV TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA USA MOVIE PG-13 NC-17 Canadian English Canadian French 8 ans+ 13 ans+ 16 ans+ 18 ans+ Block Unrated Shows Change PIN New PIN Confirm PIN Cancel RESET LOCKS...
  • Page 19 Zoom TV Name VIZIOTV Disable ARC only Enable Device Discovery Power Indicator Reset & Reset TV to Admin Factory Defaults VIZIO Privacy Policy Smart Interactivity Store Demo Channel Guided Setup Setup Network Setup User Manual 2. Display adjustment Only adjust HDMI Mode and copy to all of input source...
  • Page 20 Alignment method: Initial Set-up: 1. Before the adjustment, system should be in burn-in mode for 30 minutes. 2. Set picture mode to Standard 3.Set Brightness and Contrast to customer’s default spec, set Backlight to Maximum and turn Off and Smart Dimming function. Auto Brightness control 4.Select source as “HDMI 1”,Change HDMI signal to white pattern.

  • Page 21: Service Mode

    [2] SERVICE MODE Enter factory mode menu: press MENU + Numeric keys “3481” to enter factory mode. while TV is in normal Power On state, press Power Key again to leave Factory Menu, TV entry Standby state. [3] SOFTWARE UPGRADE PROCEDURE 1.
  • Page 22 “updatelogic.txt” will be “V1.1.3‐SEC.utv”.   Steps to upgrade:  a. AC on and DC on to power on the TV. (You can see the OSD or Video on the  screen)  b. Prepare a USB flash and place the 2 files, V1.1.3‐SEC.utv and updatelogic.txt,  to the root of the USB flash.  c. Insert the USB flash to the USB port of the TV    d. Wait several seconds and you’ll see the message like below indicating the  firmware upgrade is in progress.    e. After the executing accomplished, TV will reboot itself.  f. After TV reboots, you’ll see the OSD message like below indicating the TV is  installing a new firmware. ...
  • Page 23   g. TV will show you current Version of TV and what version of firmware you’re  installing.    h. After the installing progress complete, TV will restart itself again. And now  the utv upgrade is accomplished. You can go to “MenuSystemSystem InformationVersion” for version number to check if the firmware  upgrade is successful.  pkg upgrade:  For pkg upgrade, you’ll receive a pkg file and the file name must be  “upgrade_loader_no_perm.pkg”. However, for a secured firmware upgraded by  upgrade_loader_no_perm.pkg, this TV must be “re‐registered” on the production  NOC of ULI. You need to provide the serial number shown on the ...
  • Page 24 “MenuSystemSystem InformationTV SN” to us. We’ll ask MTK or  Vizio for help to re‐register this TV.     Steps to update:  a. Prepare a USB flash and place the file “upgrade_loader_no_perm.pkg” in the  root of the USB flash. (No other pkg file can be placed in the root. Please  make sure there’s only this pkg file in the root)  b. Insert the USB flash to the USB port of the TV.    c. AC OFF and AC ON. You’ll see the Power LED blinking which means it’s under  programming.  d. Wait until the Power LED Stop blinking and TV will go to stand by mode.  e. DC on TV and go to “MenuSystemSystem Information” for version  number to check if the firmware upgrade is successful. ...

  • Page 25: Troubleshooting Table

    CHAPTER 4.TROUBLESHOOTING TABLE [1]TROUBLE SHOOTING TABLE The sound is not emitted from the speaker though the picture has come out. No sound output in all models? TEREMINAL MAIN UNIT: Is the audio signal outputs of pin (AE25), pin (AC24) of IC U107 and pin (12) (L OUTPUT), pin Check IC U107/U8001 and its peripheral circuits.
  • Page 26 No sound (during the reception of TV broadcasting) Does not the sound go out though the picture has come out when UHF/VHF is received? MAIN UNIT: Check the tuner and its peripheral circuits. Replace Is the IF signal output from pin (8) and pin (9) of TUNER(TU7001)? as required.
  • Page 27 No sound from external input devices (1) Does not the sound of the audio signal from (Component Input) go out? MAIN UNIT: Is the audio signal properly sent to pin (8) and pin Check the connection to CN6101 and the external (10) of CN6101? input device.
  • Page 28 No sound from external input devices (2) Does not the sound of the audio signal from (USB input) go out? Is USB stick audio format correct? Change to correct audio format. MAIN UNIT: Is +5V input to pin( 2,3) of IC U6500? Check the power supply.
  • Page 29 The audio signal is not output No audio signal output from Line-Out terminal (CN8002). MAIN UNIT: Is audio signal output from pin (12) (OUTL) and pin Check the connection to HPOL(R) OUT and (3) (OUTR) of IC U8001 to Jack (CN8002)? external devices.
  • Page 30 The audio signal is not output No audio signal output from SPDIF terminal (CN8001). MAIN UNIT: Is the audio signal output from IC U107 pin (AB4) Check the line between IC U107 and CN8001. (ASPDIF0) sent to CN8001? Check IC U107 and its peripheral circuits.
  • Page 31 No picture on the display (1) The picture doesn't appear in all modes. MAIN UNIT: Check LVDS signal output from IC U107 or not? (TX_BO0N), (TX_BO0P), (TX_BO1N), (TX_BO1P), (TX_BO2N), (TX_BO2P), (TX_BO3N), (TX_BO3P), (TX_BO4N), (TX_BO4P),(TA_BOCKN),(TX_BOCKP), (TX_BE0N), (TX_BE0P), (TX_BE1N), (TX_BE1P), (TX_BE2N), (TX_BE2P), (TX_BE3N), (TX_BE3P), (TX_BE4N), (TX_BE4P),(TX_BECKN),(TX_BECKP) Check IC U107 and its peripheral control circuits.
  • Page 32 No picture on the display (2) Does not the picture come out when VHF/UHF is received? MAIN UNIT: Check each power IC and peripheral Check TU_VCC is applied to Tuner or not? components are correct or not. Is the DIF signal output from pin (8) and pin (9) of Check the tuner and its peripheral circuits.
  • Page 33 <External Input (HDMI_1)>No picture on the display (3) Does not the picture display when HDMI cable plugged into HDMI_1? Is the HDMI1_HPD detection function of Terminal Check the circuit between pin (T8) of pin (19) of HDMI terminal (CN6200) IC U107 and CN6200. normal? Check the connection and setup with MAIN UNIT:...
  • Page 34 <External Input (HDMI_2)>No picture on the display (4) Does not the picture display when HDMI cable plugged into HDMI_2? Is the HDMI2_HPD detection function of Check the circuit between pin (T7) of pin (19) of a HDMI terminal (CN6201) IC U107 and CN6201 normal? Check the connection and setup with the external HDMI devices.
  • Page 35 <External Input(HDMI_3)>No picture on the display (5) Does not the picture display when HDMI cable plugged into HDMI_3? Is the HDMI3_HPDO detection function Check the circuit between pin (W5) of of pin (19) of a HDMI terminal (CN6202) IC U107 and CN6202 normal? Check the connection and setup with MAIN UNIT:...
  • Page 36 <External input USB>No picture on the display (7) Does not the picture display when USB cable plugged into USB port? Change to correct .jpg or .jpeg or .png or Is USB stick video format correct? .bmp format. Main UNIT: Check the U6500 power manager V-in Is the USB +5V sent to pin (1) of and V-out and power enable function.
  • Page 37 <External Input (Component)>No picture on the display (8) Does not the picture display when RCA cable plugged into component? Is Component Y/Pb/Pr signal sent to pin Check the setting of an external input (2)/Y, (4)/Pb, (6)/Pr of CN6101? device that connects of CN6101 MAIN UNIT: Is Component Y/Pb/Pr signal sent to pin Check the circuits between IC U107 and...
  • Page 38 Power unit operation check for E60-C3 Are the power cord and harness in the Power cord and harness in the unit unit connected Line filter unit? L1 ,L2,L3 or RT1,RT2 is If F1 normal out of order? Does DB1 output 155V when AC...

  • Page 39: Chapter 5. Major Ic Informations

    CHAPTER5. MAJOR IC INFORMATIONS [1]MAJOR IC INFORMATIONS 1.1. U107 (MT5580) The MediaTek MT5580KUFI family consists of a DTV front-end demodulator, a backend decoder and a TV controller and offers high integration for advanced applications. It integrates a transport demultiplexer, a high definition video decoder, an audio decoder, a two-link LVDS transmitter, a mini-LVDS transmitter (option), an EPI transmitter(option), and an NTSC/PAL/SECAM TV decoder with a 3D comb filter (NTSC/PAL).
  • Page 40 1.2. U5005, 4 GB DDR3 SDRAM C-Die Description The 4 GB Double-Data-Rate-3 (DDR3) DRAMs is a high-speed CMOS SDRAM containing 4,294,967,296 bits. It is internally configured as an octal-bank DRAM. The 4 GB chip is organized as 64Mbit x 8 I/O x 8 banks and 32Mbit x16 I/O x 8 banks. These synchronous devices achieve high speed double-data-rate transfer rates of up to 2133 Mb/sec/pin for general applications.

  • Page 41: Chapter 6.Block Diagram/Wiring Diagram

    CHAPTER 6.BLOCK DIAGRAM/WIRING DIAGRAM [1]BLOCK DIAGRAM...

  • Page 42: Power Management Block Diagram

    [2]POWER MANAGEMENT BLOCK DIAGRAM There are 1 part circuits in Power board of this project (fig.1), Power circuits which is a single layer board, There are 2 output in the power parts, one is interface board including audio and TV tuner et; the other is converter board circuit.+27V output is converter part.

  • Page 43: Wiring Diagram

    [3]WIRING DIAGRAM E60-C3...

  • Page 44: Main Unit Printed Wiring Board

    CHAPTER 7.PRINTED WIRING DIAGRAM [1]MAIN UNIT PRINTED WIRING BOARD TOP :E60-C3...
  • Page 45 BOTTOM: E60-C3...
  • Page 46 [2]POWER SCHEMATIC DIAGRAM- POWER BOARD WITH TOP/BOTTOM VIEW Top Layer...
  • Page 47 Bottom Layer...

  • Page 48: Key Unit Printed Wiring Board

    [3]KEY UNIT PRINTED WIRING BOARD E60-C3 [4] IR+LED+ALS UNIT PRINTED WIRING BOARD E60-C3...

  • Page 49: Chapter 8.Schematic Diagram

    CHAPTER 8.SCHEMATIC DIAGRAM [1]MAIN SCHEMATIC DIAGRAM 01 System POWER I CN2001 R2002 JWT_A2512WR0-15P NC/1K_J SY S_3.3V 3V3SB JWT_A2512WR0_15P_HM R2001 3V3SB PSU_BL_PWM NC/4.7K_J TP2001 TP2003 PSU_EN# PSU_AC_DET# TP2002 R2004 AC_DET# [13,6] PSU_AC_DET# PSU_BL_PWM TP2004 NC/0_J HSY NC-LD [13,18] R2003 3V3SB 100_J R2005 C2002 NC/100_J...
  • Page 50 03 YPBPR AV INTERFACE R6100 51R_F U107J AD19 AC11 TU_FAT_IN2+ ADCINP_DEMOD 3V3SB [10,11] TU_FAT_IN2+ ADCINP_DEMOD HSY NC TU_FAT_IN2- ADCINN_DEMOD AE19 AC10 [10,11] TU_FAT_IN2- ADCINN_DEMOD VSYNC AB13 AE12 R6101 TP6101 TP6102 CN6100 AB12 51R_F IF_AGC NC/HEADER_4P IF_AGC AD12 C6100 C6101 RF_AGC 47P_50V_J 47P_50V_J AC12...
  • Page 51 04 HDMI Interface HDMI port 1 ( Embedded EDID ) CN6200 HDMI CONN_19P U107D D6200 HDMI1_D0+ Y 25 HDMI3_D0+ R6201 R6205 HDMI1_D0- HDMI_1_RX_0 HDMI_3_RX_0 Y 24 HDMI3_D0- AOZ8804ADI 47K_J 100_J HDMI_1_RX_0B HDMI_3_RX_0B HDMI1_D2+ HDMI1_D2+ HDMI1_5V HDMI1_SCL HDMI_1_SCL HDMI1_D1+ HDMI3_D1+ CH_1 NC_1 HDMI_1_RX_1 HDMI_3_RX_1...
  • Page 52 05 RF Silicon Tuner TU_VCC RF_3.3V TU7001 VA4M1UA1229 L7001 TU_VCC 120R-100MHZ_0603 R7006 10K_F R7001 10K_F TU_RSTN TU_RSTN [13] RF_3.3V_DET [13] RESET# TU_VCC 3.3V TU_AGC C7007 C7003 IF-AGC 1000P_50V_K 22U_6.3V_M IF_N IF_P TUNER_SCL TUNER_SDA C7008 C7009 R7008 NC_47P_50V_J R7009 1U_10V_K 100_J IF_P IF-P TU_FAT_IN2+[17]...
  • Page 53 07 Audio U107C AB19 AE24 AB21 AIN1_L_AADC AL0_ADAC AD25 AB18 AIN1_R_AADC AR0_ADAC AC24 AV1_L_In AL01 AIN2_L_AADC AL1_ADAC AB22 AE25 AV1_R_In AR01 AIN2_R_AADC AR1_ADAC AB20 AD24 SYS_3.3V SYS_3.3V AIN3_L_AADC AL2_ADAC AC22 AC25 AV1_R_In [17] AIN3_R_AADC AR2_ADAC AV1_R_In AC20 AVDD33_ADAC AVDD33_AADC AV1_L_In [17] AIN4_L_AADC AV1_L_In...
  • Page 54 09 Panel LVDS Interface U107B MT5580KUFI_21x21_ TX_BO0P TCON0 AO0P TX_BO0N TCON1 AO0N TX_BO1P SY S_3.3V TCON2 AO1P TX_BO1N TCON3 AO1N TX_BO2P TCON4 AO2P TX_BO2N CN5001 TCON5 AO2N TX_BOCKP NC/HEADER_4P TCON6 AOCKP TP5001 TX_BOCKN TCON7 AOCKN TX_BO3P VCOM_SDA TCON8 AO3P TX_BO3N VCOM_SCL TCON9 AO3N...
  • Page 55 11 MT5580 MII/GPIO/ServAD U107G BL_ON/OFF SCART_FS0 R5061 10K_J U107H [18,4] BL_ON/OFF GPIO0 ADIN0_SRV AC_DET# SCART_FS1 R5060 10K_J AUD12V_DET [4,6] AC_DET# GPIO1 ADIN1_SRV AUD12V_DET CIGPIO0 CIGPIO30 LVDS_PWR_EN KEY _PAD0 MTK_M0 [16] LVDS_PWR_EN GPIO2 ADIN2_SRV KEY _PAD0 CIGPIO1 CIGPIO31 EMMC_RST# KEY _PAD1 TCON_VCC_DET [16] [11]...
  • Page 56 13 MT5580 Power VCCK VCCK U107E VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCCK VCC3IO_C VCC3IO_AB VCCK VCCK VCC3IO_C VCCK VCC3IO_C VCC3IO_B VCCK VCC3IO VCCK VCC3IO_B VCCK VCCK DVSS VCCK DVSS VCCK DVSS...
  • Page 57 14 MT5580 UI Interface IR+LED+KeyPad+ALS Interface 3V3SB 3V3SB L901 120R-100MHZ_0603 L_2P_53_63x32 R901 R902 R903 4.7K_J 2.2K_F NC/2.2K_F R904 CN901 C901 NC/100_J KEY _ADIN0 CLX-CF16101S0R0-NH 0.1U_10V_K KEY _PAD0 [13] R905 IR_VCC 100_J IR_IN KEY _ADIN1 KEY _PAD1 [13] AMBER R906 PWR_ON_LED L902 18_F 120R-100MHZ_0603...

  • Page 58: Power Schematic Diagram

    [2]POWER SCHEMATIC DIAGRAM AC Input and EMI Filter:(fig.7) Fig.7 CN1 is a connector for connecting AC Power.F1 is fuse to protect all the circuit AC. Input voltage is single 110V. CY1, CY2, CY3, CY4 are used high frequency noise of primary between common GND.L4,L5,L6,CX1, CX2 is used to filter low frequency noise.
  • Page 59 Flyback Control(fig.8) & LED Circuit:(fig.9) Fig.8 Fig.9.
  • Page 60 U1 is a low cost Switched Mode Power Supply (SMPS) controller IC intended for flyback topologies.U1 operates in fixed frequency mode. To reduce EMI, frequency jitter has been implemented. For Continuous Conduction Mode (CCM) operation, slope compensation is integrated. The controller can be set to accept an over-power situation for a limited amount of time. In a typical application the mains input voltage can be detected by the VSENSE pin.

  • Page 61: Key Schematic Diagram

    [3]KEY SCHEMATIC DIAGRAM E60-C3...
  • Page 62 [4]IR+LED+ALS SCHEMATIC DIAGRAM E60-C3 LED-STB LED_PWRON +3V3_STB CN100 8P 1.0MM R/A IR_IN ALS_SDA ALS_CLK D100 19-223/S2T1D-C30/2T LED_White/Orange NC_MARK2 SCR1 H4D3.2-1PIN +3V3_STB +3V3_STB U101 JSA-1126 IC--SSO6-JSA1126 ALS_SDA SDAT R101 U100 22_F ADDR IRM-H638M3/TR2 C102 ALS_CLK 2.2U_6.3V_M SCLK IR_IN VOUT Write Add.: 0x20 Read Add.

  • Page 63: Chapter 9.Parts Guide

    CHAPTER 9.PARTS GUIDE [1] SPARE PARTS LIST E60-C3 Recommended Spare Parts List Assembly Number/ Finish goods 75120C800-600-G Region North America Description E60-C3 ATSC LCD TV Updated date 2014/12/23 Item Catalog Component NO. Object Description Usage Photo Module,TFT,TV,60In Panel 76040YP00-600-G ch,1920x1080,350cd...
  • Page 64 E60-C3/CAP08,IR 04-60CAP080-01 Board Wireless Card,PCI-E,IEEE802 060204M00-600-G .11b/g/n,Ralink MT7601U,G,WFU03 AC Power Cable,400mm,+/-15 350721N00-33T-G mm,18AWG,2pin+2p in,G AC Power Cable,420mm,+/-15 350722D00-600-G mm,18AWG,2 Pin+2 Pin,G AC Power Cable,400mm,+/-15 35072E700-04T-G mm,18AWG,2pin+2p in,G FFC Cable Wire 35110YK00-600-G Assembly,592mm,+/ -3mm,1mm,10,G FFC Cable 35110YE00-GWV-G Assembly,592mm,+/ -5mm,1mm,10,G FFC Cable...
  • Page 65 FFC Cable 35110YV00-600-G Assembly,550mm,+/ -3mm,0.5mm,51,G FFC Cable 35110T700-GWV-G Assembly,550mm,+/ -3.0mm,0.5mm,51,G LCD Cable 35102GR00-600-G Assembly,240mm,+/ -5mm,G LCD Cable 35102H000-33T-G Assembly,240mm,+/ -5mm,G LCD Cable 35102PT00-600-G Assembly,300mm,+/ -5mm,G LCD Cable 35102PR00-33T-G Assembly,300mm,+/ -5mm,G Internal Antenna,2.4GHz,3.5 Antenna 79011JU00-600-G dBi,30mm*5mm*11 mm,G,WA-M-LA-02- Speaker Speaker 57020YD00-707-G Unit,6ohm,10W,G,X 78-10-E...
  • Page 66 Speaker 57020YG00-35C-G Unit,6ohm,10W,G,B W0801-15F10 Speaker 570306600-02D-G Unit,6ohm,10W,G,X 20090-0011 AC Power Cable,1850mm,+/-5 35071GY00-H36-G 0mm,18AWG,2pin+2 pin,G AC Power Cable,1800mm,+/-5 35070WU00-966-G 0mm,18AWG,2Pin+ 2Pin,G Power AC Power Code Cable,1850mm,+/-5 35071J700-600-G 0mm,18AWG,2Pin+ 2Pin,G AC Power Cable,1850mm,+/-5 350721F00-600-G 0mm,18AWG,2 Pin+2 Pin,G Remote Accessor Controller,IR,NEC,9 600156T00-886-G 40nm,14m,G,RC-90 51C-520...

  • Page 67: Cabinet Parts

    CABINET PARTS E60-C3...

  • Page 68: Supplied Accessories

    [3]SUPPLIED ACCESSORIES...

  • Page 69: Packing Parts

    [4]PACKING PARTS...
