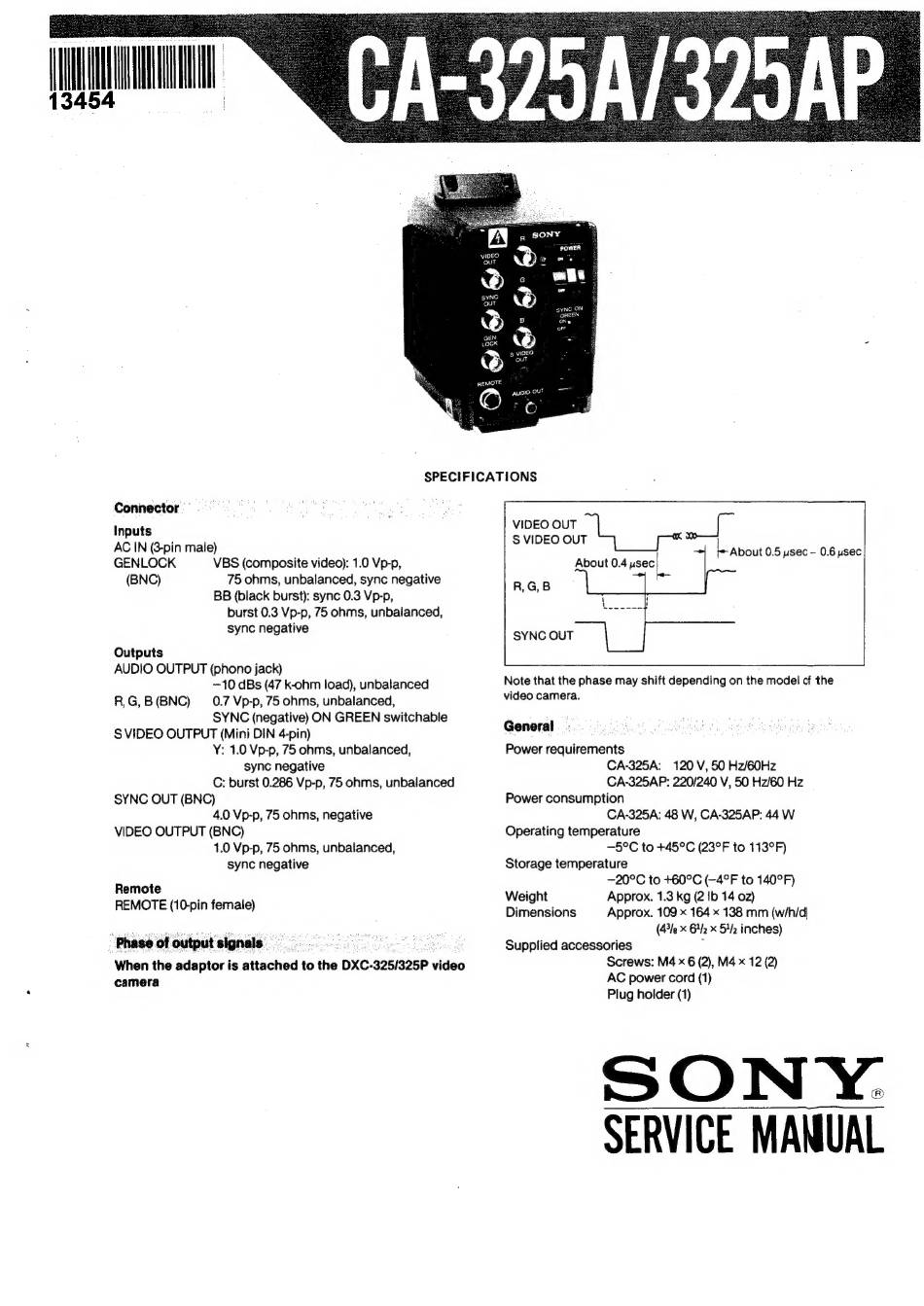

Sony CA-325A Service Manual

waguoi
SYNC ON J
GREEN
SPECIFICATIONS
Connector
Inputs
AC IN (3-pin male)
GENLOCK VBS (composite video): 1.0 Vp-p,
(BNC) 75 ohms, unbalanced, sync negative
BB (black burst): sync 0.3 Vp-p,
burst 0.3 Vp-p, 75 ohms, unbalanced,
sync negative
Outputs
AUDIO OUTPUT (phono jack)
~10 dBs (47 k-ohm load), unbalanced
0.7 Vp-p, 75 ohms, unbalanced,
SYNC (negative) ON GREEN switchable
S$ VIDEO OUTPUT (Mini DIN 4-pin)
Y: 1.0 Vp-p, 75 ohms, unbalanced,
sync negative
C: burst 0.286 Vp-p, 75 ohms, unbalanced
SYNC OUT (BNC)
4.0 Vp-p, 75 ohms, negative
VIDEO OUTPUT (BNC)
1.0 Vp-p, 75 ohms, unbalanced,
sync negative
R, G, B (BNC)
Remote
REMOTE (10-pin female)
VIDEO OUT
S$ VIDEO OUT
= 0.5 usec — 0.6 usec
About 0.4 usec
SYNC OUT
Note that the phase may shift depending on the model of the
video camera.
General
Power requirements
CA-325A: 120 V, 50 Hz/60Hz
CA-325AP: 220/240 V, 50 Hz/60 Hz
Power consumption
CA-325A: 48 W, CA-325AP: 44 W
Operating temperature
—5°C to +45°C (23°F to 113°F)
Storage temperature
—20°C to +60°C (—4°F to 140°F)
Approx. 1.3 kg (2 Ib 14 02)
Approx. 109 x 164 x 138 mm (w/h/d|
(47s x 64/2 x 54/2 inches)
Weight
Dimensions
Supplied accessories
Screws: M4 x 6 (2), M4 x 12 (2)
AC power cord (1)
Plug holder (1)
